CCX1000N | Hayward Filter Air Relief Valve Adapter Nuts For ProGrid SwimClear XStream & HCF Filters
Fits these models (3)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 3 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
Manuals & documents
- Hayward ProGrid DE Filter Owner's Manual PDF · 3.3 MB View PDF
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

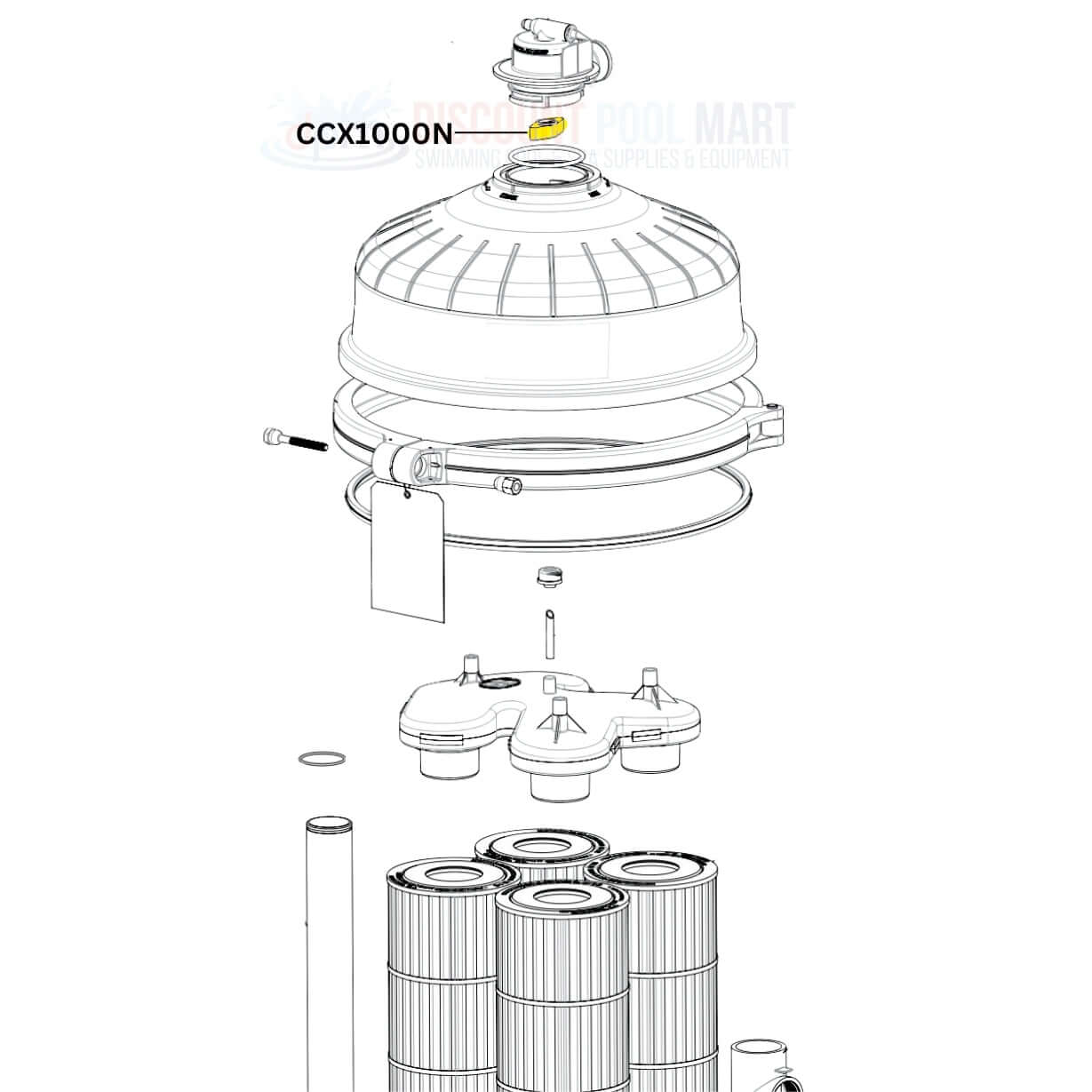

On the Hayward HCF Series Cartridge Filter HCF7030C diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward HCF Series Cartridge Filter HCF7030C

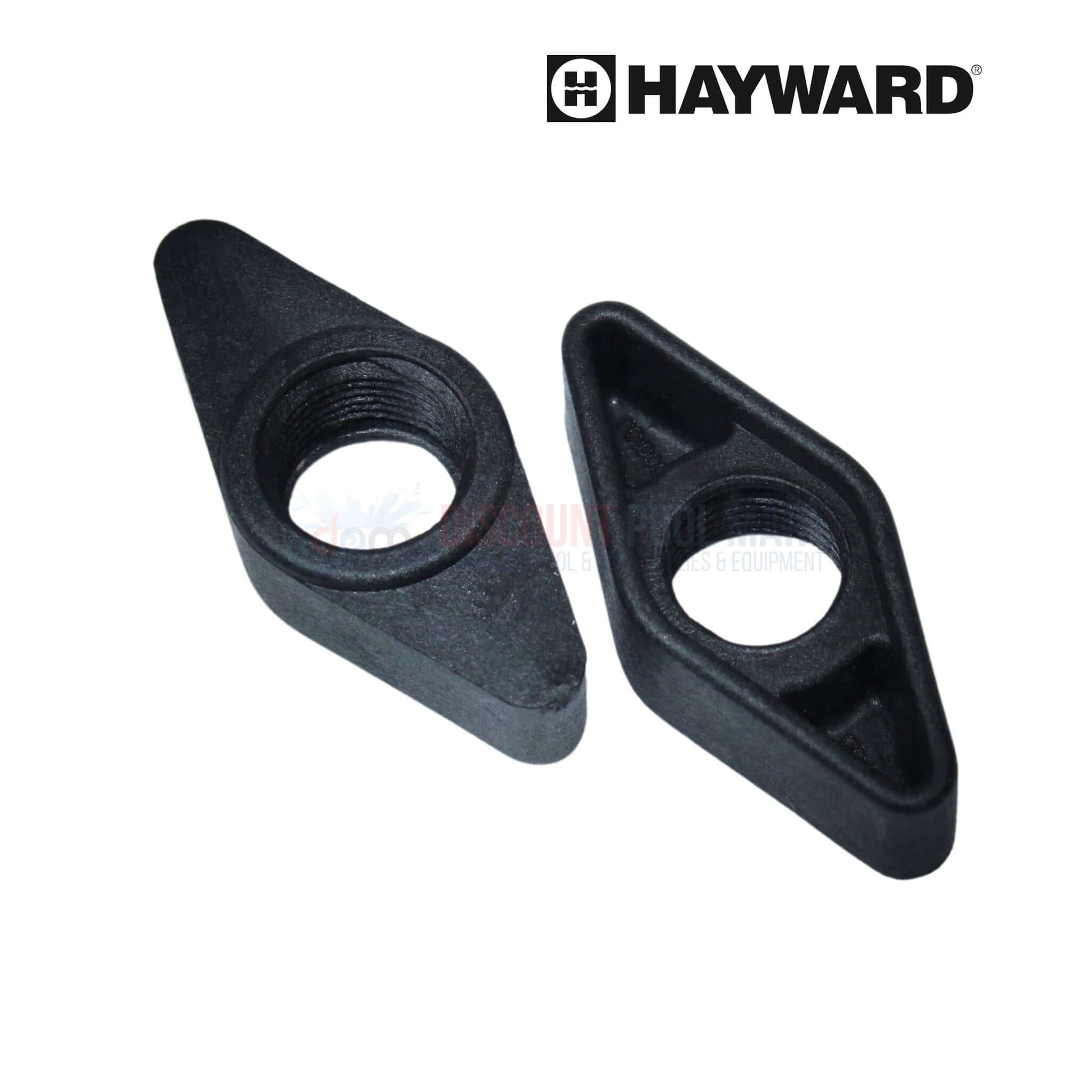

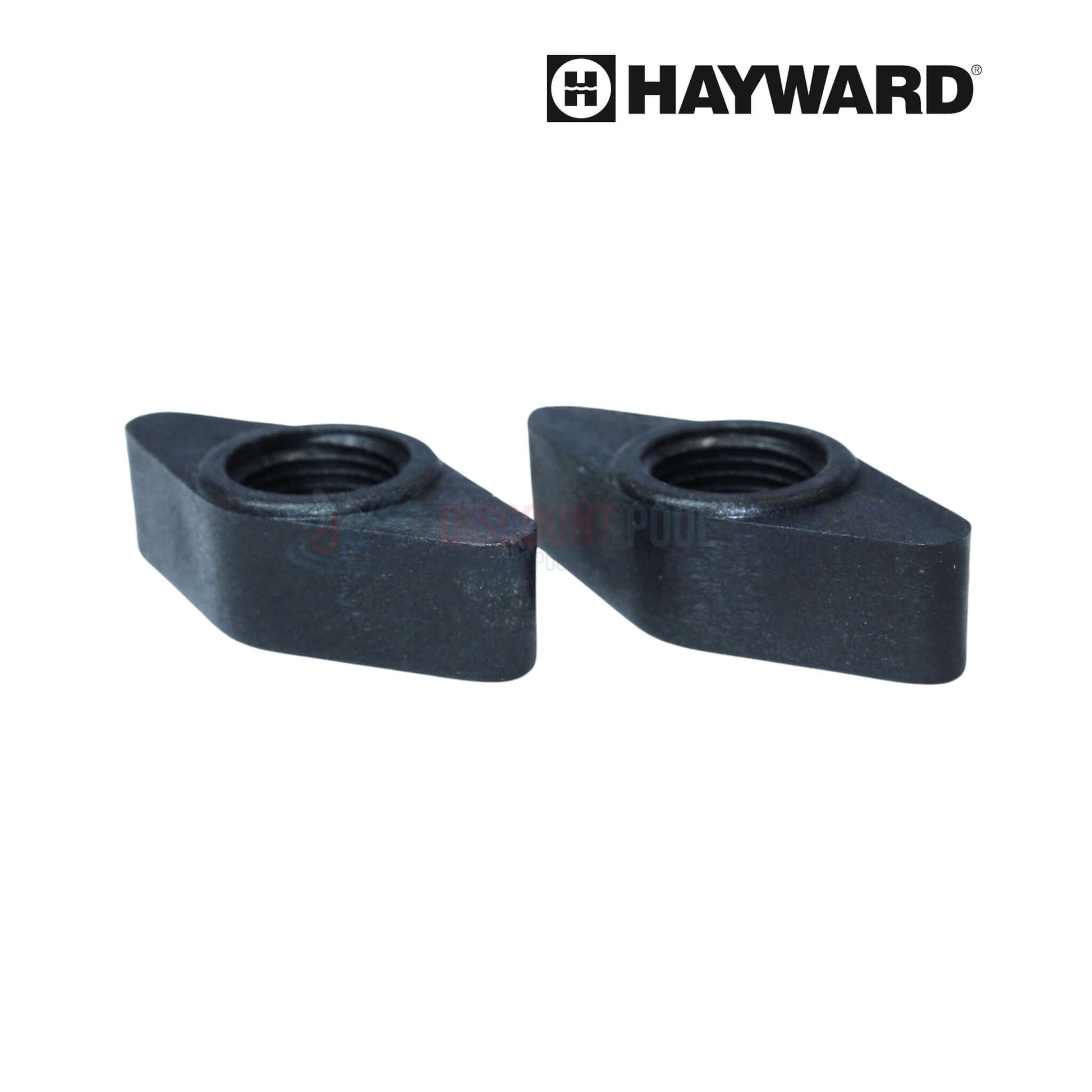

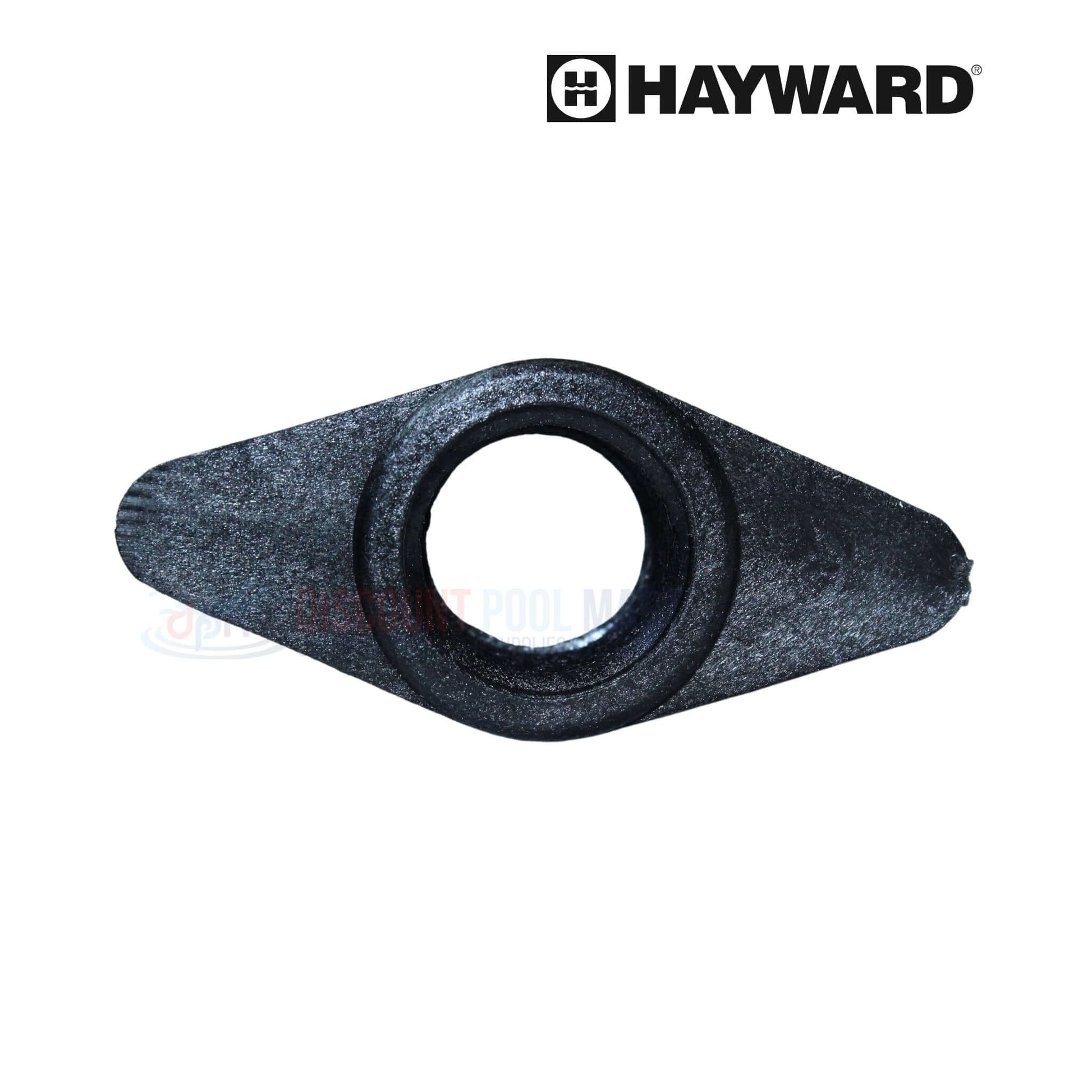

OEM Hayward CCX1000N Adapter Nut is a high-strength replacement part used to secure the manual air relief valve (CCX1000V) and pressure gauge adapter (CCX1000L) on Hayward filter systems. Compatible with Hayward Pro-Grid DE, SwimClear cartridge, XStream, and HCF Series filters, it forms a tight seal to prevent air or water leaks around the relief valve and gauge area. Built from chemical-resistant materials, the CCX1000N withstands harsh pool environments and pressure fluctuations. Replacing a worn or cracked adapter nut helps preserve safe system operation and maintain filtration efficiency.
-
OEM Nut for Air Relief and Gauge Adapters: Secures Hayward CCX1000V valve and CCX1000L adapter on multiple filter models
-
Fits Pro-Grid, SwimClear, XStream, and HCF Filters: Wide compatibility with Hayward DE and cartridge systems for versatile use
-
Prevents Leaks and Pressure Issues: Maintains a tight seal to protect system integrity and ensure consistent water flow
-
Built for Long-Term Durability: Made from high-grade plastic that resists pool chemicals, UV exposure, and water pressure
-
Helps Sustain System Performance: Replacing worn components ensures air relief and pressure monitoring work as intended
- Hayward ProGrid Vertical Grid DE Series Filter: DE2420, DE3620, DE4820, DE6020, DE7220
- Hayward SwimClear Cartridge Filter: C2030, C3030, C4030, C5030, C7030
Note: This may be compatible with your filter, please check owners manual to ensure compatibility.
