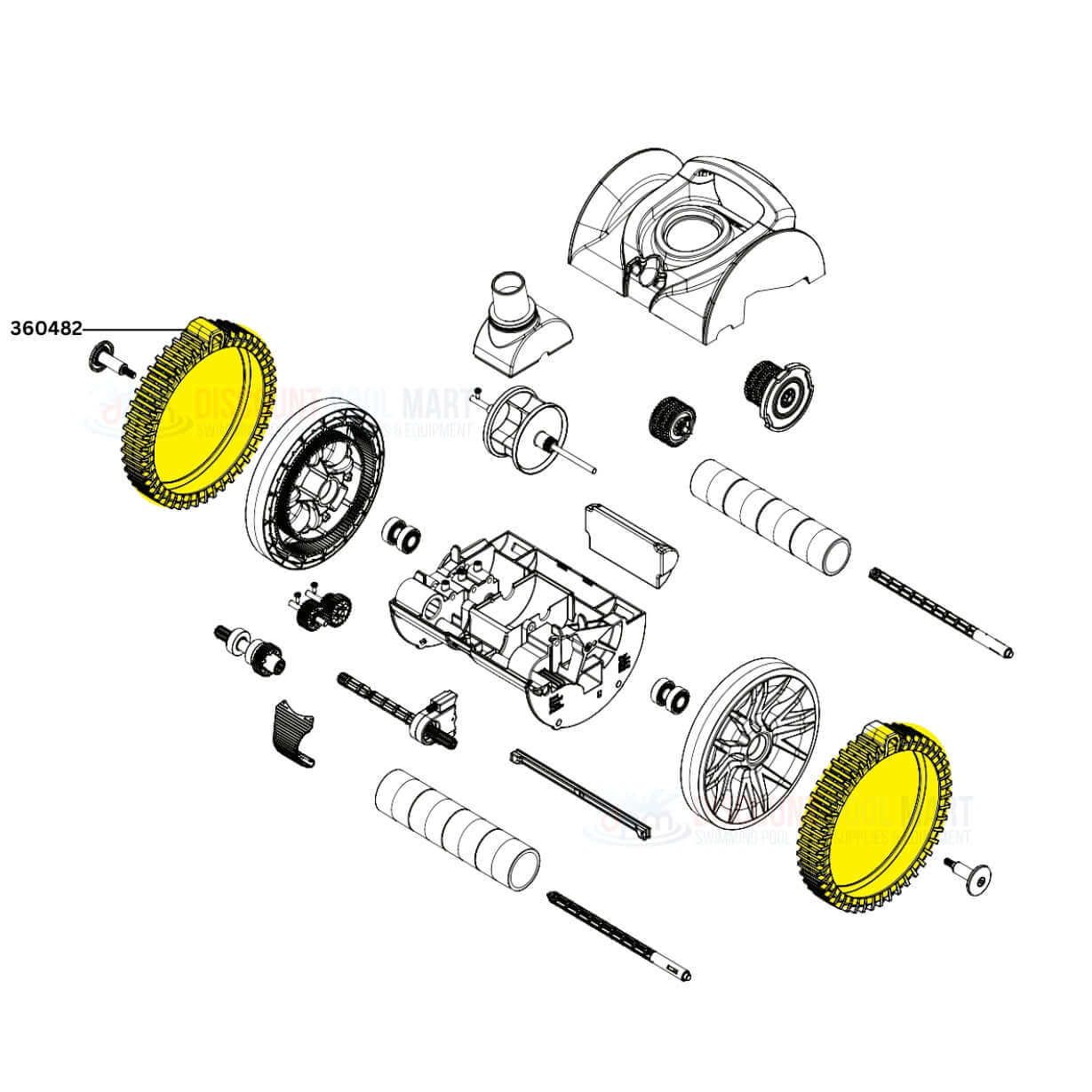

On the Pentair Rebel Inground Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair Rebel Inground Cleaner

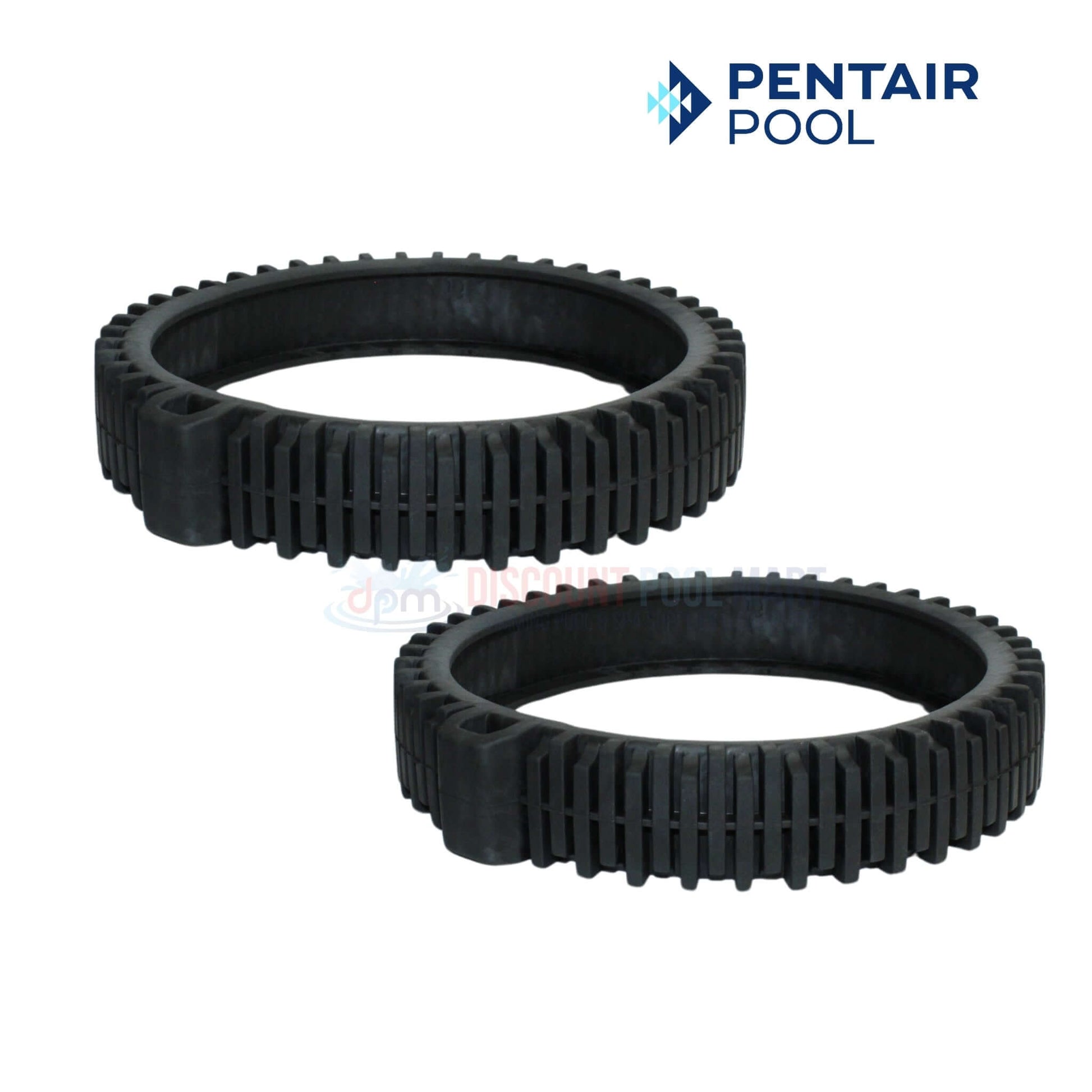

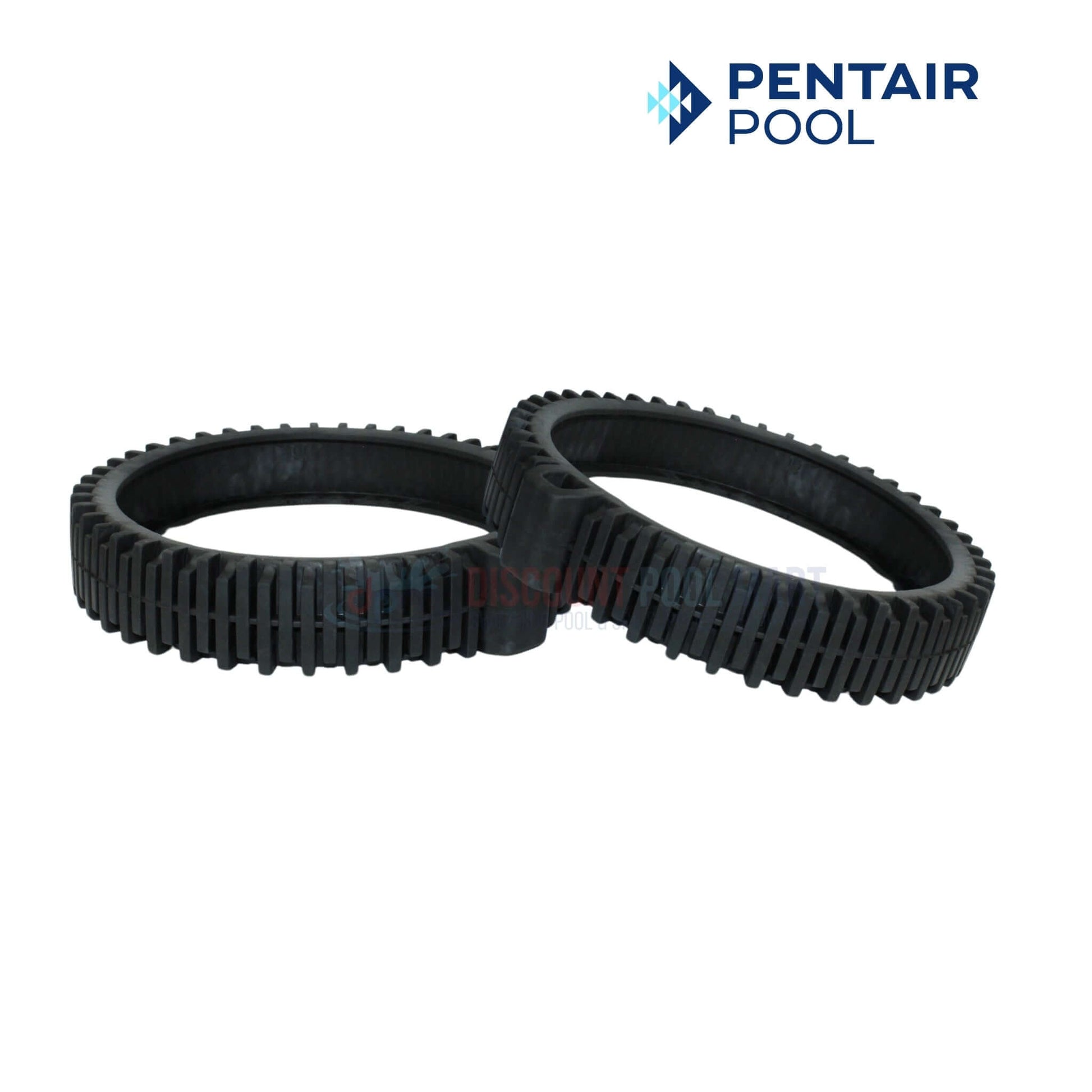

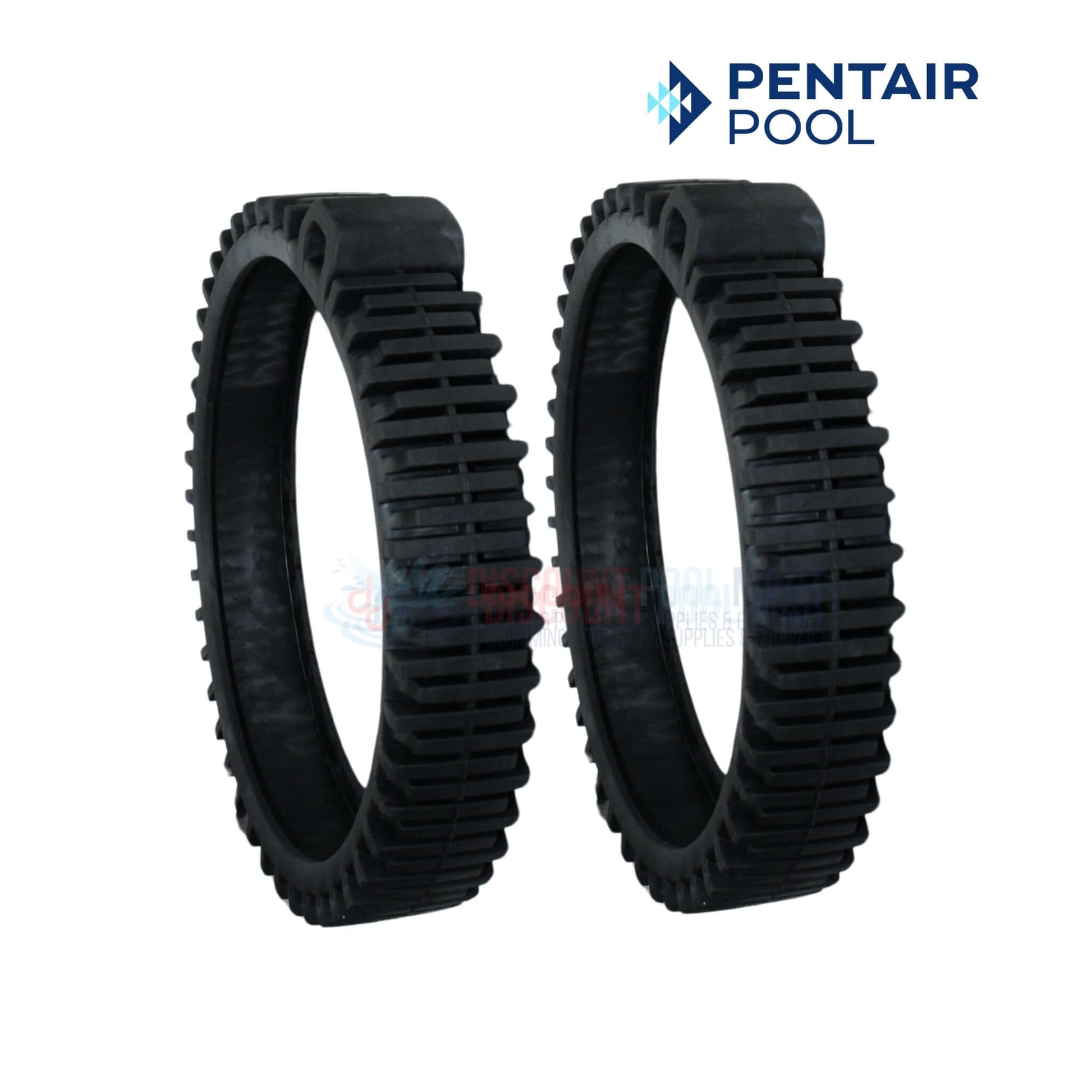

The OEM Pentair Tire Kit 360482 is a genuine replacement part designed specifically for the Rebel and Warrior pool cleaners. This kit includes two durable tires that are made from high-grade rubber, ensuring long-lasting performance and superior grip. The tires are essential for maintaining the mobility and cleaning efficiency of your pool cleaner, allowing it to navigate the pool surface and climb walls effectively. Easy to install, these tires help restore the cleaner's maneuverability, ensuring thorough and efficient cleaning.
- Genuine Replacement Part: Designed specifically for Pentair Rebel and Warrior pool cleaners, ensuring perfect compatibility and optimal performance.
- Durable Construction: Includes two tires made from high-grade rubber, providing long-lasting durability and superior grip.
- Enhanced Mobility: Essential for maintaining the mobility and cleaning efficiency of your pool cleaner, allowing it to navigate the pool surface and climb walls effectively.
- Optimal Performance: Helps restore the cleaner's maneuverability, ensuring thorough and efficient cleaning of your pool.
- Easy Installation: Simple to install, making it a convenient solution for maintaining the efficiency and longevity of your Pentair pool cleaner.
- (2) Pentair 360482 Tires
- Pentair Rebel V2 Cleaners
- Pentair Warrior V2 Cleaners
