Pentair Rebel Inground Cleaner Replacement Parts Diagram

Pentair Rebel Inground Cleaner Replacement Parts Diagram Featuring Tune-Up Kits, Tires, Head Assemblies, and Leader Hoses for Suction-Side Models

Use the diagram above to locate and confirm the right replacement parts for your Pentair Rebel cleaner, then browse each listing below to check in-store availability and fitment details.

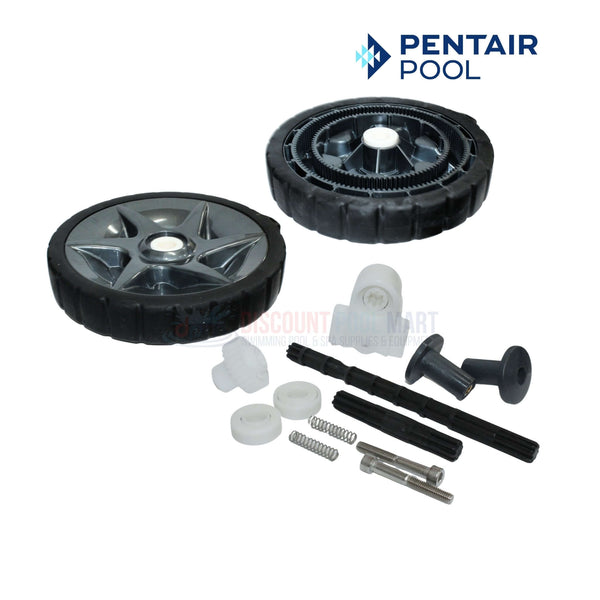

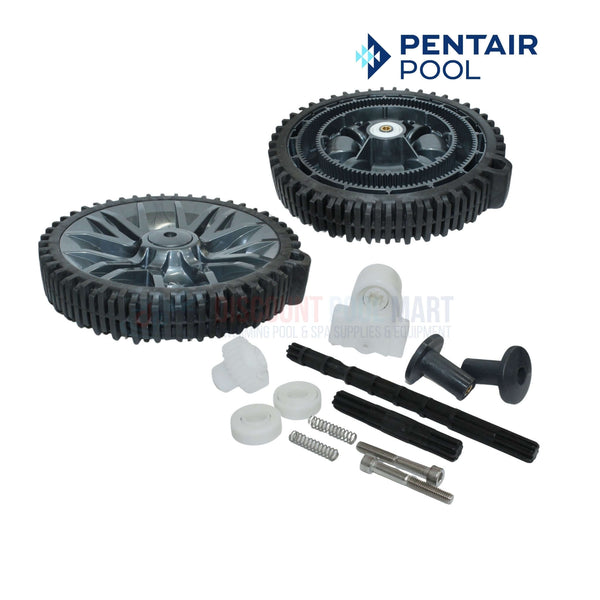

Restore internal performance with the Pentair 360517 Tune-Up Kit, made for the original Rebel suction-side cleaner model 360473.

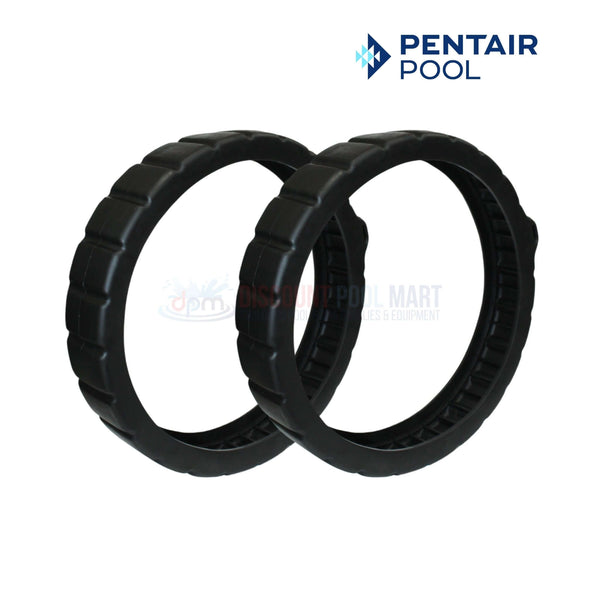

Improve traction with the Pentair 360287 Tire Kit, a 2-pack designed for Rebel and Warrior cleaner models.

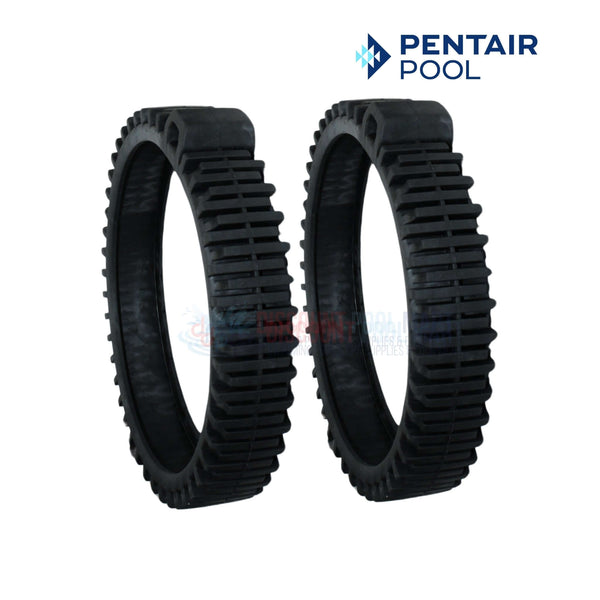

The Pentair 360482 Tires offer a newer tread design for improved grip on pool surfaces when used with Rebel and Warrior models.

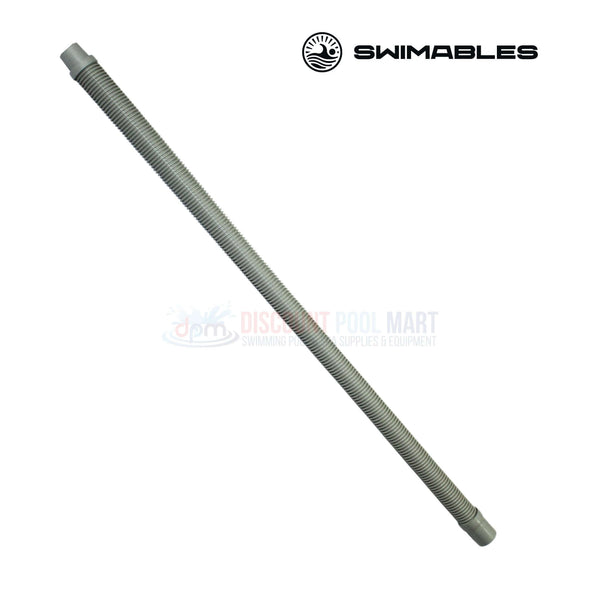

Extend cleaner hose length or replace a damaged lead with the Swimables 4-Foot Sectional Leader Hose in forest gray, compatible with a wide range of automatic cleaners.

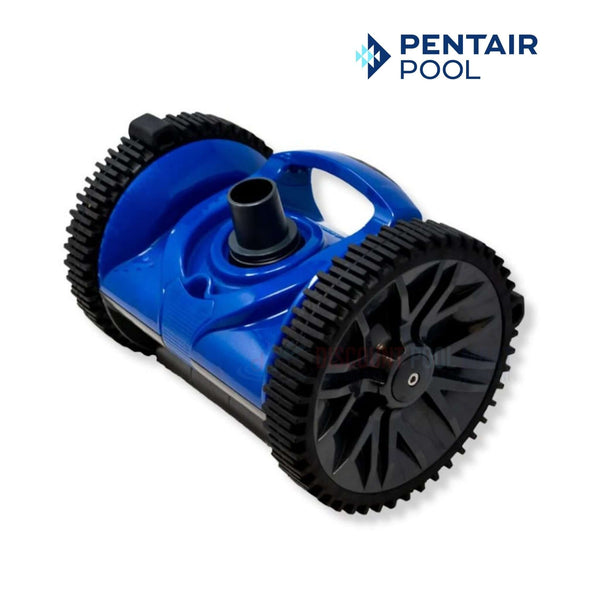

Replace the main body using the Pentair 360486 Rebel V2 Head Assembly, which includes the entire cleaner head for suction-side systems.

All Rebel parts are available in-store with full diagram assistance and expert guidance to help you find the right parts for your suction-side cleaner setup.
