  3. Pentair Seal Plate With Mechanical Seal and O-Ring For WhisperFloXF And IntelliFloXF Pumps | 400031Z
By Pentair

Pentair Seal Plate With Mechanical Seal and O-Ring For WhisperFloXF And IntelliFloXF Pumps | 400031Z

$164.99
$179.99 $164.99
-$15.00
Brand: Pentair
SKU: 400031Z
Collections:

CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

Found In These Collections

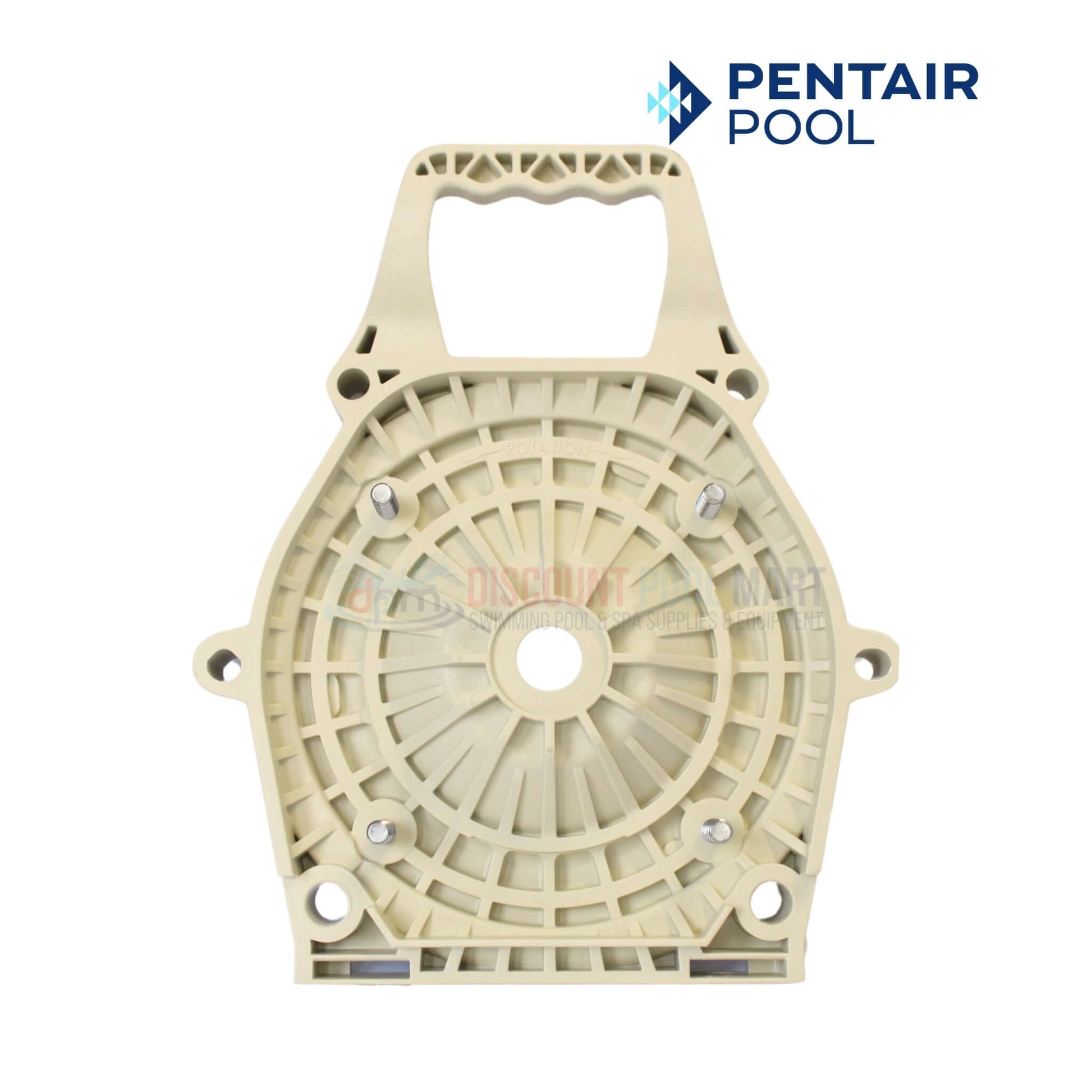

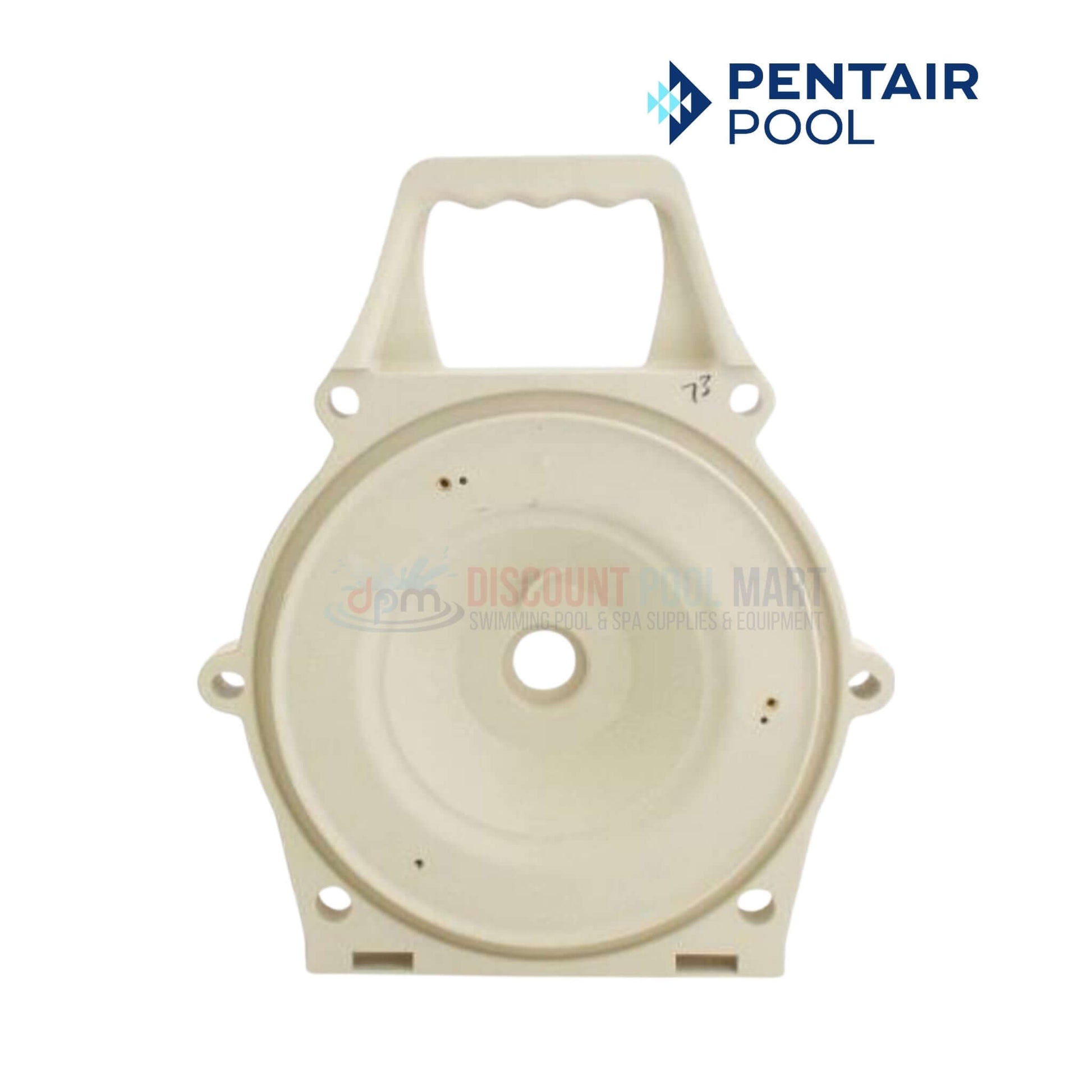

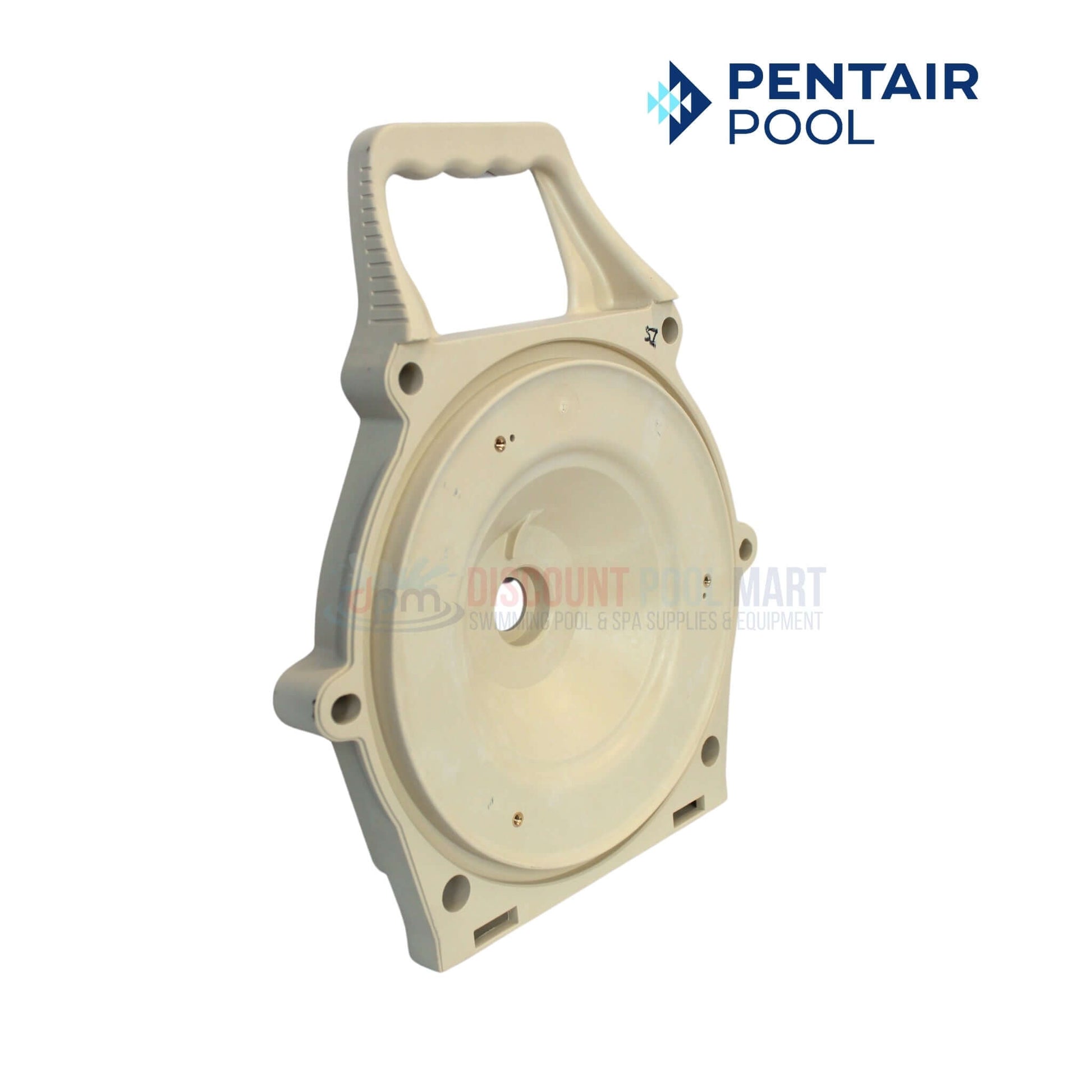

The Pentair Seal Plate, model 400031Z, includes a mechanical seal and O-ring, and is designed for WhisperFloXF and IntelliFloXF pumps. This integral component ensures a tight seal, preventing water leakage and maintaining the pump's efficiency. Constructed with durable materials, the seal plate provides long-lasting performance and reliability, ensuring optimal operation and extended lifespan of your pool pump system.

Highlights

  • Complete Seal Solution: Includes a mechanical seal and O-ring, providing a comprehensive sealing solution for WhisperFloXF and IntelliFloXF pumps.
  • Leak Prevention: Ensures a tight seal, effectively preventing water leakage and maintaining the efficiency of your pump system.
  • Durable Construction: Made from high-quality, durable materials, offering long-lasting performance and reliability in demanding pool environments.
  • Optimal Operation: Ensures the optimal operation of your pump, contributing to its extended lifespan and reducing the need for frequent maintenance.
  • Integral Component: A crucial component that maintains the overall efficiency and reliability of your pool pump, essential for smooth and effective performance.

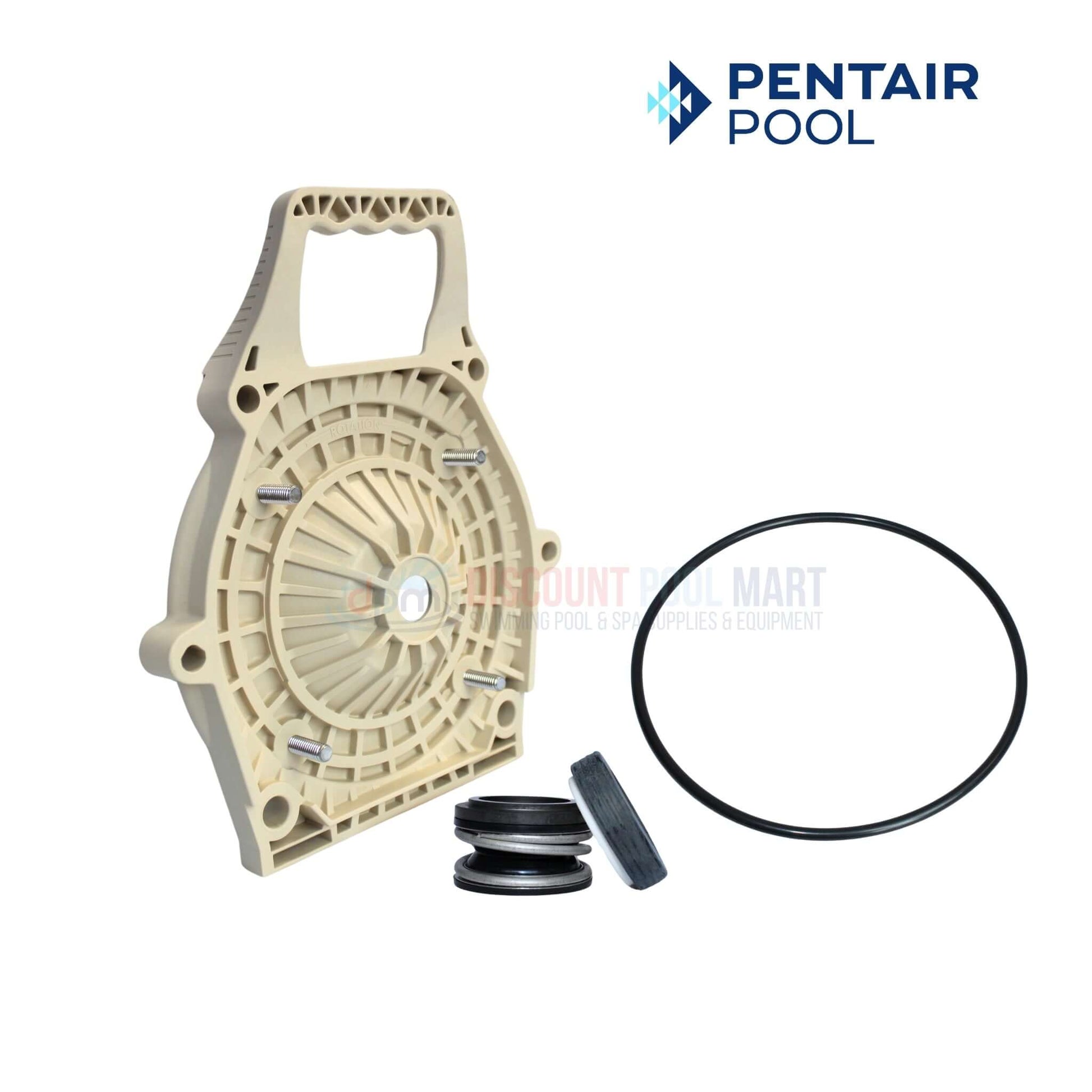

Includes

  • (1) Pentair Seal Plate
  • (1) Pentair Seal Plate O-Ring
  • (1) Pentair Seal Plate Mechanical/Shaft Seal

Instructions

Switch OFF electrical power at the house circuit breakers to the pump.
Remove the nuts that secure the volute to the seal plate.
Slide the motor and seal plate away from the volute.
Clean debris from impeller.
If debris cannot be removed, complete the following steps.
(1) Remove impeller reverse screw and O-ring.
(2) Remove, clean and reinstall impeller.
(3) Reinstall anti-spin bolt.
Reinstall diffuser and O-Ring.
Reinstall motor and seal plate into volute.
Reinstall hardware around seal plate and volute and tighten securely.
Clean suction trap.

Compatibility

Compatible with the following Pentair pumps

  • Pentair Intelliflo XF VSF Pumps
  • Pentair Whisperflo XF VSF Pumps

Note: This may be compatible with your pump, please check owners manual to ensure compatibility.

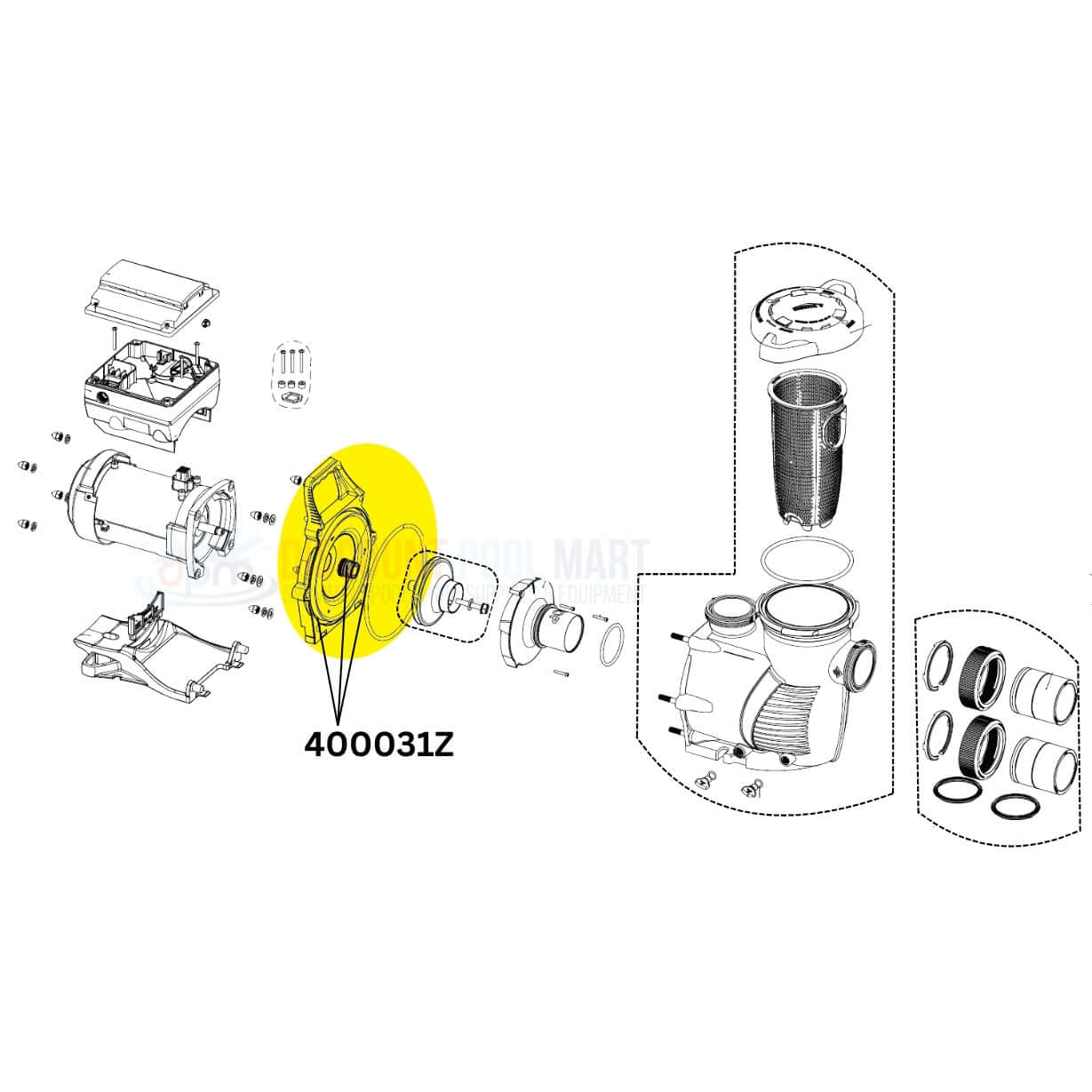

Diagram
