Pentair Lid and Locking Ring Assembly For WhisperfloXF and IntellifloXF Pumps | 400006
Fits these models (2)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 37 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

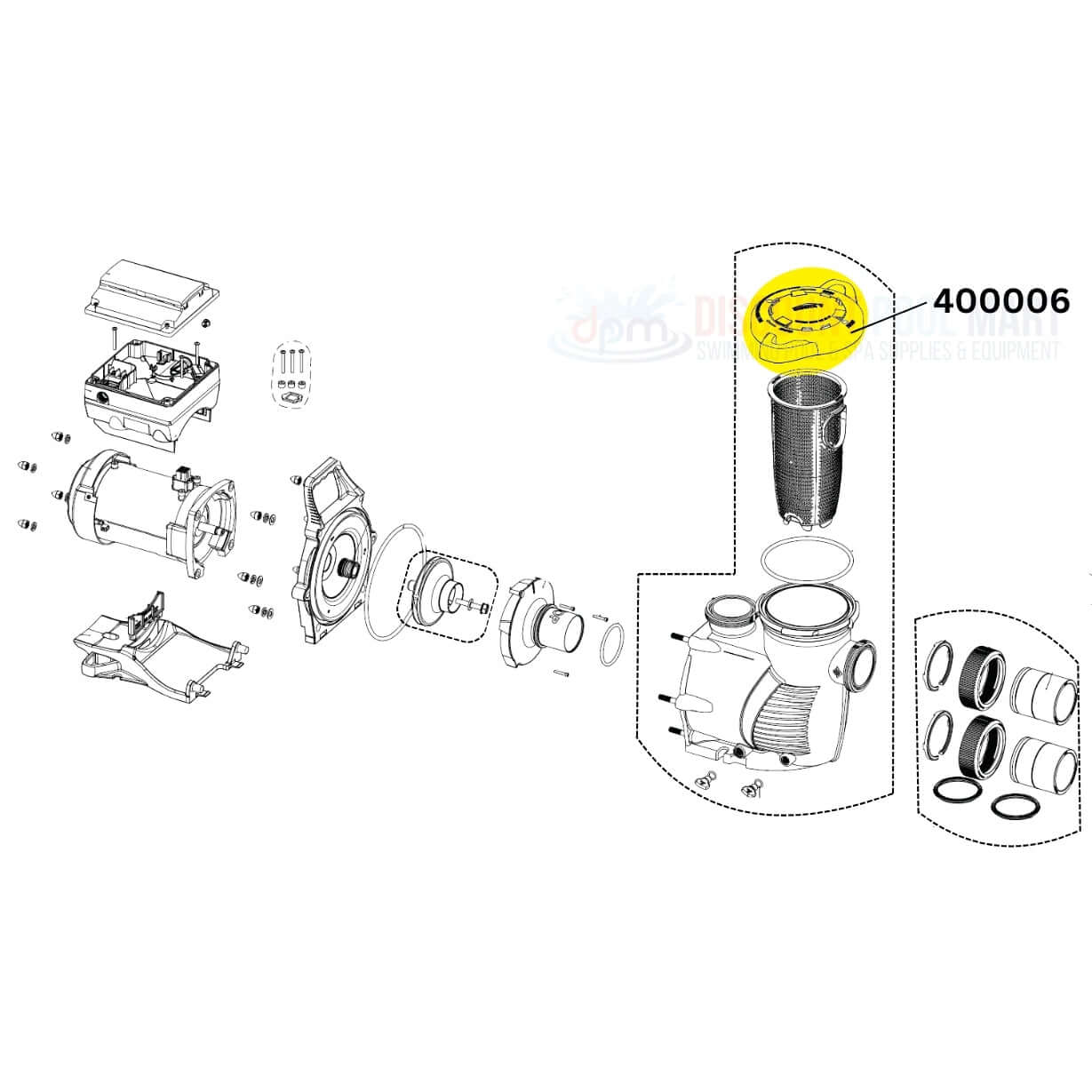

On the Pentair IntelliFloXF VSF Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair IntelliFloXF VSF Pump

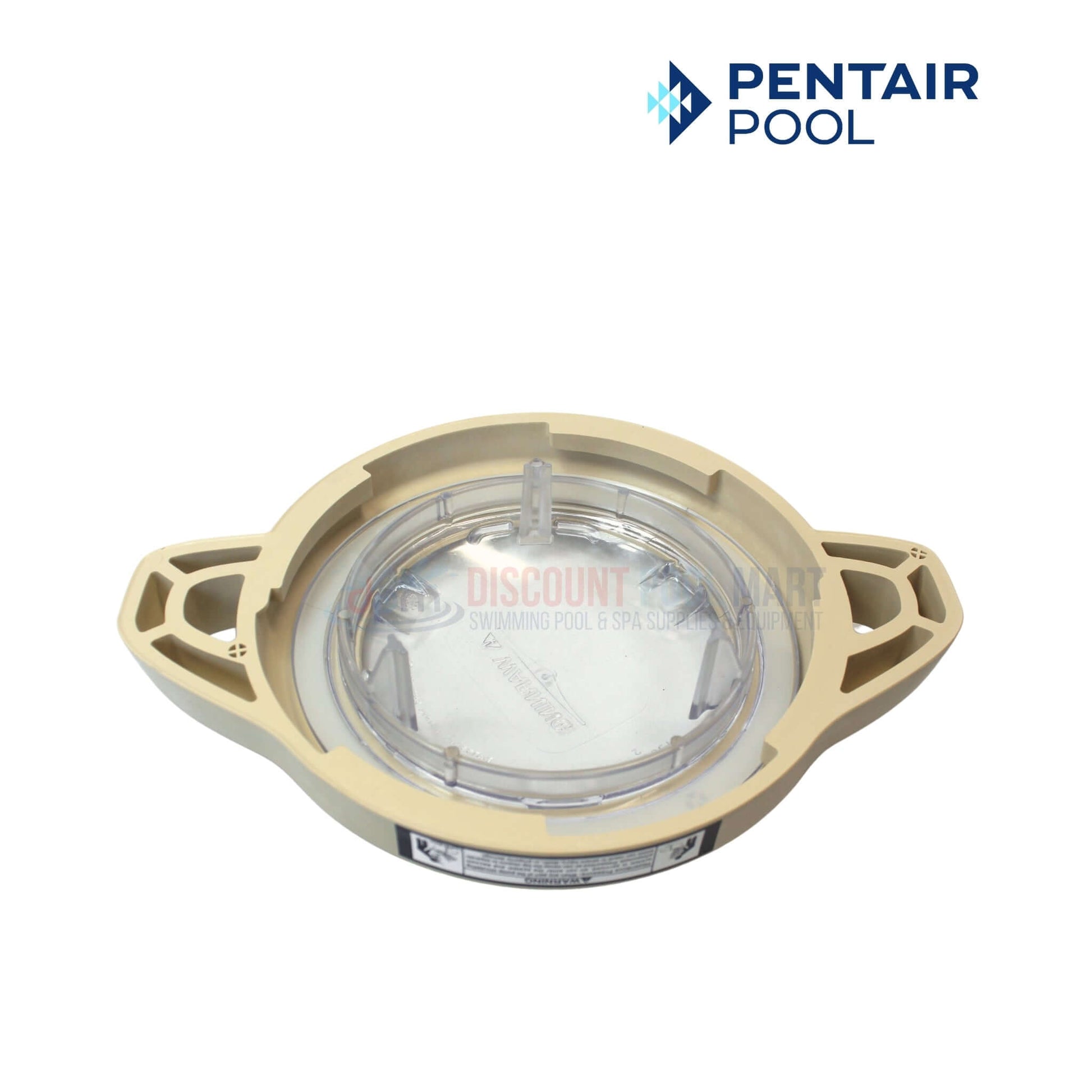

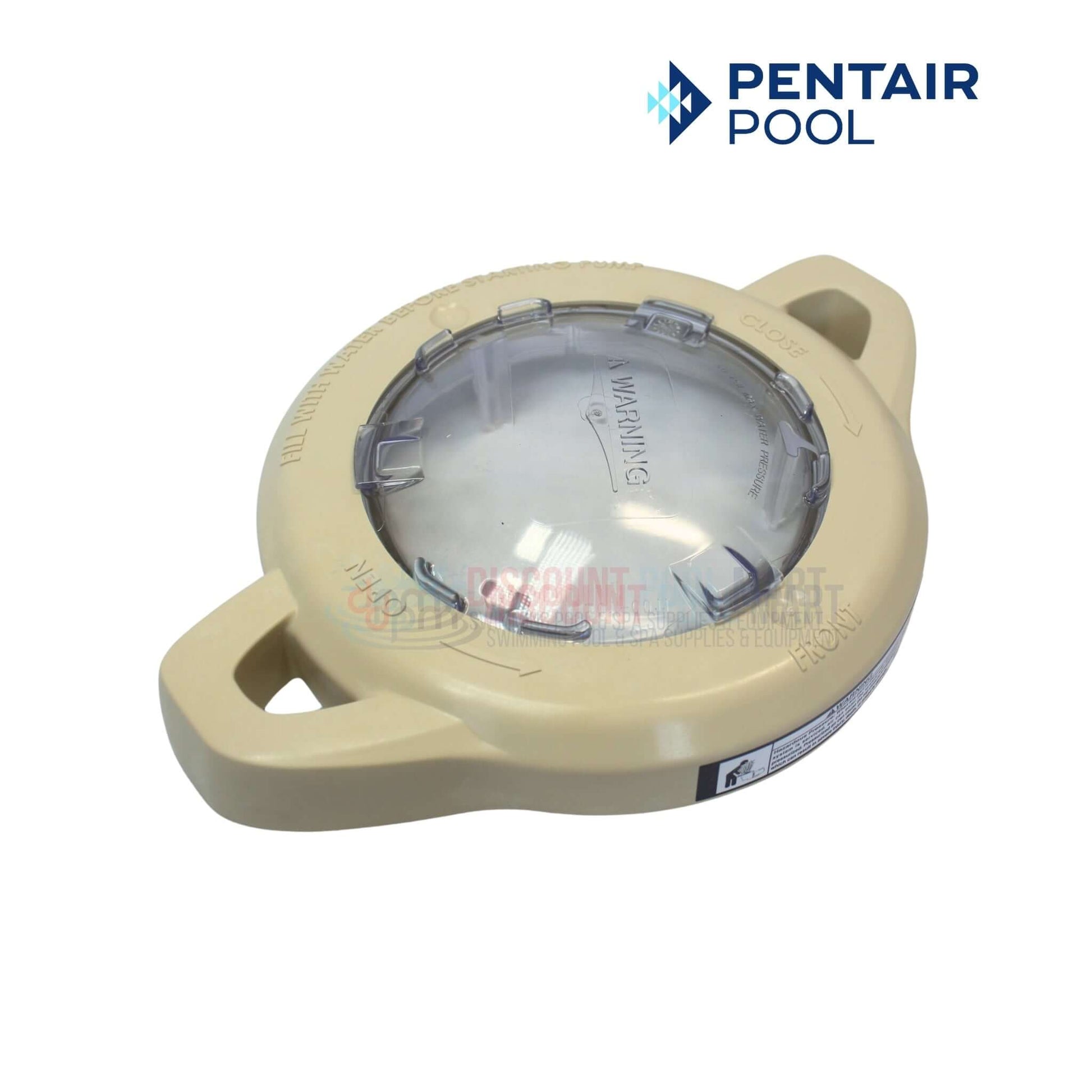

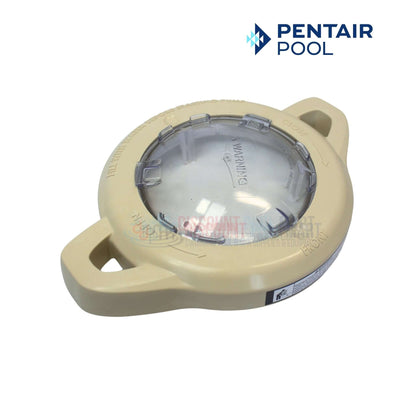

The Pentair Lid and Locking Ring Assembly, model 400006, is designed for WhisperfloXF and IntellifloXF pumps. This assembly includes a clear, durable lid and a robust locking ring, ensuring a secure fit and easy access for maintenance. The sturdy construction of this assembly provides reliable performance and longevity, helping to keep your pump running efficiently and effectively by preventing leaks and maintaining a tight seal.
Note: O-Ring not included
- Secure Fit: Designed for WhisperfloXF and IntellifloXF pumps, this assembly ensures a secure and tight fit with its robust locking ring.
- Easy Maintenance: Includes a clear, durable lid that provides easy access for maintenance and inspection without hassle.
- Leak Prevention: Maintains a tight seal to prevent leaks, contributing to the overall efficiency and effectiveness of your pool pump.
- Sturdy Construction: Made from high-quality, durable materials that ensure reliable performance and longevity even in demanding conditions.
- Optimal Efficiency: Helps keep your pump running efficiently by maintaining proper sealing and preventing wear and tear, thus enhancing the pump's lifespan.
- (1) Clear Lid
- (1) Locking Ring
Note: You will likely require a lid o-ring for this Lid and Locking Ring Assembly which is not included and can be purchased separately.
1. Press Start/Stop button on the pump and turn off the pump at the circuit breaker. Disconnect communication cable from pump.
2. Relieve pressure in the system.
3. Turn the lid and locking ring counter-clockwise and remove from the pump.
4. Remove debris and rinse out the basket. Replace the basket if it is cracked.
5. Put the basket back into the housing. Be sure to align the rib on the basket with the notch in the volute.
6. Fill the pump pot and volute up to the inlet port with water.
7. Clean the lid and locking ring, O-ring, and sealing surface of the pump pot.
Note: It is important to keep the lid O-ring clean and well lubricated.
8. Reinstall the lid by placing the locking ring and lid on the pot. Be sure the lid O-ring is properly placed. Seat the locking ring and lid on the pump then turn clockwise until the locking ring handles are horizontal.
Note: Ensure that the side of the lid/locking ring marked “Front” is positioned at the front of the pump.
9. Turn the power “ON” at the circuit breaker. Reconnect communication cable from pump.
10. Open the manual air relief valve on the top of the filter. Stand clear of the filter.
11. Wait until all pressure is relieved. Start the pump.
12. Bleed air from the filter until a steady stream of water comes out of the filter air relief valve. Close the manual air relief valve.
Compatible with Pentair pumps such as:
- Pentair IntelliFloXF VSF Pumps
- Pentair WhisperFlo XF Pumps
