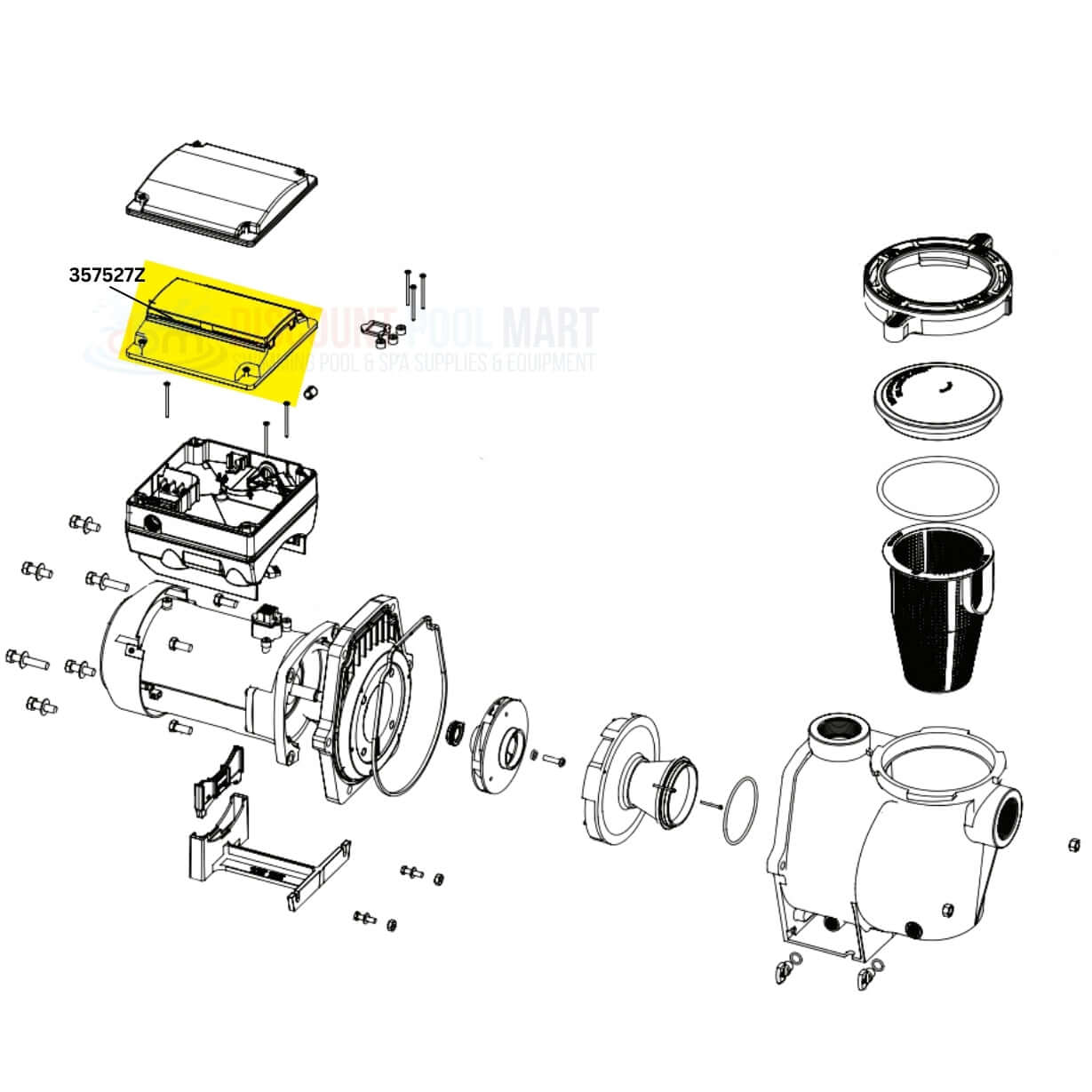

On the Pentair IntelliFlo VS Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair IntelliFlo VS Pump
The Pentair Keypad Assembly for Intelliflo Variable Speed Pumps, model 357527Z, is an essential replacement part designed to restore and enhance the control of your pool pump. This keypad assembly allows for precise adjustments to pump speed and performance, ensuring efficient and optimized operation. Built with high-quality materials, it provides durability and easy installation, making it ideal for maintaining the superior functionality of your Intelliflo pump.
- Essential Replacement Part: Designed to restore and enhance the control of your Intelliflo pool pump, ensuring smooth and reliable operation.
- Precise Adjustments: Allows for precise adjustments to pump speed and performance, ensuring efficient and optimized operation tailored to your pool's needs.
- High-Quality Construction: Built with durable, high-quality materials that guarantee long-lasting performance and reliability.
- Easy Installation: Designed for straightforward and hassle-free installation, making maintenance simple and efficient.
- Superior Functionality: Maintains the superior functionality of your Intelliflo pump, contributing to the overall effectiveness and efficiency of your pool system.

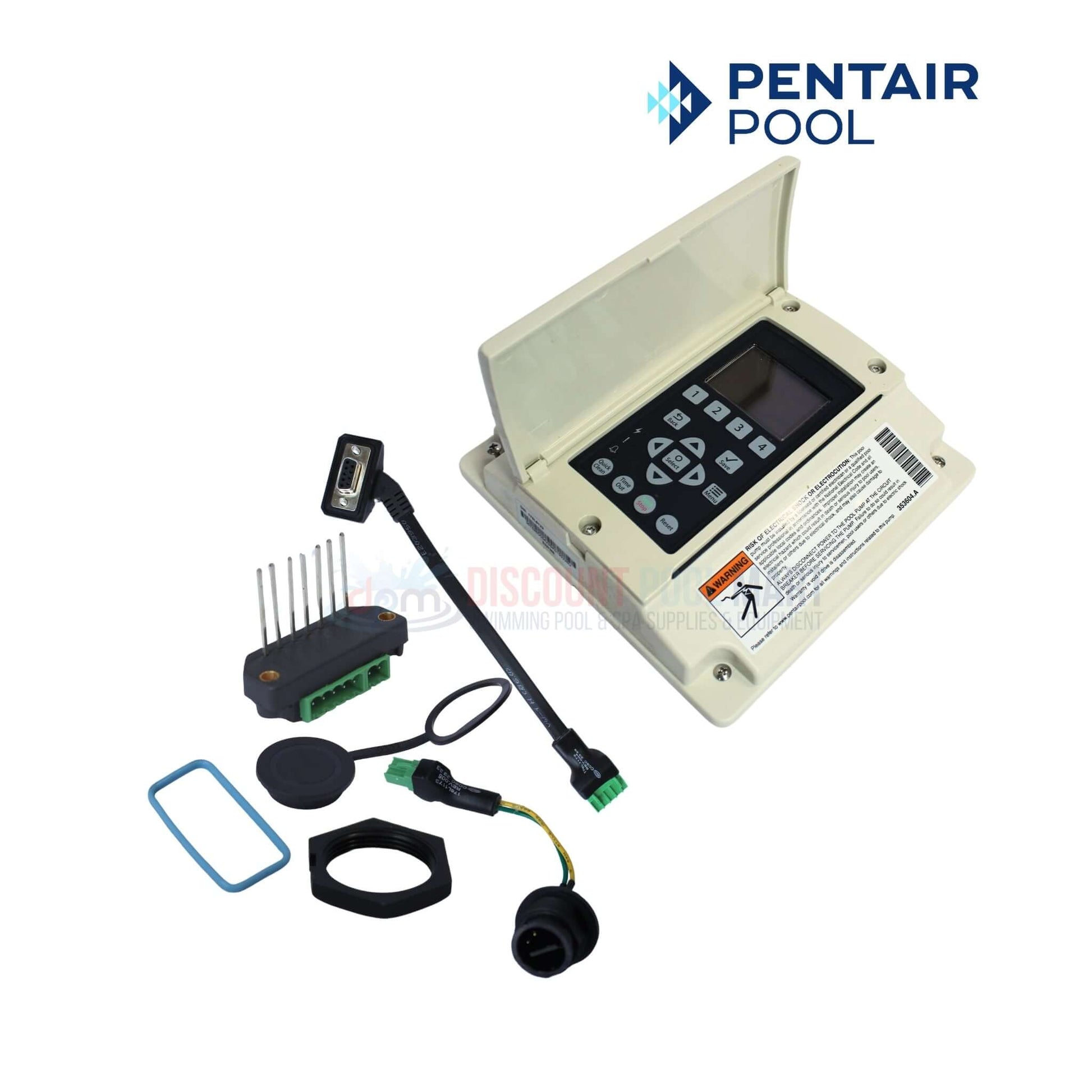

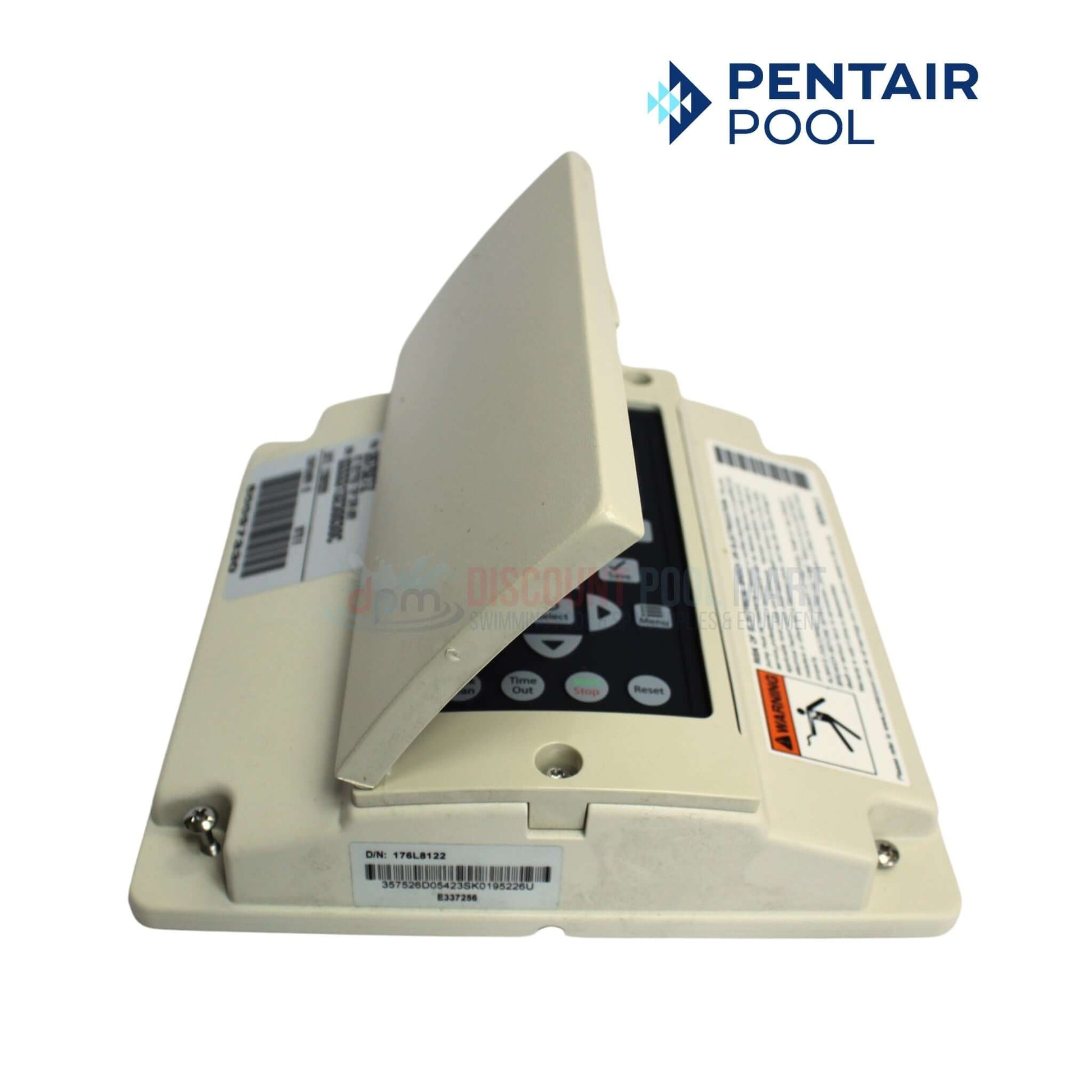

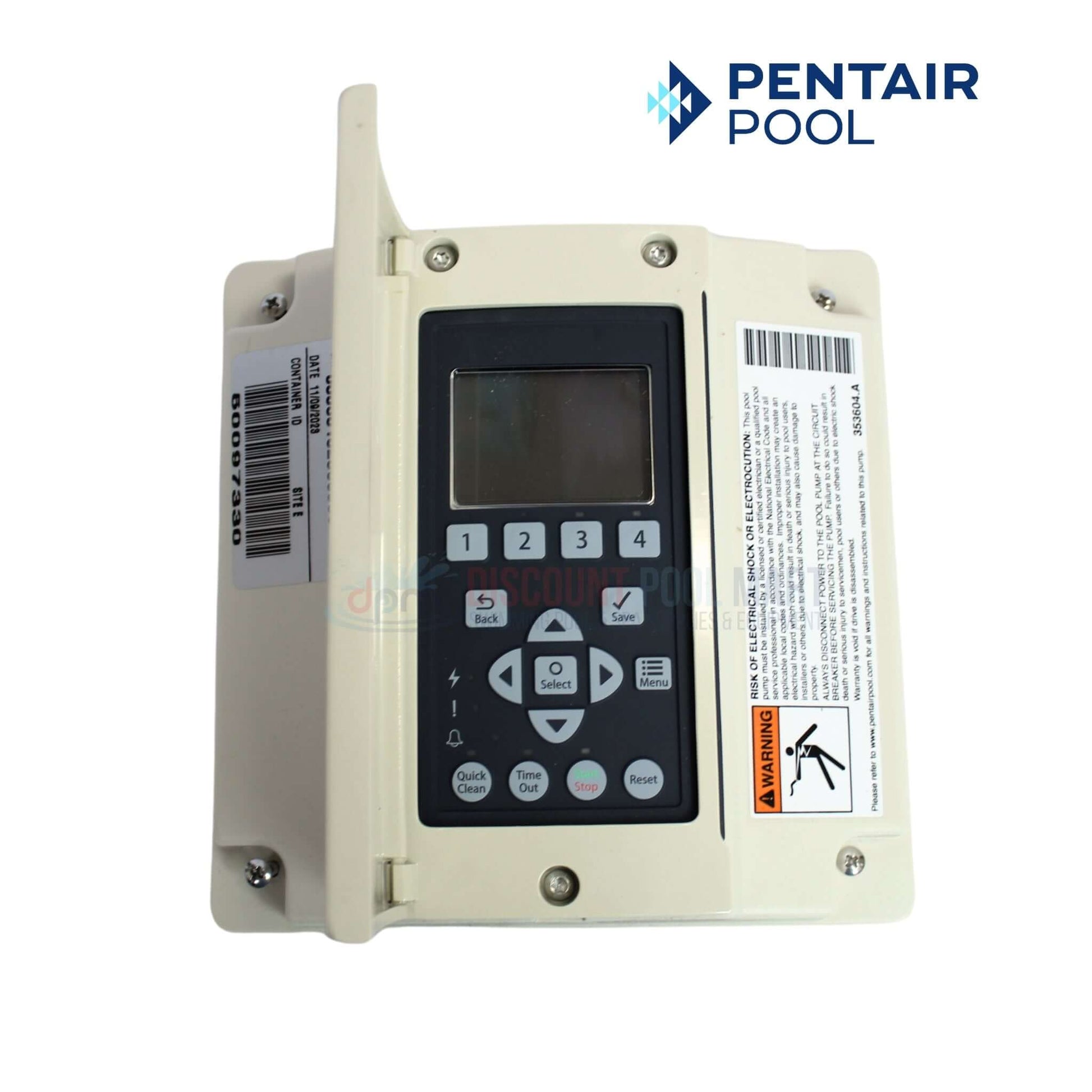

- (1) Pentair Keypad

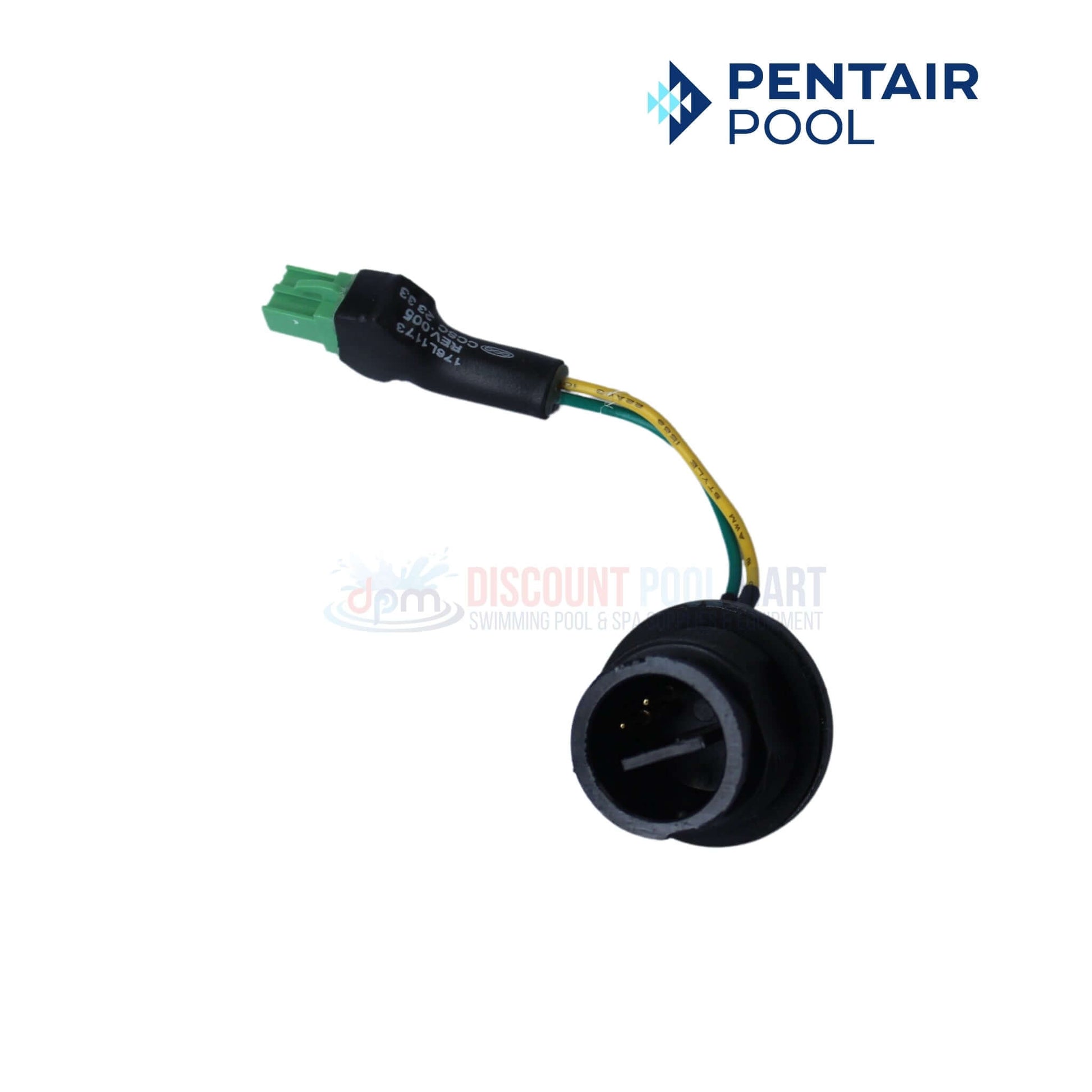

- (1) RS-485 communication cable (green plug w/locking tabs)

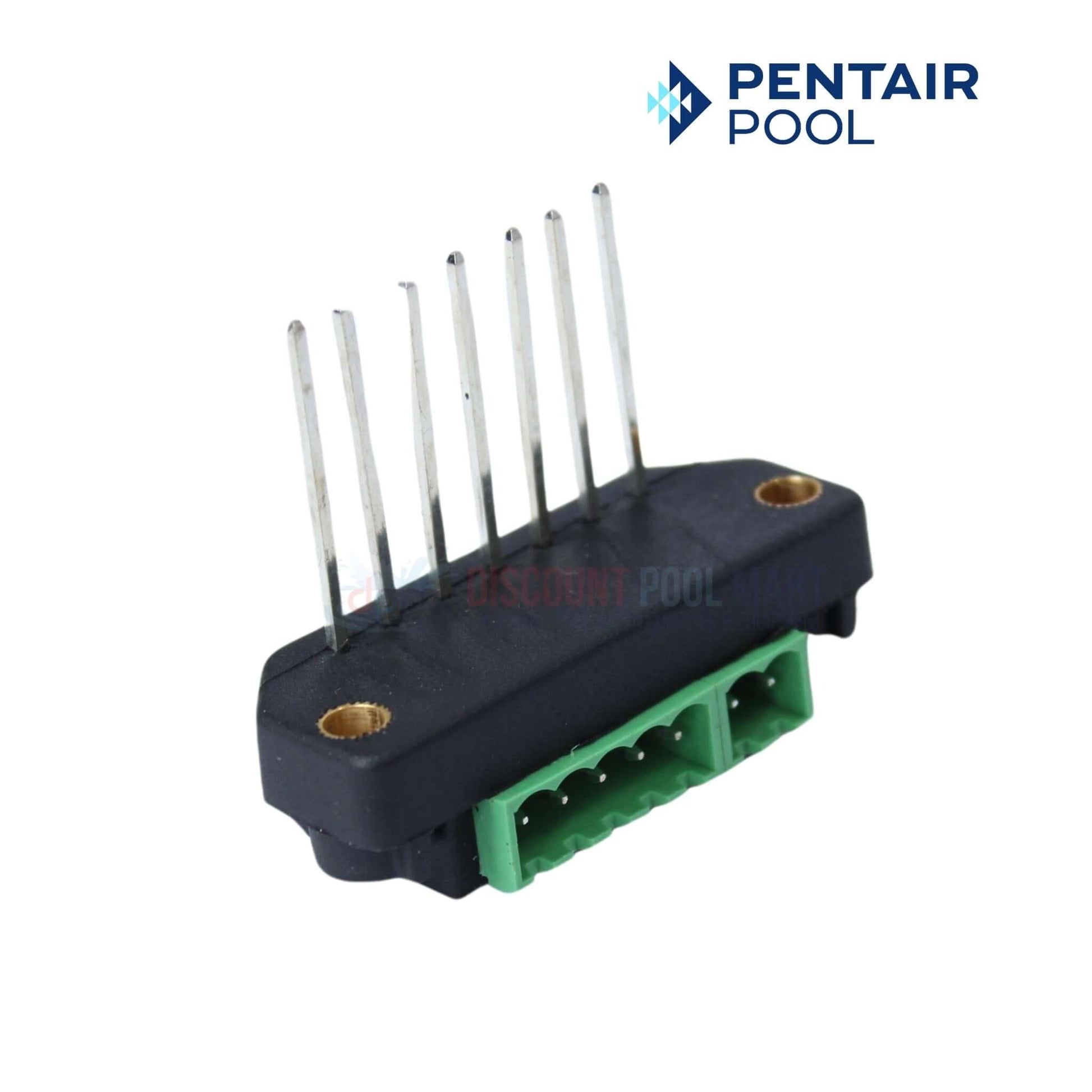

- (1) Drive wiring terminal

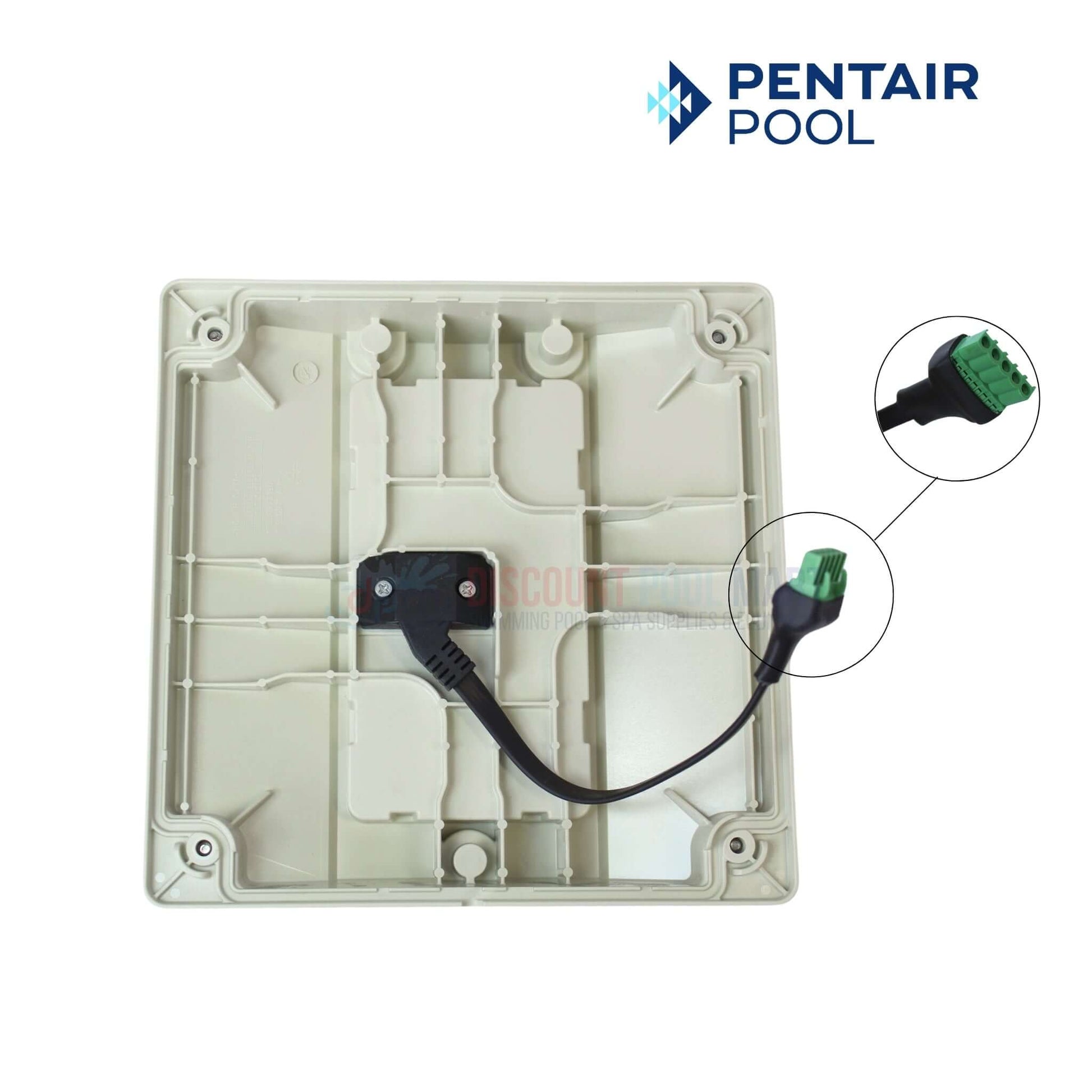

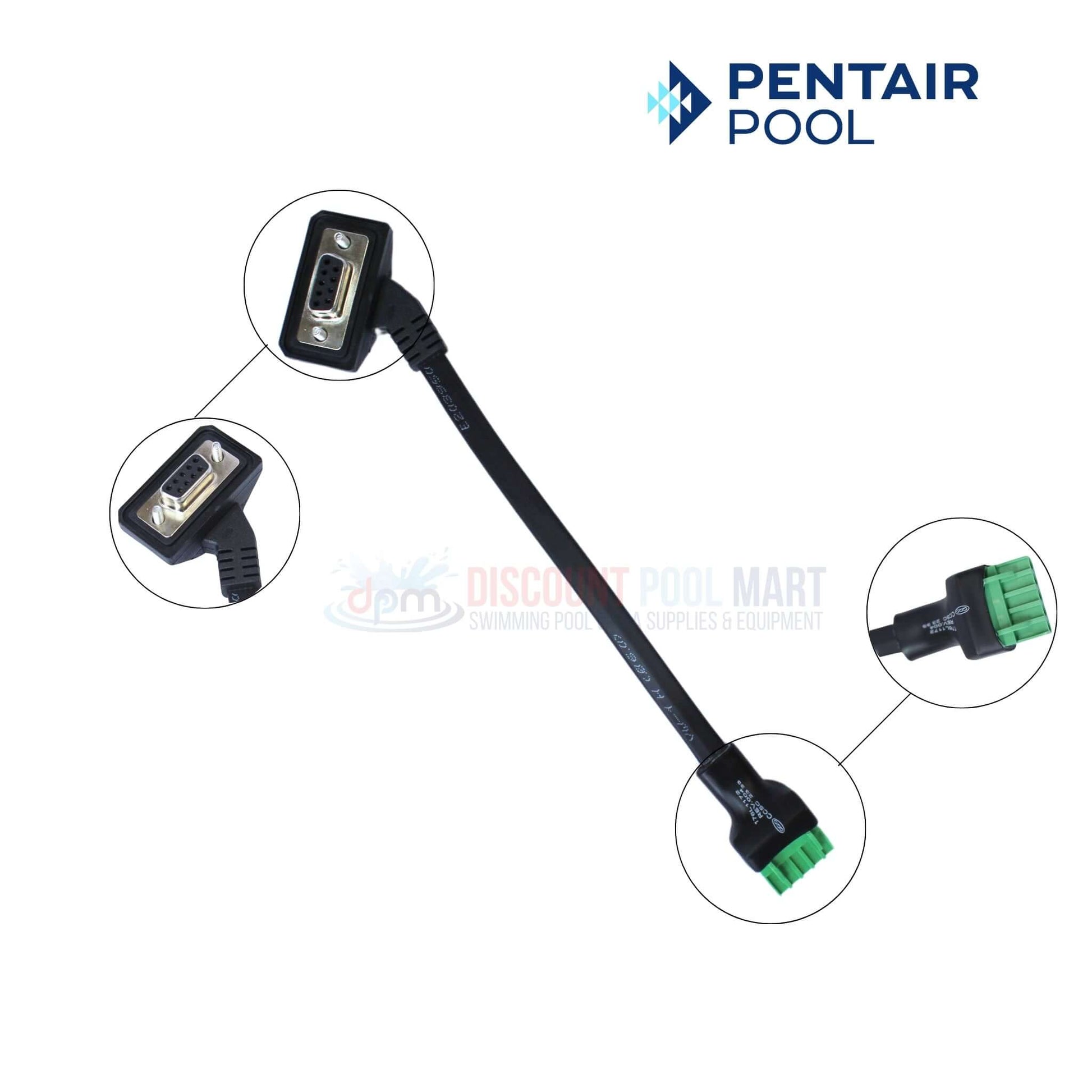

- (1) Keypad connector cable (green plug w/locking tabs
Compatible with the following Pentair pumps:
- 011055 IntelliFlo 2 VST
- 011056 IntelliFlo VSF
- 022055 IntelliFloXF
- 011059 IntelliFlo-i1
- S-011056 IntelliFlo VSF
- 022056 IntelliFlo VSF
- 011057 IntelliFlo VS+SVRS
- 013001 IntelliPro 2 VST
- 023055 IntelliProXF
- 011060 IntelliPro i2
- 013004 IntelliPro VSF
- S-011058 IntelliPro VS
- 023056 IntelliProXF VSF
- 013002 IntelliPro VS+SVRS
- Pentair IntelliFlo VS+SVRS Pumps- After 2016
- Pentair IntelliFlo Variables Speed & VS+SVRS Pumps
- Pentair IntelliFlo VSF Pumps- After 2018
Note: This may be compatible with your pump, please check owners manual to ensure compatibility.
