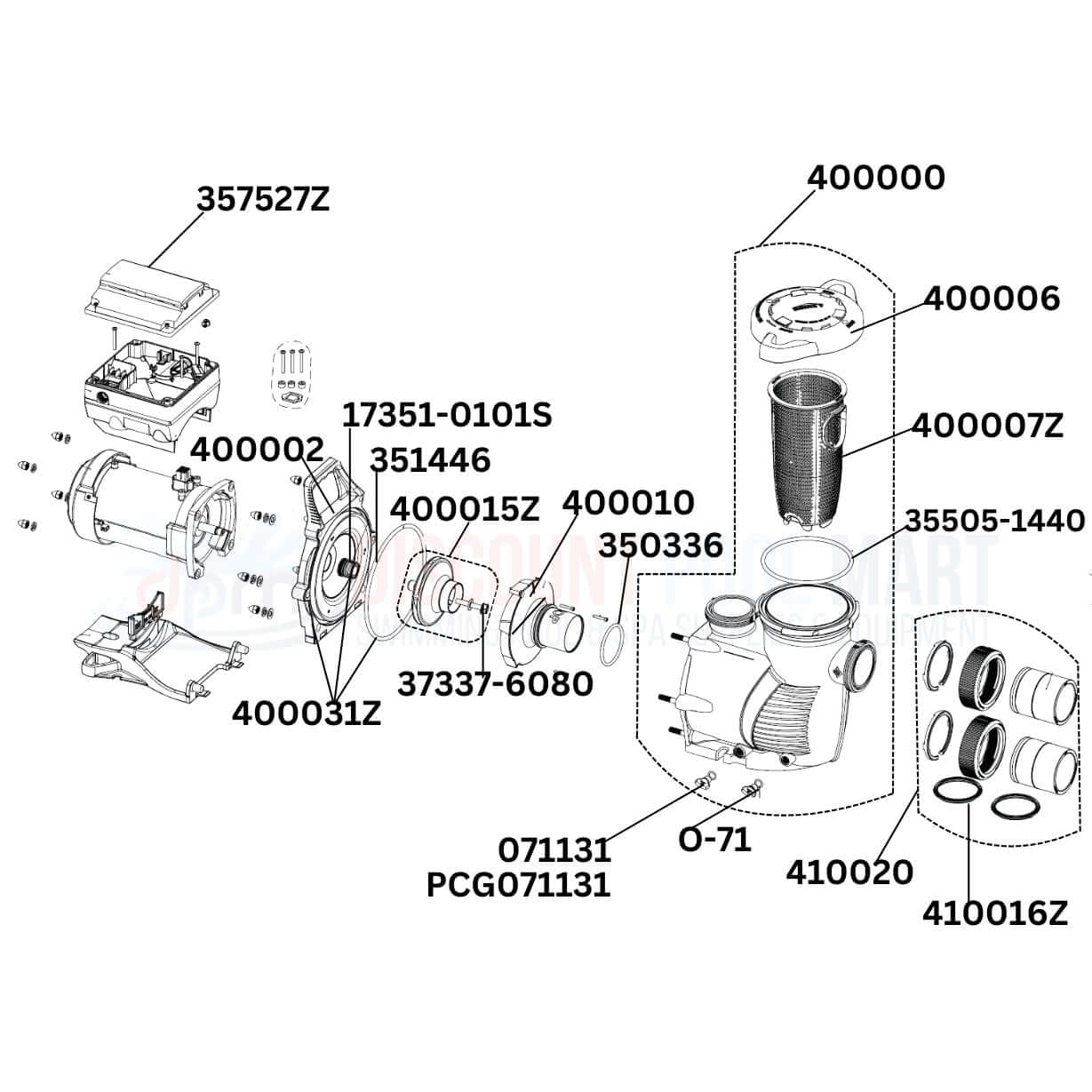

On the Pentair IntelliFloXF VSF Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair IntelliFloXF VSF Pump

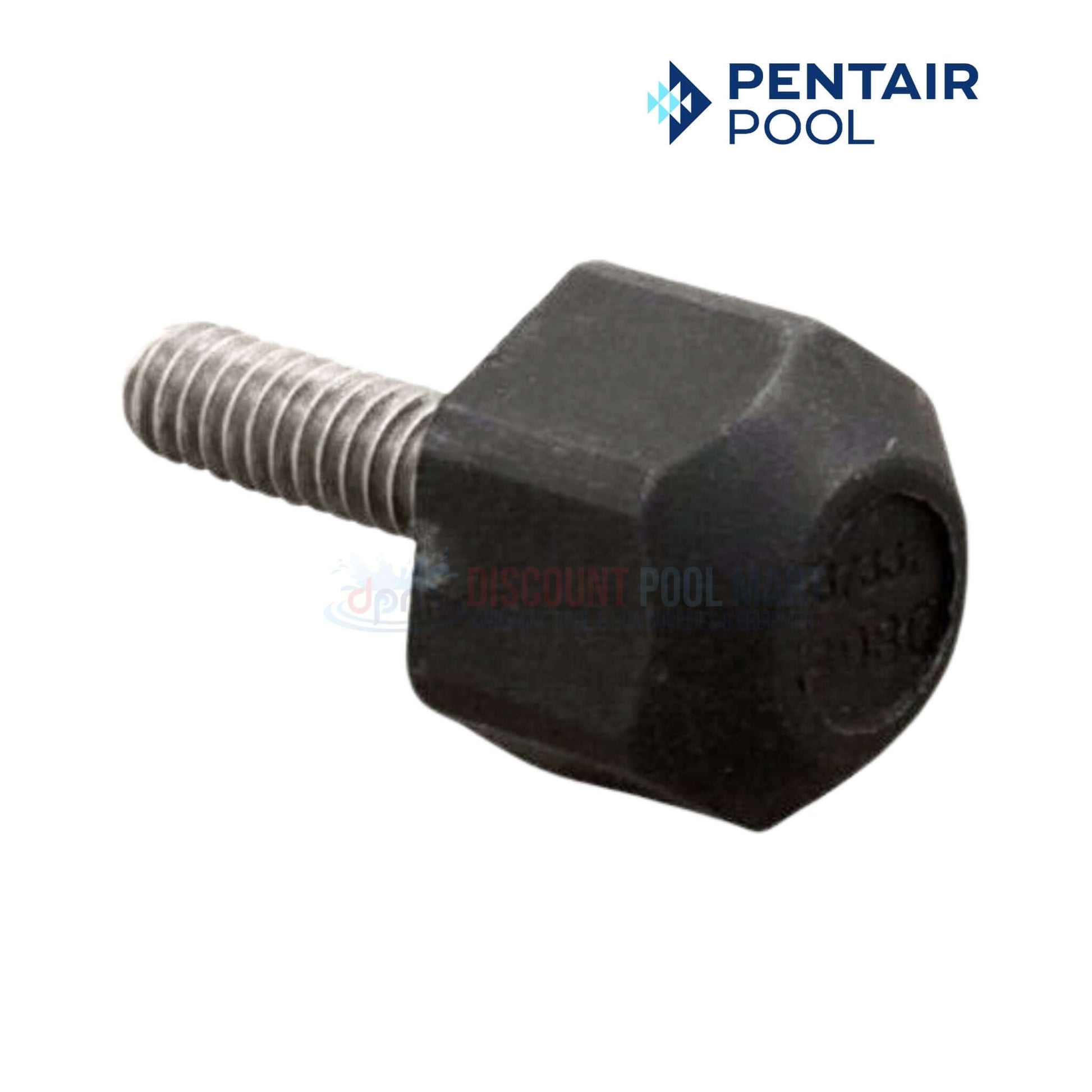

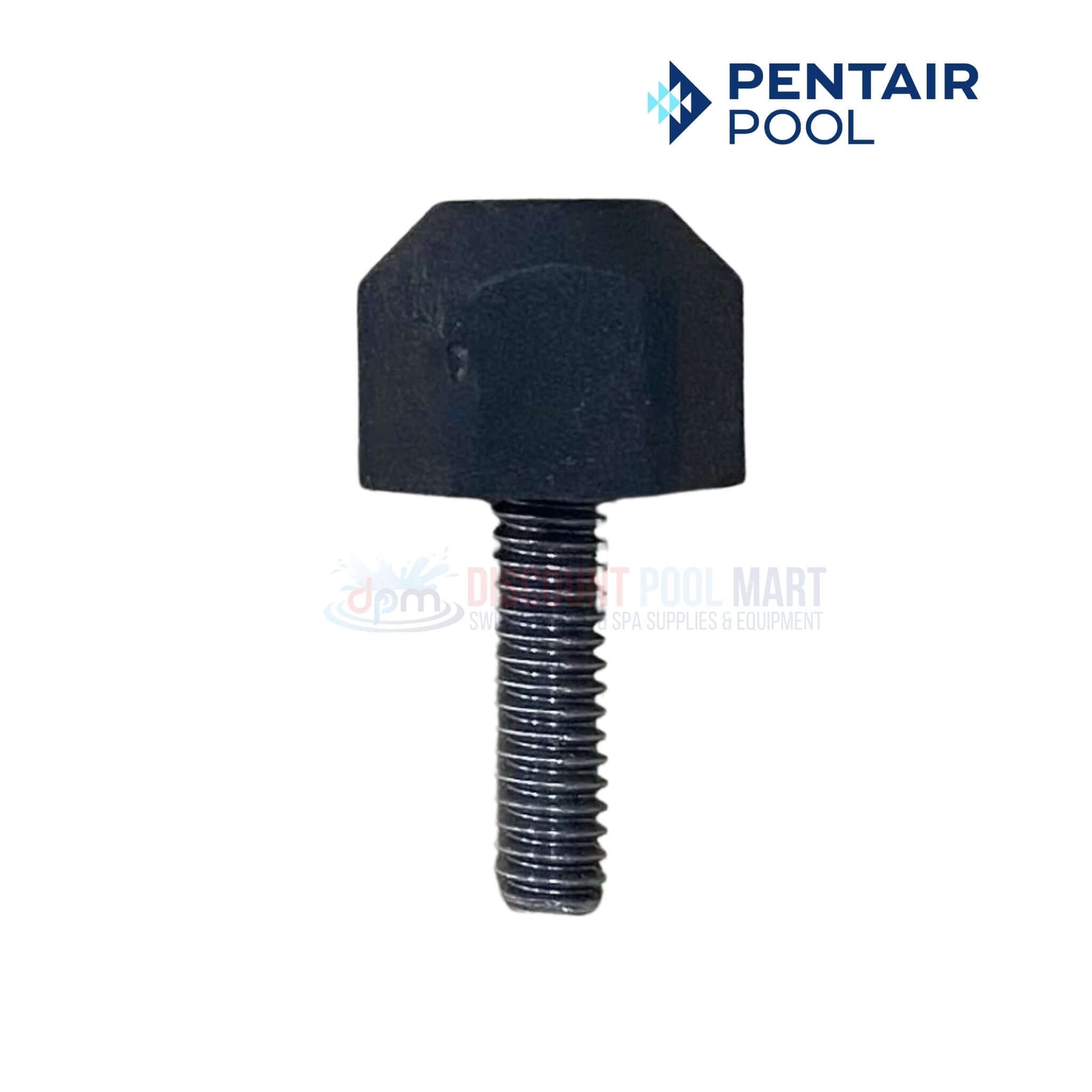

The Pentair Impeller Lock Screw, model 37337-6080, is designed specifically for WhisperfloXF and IntellifloXF pumps. This crucial component securely fastens the impeller in place, ensuring stable and efficient pump performance. Constructed from high-quality, durable materials, it resists wear and tear, providing long-lasting reliability in demanding pool environments. Ensure optimal functionality of your pump with the Pentair Impeller Lock Screw.
- Secure Fastening: Specifically designed for WhisperfloXF and IntellifloXF pumps, this lock screw ensures the impeller is securely fastened in place.
- Stable Performance: Maintains stable and efficient pump performance by preventing movement and ensuring the impeller operates optimally.
- High-Quality Construction: Made from durable, high-quality materials that resist wear and tear, providing long-lasting reliability.
- Durability: Withstands demanding pool environments, ensuring consistent and reliable operation over time.
- Optimal Functionality: Essential for maintaining the optimal functionality of your pump, contributing to the overall efficiency and reliability of your pool system.
- (1) Pentair 37337-6080 Impeller Lock Screw
- Install the spring end of the mechanical seal onto the
impeller shaft. Be sure black/carbon face is facing
outward. - Remount the seal plate to the motor using the four
(4) lock washers and four (4) nuts. - With the white ceramic face facing outward, press the
seal into the seal plate with your thumbs and wipe
off the ceramic with a clean cloth. Do not lubricate
seal faces. - Hand tighten impeller onto the motor shaft.
- Screw in the impeller reverse lock screw (counterclockwise to tighten).
- Install the rear plastic cover on the back of the motor.
-
Remount the diffuser onto the seal plate. Make sure
the plastic pins and holding screw inserts are aligned
(see “TOP” indicator). -
Assemble the motor subassembly to the housing.
Do not tighten the nuts and washers until all four
(4) motor bolts are in place. Using a torque wrench,
install and tighten the four nuts to a torque value of
100 in-lbs (maximum). Do not overtighten the nuts. - Fill the pump with water.
-
Reinstall the pump lid and locking ring; see
Maintenance on page 5. -
Reprime the system. Refer to page 4 for priming
instructions.
Compatible with Pentair pumps such as:
- Pentair Whisperflo XF VSF Pumps
- Pentair Intelliflo XF VSF Pumps
- Pentair IntellifloXF VSF Pumps
- Pentair IntellifloXF VS Pumps
- Pentair IntelliPro XF VSF Pumps
- Sta-Rite IntelliPro Variable Speed Pumps
- Sta-Rite Max-E-ProXF Pumps
- Sta-Rite Max-E-Glas II / Dura-Glas II Pumps
- Sta-Rite Dyna-Glas / Dyna-Max Pumps
- Sta-Rite Max-E-Pro Pumps
- Sta-Rite Dyna-Pro / Dyna-Pro E Pumps
- Sta-Rite Dyna-Jet Pumps
Note: This may be compatible with your pump, please check owners manual to ensure compatibility.
