Find your parts diagram
Sticker on the pump body (the part with the basket), not on the motor. Motor labels from Century, A.O. Smith or Regal won't match parts.
Label on the side of the tank near the base. Size is in sq ft, e.g. 420 sq ft = C4030 or CCP420.
Rating plate inside the front access panel. Note the BTU and gas type (NG or LP).
Molded into the body or printed on top. Robotic cleaners: on the power supply.
Still not sure? Call (818) 818-6559 and we'll find it for you.

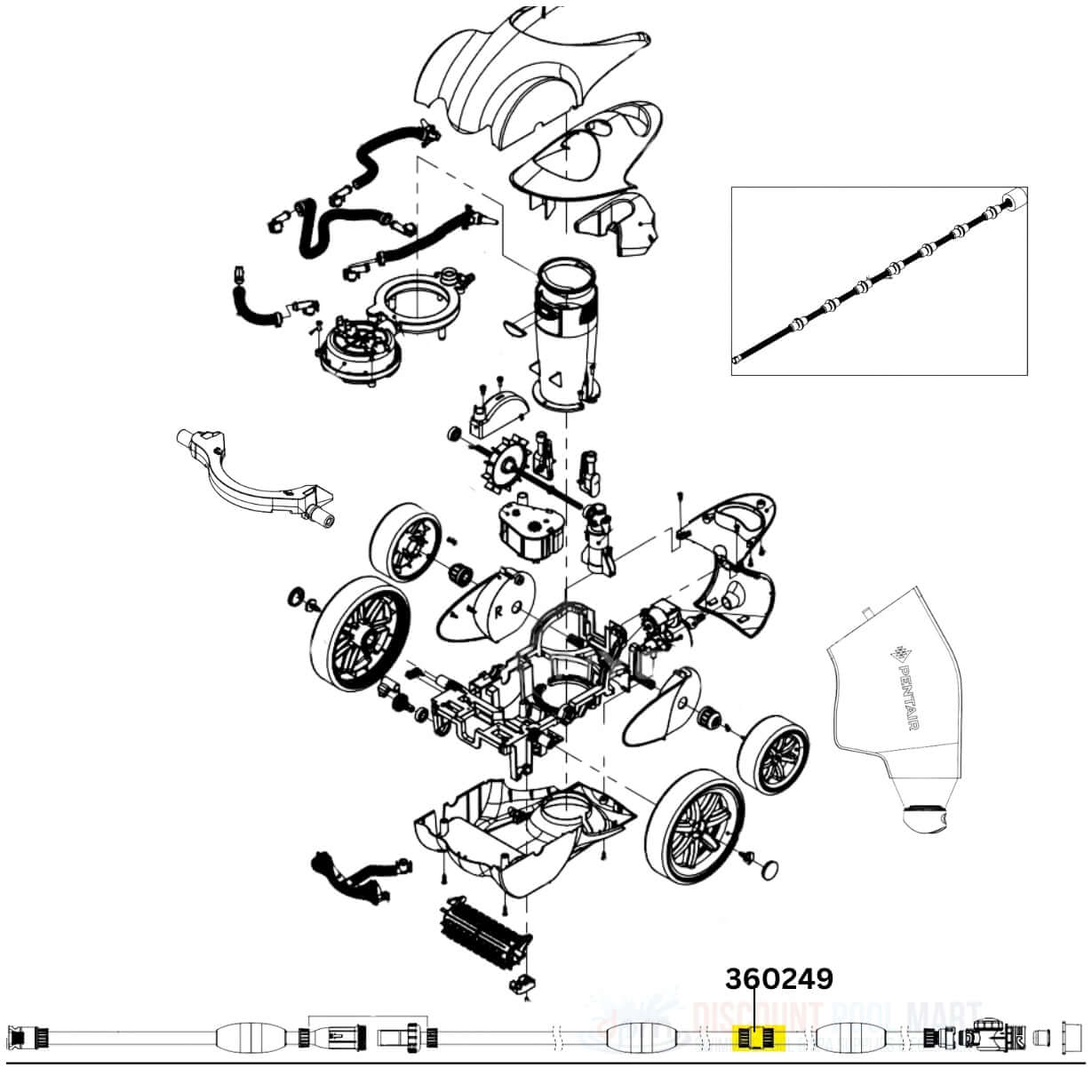

On the Pentair Racer LS Pressure Side Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair Racer LS Pressure Side Cleaner

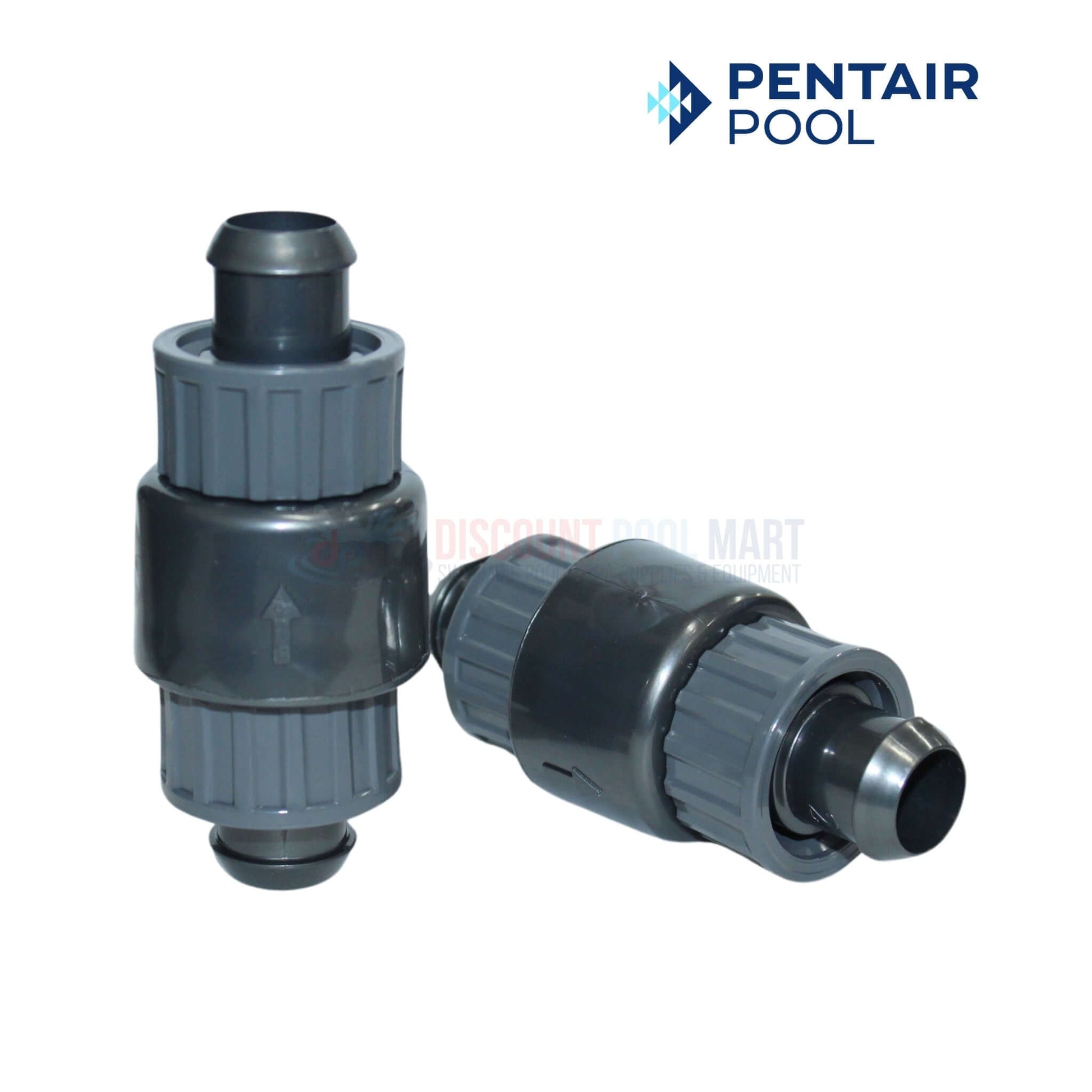

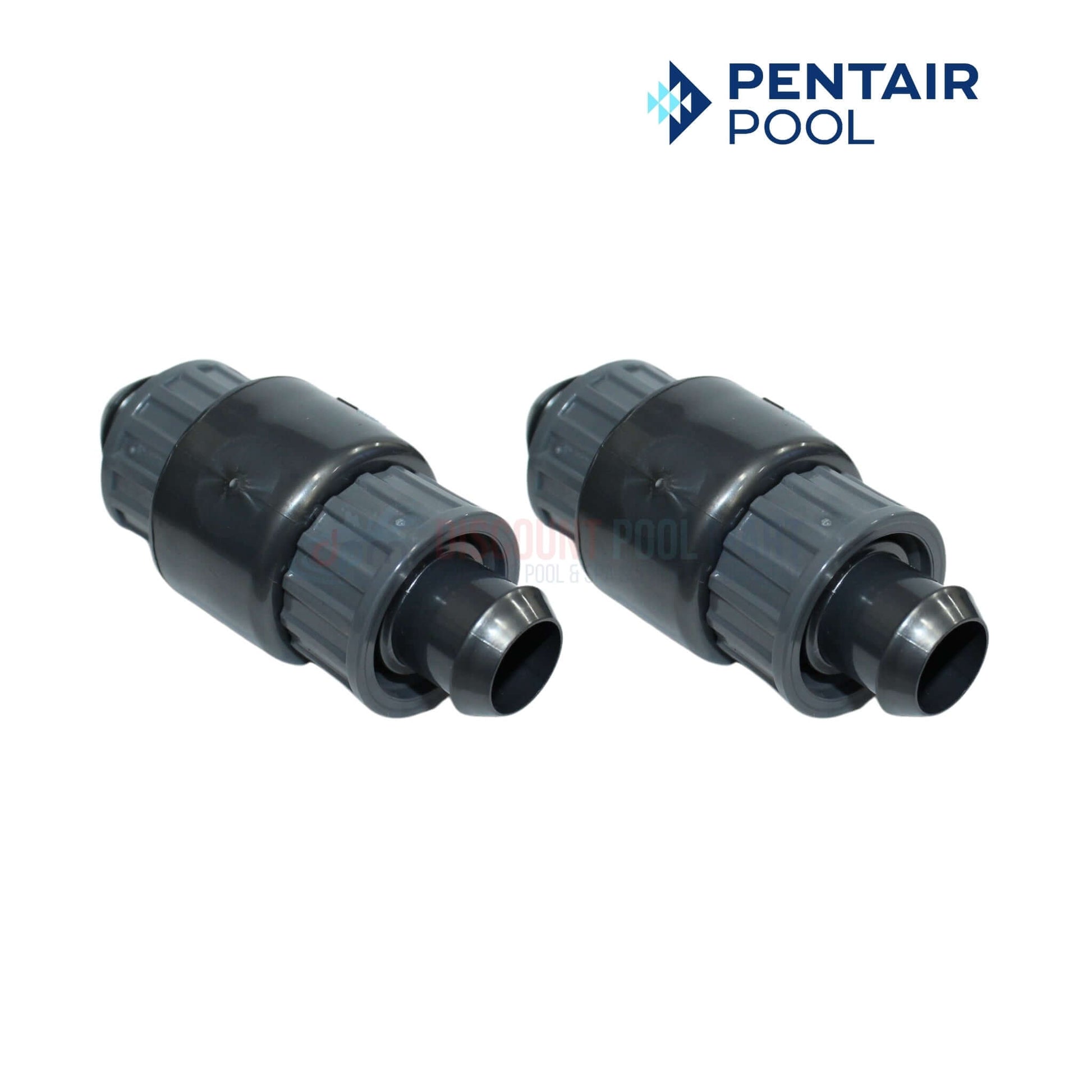

The OEM Pentair Feedline Swivel Kit for Racer Cleaners, model 360249, is an essential replacement part designed to enhance the efficiency and maneuverability of your pool cleaner. This kit includes two high-quality swivels and four mender nuts, specifically engineered to prevent the feedline hose from tangling, thereby facilitating smooth navigation around pool obstacles. Compatible with both the Racer and Racer LS pressure-side pool cleaners, these genuine OEM parts ensure long-lasting performance and durability. The swivels allow the cleaner to turn out of corners and away from steps that would typically obstruct its cleaning path, ensuring optimal performance and comprehensive cleaning coverage.
-
Enhanced Maneuverability: Designed to prevent the feedline hose from tangling, ensuring smooth navigation around pool obstacles for uninterrupted cleaning.
-
Comprehensive Kit: Includes two high-quality swivels and four mender nuts, providing all necessary components for optimal functionality.
-
Optimal Performance: Swivels allow the cleaner to turn out of corners and away from steps, ensuring comprehensive cleaning coverage and improved efficiency.
-
Durable Construction: Made from high-quality materials, these genuine OEM parts guarantee long-lasting performance and reliability.
-
Perfect Compatibility: Specifically engineered for use with Pentair Racer and Racer LS pressure-side pool cleaners, ensuring seamless integration and optimal performance.
- (2) Swivels
- (4) Mender Nuts
- Pentair Racer and Racer LS Cleaners
