Pentair Racer LS Pressure Side Cleaner Replacement Parts Diagram

Interactive parts diagram

40 parts. Tap a number on the diagram, or search by part number.

 – exploded view with numbered parts

Scroll or pinch to zoom · drag to move

    • Not sold online Pentair top front cover kit 360422Call us and we'll get it for you.
    • Not sold online Pentair rear cover kit 360425Call us and we'll get it for you.
    • Not sold online Pentair bottom cover kit 360424Call us and we'll get it for you.
    • Not sold online Pentair grill kit 360426Call us and we'll get it for you.
    • Not sold online Pentair side covers kit 360423Call us and we'll get it for you.
    • Not sold online Pentair debris valve kit 360243Call us and we'll get it for you.
    • Not sold online Pentair wheel screw kit LLC55PMBCall us and we'll get it for you.
    • Not sold online Pentair thrust hose kit 360419Call us and we'll get it for you.
    • Not sold online Pentair rubber button kit 360258Call us and we'll get it for you.
    • Not sold online Pentair turbine housing kit 360414Call us and we'll get it for you.
    • Not sold online Pentair venturi manifold kit 360260Call us and we'll get it for you.
    • Not sold online Pentair water management kit 360416Call us and we'll get it for you.
    • Not sold online Pentair turbine hose kit 360420Call us and we'll get it for you.
    • Not sold online Pentair leader hose, 2.5 ft. 360429Call us and we'll get it for you.
    • Not sold online Pentair hard feedline hose kit, 10 ft. 360266Call us and we'll get it for you.
    • Not sold online Pentair debris screen E24Call us and we'll get it for you.
    • Not sold online Pentair threaded wall adapter LL23PMCall us and we'll get it for you.
    • Not sold online Pentair sweep hose wear ring EB10GCall us and we'll get it for you.
    • Not sold online Pentair feed line float 360270Call us and we'll get it for you.
    • Not sold online Pentair scrubber cover kit 360421Call us and we'll get it for you.
    • Not sold online Pentair stainless steel weight kit 360418Call us and we'll get it for you.
    • Not sold online Pentair axle replacement kit 360434Call us and we'll get it for you.
    • Not sold online Pentair wheel washer kit EC64Call us and we'll get it for you.

Don't see your part? Ask us and we'll find it.

Also fits your Pentair Racer LS Pressure Side Cleaner

Not shown on the diagram, but made for this pump.

Fit guide

Which Racer LS part do you need?

Part numbers come from Pentair's Racer LS pressure side cleaner replacement parts list.

Racer LS only

Manifold kit item 42
360415
Backup valve kit item 39
360428
Hose assembly item 30
360431

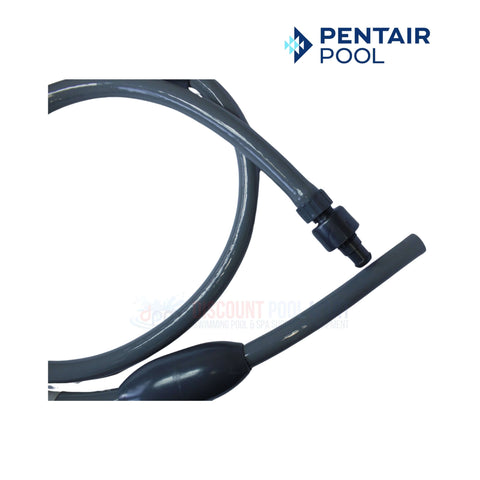

Leader hose 7.5 ft. item 32
360430
Leader hose 2.5 ft. item 31
360429

Shared with Racer

Chassis kit item 4
360391
Large / small wheel kit items 7, 8
360235 / 360236
Feed line swivel / quick connect / wall connector items 16-18
360249 / 360250 / 360251

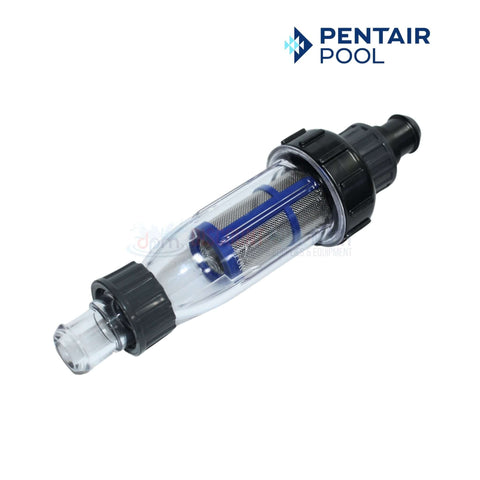

In-line filter / screen items 46, 47
360392 / 360437
