AXV604WHP | Hayward Wing Kit For Navigator & Pool Vac
Fits these models (3)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 69 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

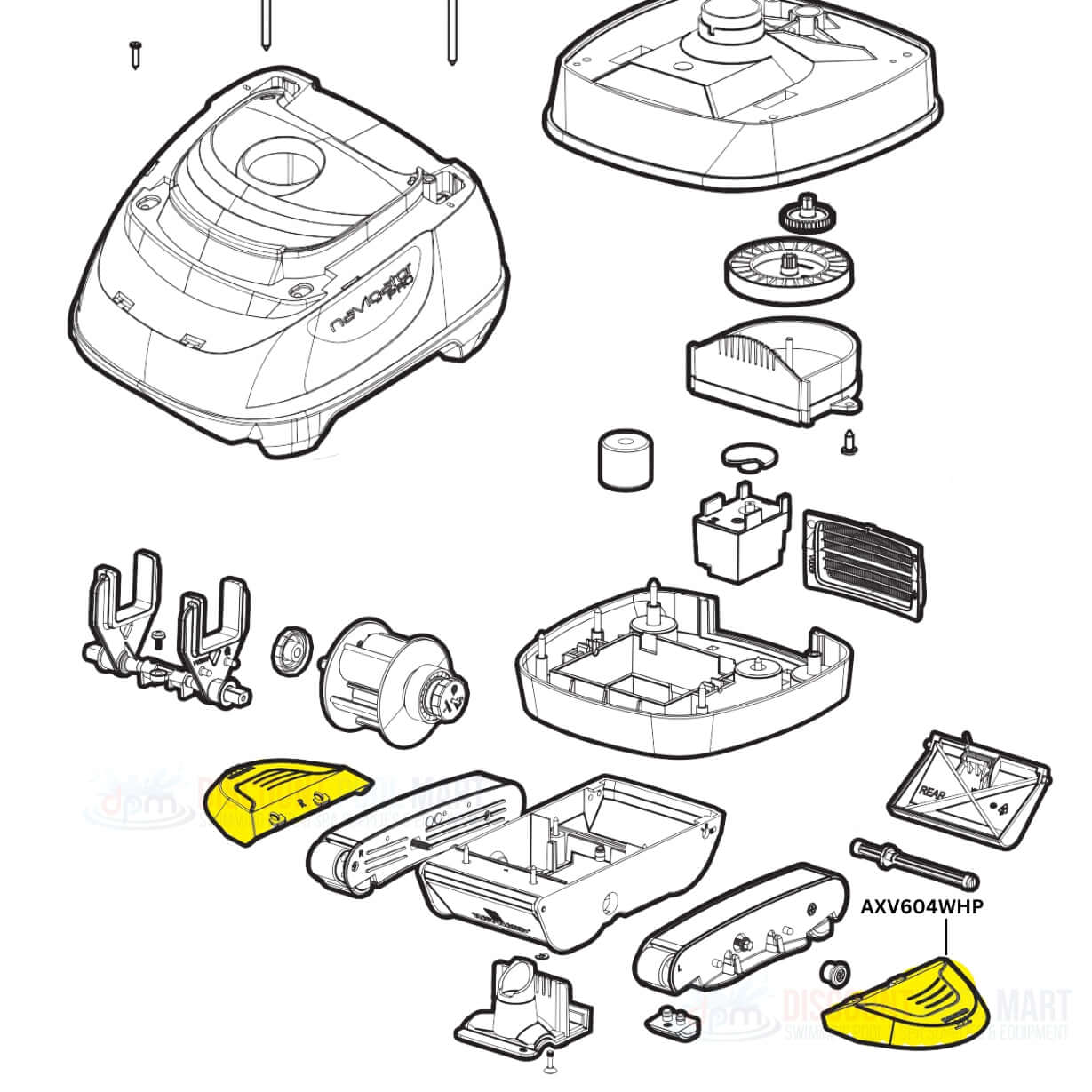

On the Hayward Navigator Pro Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Navigator Pro Cleaner

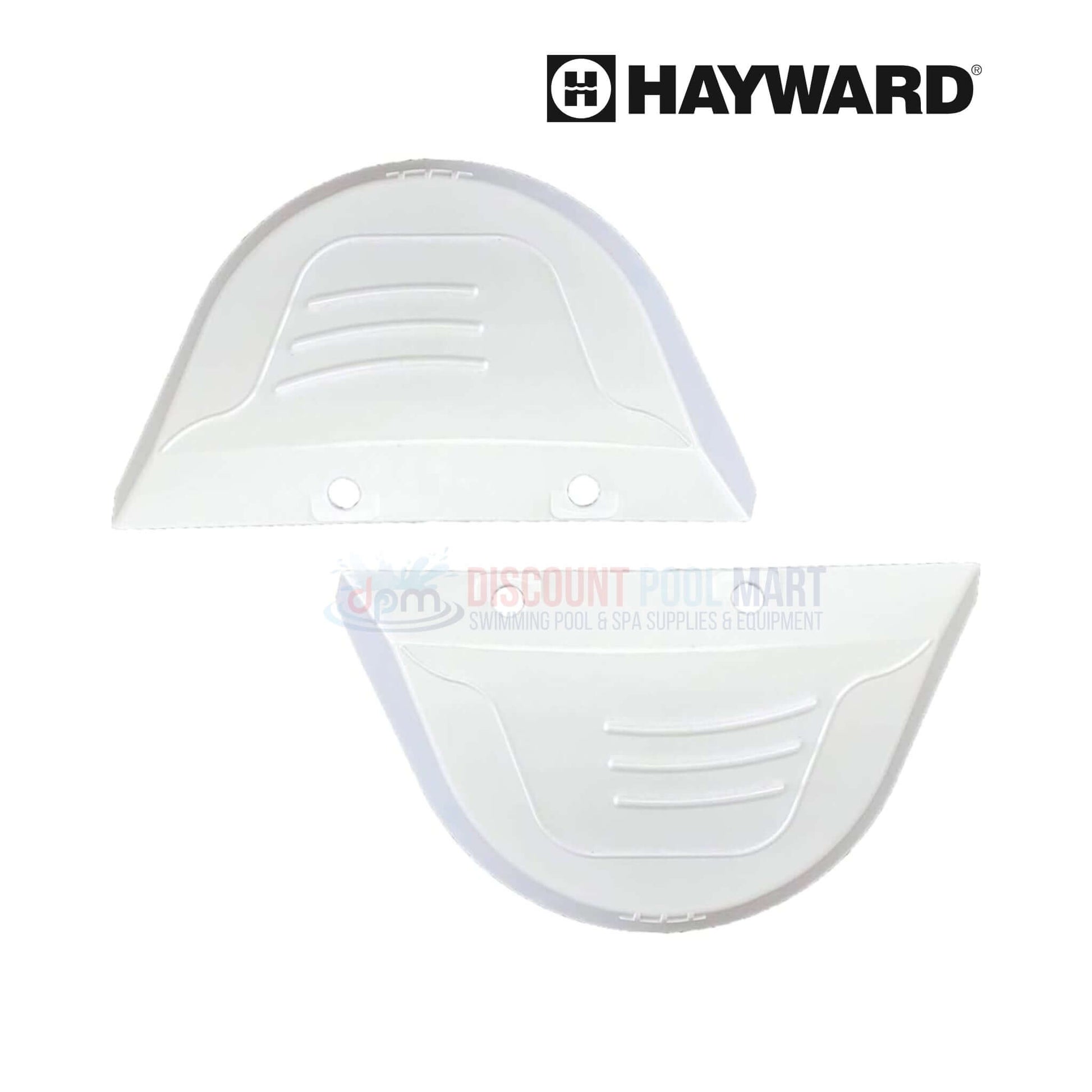

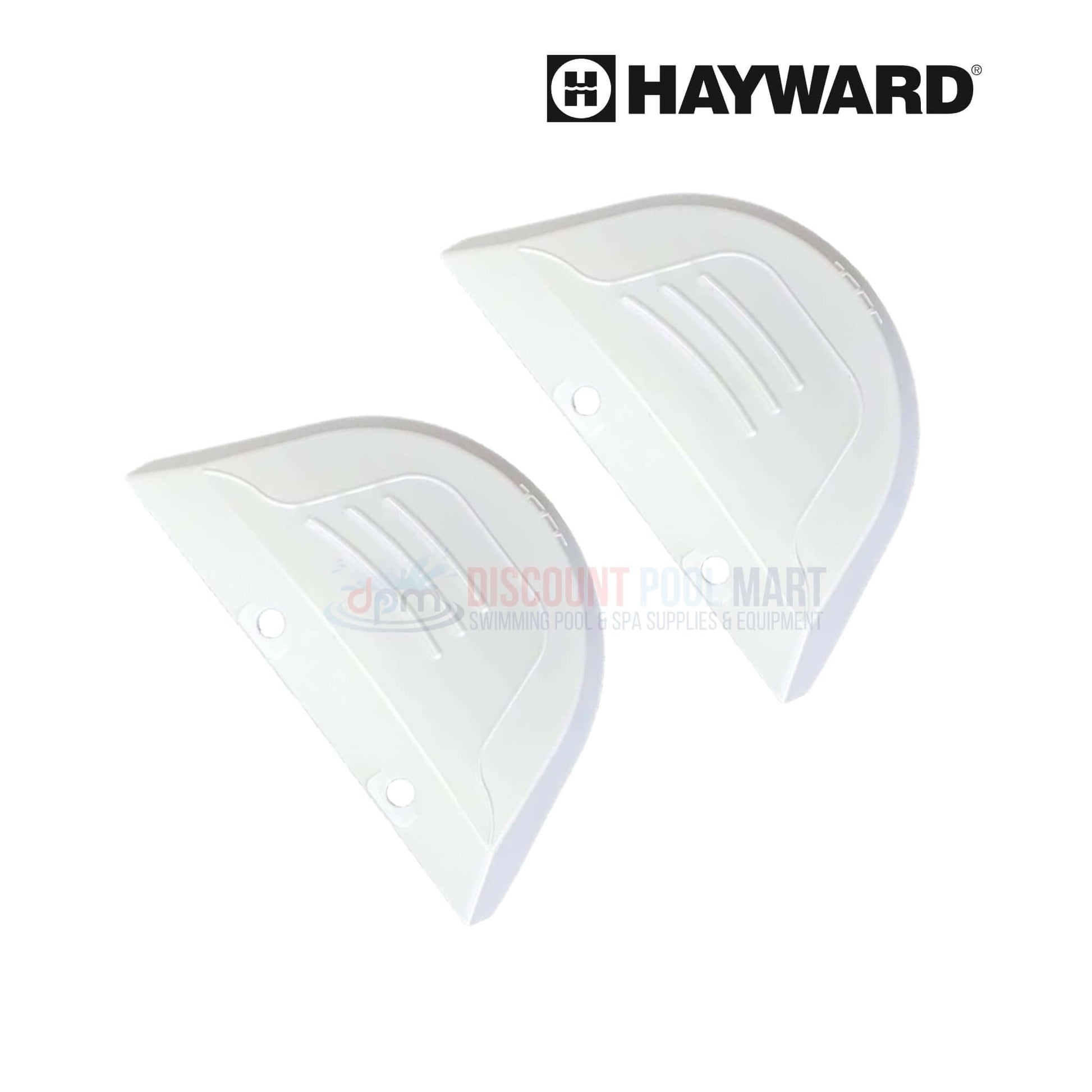

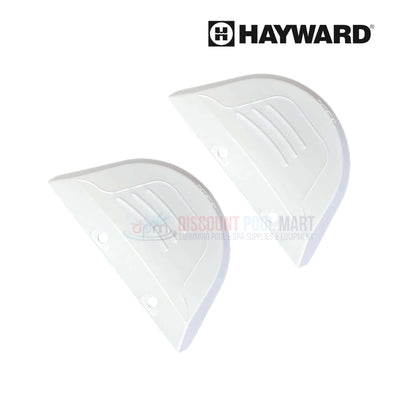

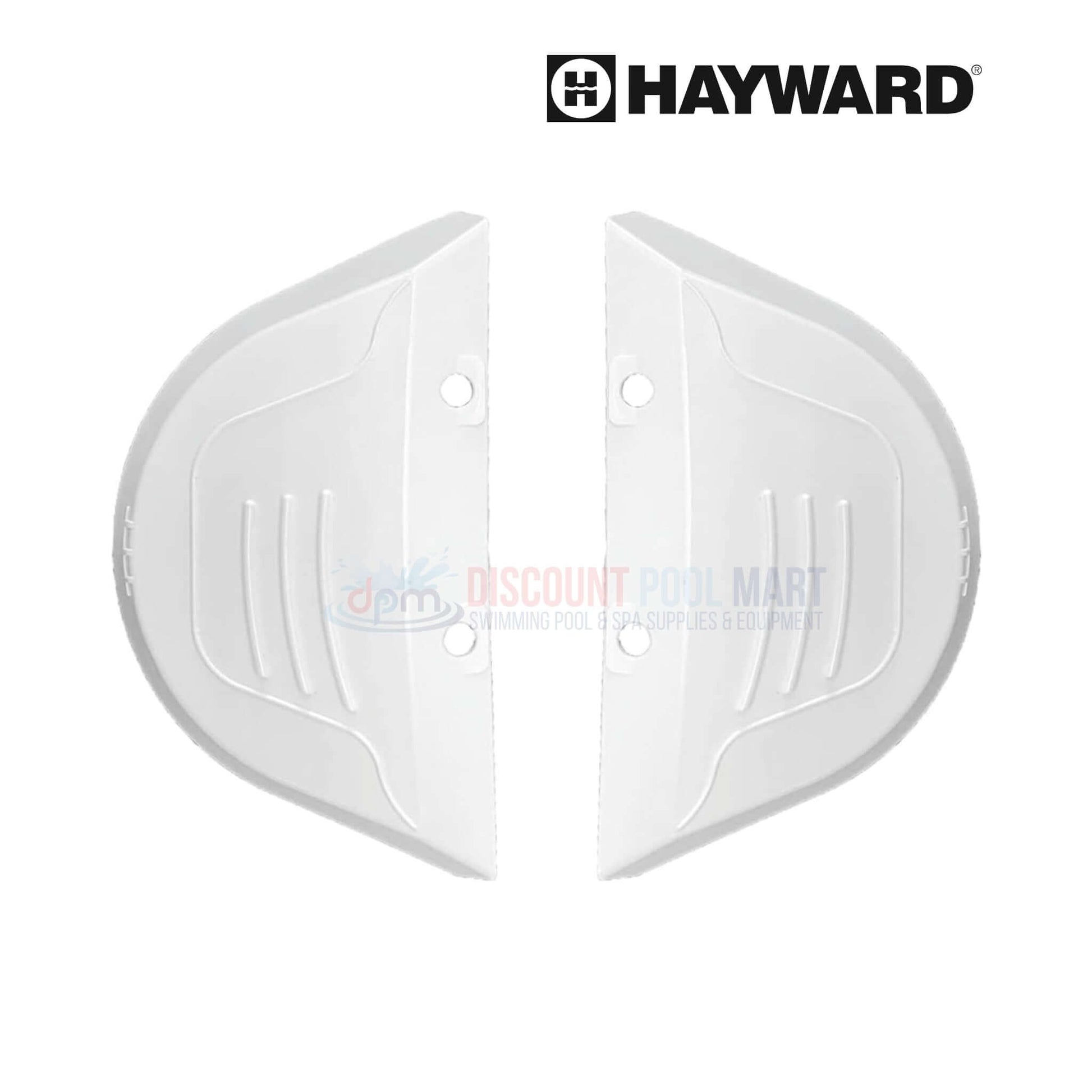

OEM Hayward Wing Kit AXV604WHP is a white replacement set designed for Hayward suction-side pool cleaners including Navigator, Navigator Pro, and Pool Vac models. These durable wings help maintain balance, improve navigation, and reduce wear on the cleaner body, ensuring consistent and efficient pool cleaning. Built from long-lasting materials, the kit includes two replacement wings that are easy to install and crucial for restoring your cleaner’s maneuverability and performance across all pool surfaces.
-
Optimizes Cleaner Balance: Maintains proper weight distribution and directional control for smooth pool navigation
-
Fits Popular Hayward Models: Compatible with Navigator, Navigator Pro, and Pool Vac suction-side pool cleaners
-
Durable Replacement Wings: Constructed from rugged materials to handle daily use and extend the cleaner’s operational life
-
Supports Consistent Cleaning Patterns: Helps your cleaner maintain full contact with pool surfaces for more thorough debris removal
-
Quick and Easy Installation: Includes two pre-shaped wings designed for a fast, secure replacement with no tools required
- (2) Hayward AXV604WHP Wings
- Hayward Navigator Pro Suction Pool Cleaners
- Hayward Navigator Suction Pool Cleaners
- Hayward Pool Vac Suction Pool Cleaners
Note: This pod shoes may be compatible with your cleaner, please refer to your systems owners manual to ensure compatibility.
