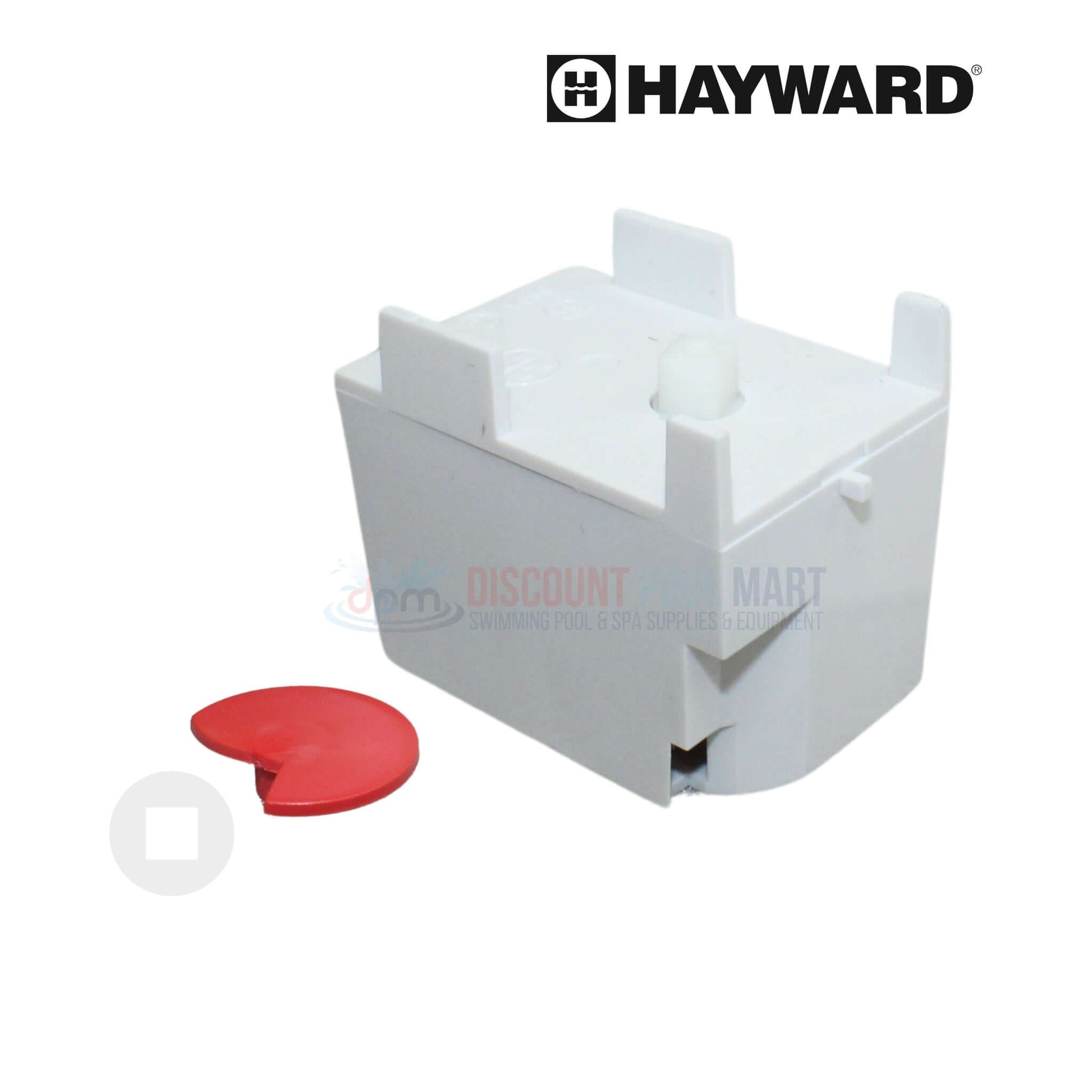

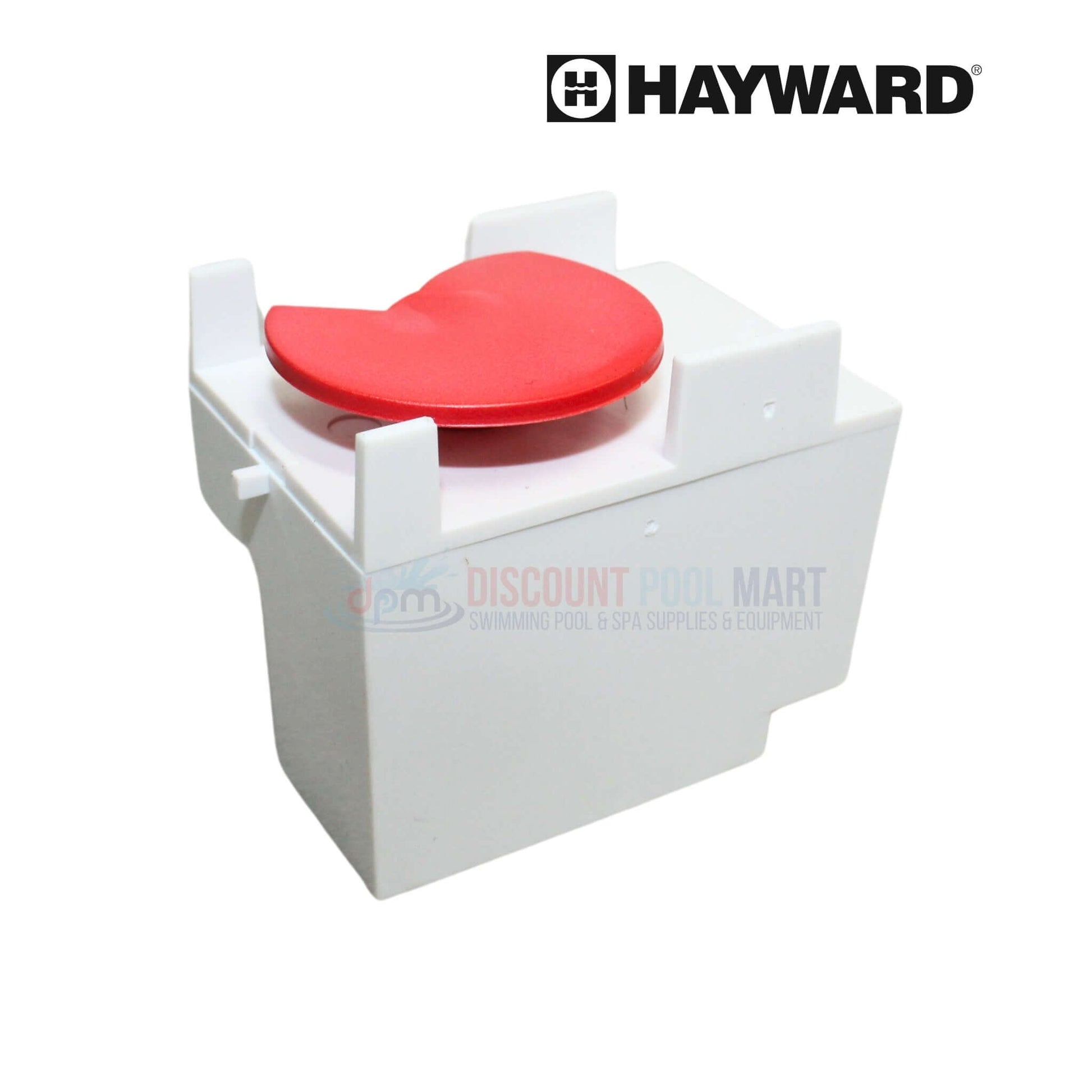

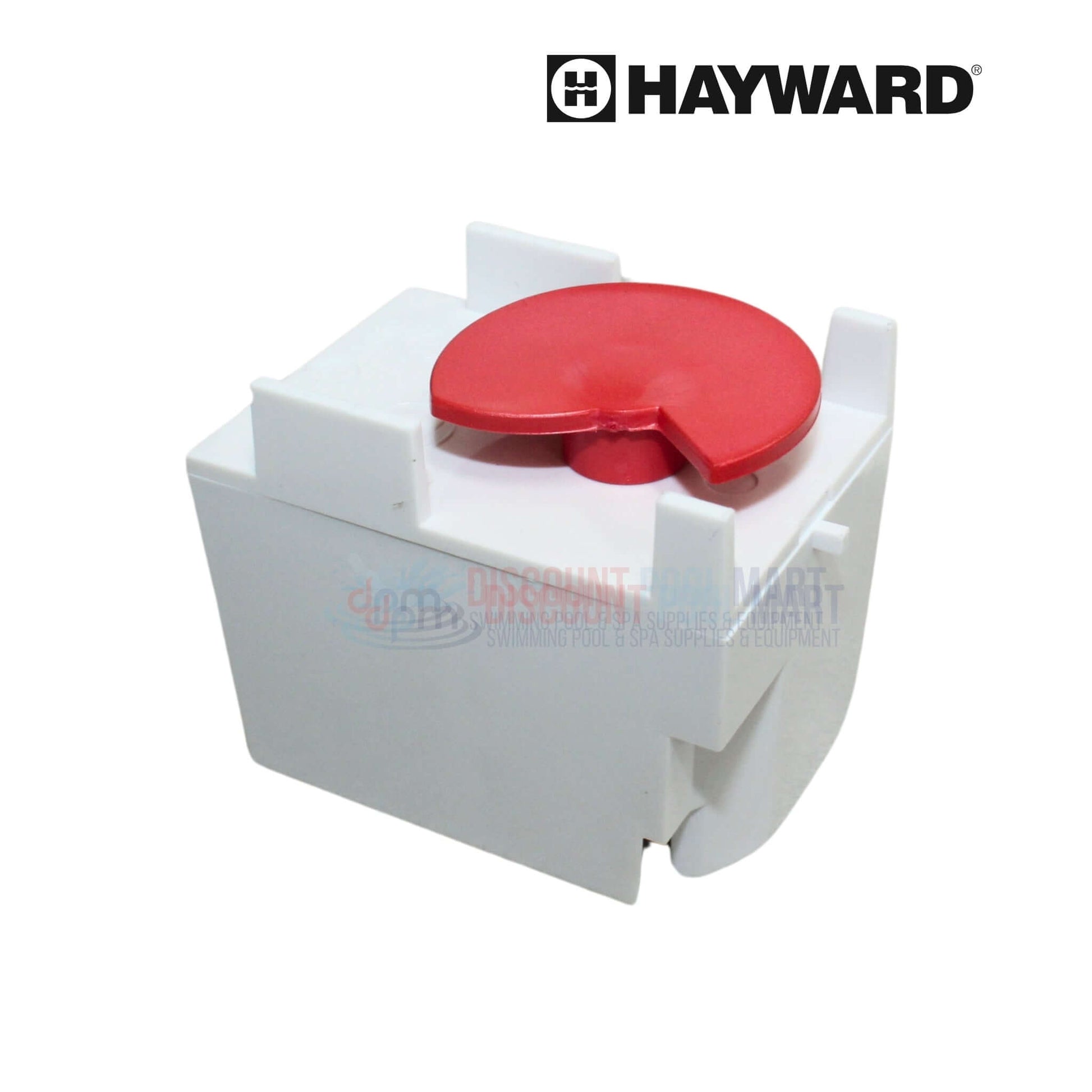

AXV408P | Hayward Gear Box Assembly For Navigator & Pool Vac
Fits these models (3)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 142 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

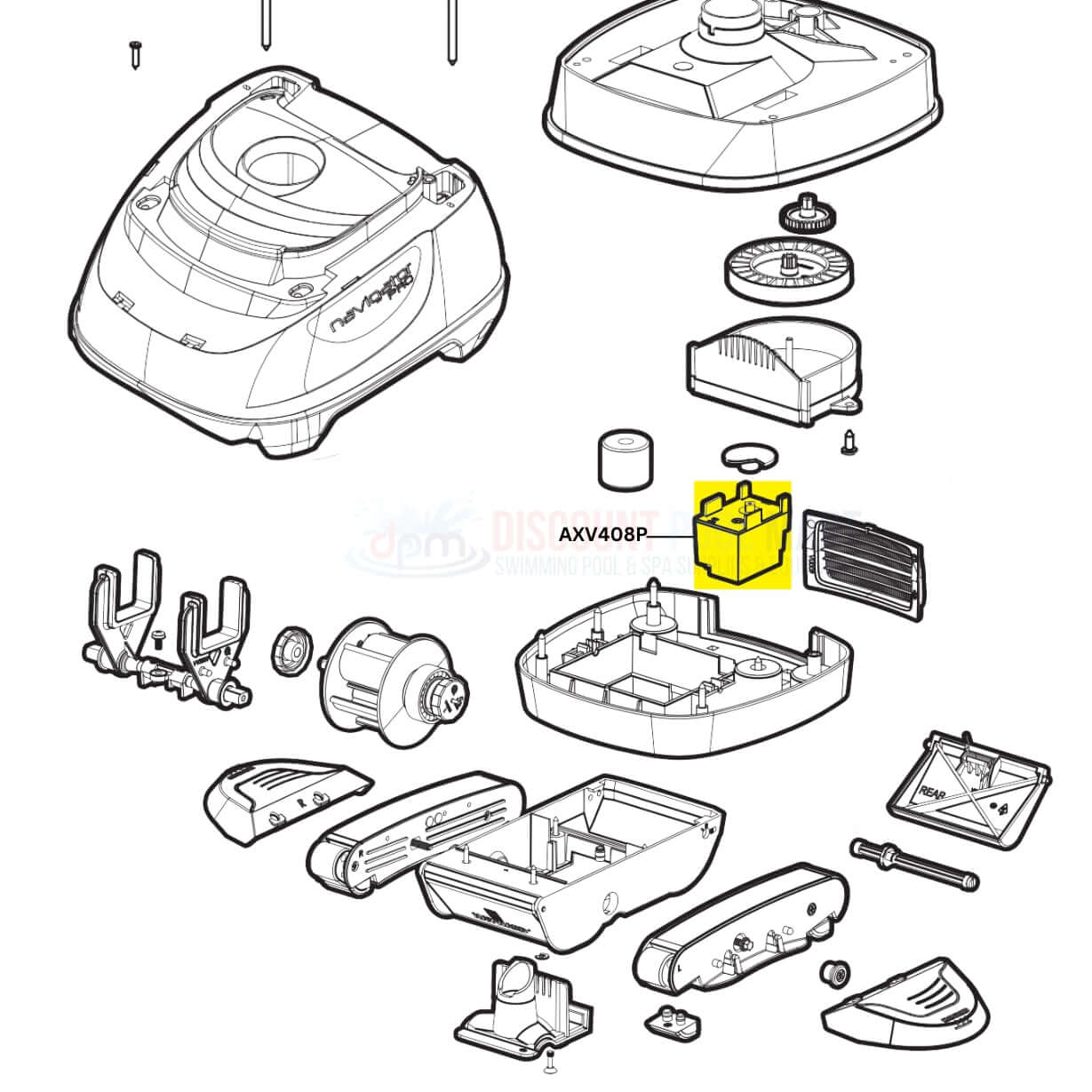

On the Hayward Navigator Pro Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Navigator Pro Cleaner
OEM Hayward Gear Box Assembly AXV408P is a vital internal component for restoring movement and cleaning efficiency in Hayward Navigator, Navigator Pro, and Pool Vac suction cleaners. This precision-engineered gear box powers the cleaner’s internal drive system, enabling smooth navigation and effective debris pickup. Built from durable materials to endure frequent use and harsh pool conditions, the AXV408P installs easily and helps ensure your cleaner continues to operate at peak performance for consistent, thorough cleaning.
-
Designed for Hayward Suction Cleaners: Specifically built for Navigator, Navigator Pro, and Pool Vac models to restore mechanical drive function
-
Efficient Drive System Support: Contains essential gear mechanisms that regulate cleaner movement and direction
-
Durable Internal Construction: Made from tough, corrosion-resistant materials suitable for daily exposure to water and pool chemicals
-
Supports Smooth Operation: Helps your cleaner maintain consistent speed, rotation, and suction contact during cleaning cycles
-
Quick Installation and Replacement: Fits easily into the existing housing for fast repairs and minimal downtime
- Hayward Navigator Pro Suction Pool Cleaners
- Hayward Navigator Suction Pool Cleaners
- Hayward Pool Vac Suction Pool Cleaners
Note: This gear box may be compatible with your cleaner, please refer to your systems owners manual to ensure compatibility.
