AXV621DAT | Hayward Navigator & Pool Vac Universal A-Frame & Turbine Kit
Fits these models (7)
+3 more models
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 153 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

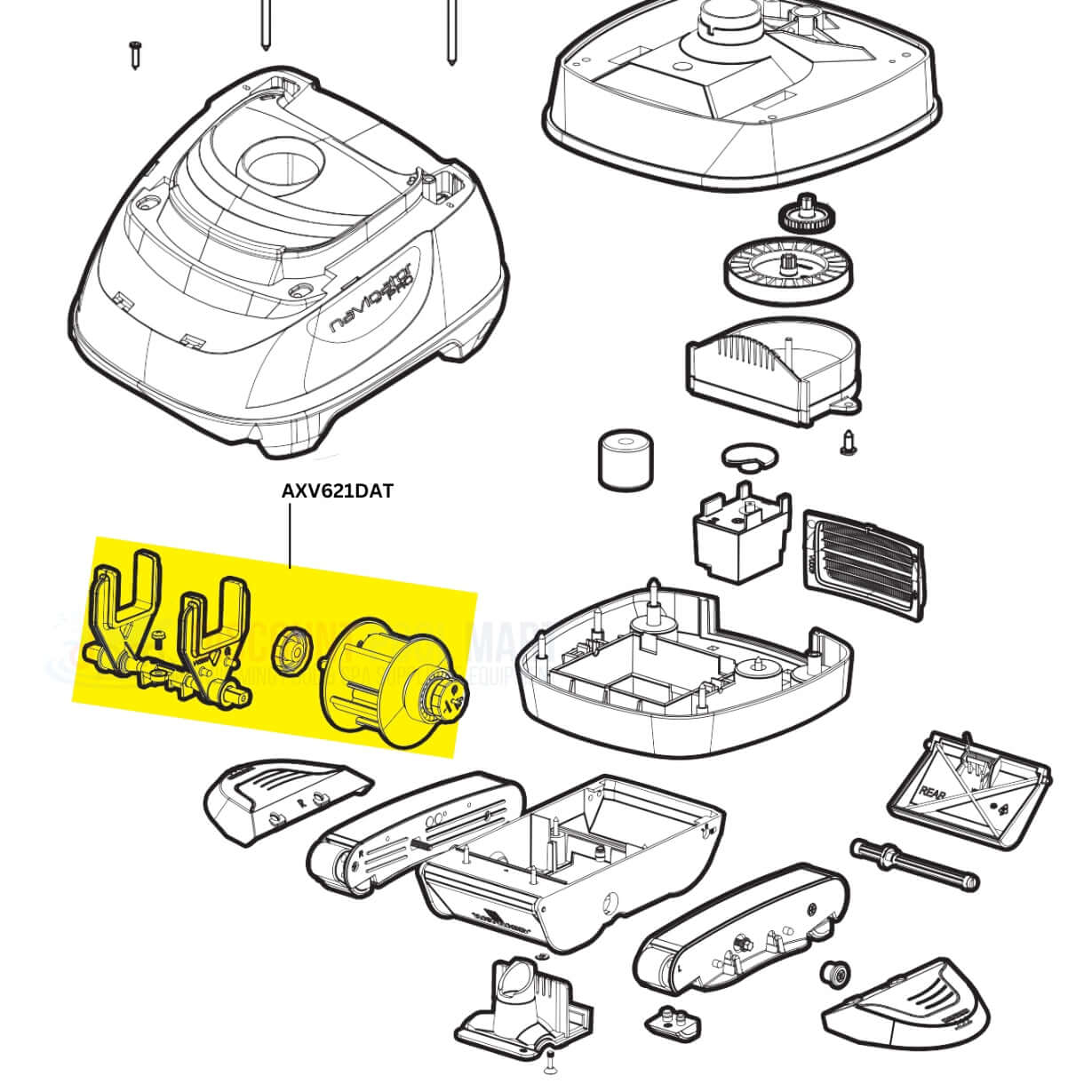

On the Hayward Navigator Pro Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Navigator Pro Cleaner

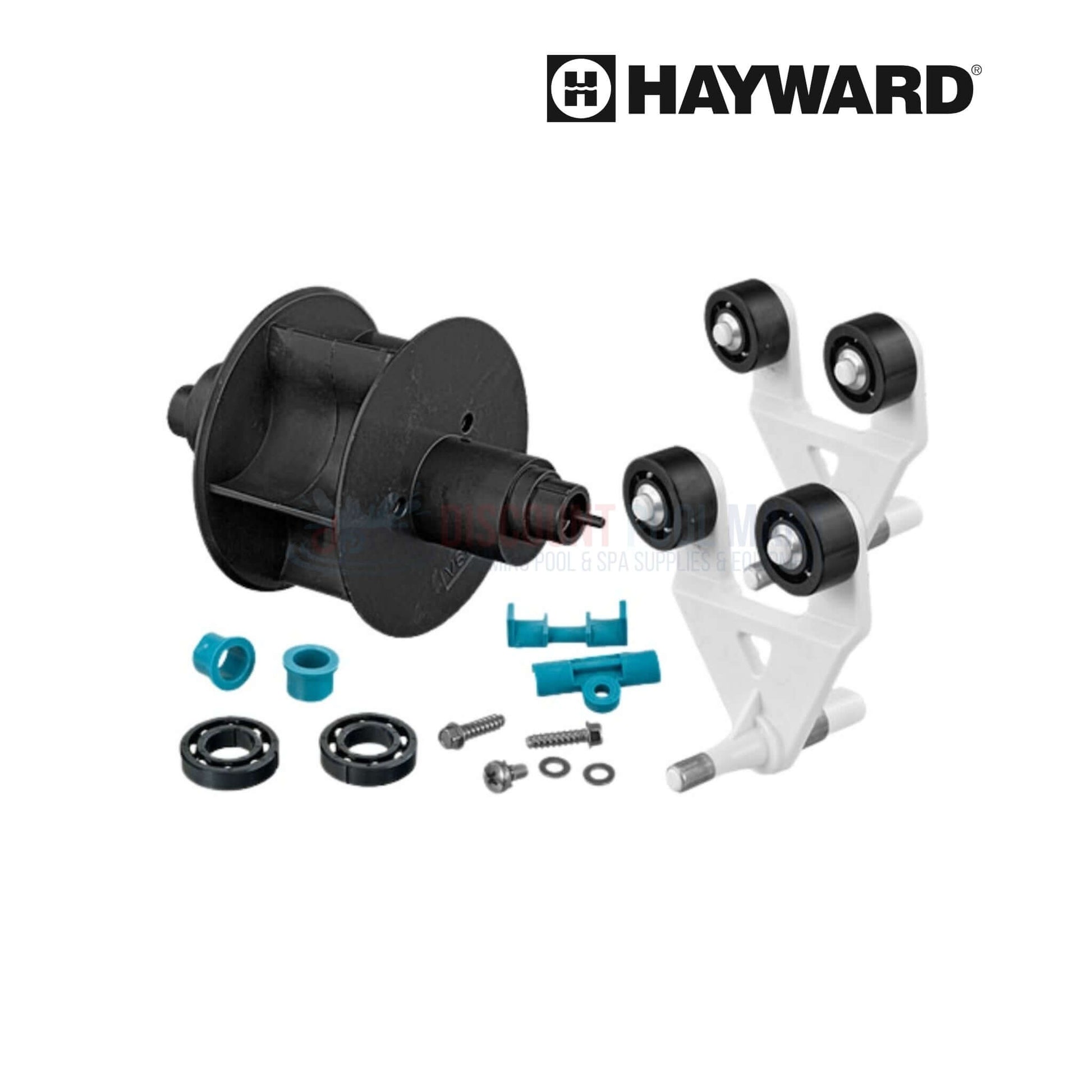

OEM Hayward Universal A-Frame & Turbine Kit AXV621DAT is a comprehensive rebuild solution for Hayward Navigator, PoolVac, AquaBug, Diver Dave, Wanda the Whale, and AquaDroid suction-side pool cleaners. This kit includes two soft roller A-frames with bushings, a saddle, keeper, main turbine with bearings, pod screws, and washers—offering a full internal restoration of critical moving parts. Designed for optimal gear alignment and turbine function, it enhances suction, improves navigation, and ensures consistent cleaning cycles. Built from durable materials, this kit extends your cleaner’s life and restores factory-level performance.
-
OEM Hayward Replacement Kit: Designed to fit multiple suction-side models including Navigator, PoolVac, and AquaBug for precise internal compatibility.
-
Full Internal Rebuild Set: Includes A-frames, bushings, turbine with bearings, saddle, keeper, and all necessary screws and washers.
-
Restores Core Functionality: Replacing worn parts revives turbine performance, improving gear synchronization and cleaner movement.
-
Durable Component Design: Manufactured from wear-resistant materials able to withstand daily exposure to debris, chemicals, and water pressure.
-
Boosts Cleaning Coverage: Improves the cleaner’s suction-driven motion and helps maintain thorough surface coverage across the entire pool.
- Hayward Pool Vac
- Hayward Navigator
- Hayward Aquadroid
- Hayward AquaBug
- Hayward Diver Dave
- Hayward Wanda Whale
Note: This A-Frame/Turbine Kit may be compatible with your cleaner, please refer to your systems owners manual to ensure compatibility.

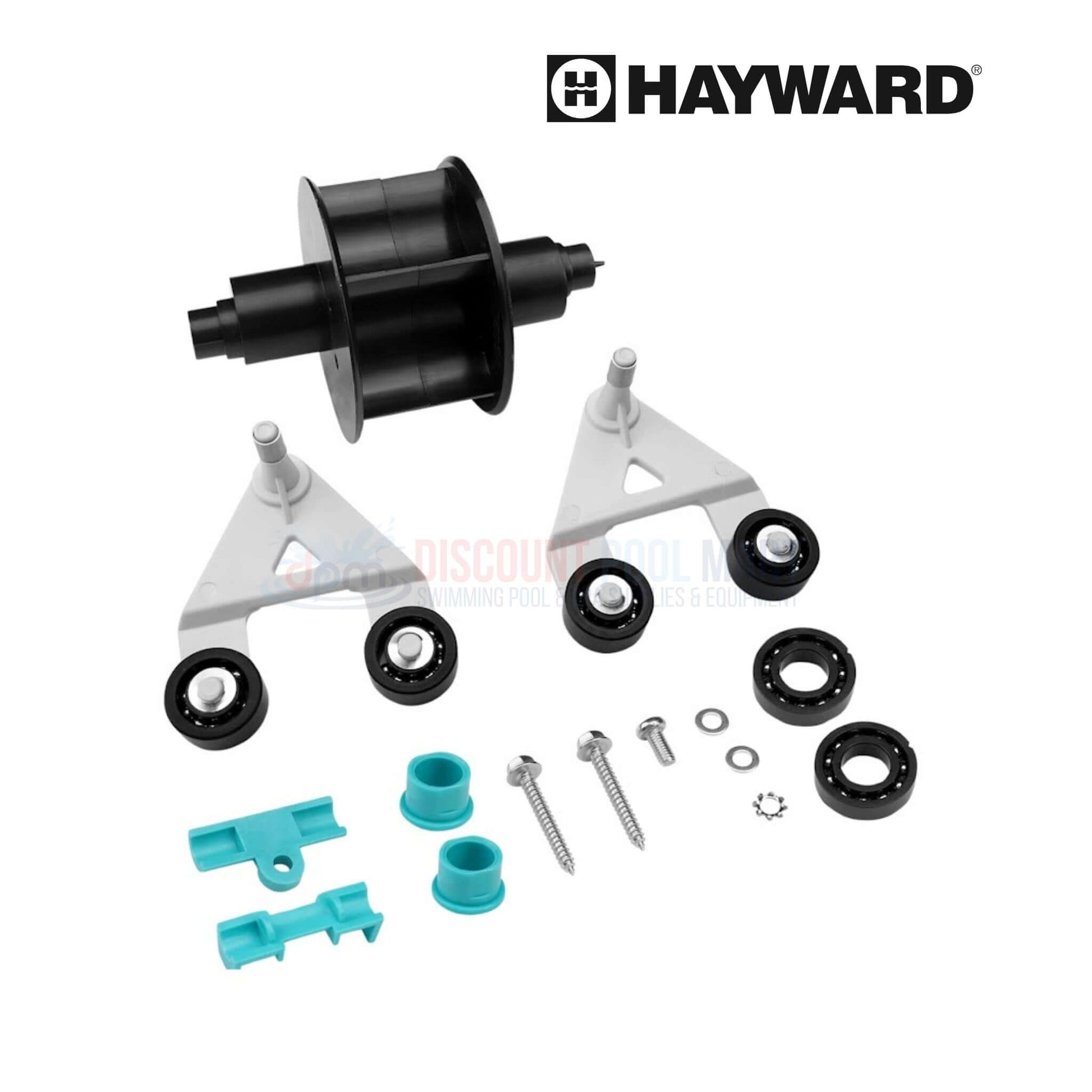

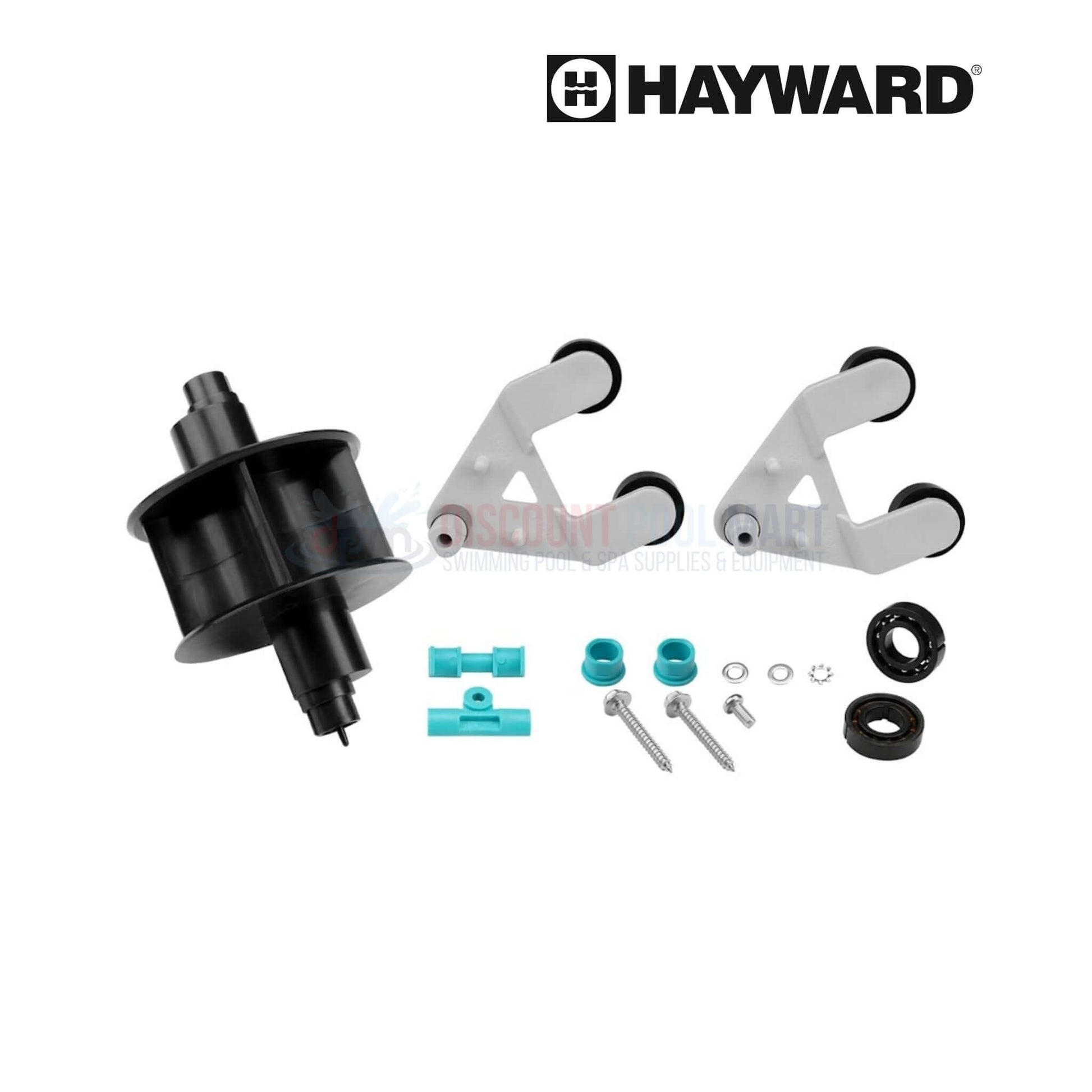

- (2) Soft Roller A-frames with Bushings
- (1) Saddle
- (1) Keeper
- (1) Main Turbine
- (2) Bearing
- Hex Head Pod Screws
- Pod Screw Washers
