On the Hayward The PoolCleaner (Poolvergnuegen) 2-Wheel Suction Cleaner diagram
Open the full interactive diagram →
Other parts on the same Hayward The PoolCleaner (Poolvergnuegen) 2-Wheel Suction Cleaner
Fits these models
Checked against Hayward parts list for The PoolCleaner 2-Wheel.
Overview

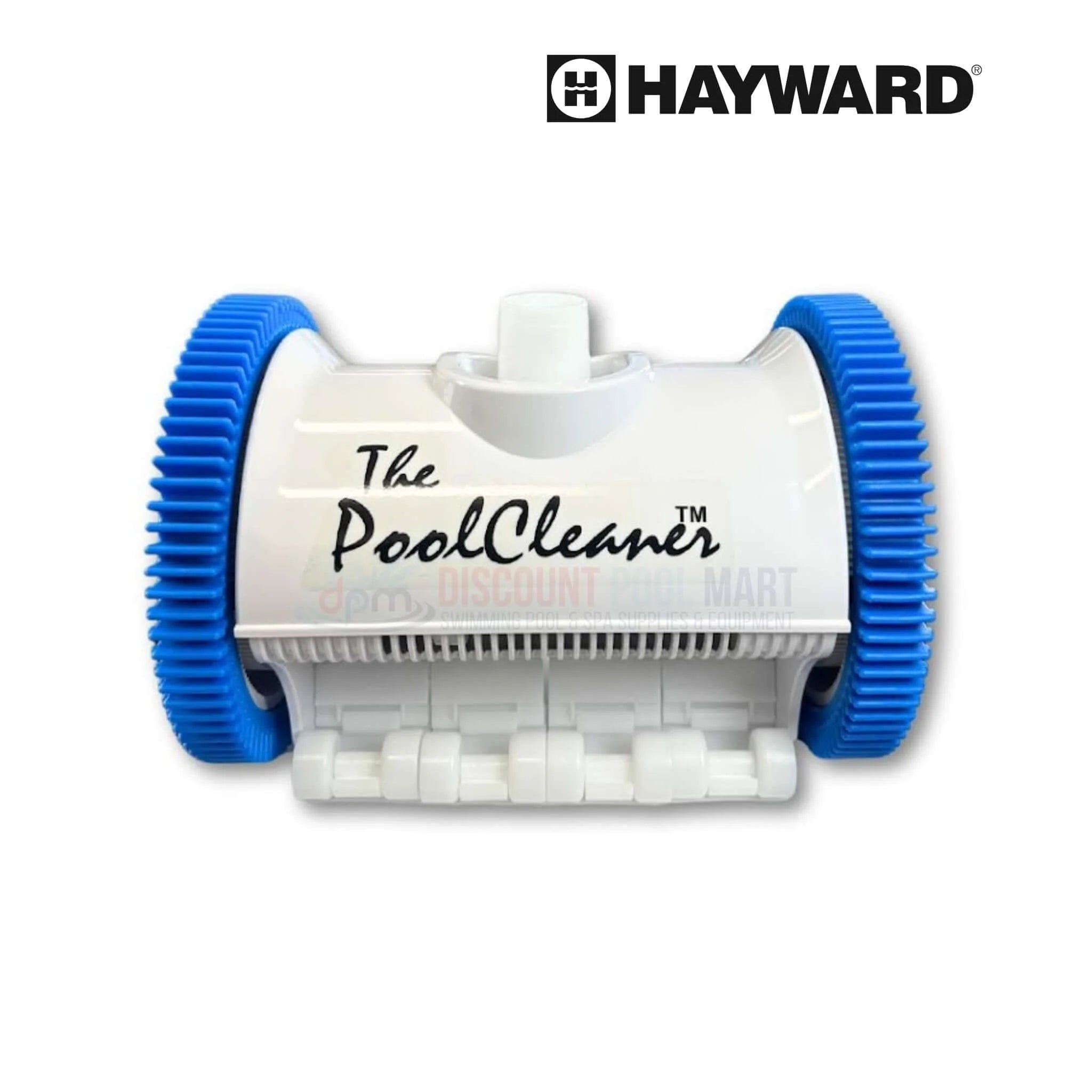

The complete head of the Hayward The PoolCleaner 2-Wheel suction cleaner. It connects to the hoses you already have. Head only: no hoses or hose floats.

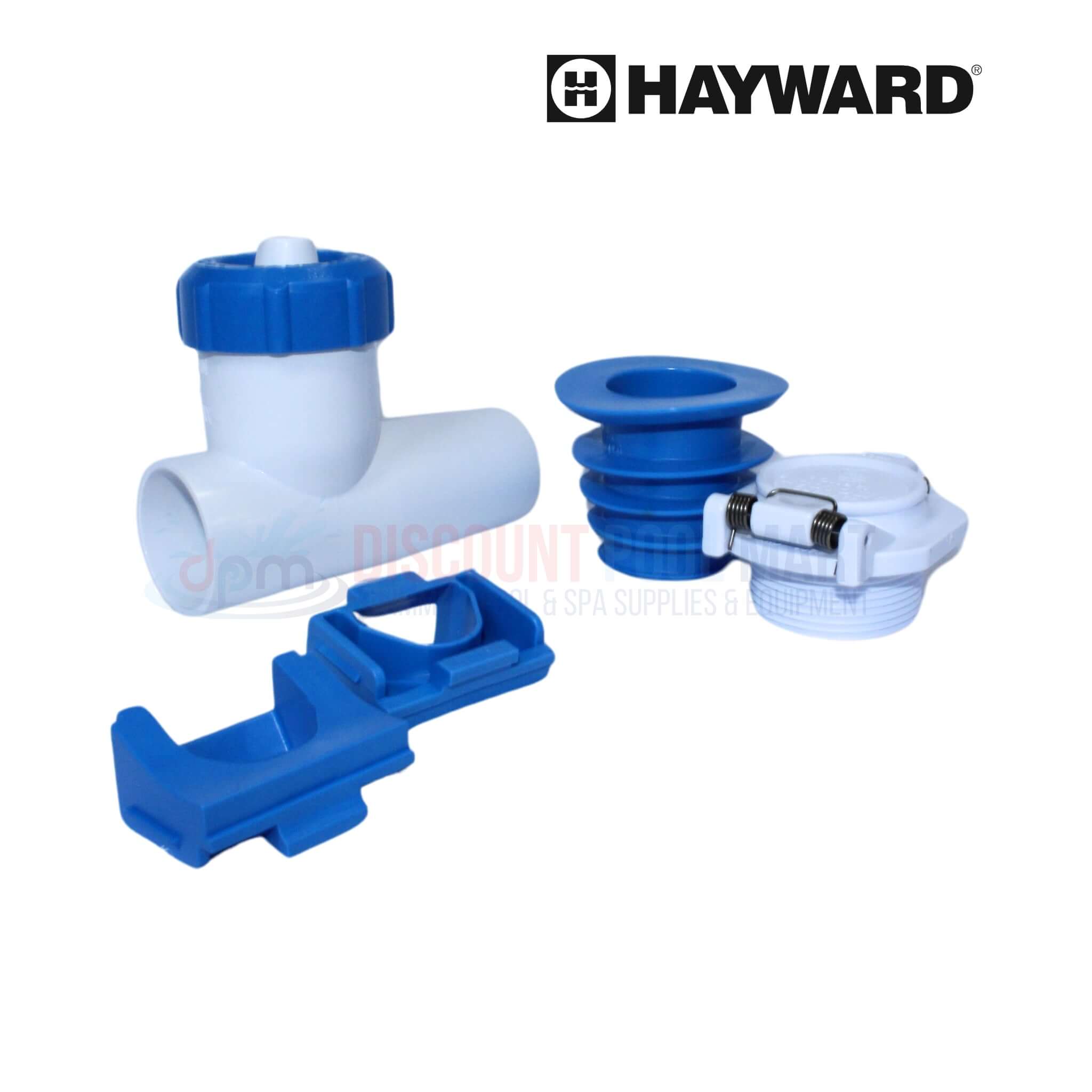

In the box
- Headbox
- V094P regulator valve
- W400BWHP vac lock
- PVXH035BLU hose cone
- PVX990S-236 and PVX990L-236 throats
Not included: Hoses, hose floats (PVX280PK2)
