Other parts on the same Hayward Navigator Pro Cleaner

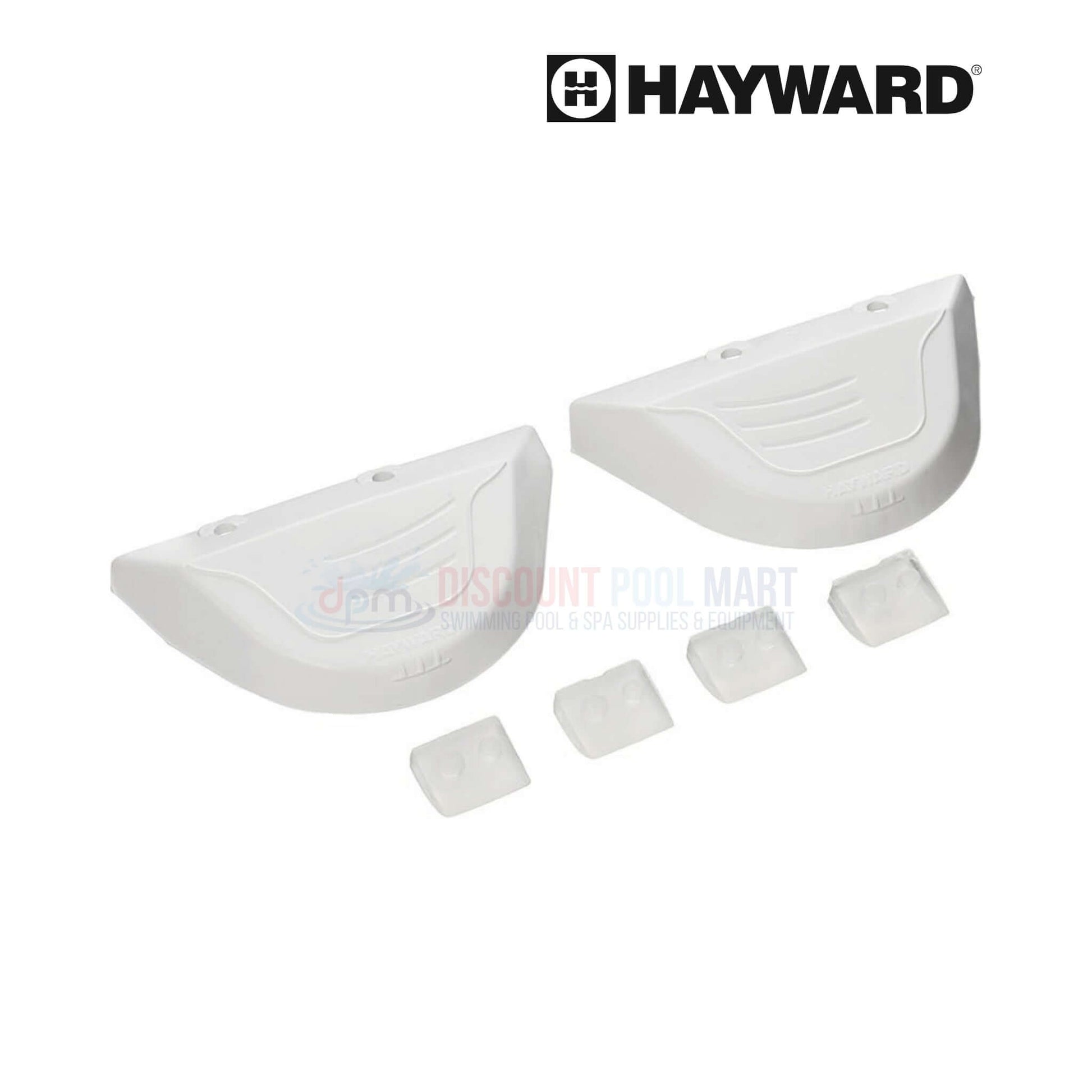

OEM Hayward AXV414604WHP Shoe and Wing Maintenance Kit is a replacement part set for Hayward Navigator and Pool Vac automatic pool cleaners. Designed to restore traction and movement, this kit includes two wings and four shoes that help maintain smooth operation across both concrete and vinyl pool surfaces. These parts support efficient debris pickup by ensuring your cleaner glides properly during each cycle. Built for durability and quick installation, this kit is a key solution for extending the working life of your pool cleaner.
-
Restores Traction and Stability: Includes essential components to keep your cleaner moving evenly across the pool floor and walls.
-
Dual-Surface Compatibility: Works with both concrete and vinyl pool surfaces, delivering smooth performance in various pool types.
-
Improves Debris Collection: Ensures consistent contact with pool surfaces to optimize suction and pickup during cleaning cycles.
-
Fast, Tool-Free Installation: Replacement wings and shoes are easy to install, minimizing downtime and keeping maintenance simple.
-
Supports Long-Term Reliability: Built from strong materials to extend cleaner life and maintain performance season after season.

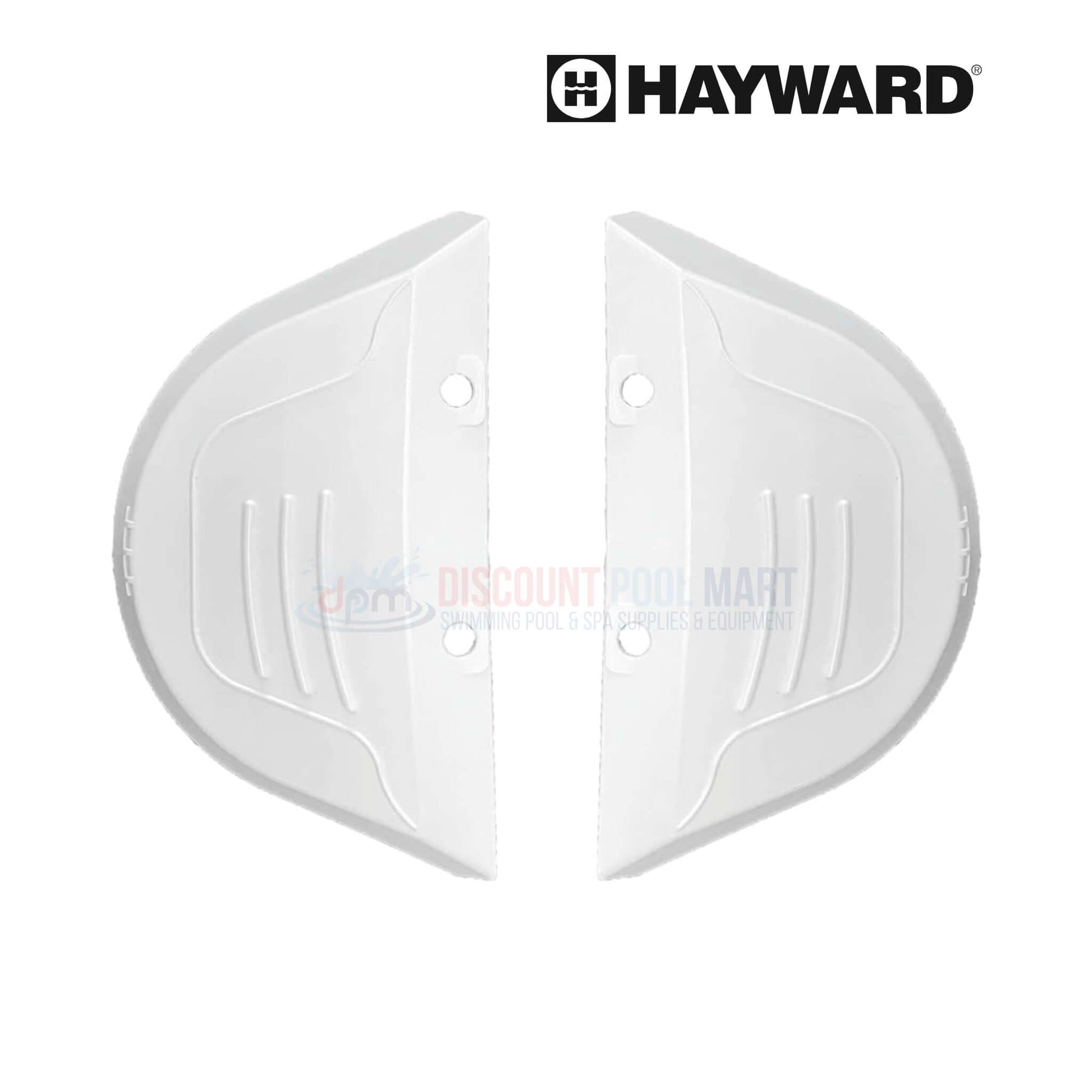

- (2) Wings

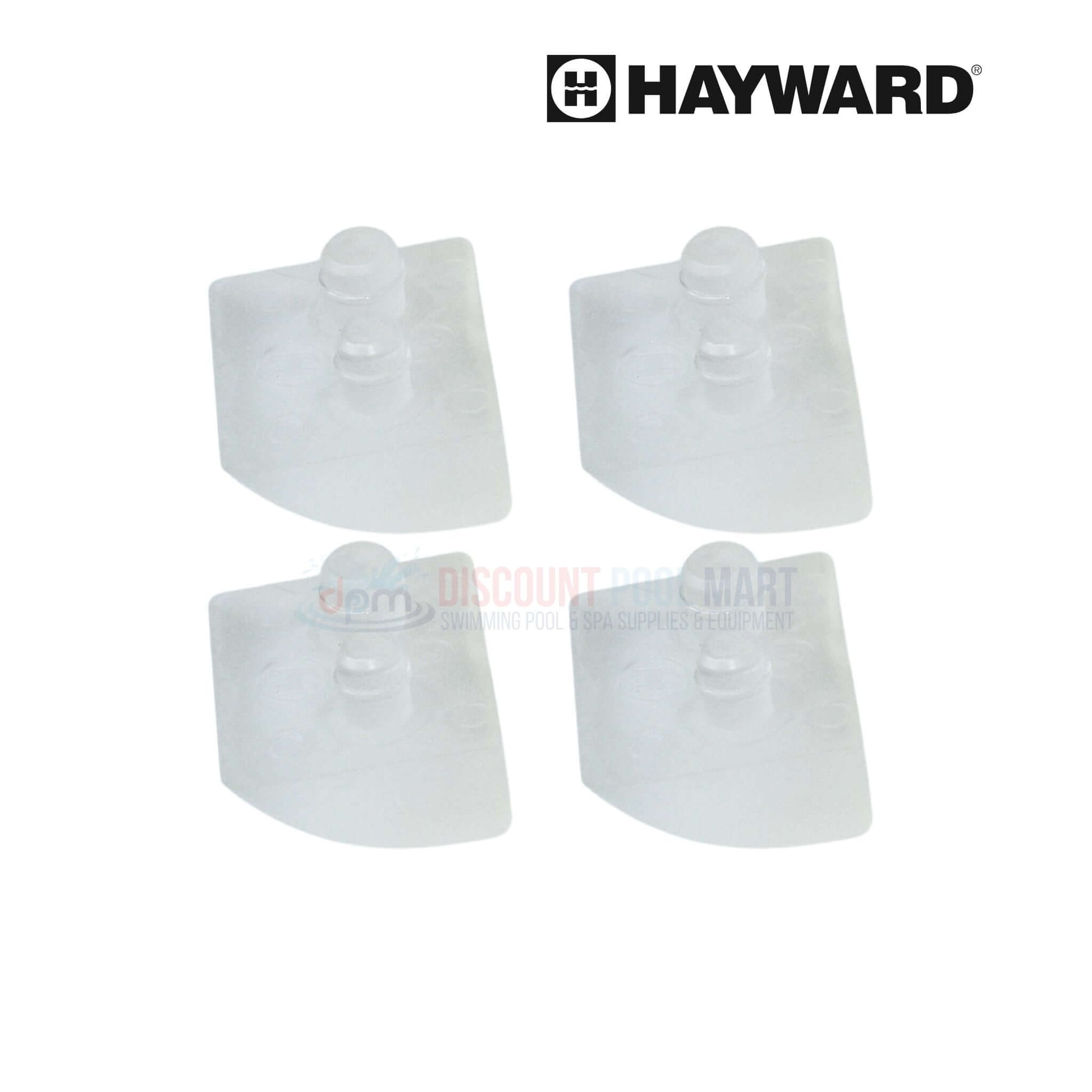

- (4) Shoes
- Hayward Navigator Automatic Cleaners
- Hayward Pool Vac Automatic Cleaners
