AXV230DWH | Hayward Lower Body For Navigator Pool Vac
Fits these models (3)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 10 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

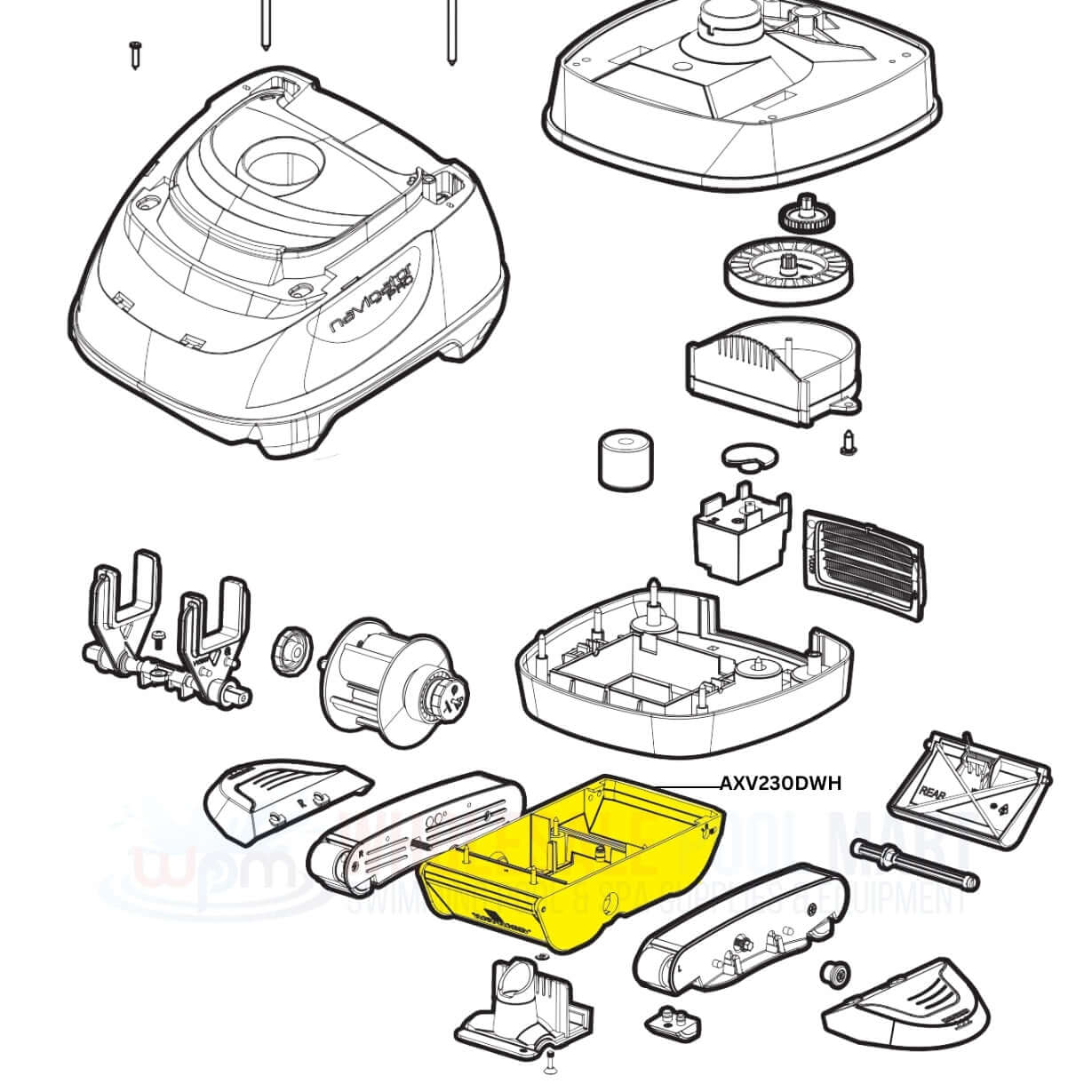

On the Hayward Navigator Pro Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Navigator Pro Cleaner

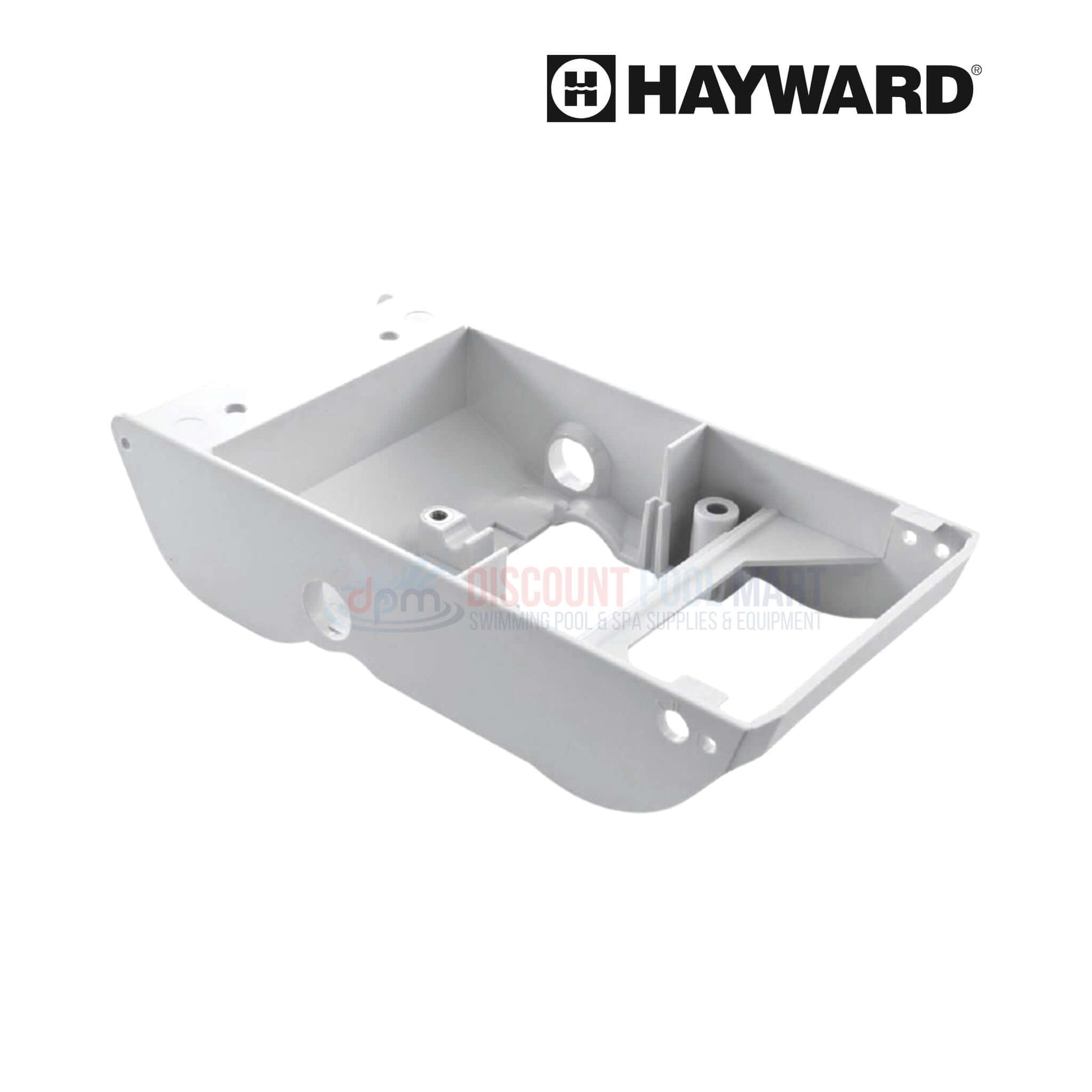

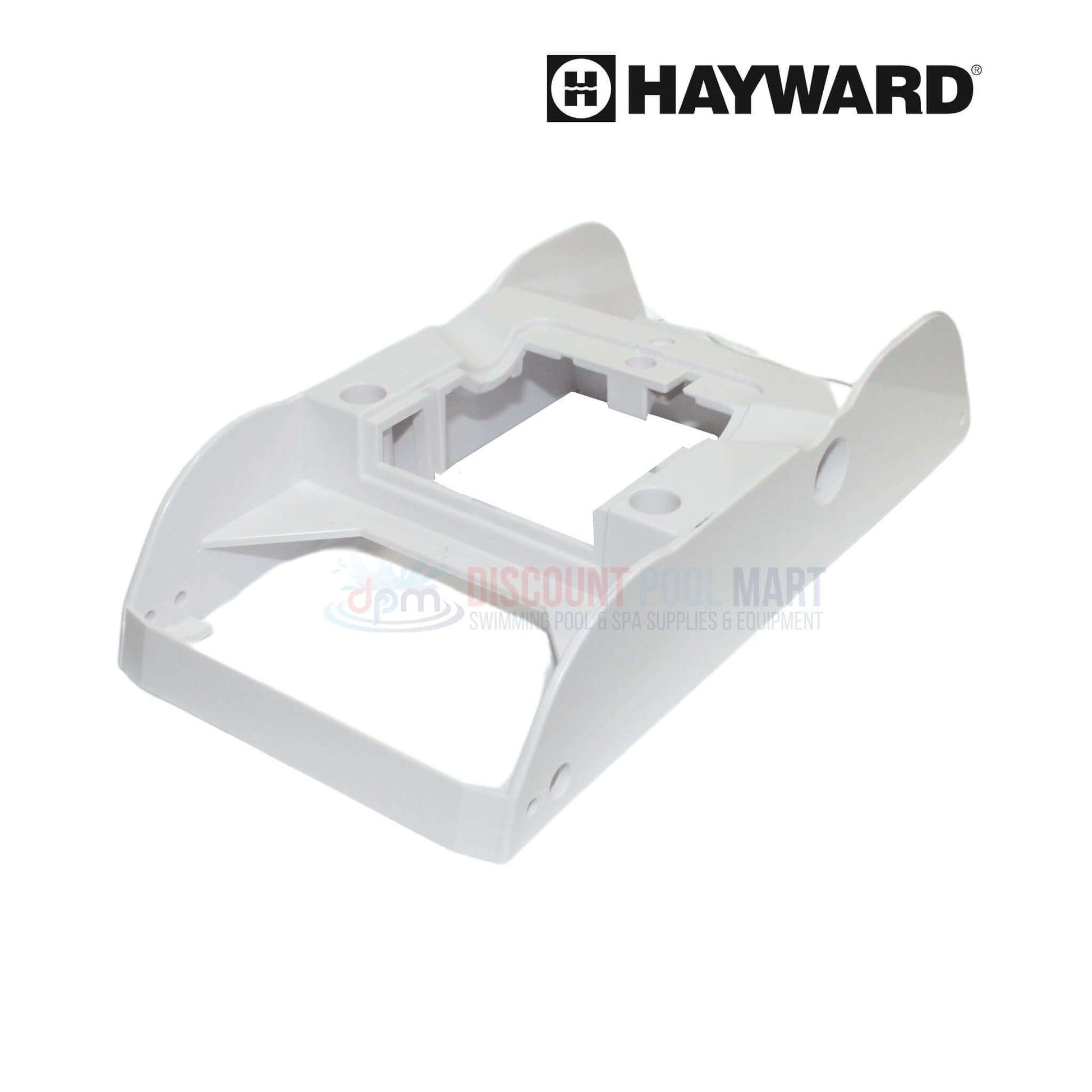

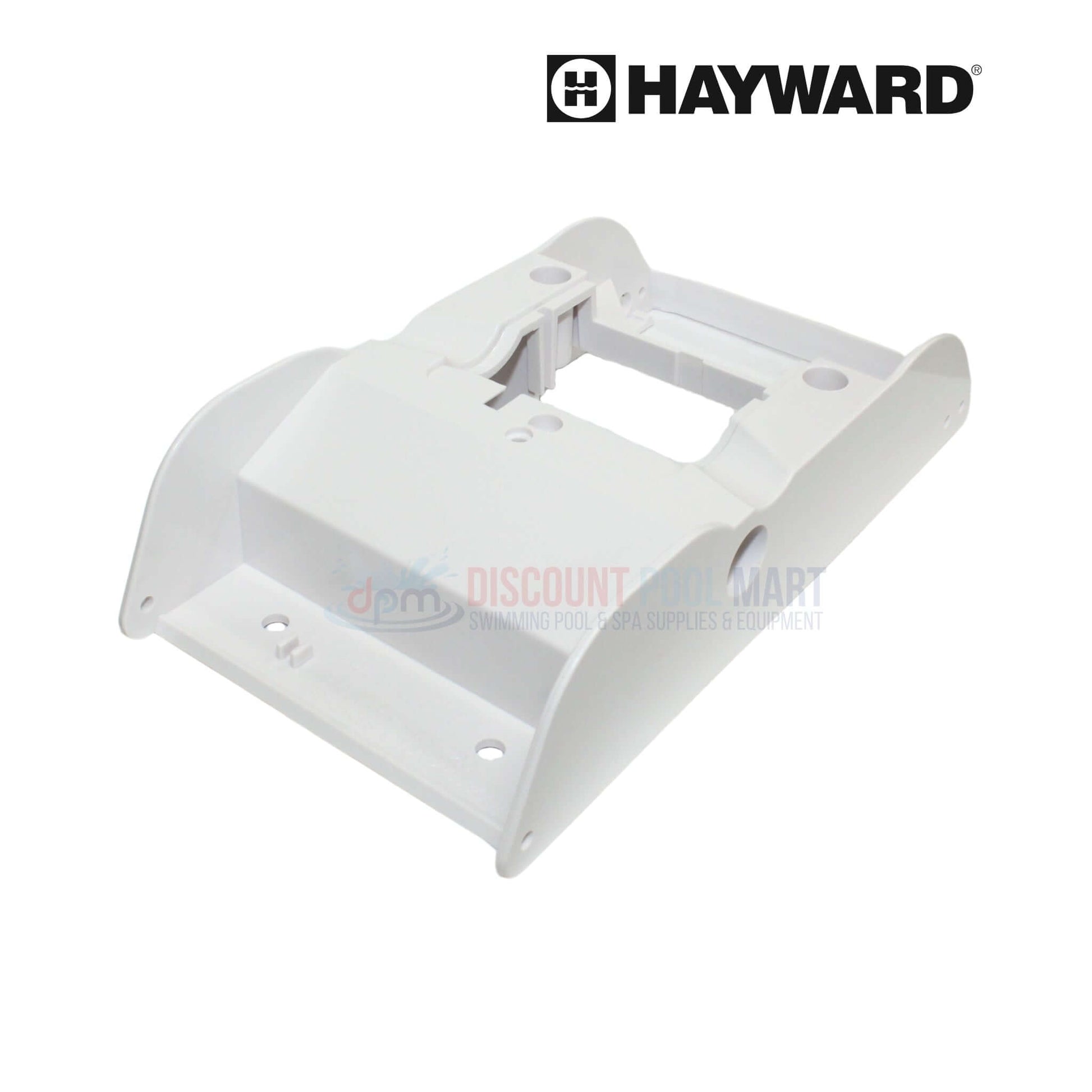

OEM Hayward AXV230DWH Lower Body is a precision-engineered replacement part designed to restore the structural foundation of Hayward Navigator, Navigator Pro, and Pool Vac suction pool cleaners. This durable white lower body component provides a stable base for internal mechanisms and is essential for proper navigation and cleaning efficiency. Made from high-quality materials and designed for easy installation, it ensures your cleaner maintains consistent contact with pool surfaces for thorough debris removal and reliable long-term performance.
-
Exact Fit for Hayward Cleaners: Specifically built for Navigator, Navigator Pro, and Pool Vac suction models to restore original structure
-
Supports Smooth Navigation: Helps maintain balance and directional stability during cleaning cycles across all pool surfaces
-
Durable Pool-Grade Material: Made from rugged materials designed to handle routine exposure to chlorine, pressure, and outdoor conditions
-
Protects Internal Components: Serves as a secure base for vital internal parts, supporting overall cleaner performance
-
Straightforward Replacement: Installs quickly without special tools, making it easy to keep your cleaner running at peak efficiency
- Hayward Navigator Pro Suction Pool Cleaners
- Hayward Navigator Suction Pool Cleaners
- Hayward Pool Vac Suction Pool Cleaners
Note: This pod kit may be compatible with your cleaner, please refer to your systems owners manual to ensure compatibility.
