AXV603 | Hayward Fixed Access Cover For Navigator & Pool Vac
Fits these models (3)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 117 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

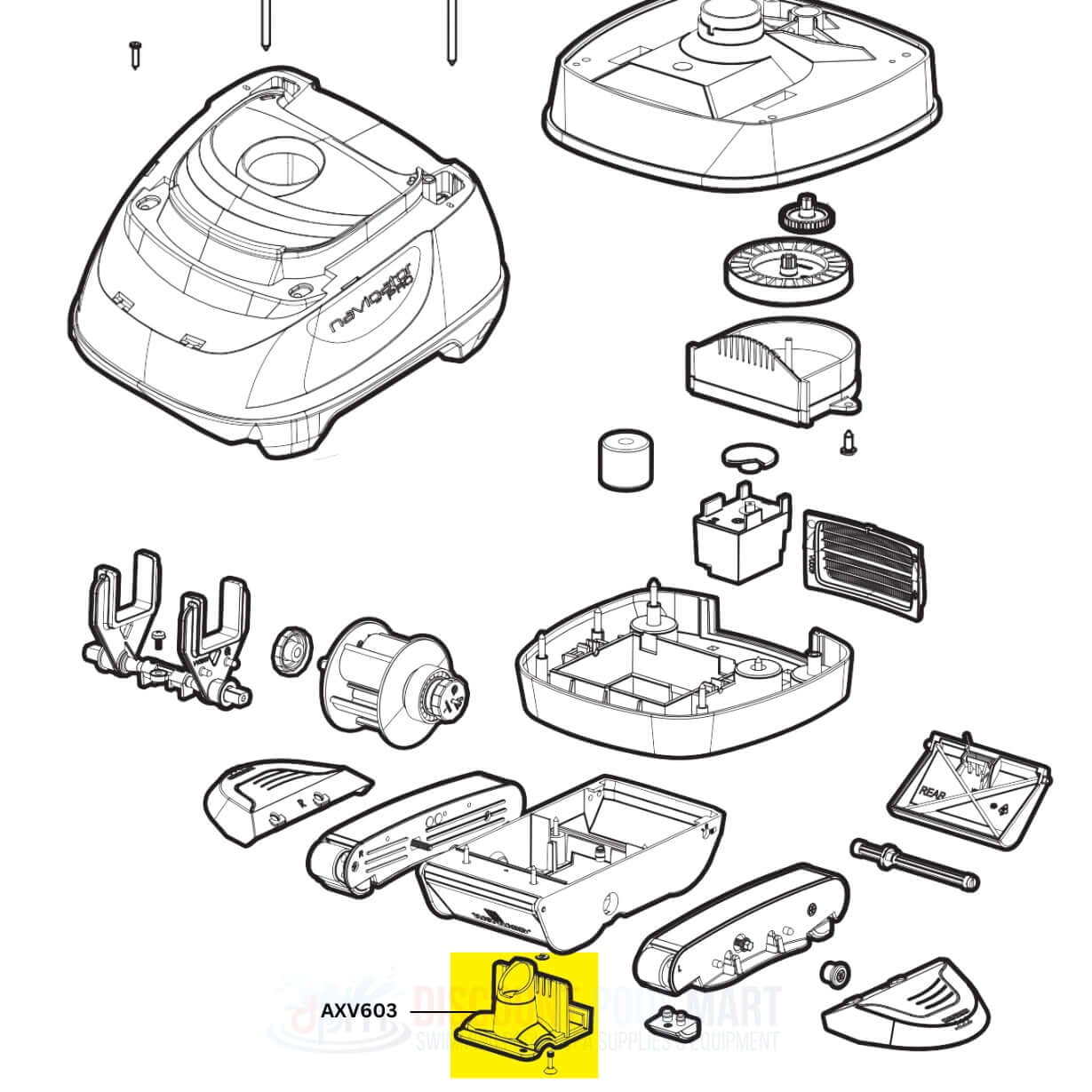

On the Hayward Navigator Pro Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Navigator Pro Cleaner

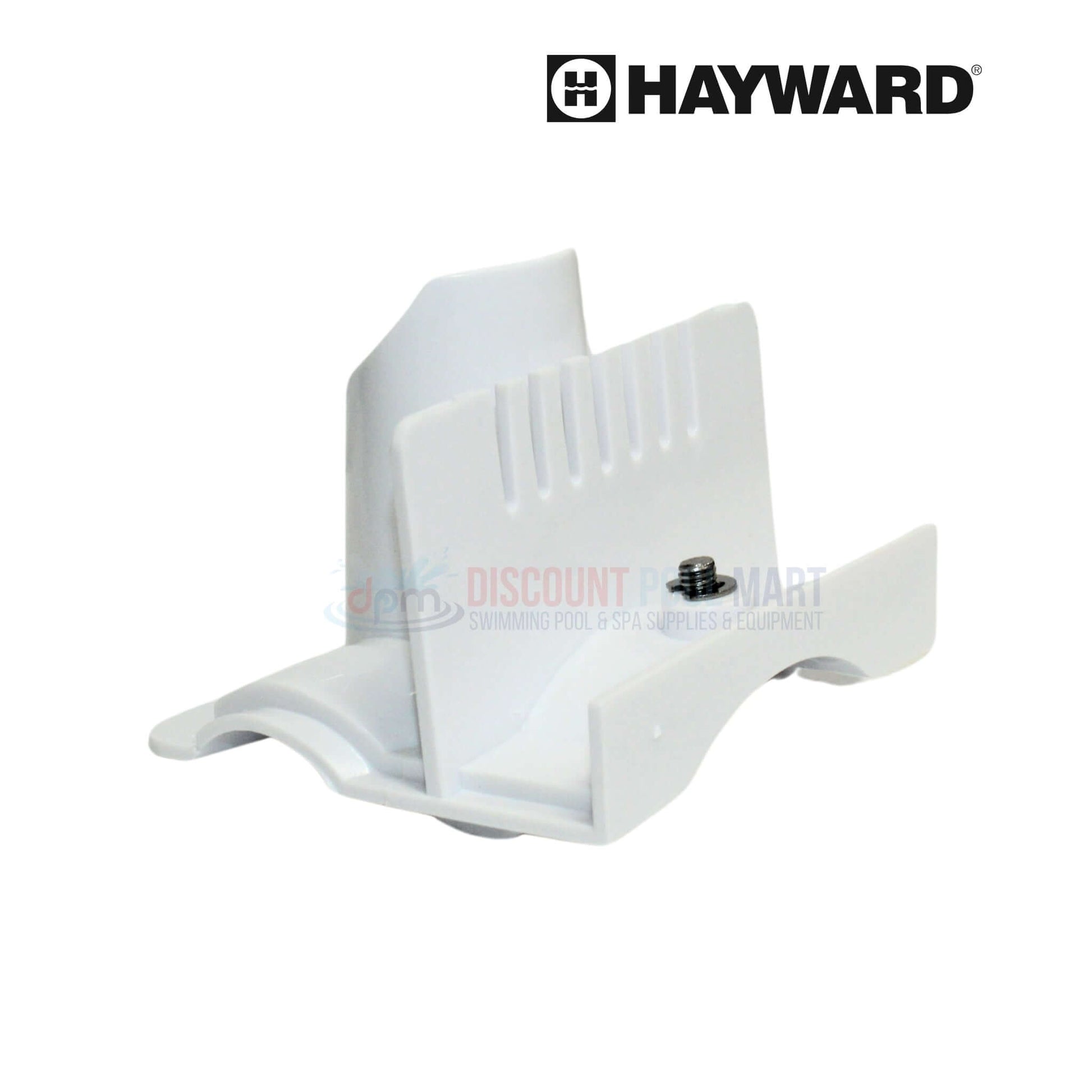

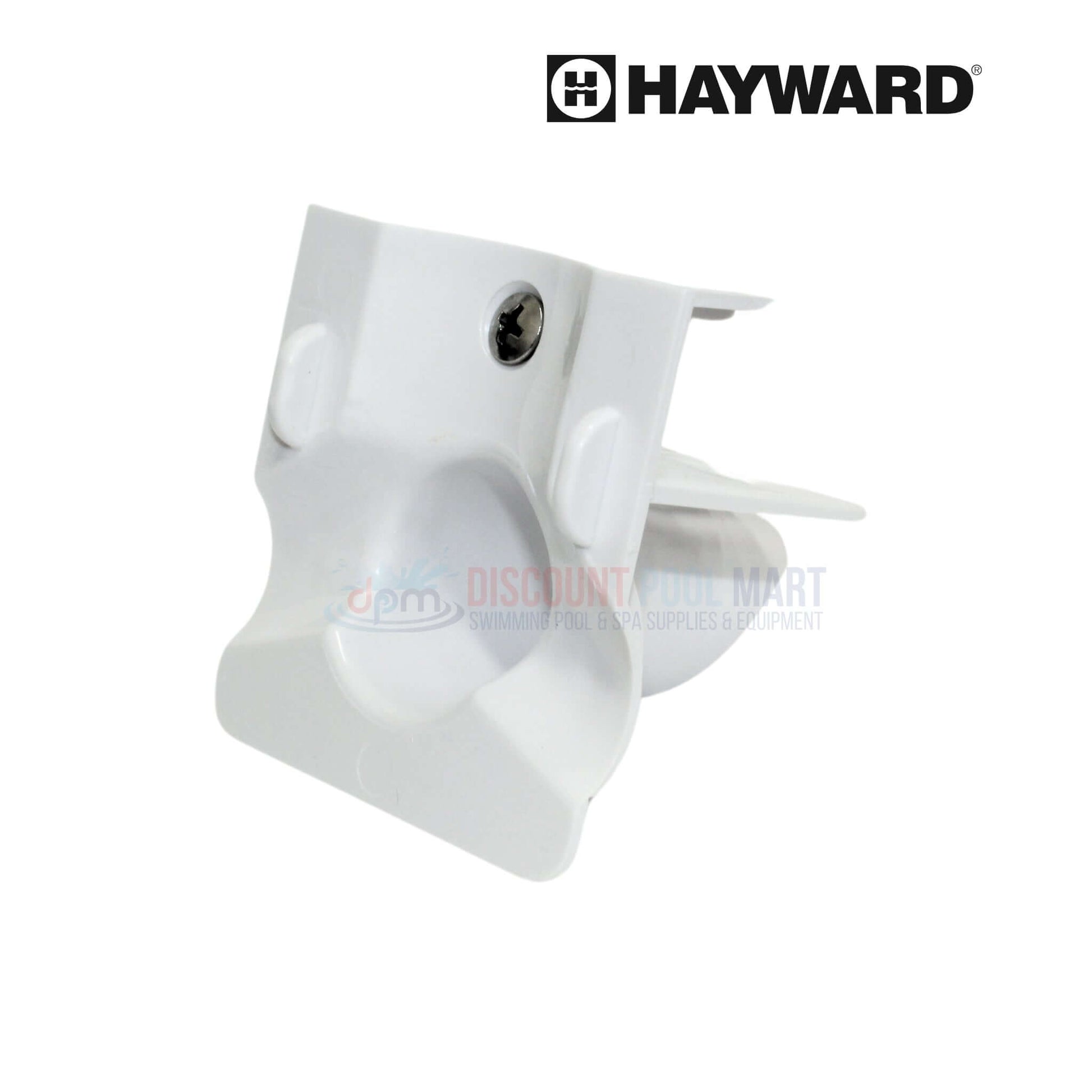

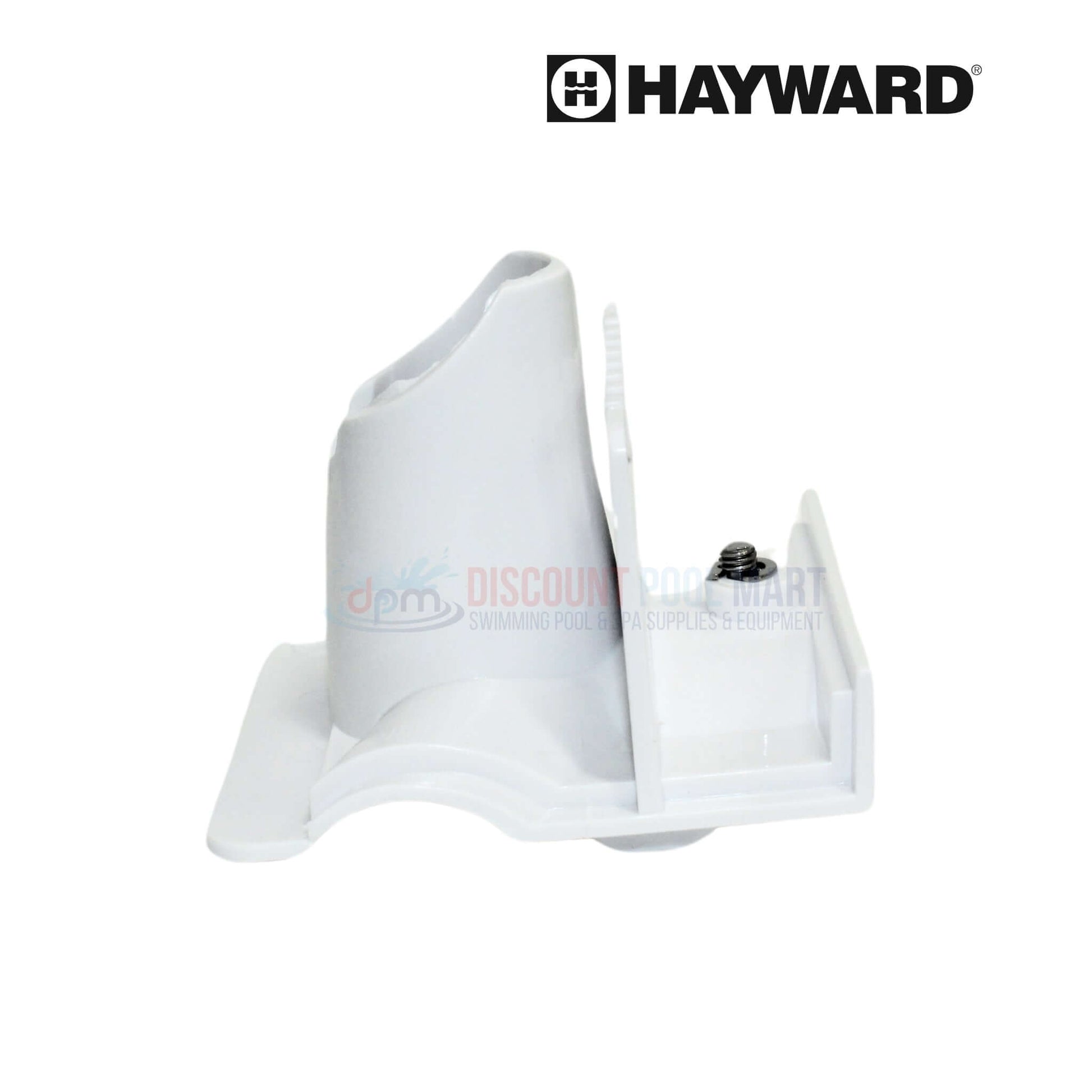

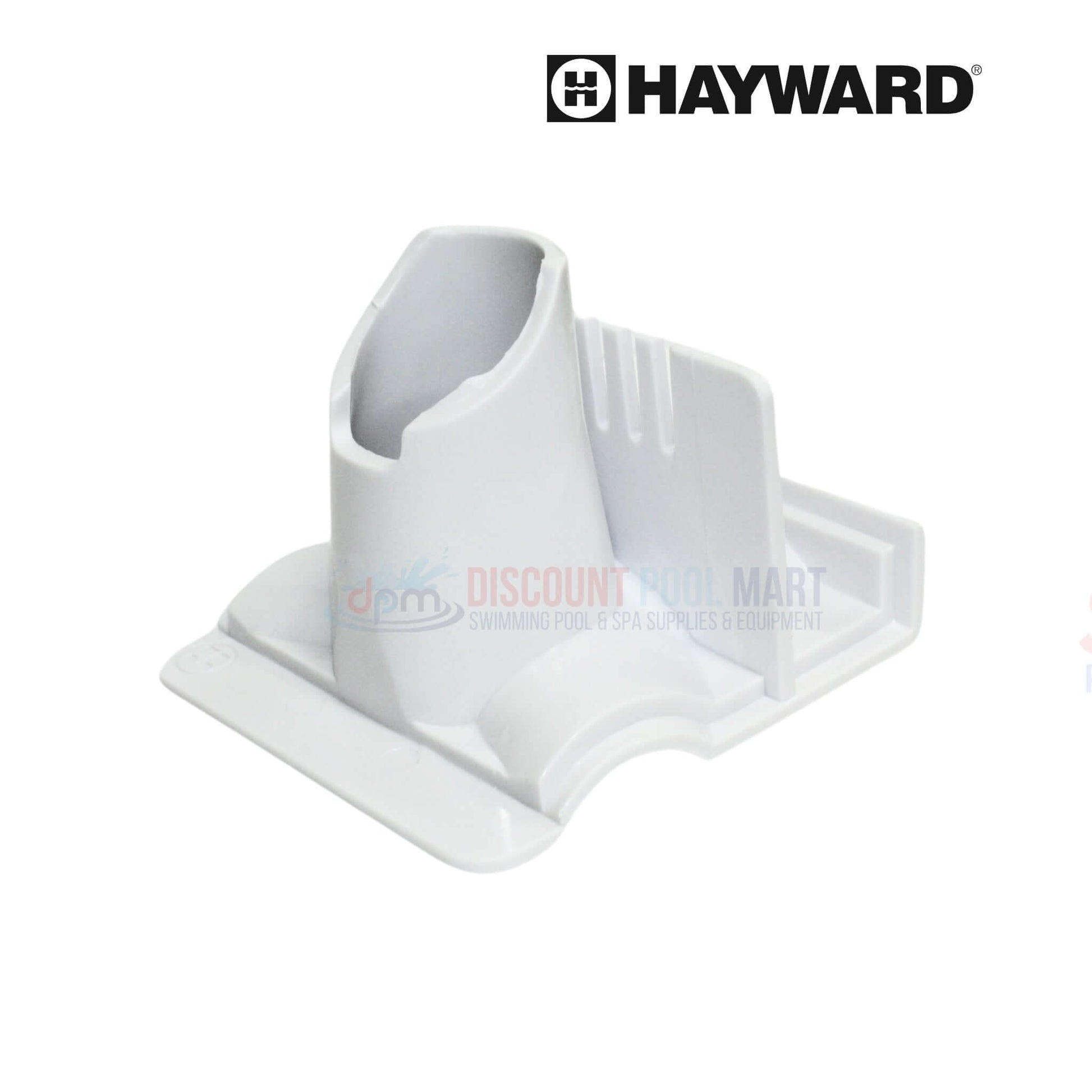

OEM Hayward Fixed Access Cover Assembly AXV603 is a vital replacement part for maintaining the structural integrity and operational reliability of Hayward Navigator and Pool Vac Ultra suction cleaners. This white access cover protects internal components while preserving suction balance and movement efficiency. Built from durable, pool-grade materials, it provides a snug fit and long-term durability. Its easy installation makes it ideal for restoring performance and protecting the internal workings of your cleaner.
-
Made for Navigator and Pool Vac Cleaners: Designed to fit Navigator Pro, Pool Vac Ultra, and related Hayward suction cleaner models
-
Protects Internal Mechanisms: Covers essential parts of the cleaner body, preventing damage from debris and wear
-
Enhances Suction Efficiency: Helps maintain proper internal pressure by sealing off critical access areas
-
Durable and Weather-Resistant: Built from rugged materials to handle daily exposure to chemicals, UV light, and water
-
Quick and Secure Installation: Easily mounts in place for reliable protection and long-lasting pool cleaner performance
- Hayward Navigator Pro Suction Pool Cleaners
- Hayward Navigator Suction Pool Cleaners
- Hayward Pool Vac Suction Pool Cleaners
Note: This pod kit may be compatible with your cleaner, please refer to your systems owners manual to ensure compatibility.
