AXV414P | Hayward Concrete Pod Shoes For Pool Vac & Navigator | 4 Pack
Fits these models (3)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 39 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

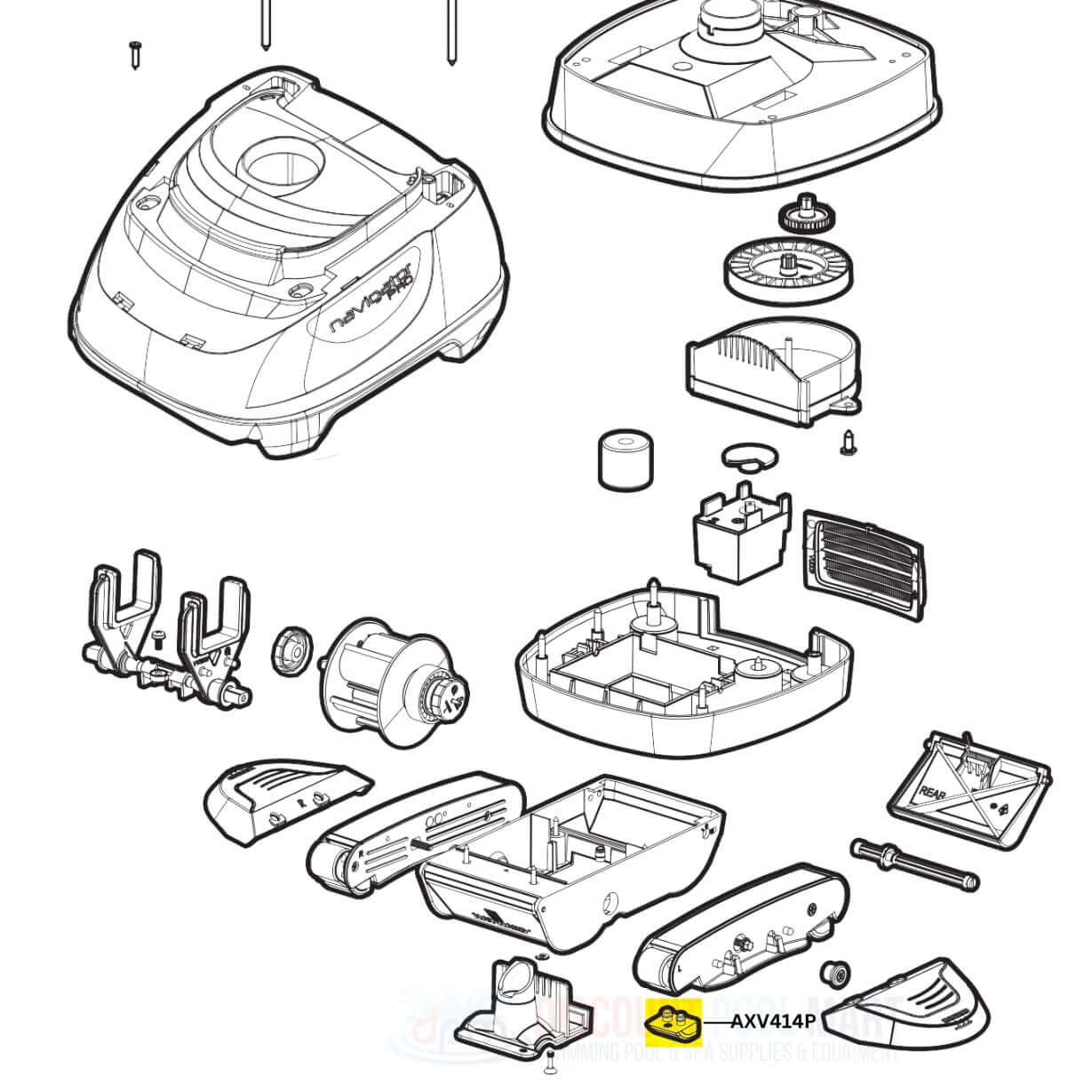

On the Hayward Navigator Pro Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Navigator Pro Cleaner

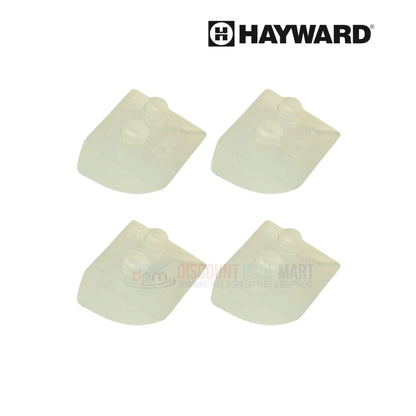

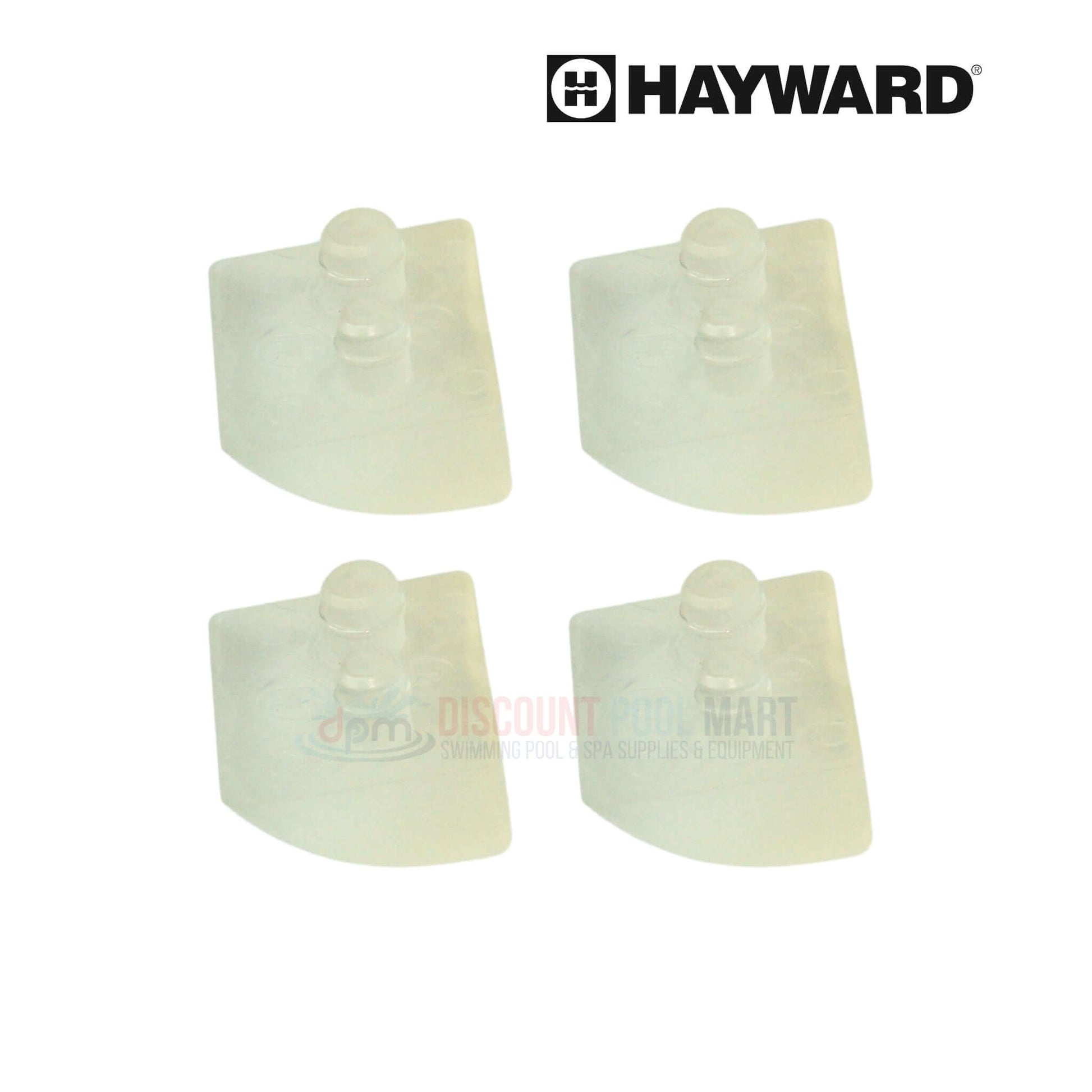

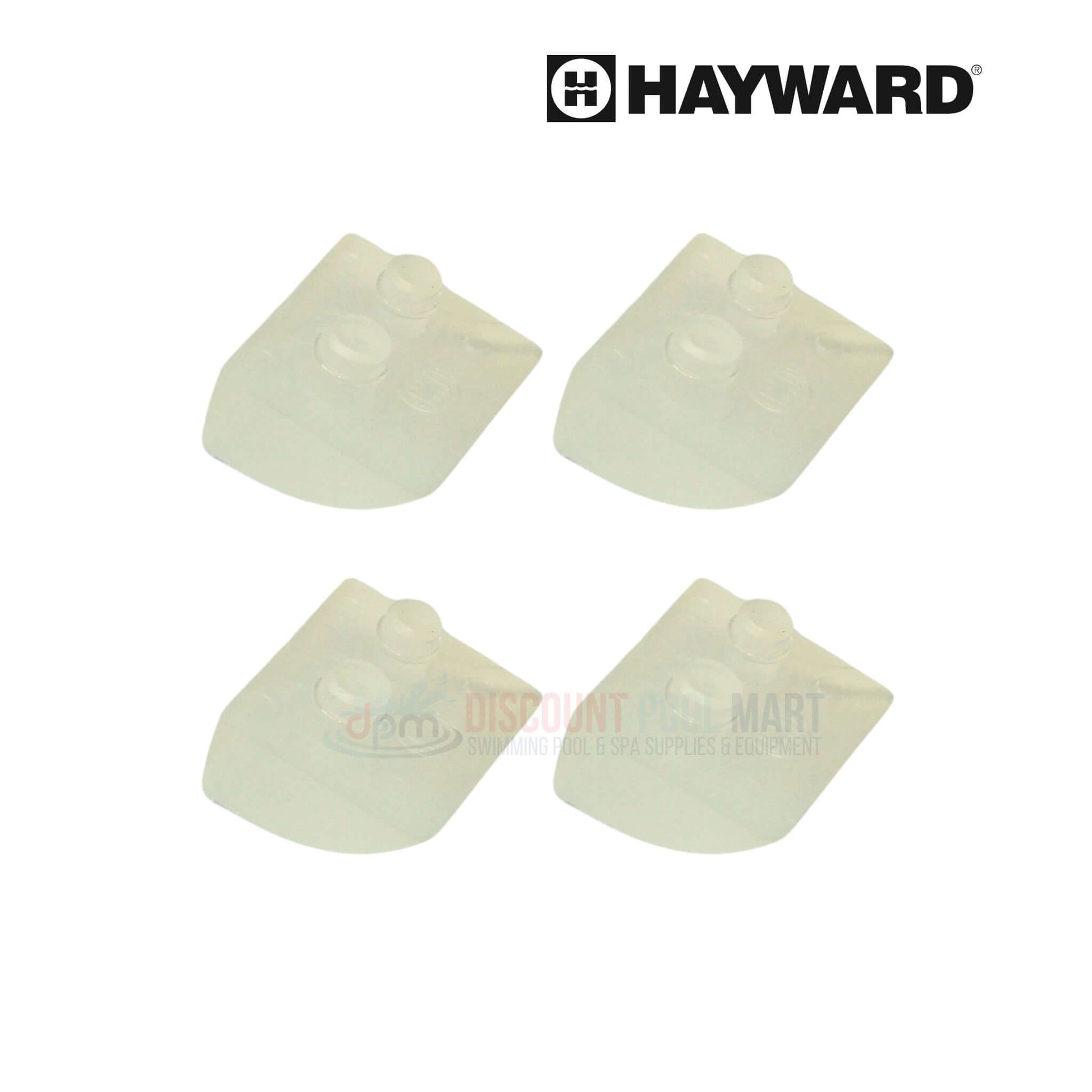

OEM Hayward Concrete Pod Shoes AXV414P are replacement parts specifically engineered for use with Hayward Pool Vac and Navigator suction cleaners on concrete pool surfaces. This 4-pack of durable pod shoes enhances the cleaner’s traction, allowing it to move efficiently and maintain consistent contact with the pool floor for effective debris collection. Constructed from long-lasting materials, these shoes are designed to resist wear under harsh pool conditions. Easy to install, they help restore the cleaner’s original performance and extend its operational life with minimal effort.
-
Designed for Concrete Pools: OEM fit for Hayward Navigator and Pool Vac cleaners to ensure stable grip on concrete surfaces
-
Restores Full Cleaning Traction: Helps maintain tight contact with the pool floor to improve debris pickup and cleaning consistency
-
Durable, Wear-Resistant Materials: Built to withstand abrasive surfaces and extended use in demanding pool environments
-
Fast, Tool-Friendly Installation: Easily removed and replaced with a flathead screwdriver, saving time during maintenance
-
Convenient 4-Pack Replacement Kit: Includes four pod shoes for a complete replacement cycle, keeping your cleaner at peak performance
- (4) Hayward AXV414P Pod Shoes

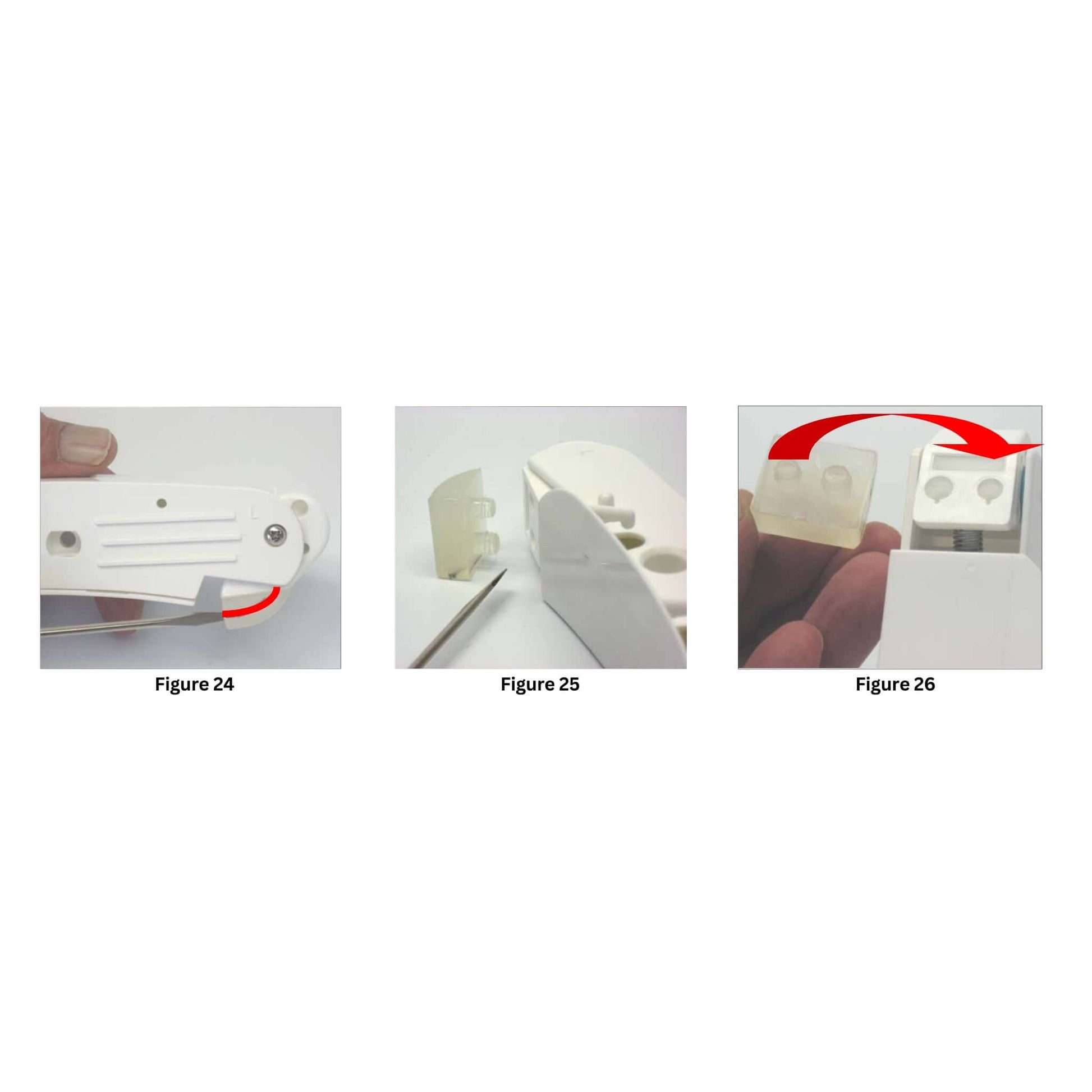

- Note the wear line (highlighted) on the side of the shoe. Replace shoes if worn beyond this mark (Fig 24).
- Insert a flat head screwdriver between the pod foot and the shoe. Using a lifting motion, remove the shoe from the foot (Fig 25)
- When installing the new shoe, make sure all water and debris are removed from the surface and hole. The holes for the shoes and the posts on the shoes have matching sizes for proper positioning (fig 26).
- Hayward Navigator Pro Suction Pool Cleaners
- Hayward Navigator Suction Pool Cleaners
- Hayward Pool Vac Suction Pool Cleaners
Note: This pod shoes may be compatible with your cleaner, please refer to your systems owners manual to ensure compatibility.
