Other parts on the same Hayward Navigator Pro Cleaner

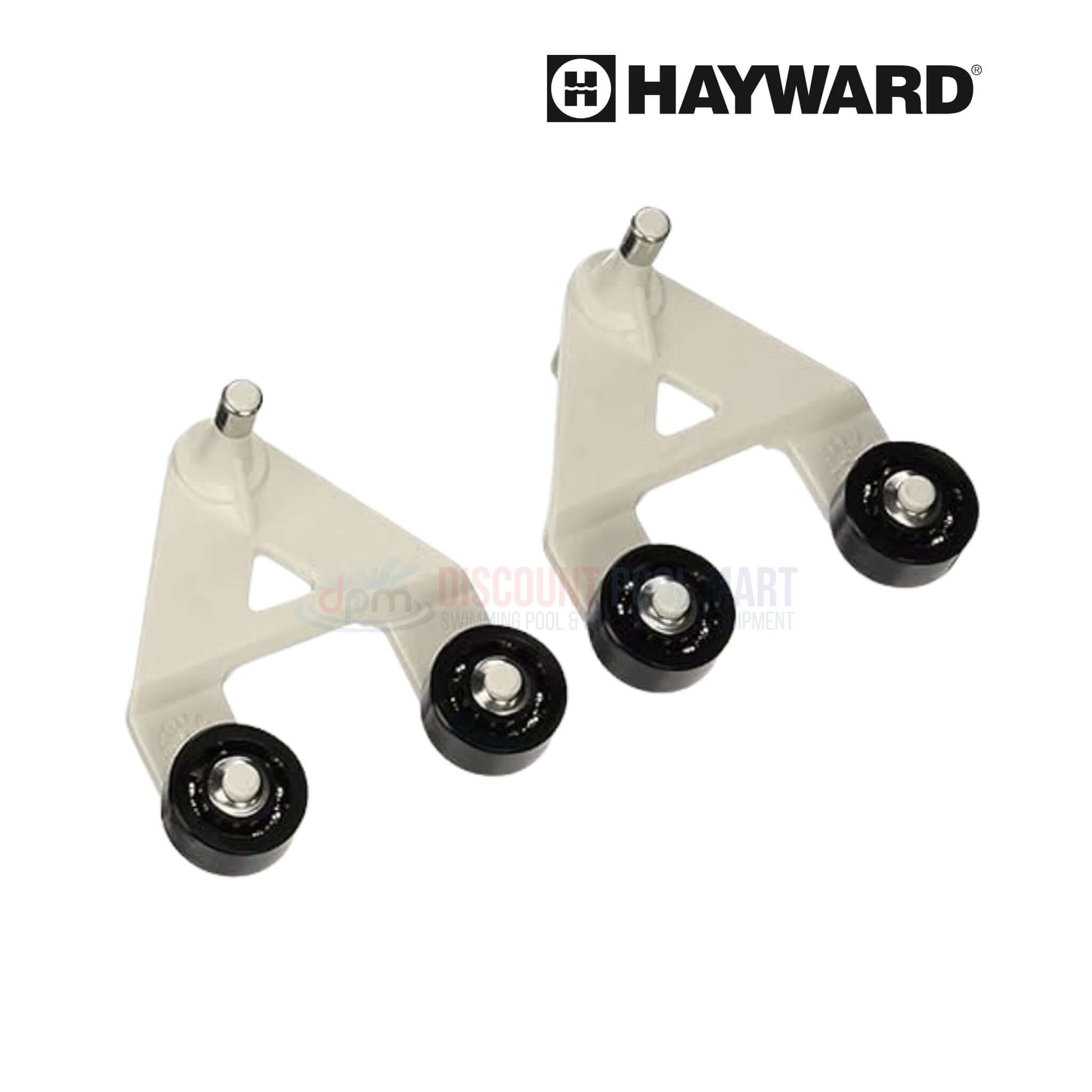

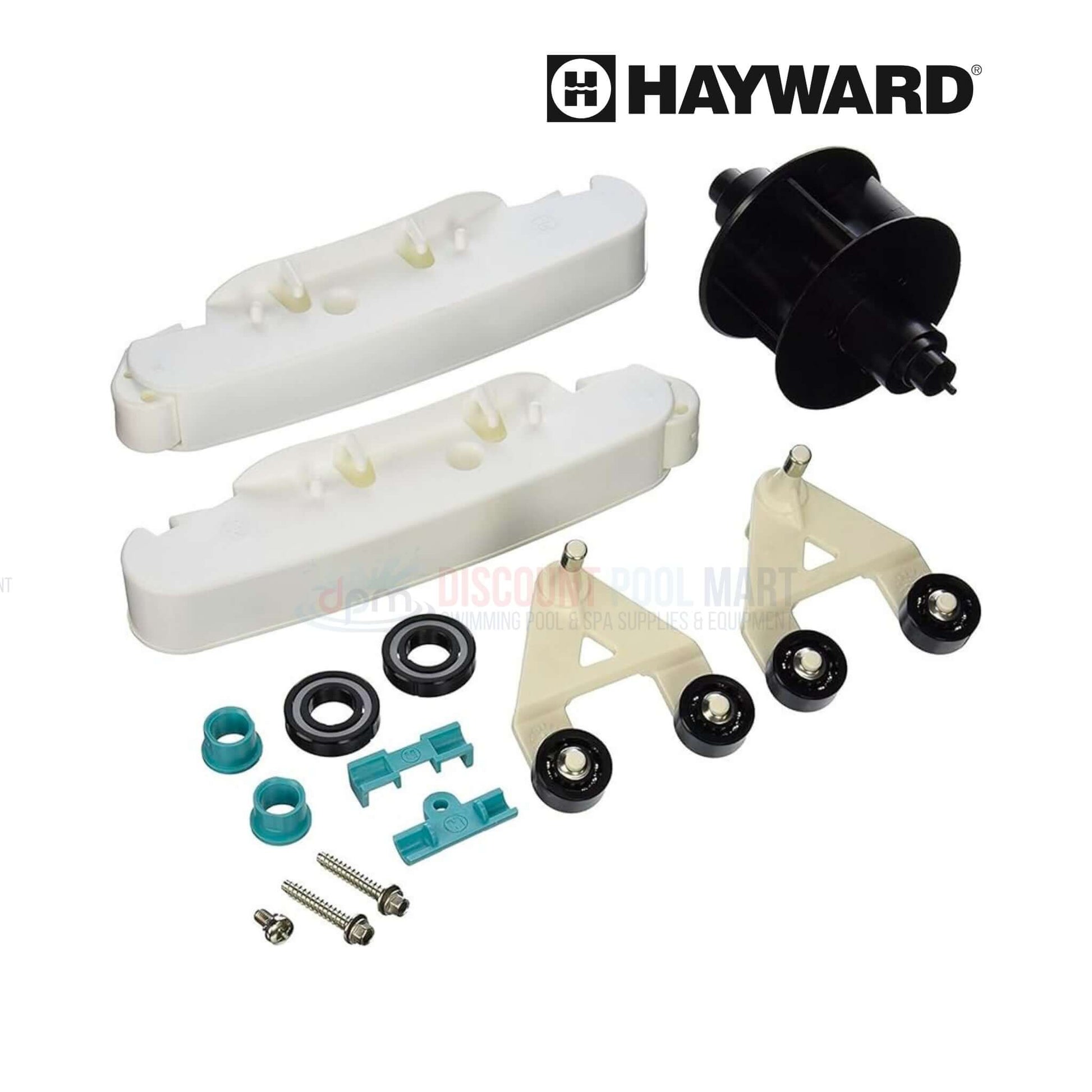

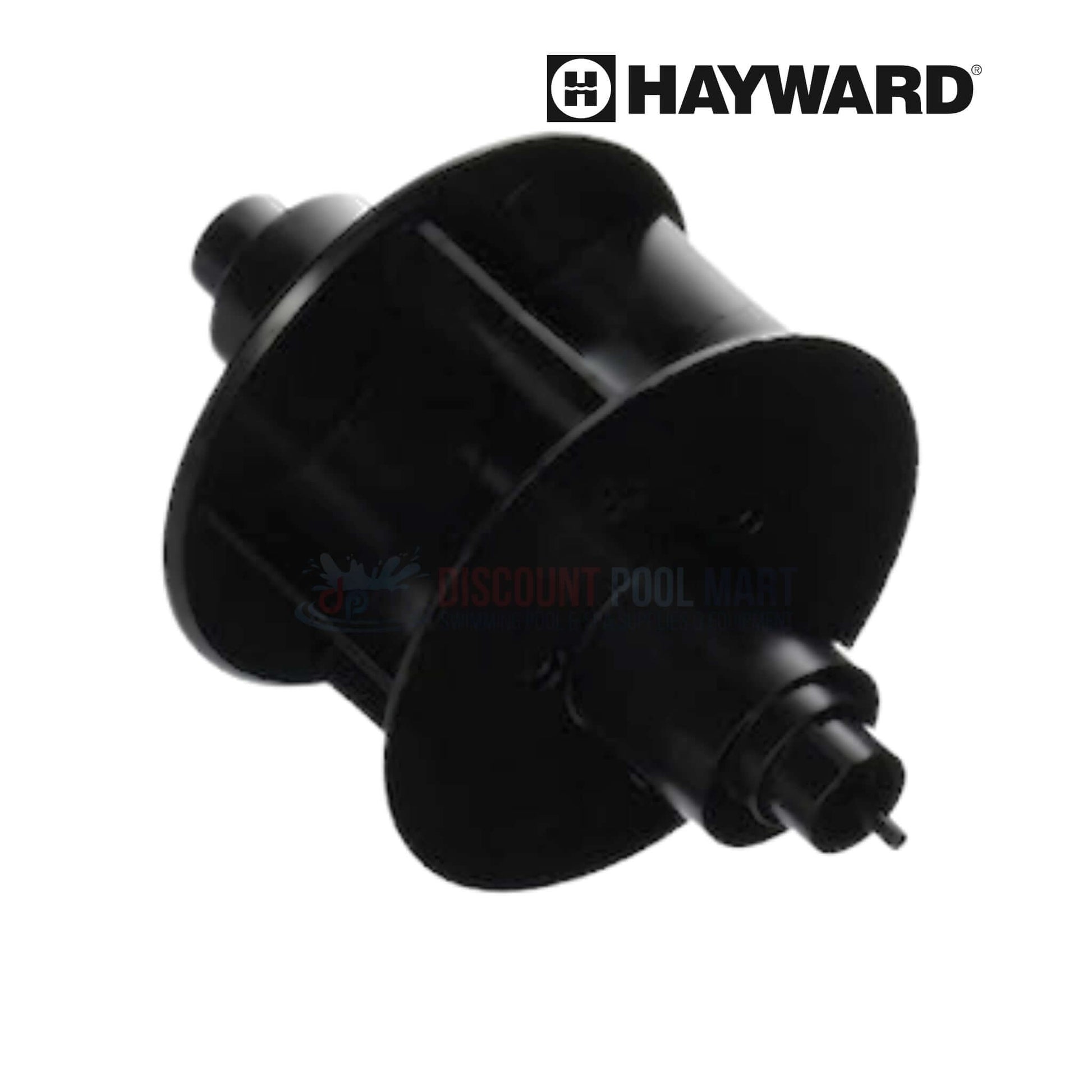

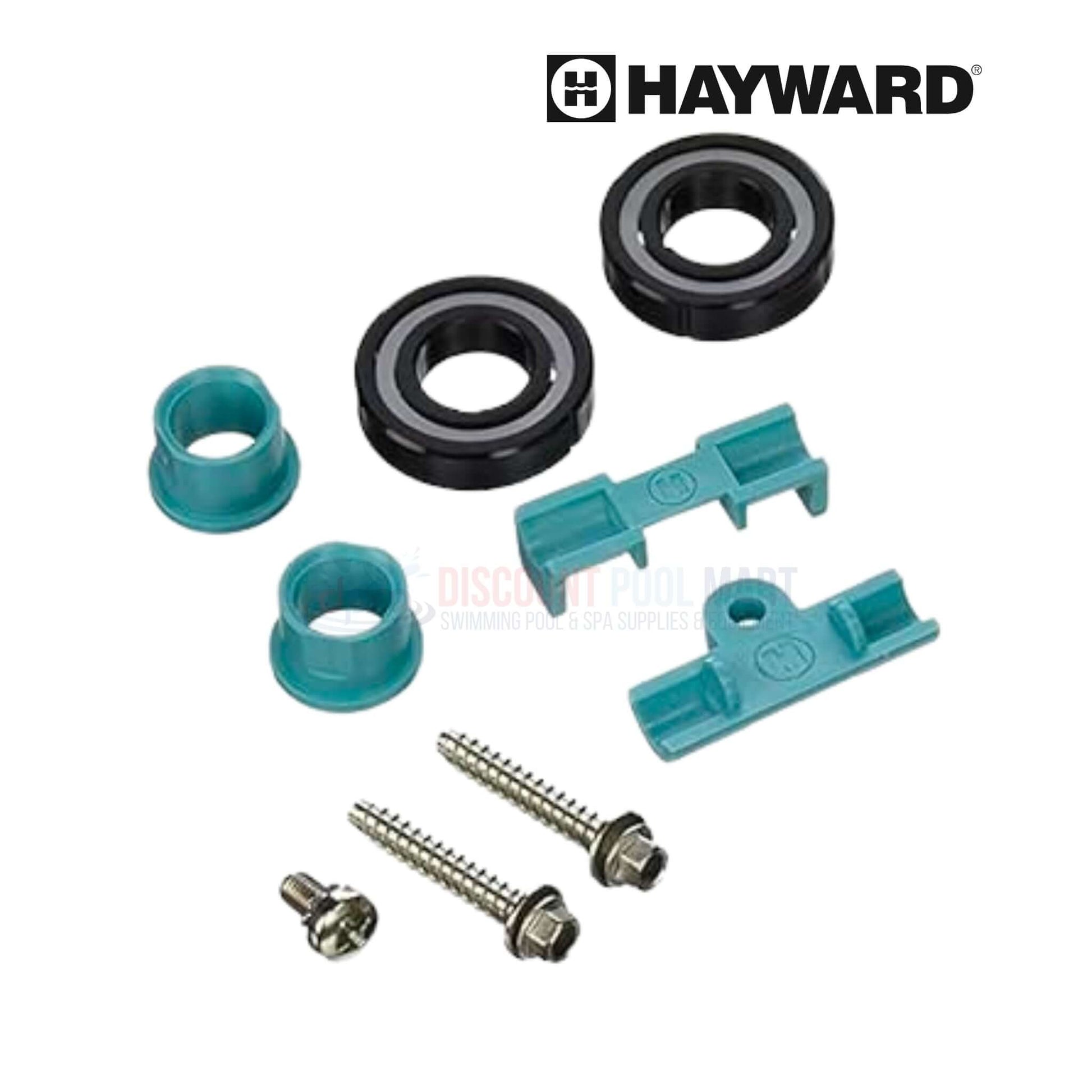

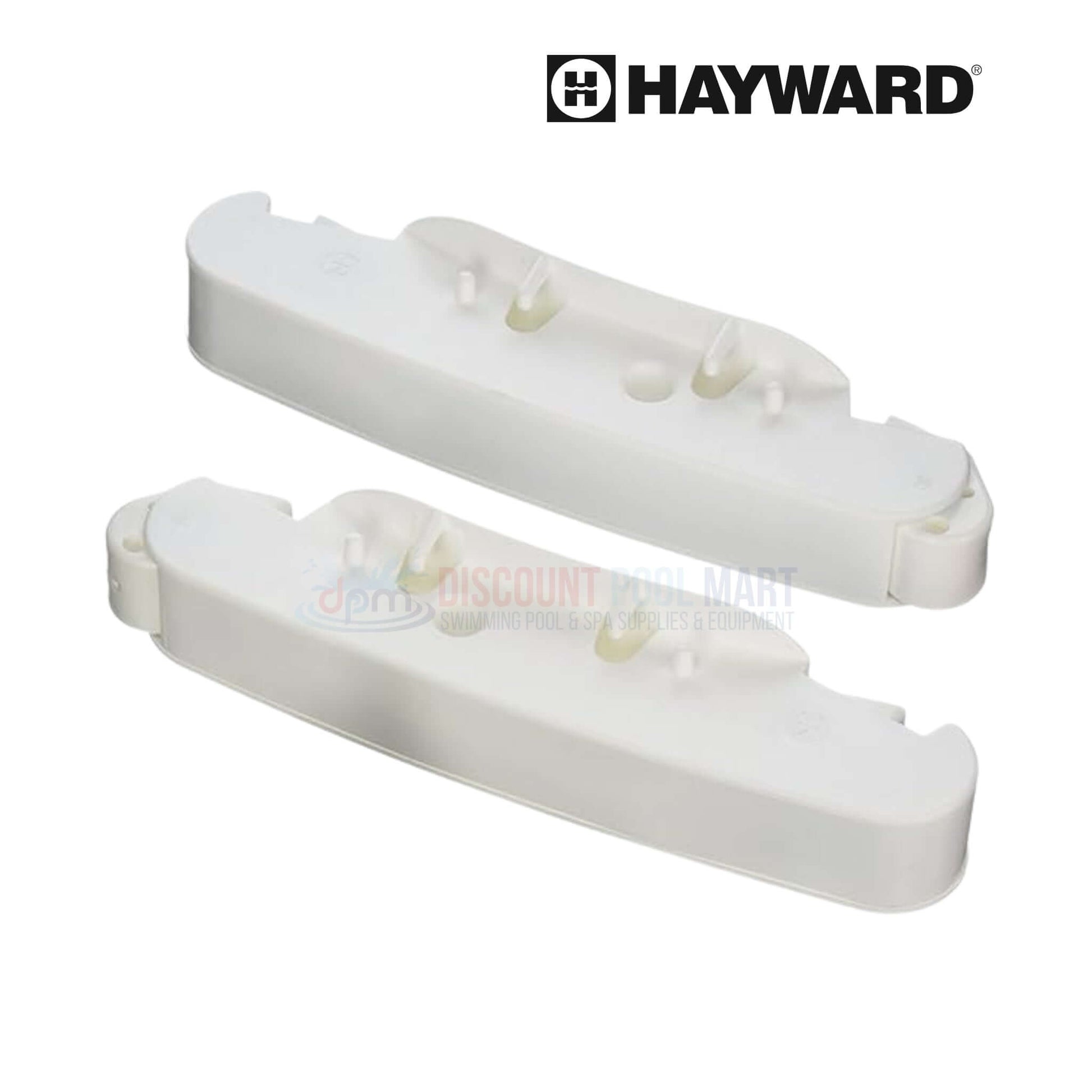

OEM Hayward A-Frame and Pod Combo Tune-Up Kit AXV621417WHP is designed to restore smooth operation and cleaning performance in compatible Hayward suction-side pool cleaners. This complete kit includes durable A-frame and pod parts that replace worn components responsible for your cleaner’s movement. It fits multiple Hayward models including Navigator Pro, PoolVac XL, and PoolVac Ultra, making it a versatile maintenance solution. Installation is simple, helping reduce downtime while extending the lifespan of your cleaner.
-
Restores Movement Efficiency: Helps bring back your cleaner’s full mobility by replacing worn A-frame and pod components for improved performance.
-
Engineered for Long-Term Use: Made with tough materials to withstand daily pool operation, maintaining consistent cleaning power over time.
-
Minimizes Downtime: Designed for quick, straightforward installation so your cleaner can get back to work without complicated repairs.
-
Broad Cleaner Compatibility: Works with a variety of Hayward models including Navigator Pro, PoolVac XL, Navigator, and PoolVac Ultra.
-
Essential for Preventive Maintenance: Replacing key moving parts prevents further wear, extending the life of your Hayward pool cleaner system.
Compatibility
- Hayward Navigator Pro Cleaners
- Hayward PoolVac XL Cleaners
- Hayward Navigator Cleaners
- Hayward PoolVac Ultra Cleaners
