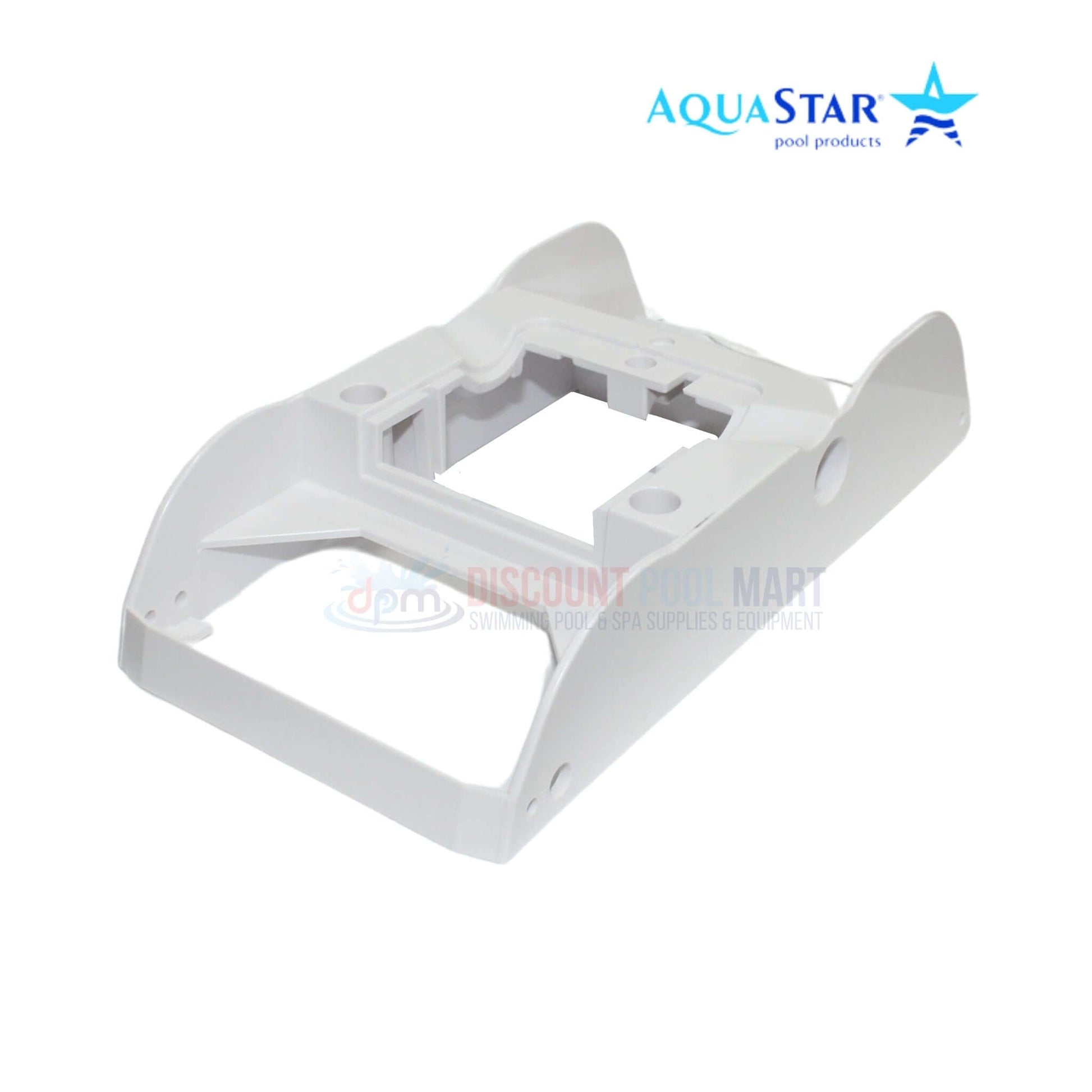

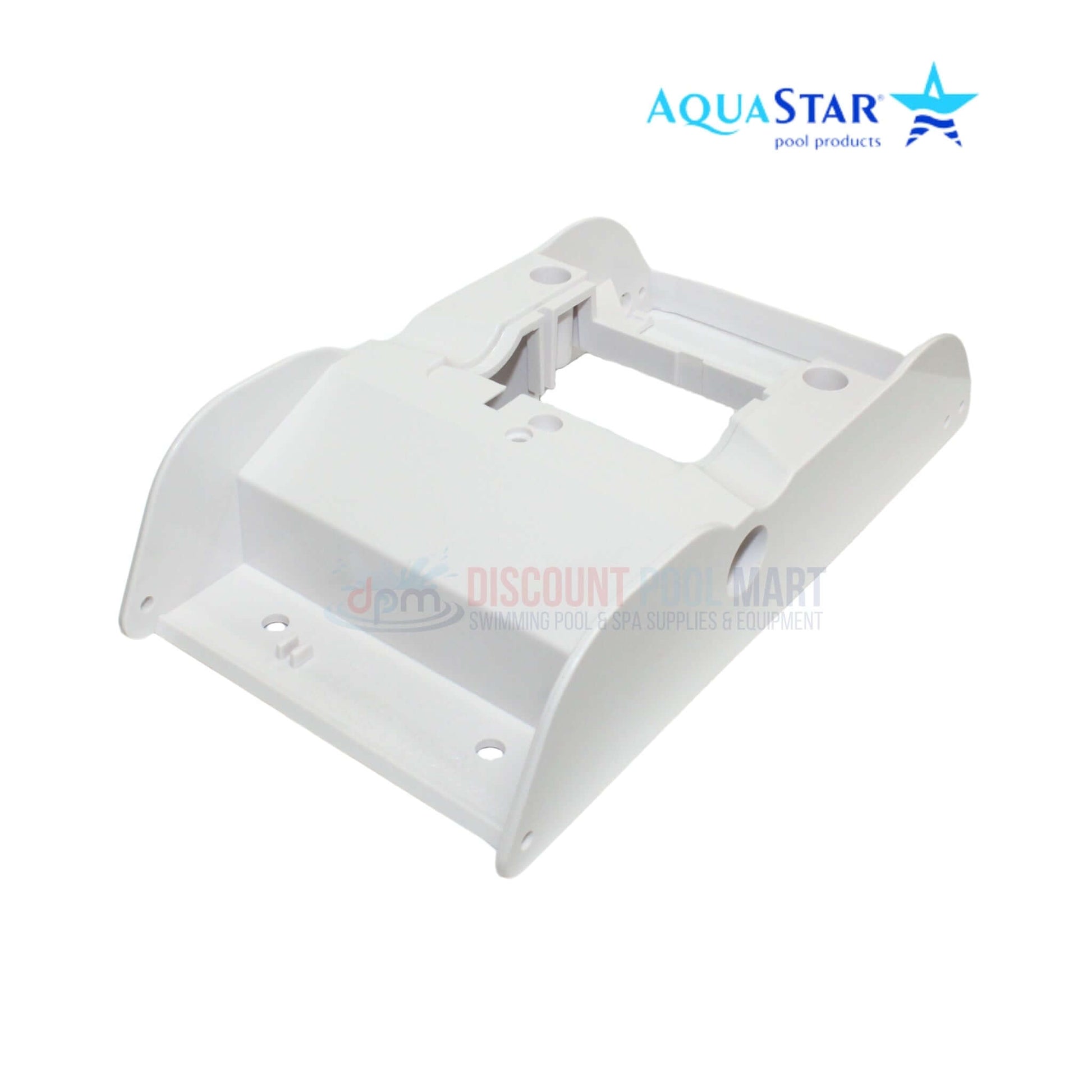

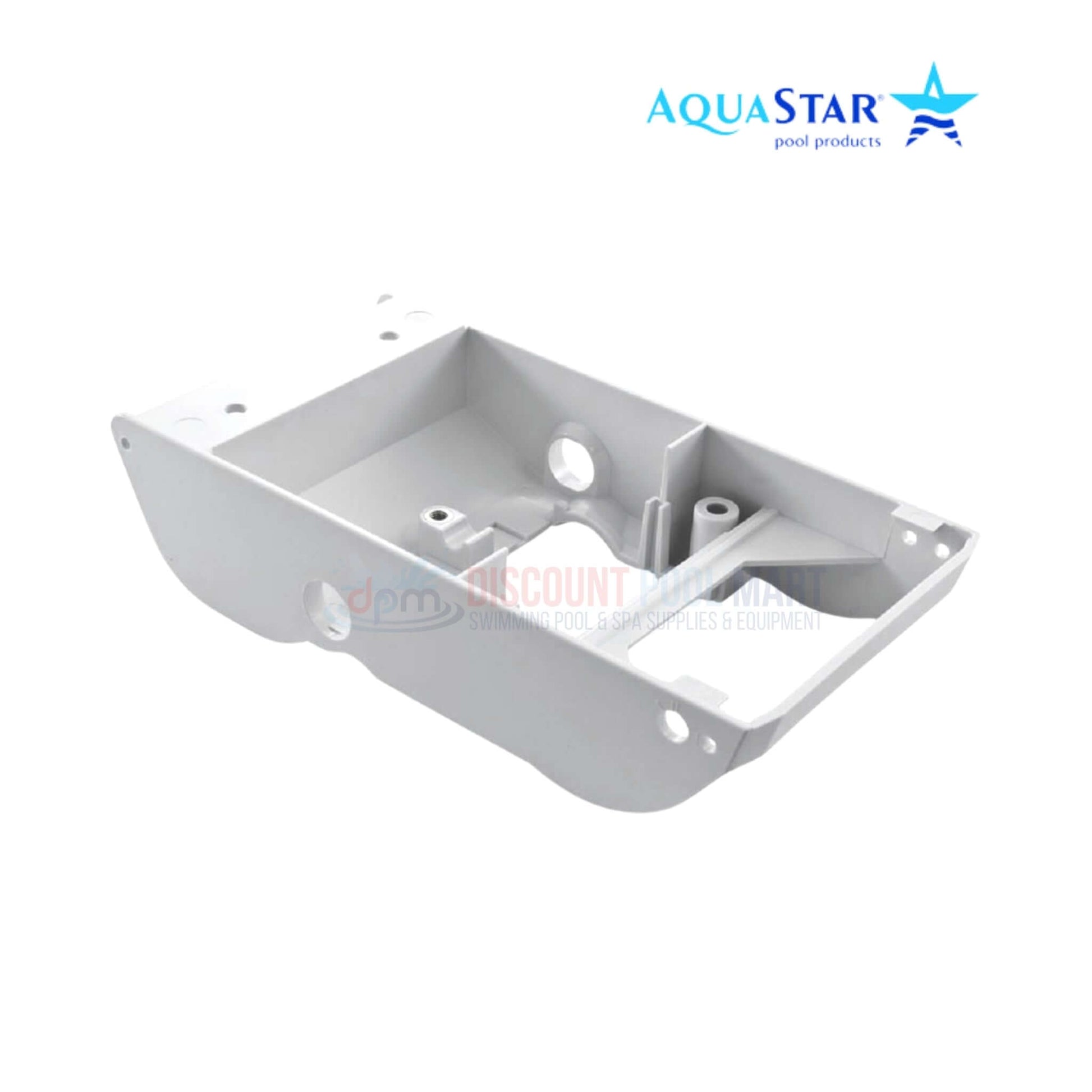

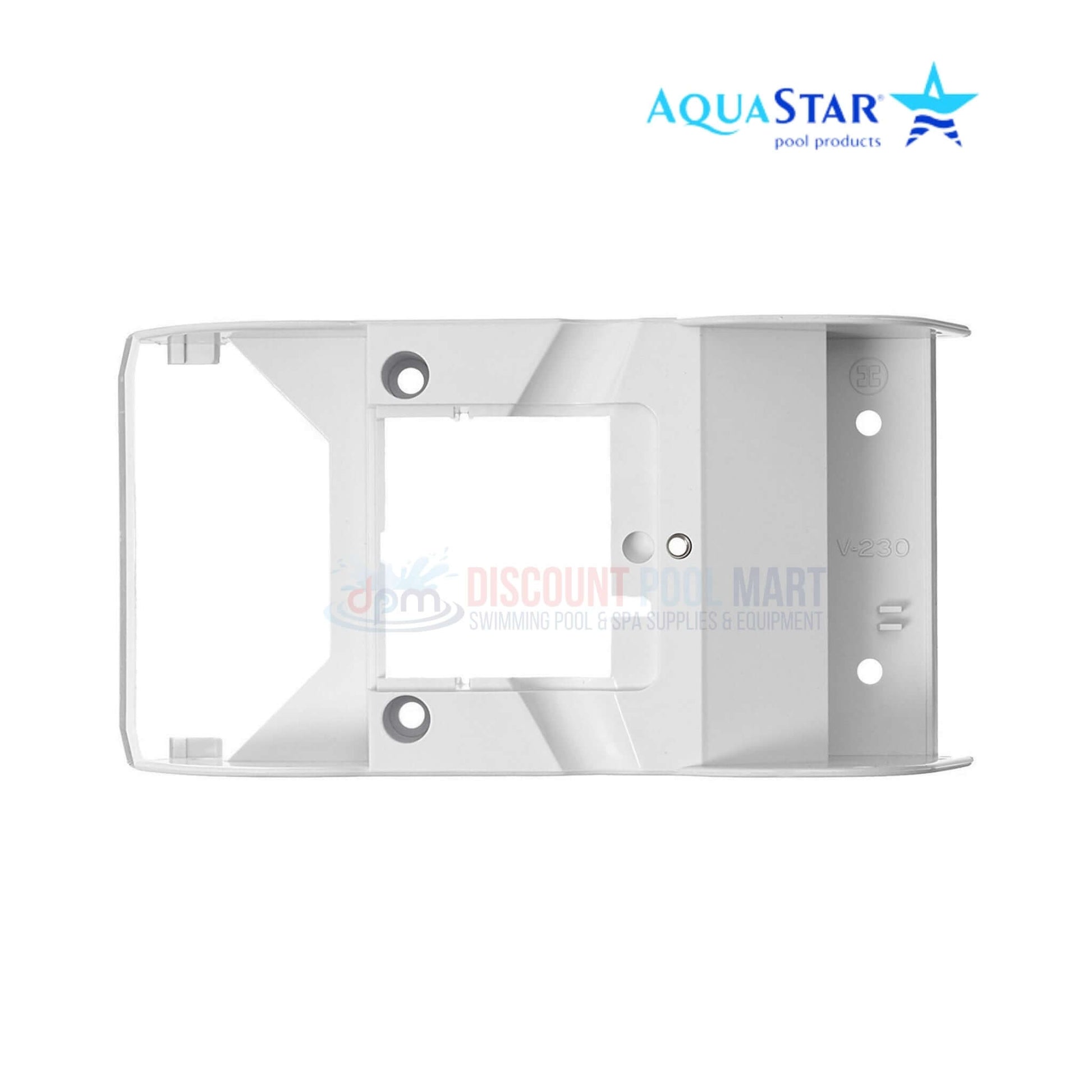

HWN14201 | Aquastar Lower Body For Hayward Navigator Pool Vac | White | AXV230DWH
Fits these models (3)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 2 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

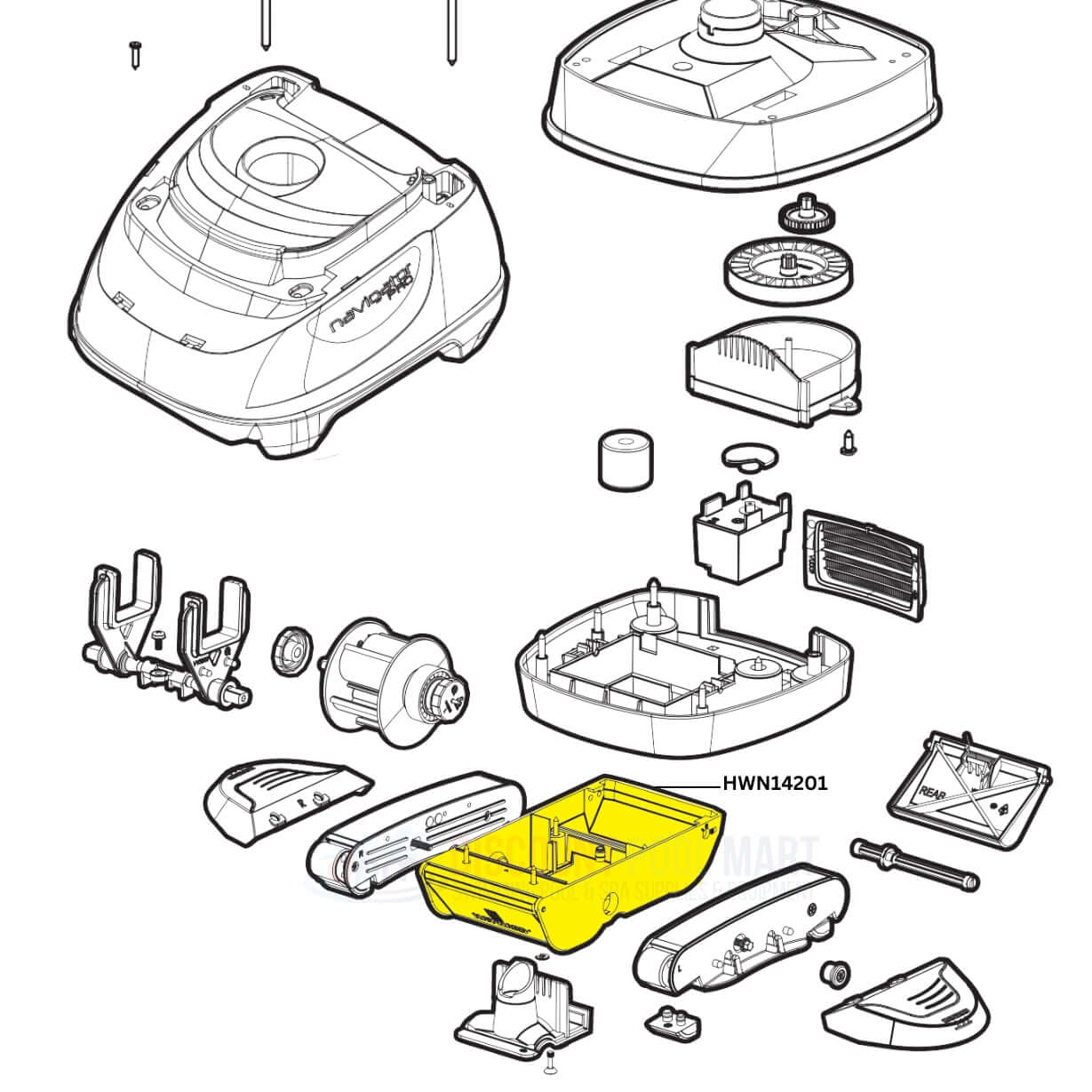

On the Hayward Navigator Pro Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Navigator Pro Cleaner
The Aquastar Lower Body HWN14201 is a premium replacement part crafted for Hayward Navigator, Navigator Pro, and Pool Vac suction pool cleaners. This white lower body component is engineered for a precise fit, offering essential structural support and helping restore your cleaner’s original performance. Made from durable materials, it withstands daily use and poolside exposure, ensuring long-term reliability. Designed for easy installation, it’s the ideal solution for maintaining optimal cleaning efficiency and extending the lifespan of your pool cleaner.
-
Engineered for Hayward Cleaners: Perfectly fits Navigator, Navigator Pro, and Pool Vac models for secure, hassle-free integration
-
Restores Cleaner Framework: Replaces worn or cracked lower body sections to support key internal components and maintain alignment
-
Built for Longevity: Made from tough, chemical-resistant materials that handle wear from daily use and outdoor exposure
-
Supports Cleaning Performance: Provides the stability needed for effective suction and smooth movement across pool surfaces
-
Quick, Straightforward Replacement: Designed for DIY installation with minimal effort, restoring cleaner performance in minutes
- Hayward Navigator Pro Suction Pool Cleaners
- Hayward Navigator Suction Pool Cleaners
- Hayward Pool Vac Suction Pool Cleaners
Note: This pod kit may be compatible with your cleaner, please refer to your systems owners manual to ensure compatibility.
