HWN115 | Aquastar Concrete Pod Shoes For Hayward Navigator Pool Vac Cleaners | 4 Pack | AXV414P
Fits these models (3)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 4 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

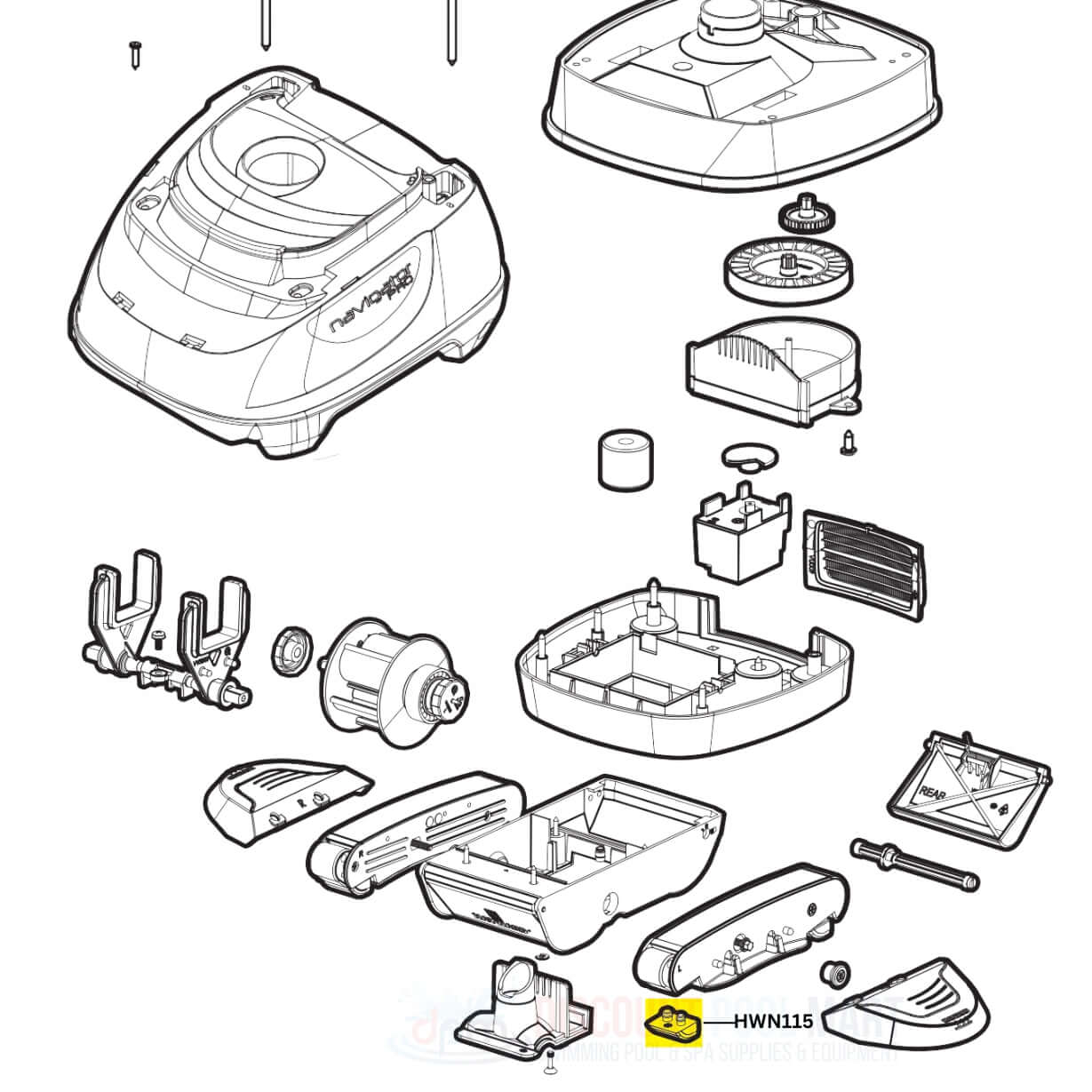

On the Hayward Navigator Pro Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Navigator Pro Cleaner

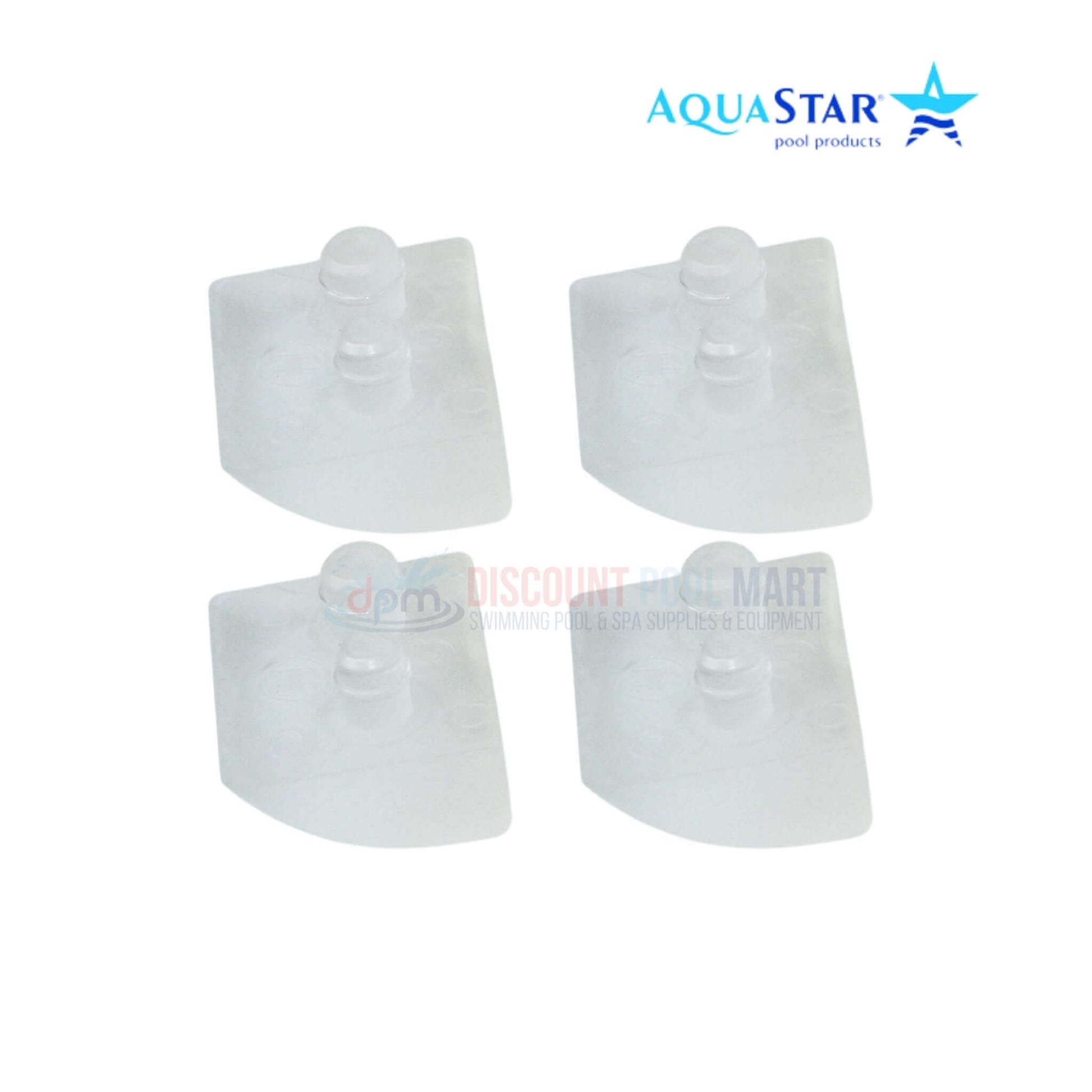

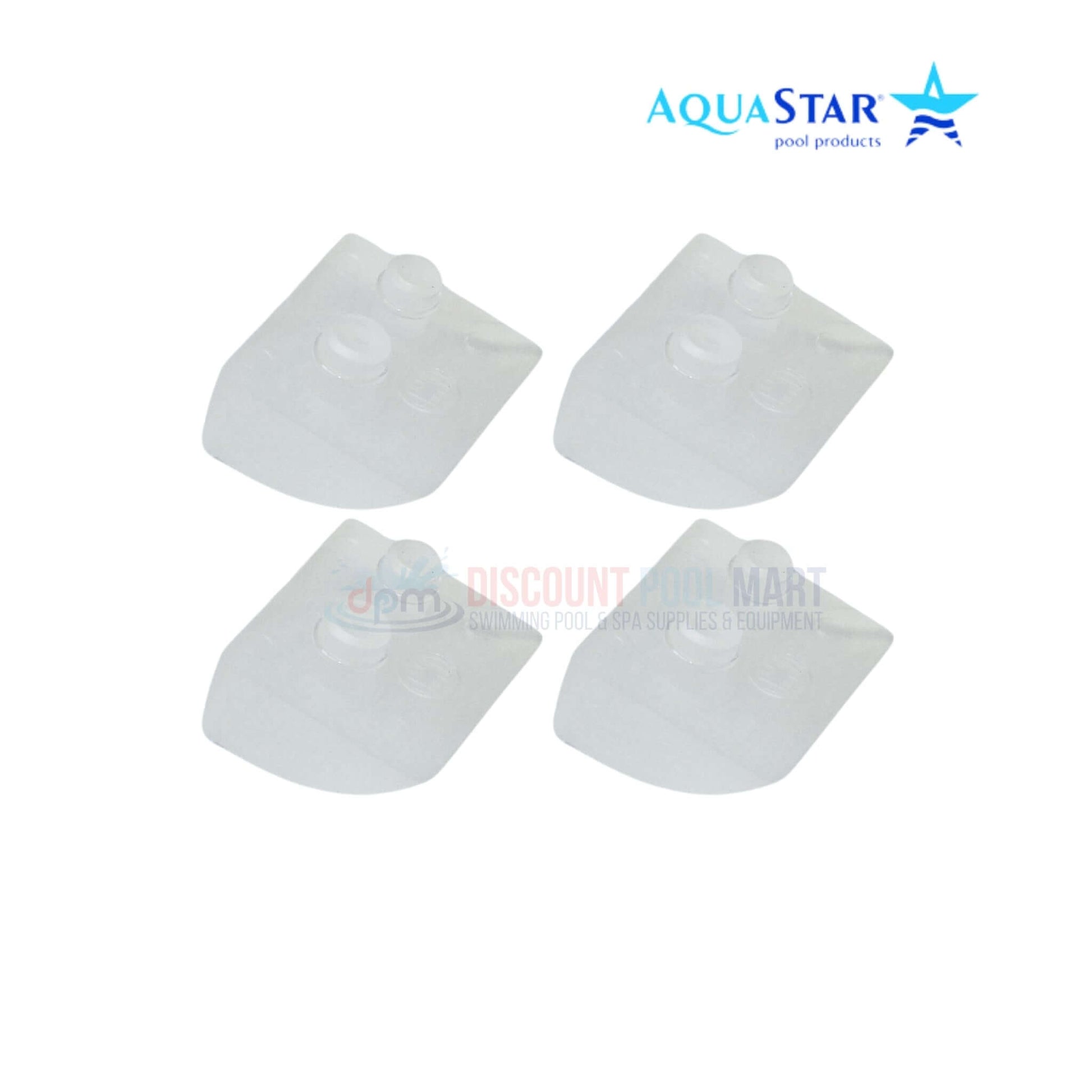

The AquaStar HWN115 Concrete Pod Shoes are high-quality replacement parts designed for Hayward Navigator and Pool Vac pool cleaners, supporting smooth and efficient movement across concrete pool surfaces. Made from durable materials, each pod shoe features a wear indicator that helps identify when replacements are needed, protecting the lifespan and performance of your cleaner. This convenient pack of four pod shoes ensures reliable operation and easy maintenance. The AquaStar HWN115 is simple to install and provides a secure fit, helping your cleaner maintain effective debris removal and smooth pool navigation.
-
Replacement for Hayward Navigator and Pool Vac: Provides perfect compatibility to restore pool cleaner performance
-
Smooth Operation Across Concrete Pools: Engineered for efficient movement over rough pool surfaces to enhance cleaning coverage
-
Durable Pod Shoes With Wear Indicators: Made from high-quality materials and feature wear lines for easy maintenance tracking
-
Complete Pack of Four Pod Shoes: Includes everything needed to maintain proper cleaner functionality and extend equipment life
-
Easy-to-Install Replacement: Designed for simple, reliable installation to minimize downtime and ensure consistent cleaning
- (4) Aquastar HWN115 Pod Shoes
- Note the wear line (highlighted) on the side of the shoe. Replace shoes if worn beyond this mark (Fig 24).
- Insert a flat head screwdriver between the pod foot and the shoe. Using a lifting motion, remove the shoe from the foot (Fig 25)
- When installing the new shoe, make sure all water and debris are removed from the surface and hole. The holes for the shoes and the posts on the shoes have matching sizes for proper positioning (fig 26).
- Hayward Navigator Pro Suction Pool Cleaners
- Hayward Navigator Suction Pool Cleaners
- Hayward Pool Vac Suction Pool Cleaners
Note: This pod shoes may be compatible with your cleaner, please refer to your systems owners manual to ensure compatibility.
