Waterway Mustang VS 140 & VS 270 Variable Speed Pump Replacement Parts Diagram

Interactive parts diagram

26 parts · 1 with cheaper aftermarket options. Tap a number on the diagram, or search by part number.

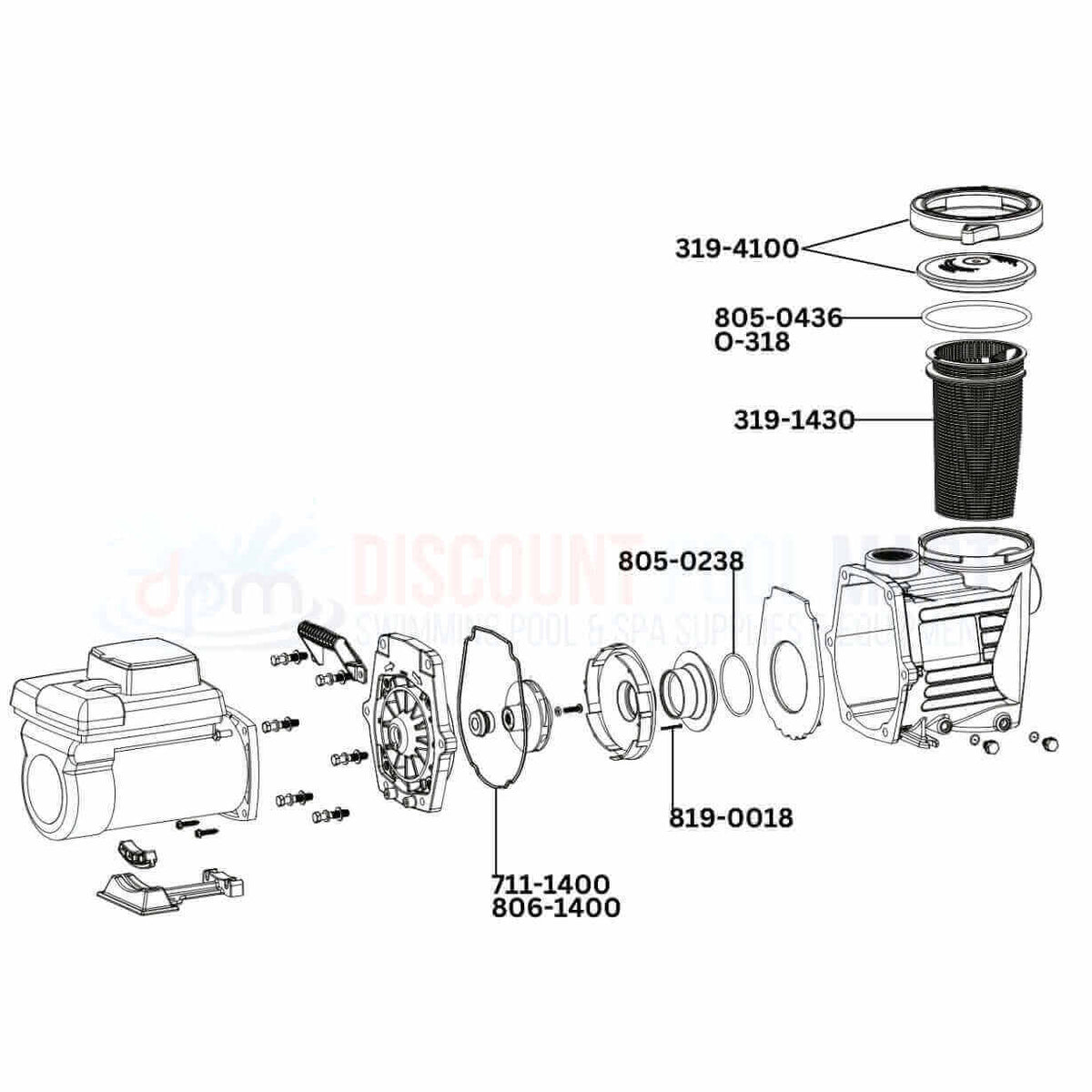

 – exploded view with numbered parts

Scroll or pinch to zoom · drag to move

    • Not sold online Waterway motor for Mustang VS 140 / VS 270 (order by pump model) Call us and we'll get it for you.
    • Not sold online Waterway bolt, 3/8"-16 x 7/8" (3 needed) 819-0035Call us and we'll get it for you.
    • Not sold online Waterway motor support strip 672-1350Call us and we'll get it for you.
    • Not sold online Waterway motor base 319-1500Call us and we'll get it for you.
    • Not sold online Waterway screw, 1/4" x 1-1/4" slot hex washer head (2 needed) 819-0013Call us and we'll get it for you.
    • Not sold online Waterway flat washer, 3/8" type B (6 needed) 820-0017Call us and we'll get it for you.
    • Not sold online Waterway pump handle 319-1700Call us and we'll get it for you.
    • Not sold online Waterway face plate 311-1450Call us and we'll get it for you.
    • Not sold online Waterway pump seal set, Viton 319-3100BCall us and we'll get it for you.
    • Not sold online Waterway impeller washer 711-4300Call us and we'll get it for you.
    • Not sold online Waterway impeller screw, 1/4"-20 x 1" left-hand thread 819-4360Call us and we'll get it for you.
    • Not sold online Waterway diffuser assembly 310-7470Call us and we'll get it for you.
    • Not sold online Waterway diffuser plate 319-1420Call us and we'll get it for you.
    • Not sold online Waterway drain plug, 3/8" quarter slot (2 needed) 715-1200Call us and we'll get it for you.
    • Not sold online Waterway drain plug O-ring, -014 (2 needed) 805-0014Call us and we'll get it for you.
    • Not sold online Waterway impeller: 310-7410 for VS 140 (1.40 THP), 310-7440 for VS 270 (2.7 THP) 310-7410 / 310-7440Call us and we'll get it for you.
    • Not sold online Waterway pump housing, 2" x 2" NPT 315-2410Call us and we'll get it for you.
    • Not sold online Waterway split lock washer, 3/8" (6 needed) 820-0017-1Call us and we'll get it for you.
    • Not sold online Waterway brass insert, 3/8"-16 housing (6 needed) 820-4280Call us and we'll get it for you.
    • Not sold online Waterway hex head bolt, 3/8"-16 x 2" (6 needed) 819-0016Call us and we'll get it for you.

Don't see your part? Ask us and we'll find it.

Fit guide

Which Mustang part fits your pump?

Check the model on your pump label: MS-140 (VS 140, 1.40 THP) or VS 270 (2.7 THP). Part numbers come from Waterway's Mustang VS 140 & VS 270 owner's manual.

Impeller by model

VS 140 1.40 THP
310-7410
VS 270 2.7 THP
310-7440

Strainer pot

Lid assembly 6" trap
319-4100
Basket
319-1430

Seal & gaskets

Pump seal set Viton
319-3100B
Face plate gasket
711-1400
Diffuser O-ring
805-0238
