Sta-Rite Max-E-Pro Pump Replacement Parts Diagram

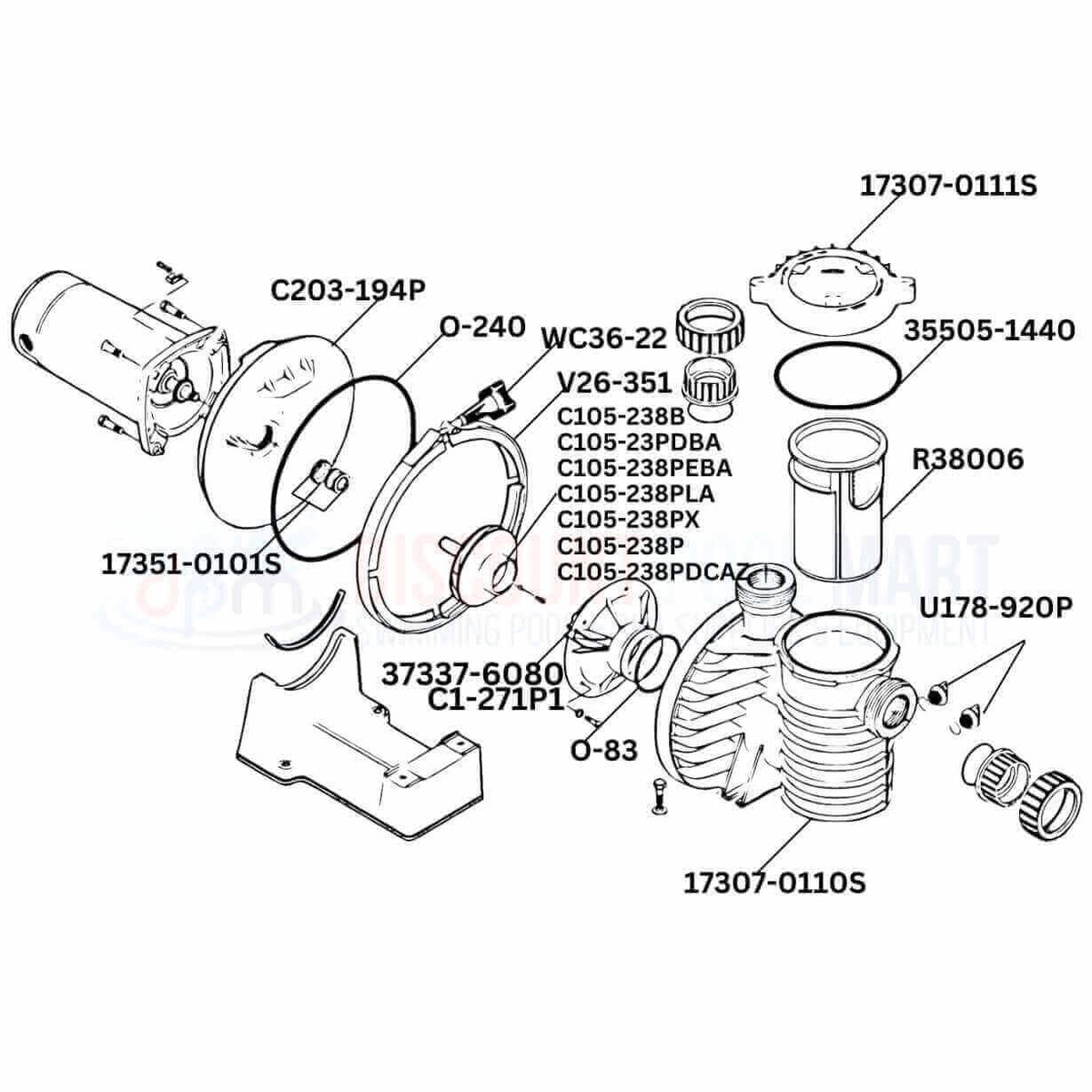

Interactive parts diagram
27 parts · 2 with cheaper aftermarket options. Tap a number on the diagram, or search by part number.
Scroll or pinch to zoom · drag to move
-
-
Not sold online Sta-Rite pump motor, by model and HP (see the motor table in the owner's guide)
-
-
-
Not sold online Sta-Rite screw, #10-32 x 1/2" (1 needed)
-
-
-
Not sold online Sta-Rite lock washer (1 needed)
-
-
-
Not sold online Sta-Rite bonding lug (1 needed)
-
-
-
Not sold online Sta-Rite water slinger (1 needed)
-
-
-
Original (OEM) Pentair Sta-Rite Max-E-Pro Pump Complete Seal Plate Kit$149.99
-
-
-
Aftermarket Aladdin Filter Head/Volute/Seal Plate O-Ring$8.99
-
-
-
Original (OEM) Pentair IntellifloXF Variable Speed Pump Shaft Seal$29.99
-
-
-
Not sold online Sta-Rite band clamp knob (1 needed)
-
-
-
Original (OEM) Pentair Clamp Knob For Sta-Rite Pumps And Filters$15.99
-
-
Horsepower
-
$85.99
-
Original (OEM) Pentair Impeller For SuperFlo Pumps$69.99
-
Original (OEM) Pentair Impeller For Pumps | 2HP Full Rate / 2.5HP Up Rate$85.99
-
-
-
Not sold online Sta-Rite impeller screw O-ring (1 needed)
-
-
-
$22.99
-
-
Pump size
-
Original (OEM) Pentair Sta-Rite Pool Pump Diffuser | 0.5-1.5 HP$39.99
-
Original (OEM) Pentair Sta-Rite Pool Pump Diffuser | 1.5-3 HP$49.99
-
-
-
Not sold online Sta-Rite diffuser O-ring, U9-374 or 357098Z blue coated (1 needed)
-
-
-
Not sold online Sta-Rite lock washer, #8 (5 needed)
-
-
-
Not sold online Sta-Rite diffuser screw: U30-922SS with C1-271P, U30-542SS with C1-271P1 diffuser (5 needed)
-
-
-

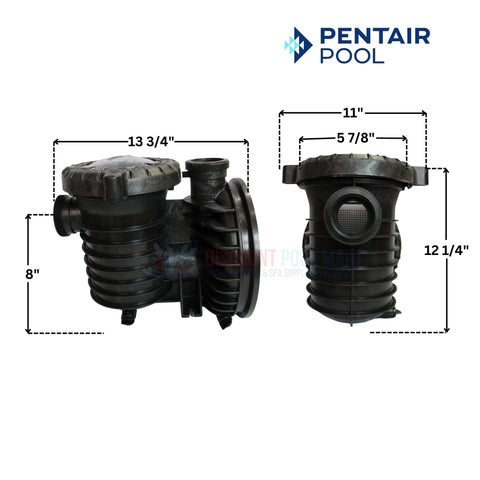

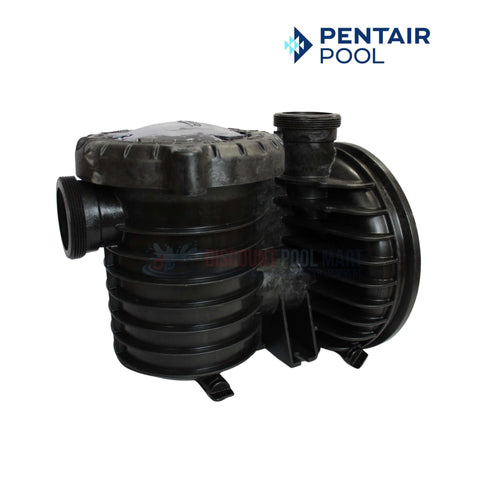

Original (OEM) Pentair Tank Body Sta-Rite Max-E-Pro and Intelliflo Pumps$299.99
-
-
-
Original (OEM) Pentair Max-E-Pro Pump Lid Assembly | Trap Cover Replacement$69.99
-
-
-
$19.99
-
-
-
Original (OEM) Pentair Basket for Max-E-Glas II C8-58P Pumps$12.99
-
AftermarketSave 23% CMP Sta-Rite Pump Basket | C8-58P | R38006$9.99
-
-
-

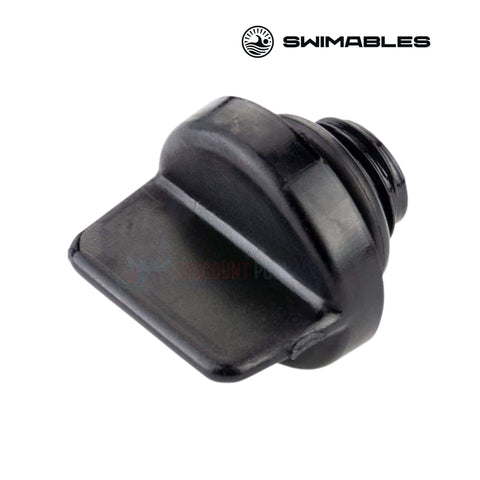

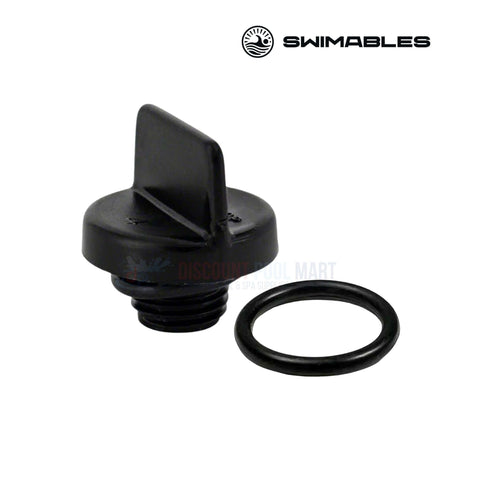

$5.99
-
-
-
Not sold online Sta-Rite base washer (2 needed)
-
-
-
Not sold online Sta-Rite base screw (2 needed)
-
-
-
Not sold online Sta-Rite pump base, C4-78P (C4-79P on model P6E6H)
-
-
-
Not sold online Sta-Rite motor pad, C35-43 (C35-44 on model P6E6H)
-
-
-
Not sold online Sta-Rite screw, 3/8-16 x 1" hex head (4 needed)
-
No parts match.
Don't see your part? Ask us and we'll find it.
Also fits your Sta-Rite Max-E-Pro Pump
Not shown on the diagram, but made for this pump.
-
$30.99
-
$159.99
-
Aftermarket Pentair FPT Half Union Adapter | 2" | 2 Pack$29.99
Fit guide
Which Max-E-Pro part fits your pump?
Find the model number on your pump's data label (for example P6E6G-208L or P6RA6E-205L). Part numbers come from the parts list in Pentair's Max-E-Pro owner's guide (S691 Rev. E). This chart is for the original Max-E-Pro, not the Max-E-ProXF.
Impeller by pump model
- ½–¾ HPC105-238PXP6E6C-204L, P6EA6D36-204
- ¾–1 HPC105-238PP6E6D-205L, P6R6D-205L, P6EA6E-205L, P6RA6E-205L, P6EA6E36-205
- 1–1½ HPC105-238PBP6E6E-206L, P6R6E-206L, P6EA6F-206L, P6RA6F-206L
- 1–1½ HPC105-238PBAP6RA6YF-206L, P6EA6F36-206, 345076, P6R62E3-187
- 1½–2 HPC105-238PDBAP6R6F-207L, P6E6F-207L, P6EA6G-207L, P6RA6G-207L, P6RA6YG-207L, P6EA6G36-207, 345077, P6R62F3-188, P6R62G3-189
- 1¾ HPC105-238PDCAP6EAA6F-216L, P6RAA6F-216L
- 2–2½ HPC105-238PEBAP6E6G-208L, P6R6G-208L, P6EAA6G-208L, 345078
- ¾ HPC105-238PAP6R62D3-186
- 3 HPC105-238PLAP6E6H-209L, P6R6H-209L, P6E6H36-209, 345079
Diffuser
Seal plate seal & shaft seal
- O-ring pumps built before January 2015
- U9-228A Aladdin O-240
- Gasket pumps built February 2015 or later
- 357099
- Shaft seal all models
- 17351-0101S
- Seal plate kit includes O-ring and shaft seal
- C203-194P
Impeller screw
- Models marked * P6E6F-207L, P6EAA6F-216L, P6RAA6F-216L, P6E6G-208L, P6EA6G-207L, P6RA6G-207L, P6EAA6G-208L, P6E6H-209L, P6RA6YG-207L, P6EA6D36-204, P6EA6E36-205
- 37337-6080
- Model P6RA6YF-206L marked **
- 37337-6081
The P6E6H uses base C4-79P and motor pad C35-44; all other models use C4-78P and C35-43.
