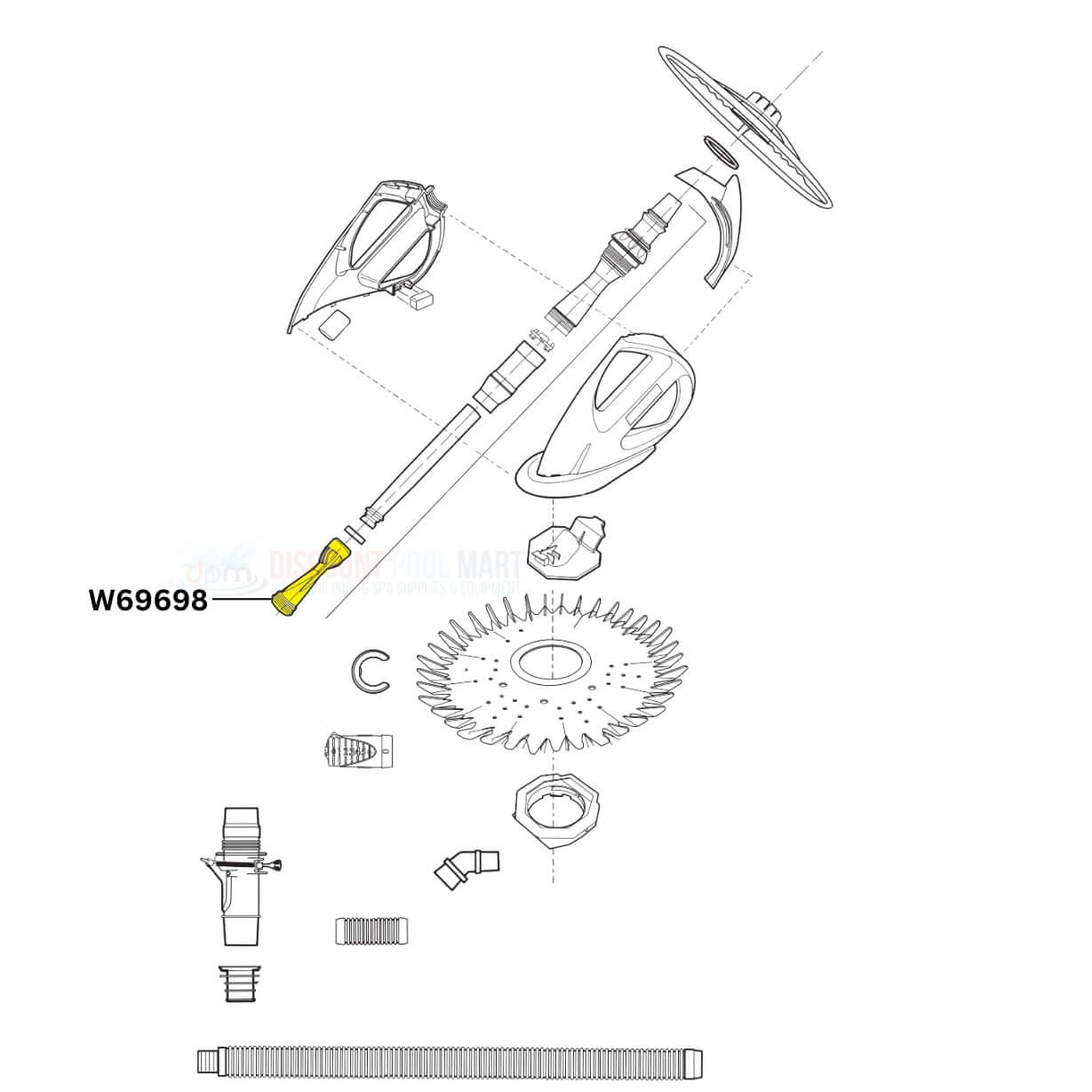

W69698 | Zodiac Long Life Diaphragm With Retaining Ring For G3 and G3 Pro Cleaners | Yellow
Fits these models (2)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 259 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

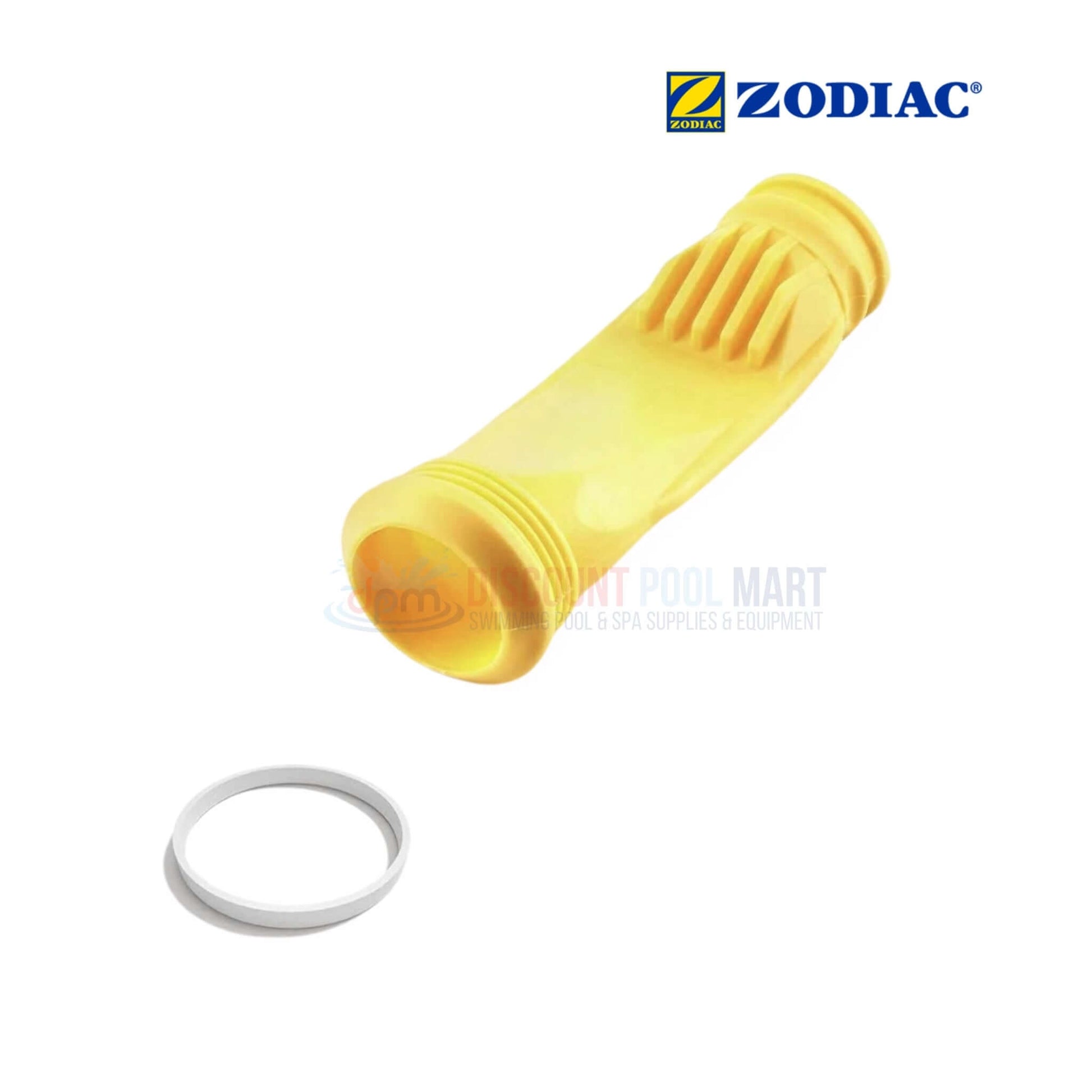

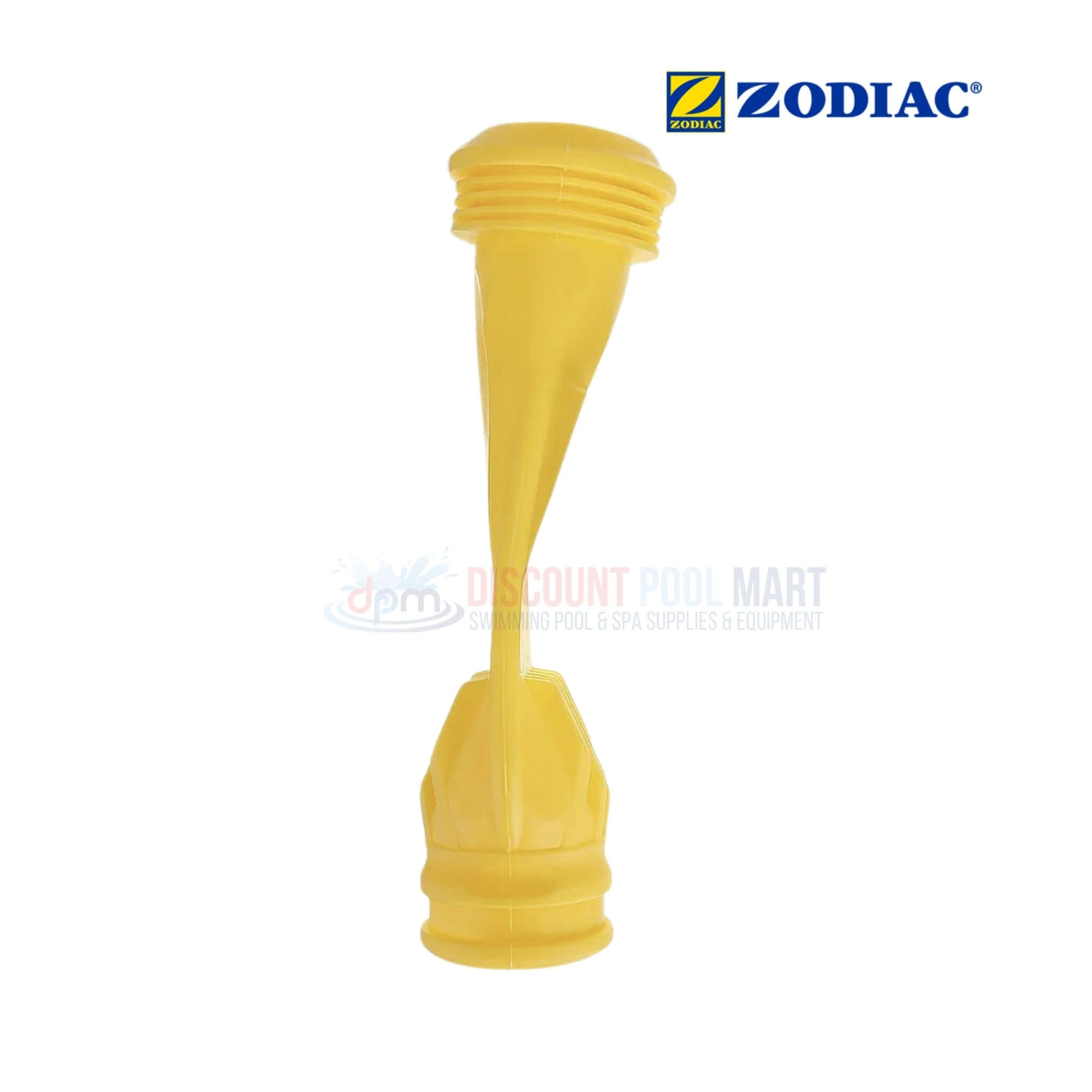

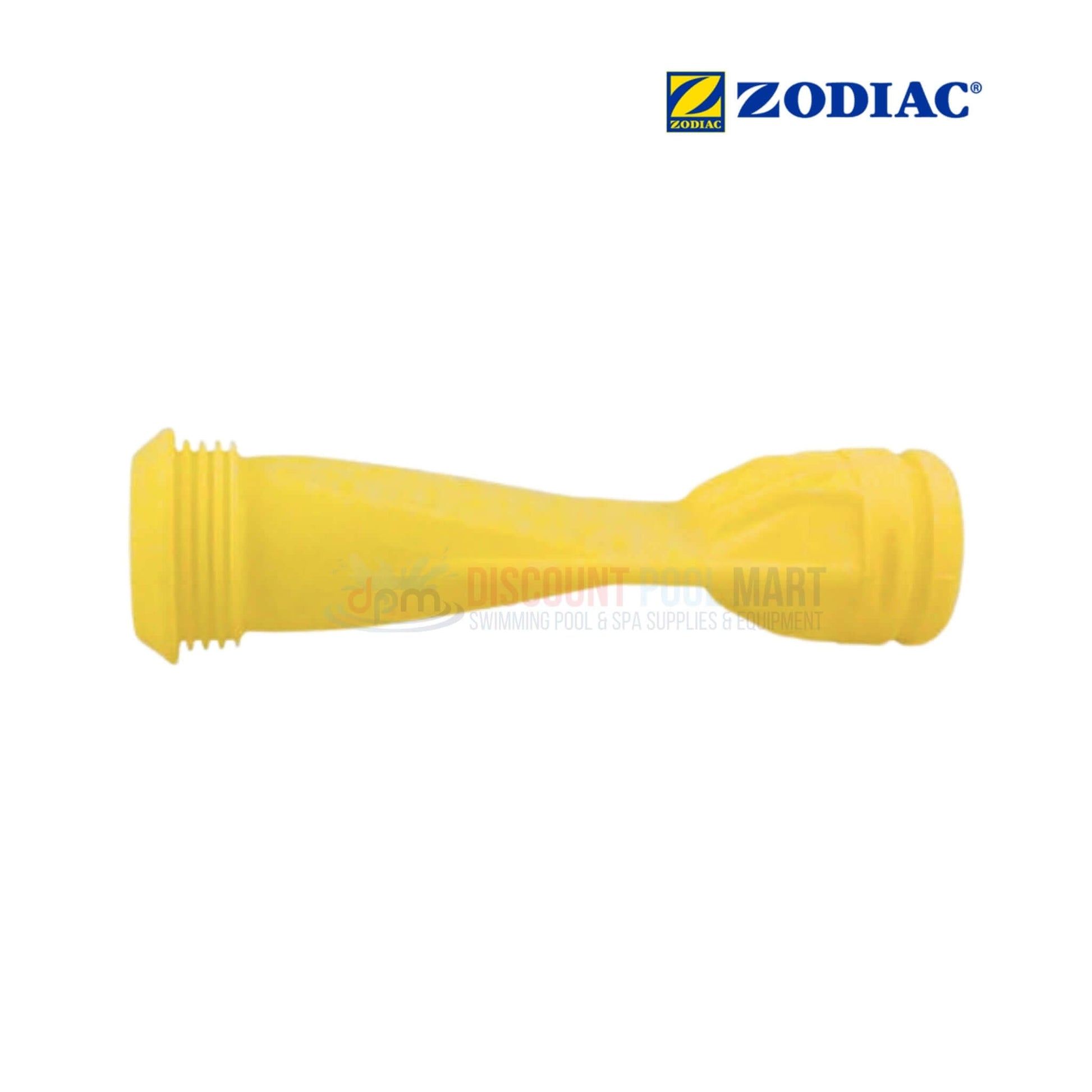

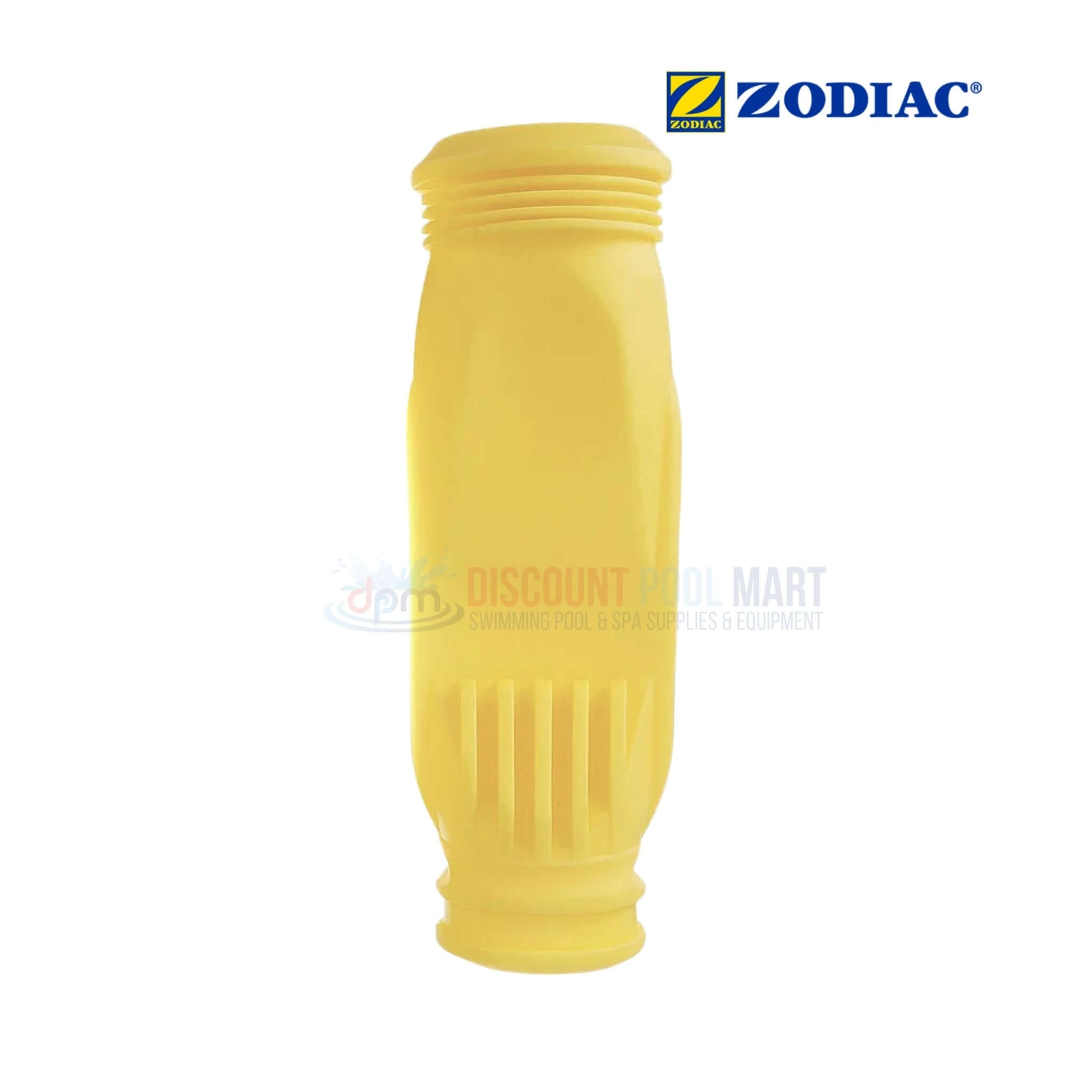

OEM Zodiac Long Life Diaphragm with Retaining Ring W69698 is an essential replacement part for maintaining optimal performance in Zodiac Baracuda G3 and G3 Pro cleaners. This yellow diaphragm is engineered to manage water flow precisely, supporting the cleaner's distinctive bouncing motion across pool surfaces. Included with the diaphragm is a retaining ring that ensures stability and a proper seal within the cleaner’s assembly. Built for durability and easy installation, this set extends cleaner functionality and helps maintain pool clarity.
-
Engineered for Baracuda Models: Provides exact compatibility with Zodiac G3 and G3 Pro models, supporting reliable water flow control
-
Durable Yellow Diaphragm Design: Made from flexible, wear-resistant material that sustains optimal pressure and movement patterns
-
Complete OEM Assembly Set: Includes both diaphragm and retaining ring for a secure, leak-resistant connection within the cleaner
-
Maximizes Cleaning Coverage: Enhances the cleaner’s ability to navigate and scrub pool surfaces efficiently using controlled pulsation
-
Simple Maintenance Solution: Easily installed by hand, restoring full operation without the need for professional service or tools
- (1) Zodiac Diaphragm
- (1) Retaining Ring
- Zodiac Cleaner Models: G3, G3 Pro
Note: This Diaphragm may be compatible with your cleaner, please refer to your systems owners manual to ensure compatibility.
