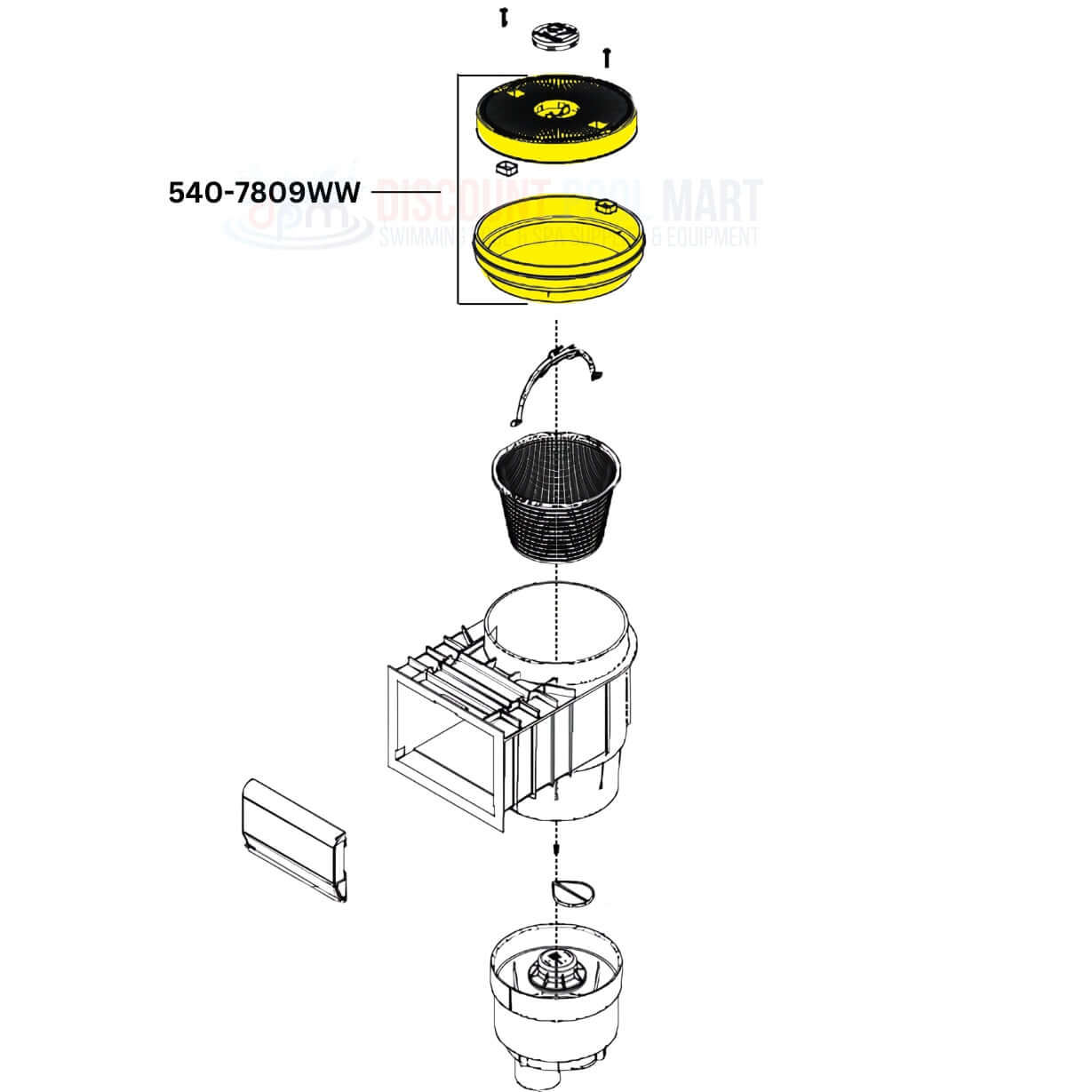

On the Waterway Renegade Gunite In-Ground Skimmer diagram
This part
Open the full interactive diagram →
Other parts on the same Waterway Renegade Gunite In-Ground Skimmer

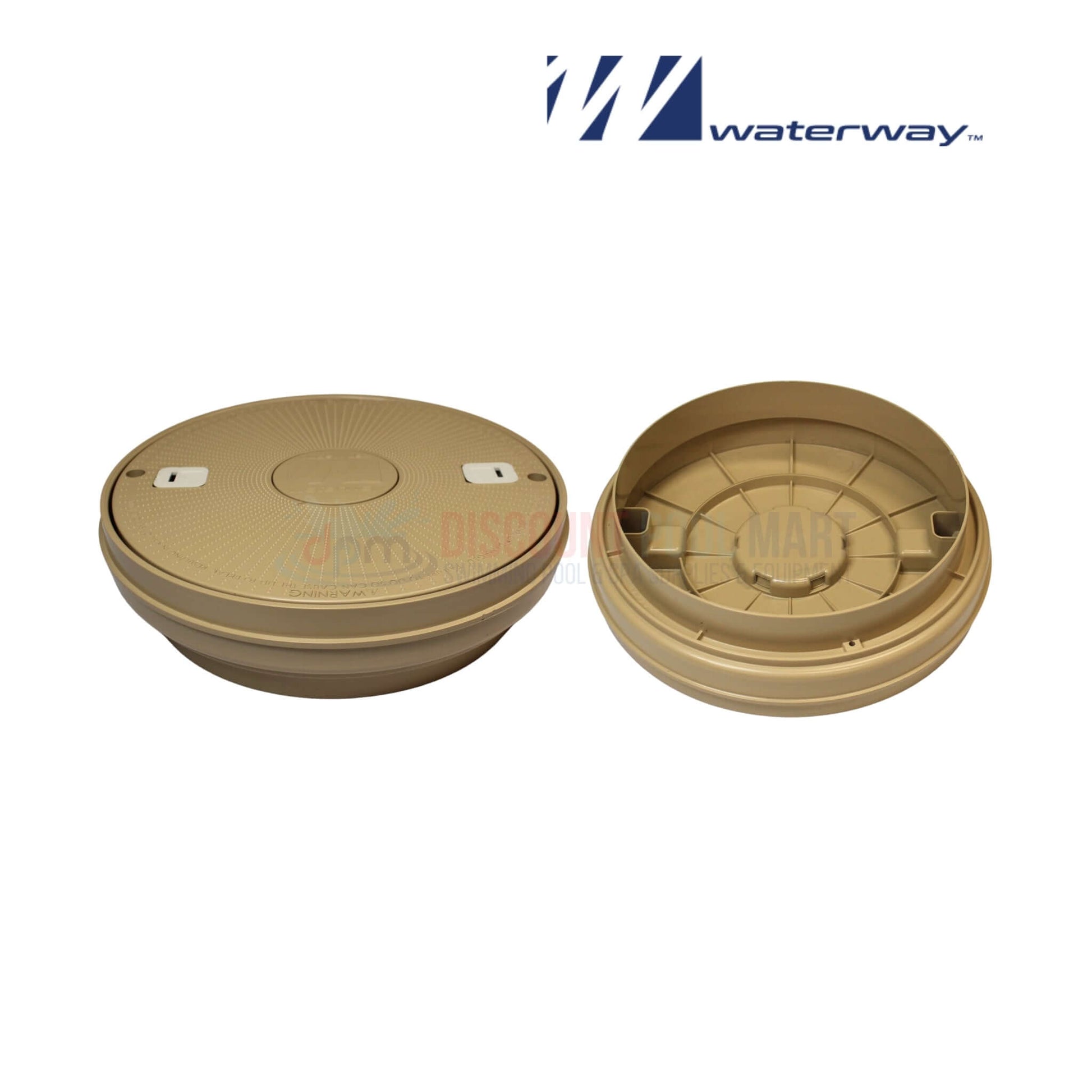

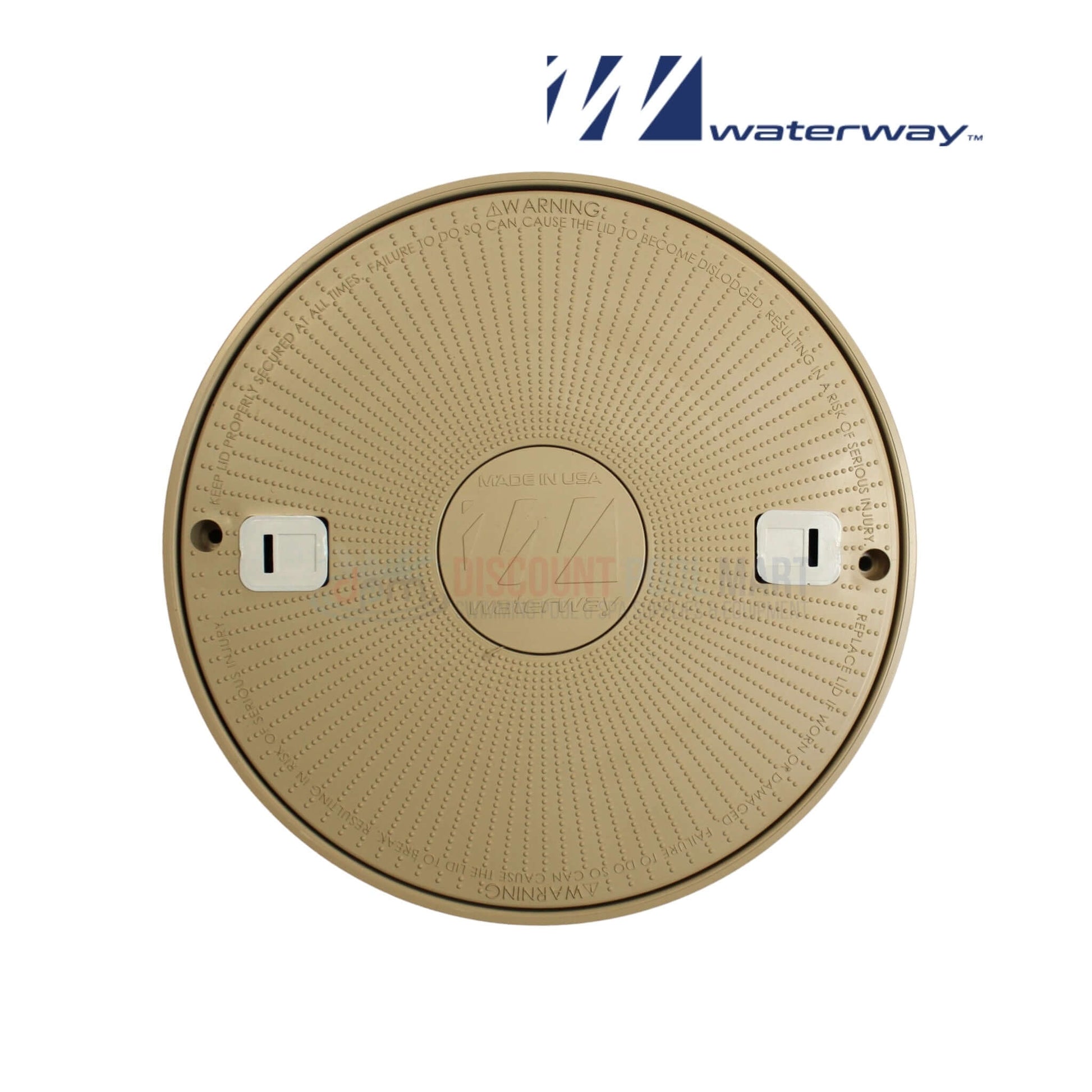

OEM Waterway Reversible Lid Assembly Beige Tan 540-7809WW is a versatile, durable skimmer lid designed to provide a seamless match with pool and spa deck surfaces. Its reversible design allows you to fill one side for full customization, making it compatible with various outdoor environments. Made from long-lasting materials and colored in neutral beige tan, this assembly offers dependable fit and function for all Waterway skimmers and most standard models, including Aquastar, Hayward, CMP, Sta-Rite, and Pentair systems.
-
Reversible Customization: Flip and fill the opposite side of the lid to match any deck finish or texture for a tailored look.
-
Built to Last: Constructed with durable materials to provide long-term reliability and resist outdoor wear and tear.
-
Universal Compatibility: Fits all Waterway skimmers and autofillers and most standard brands like CMP, Hayward, and Pentair.
-
Neutral Outdoor Finish: Beige tan color blends naturally with most pool deck surfaces for improved visual integration.
-

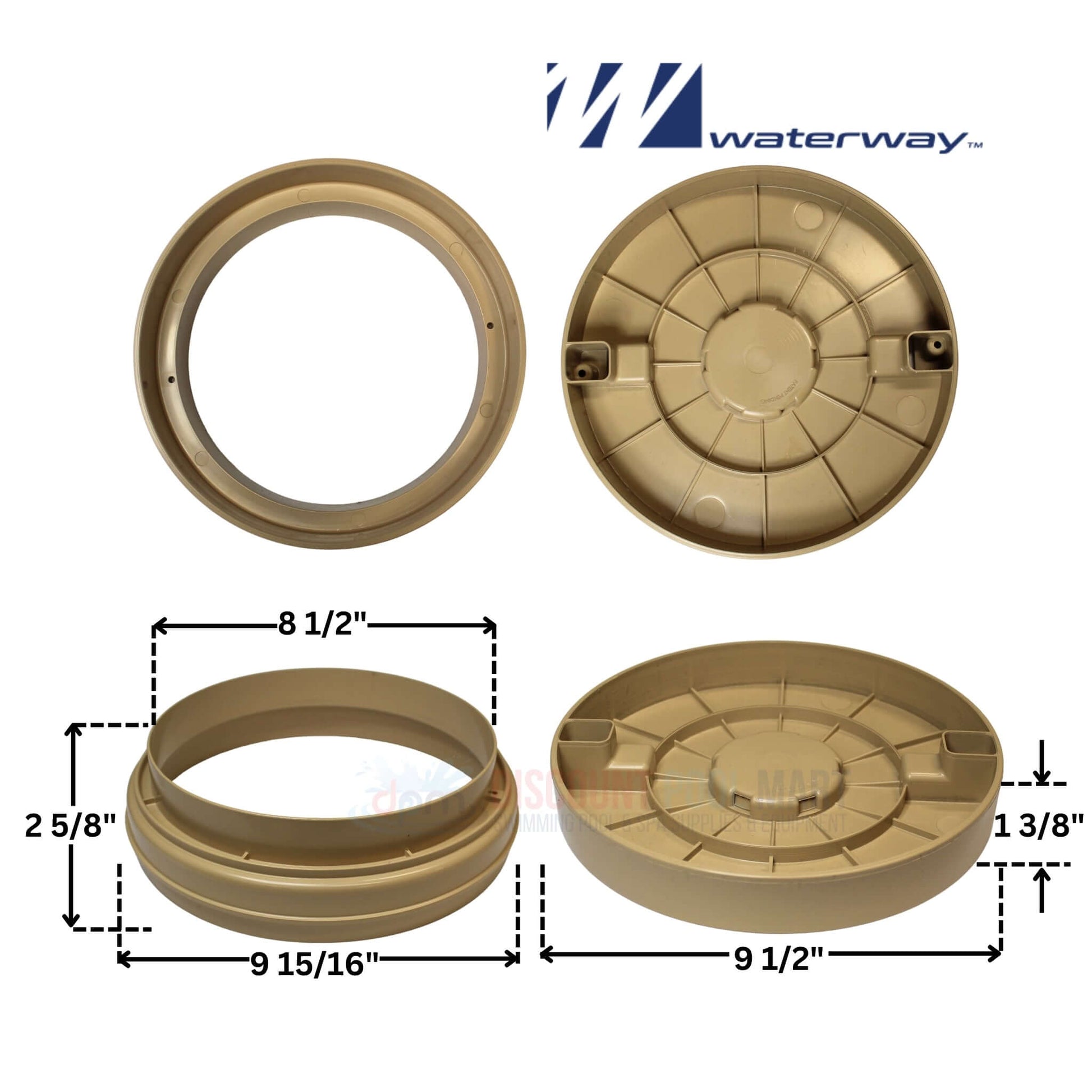

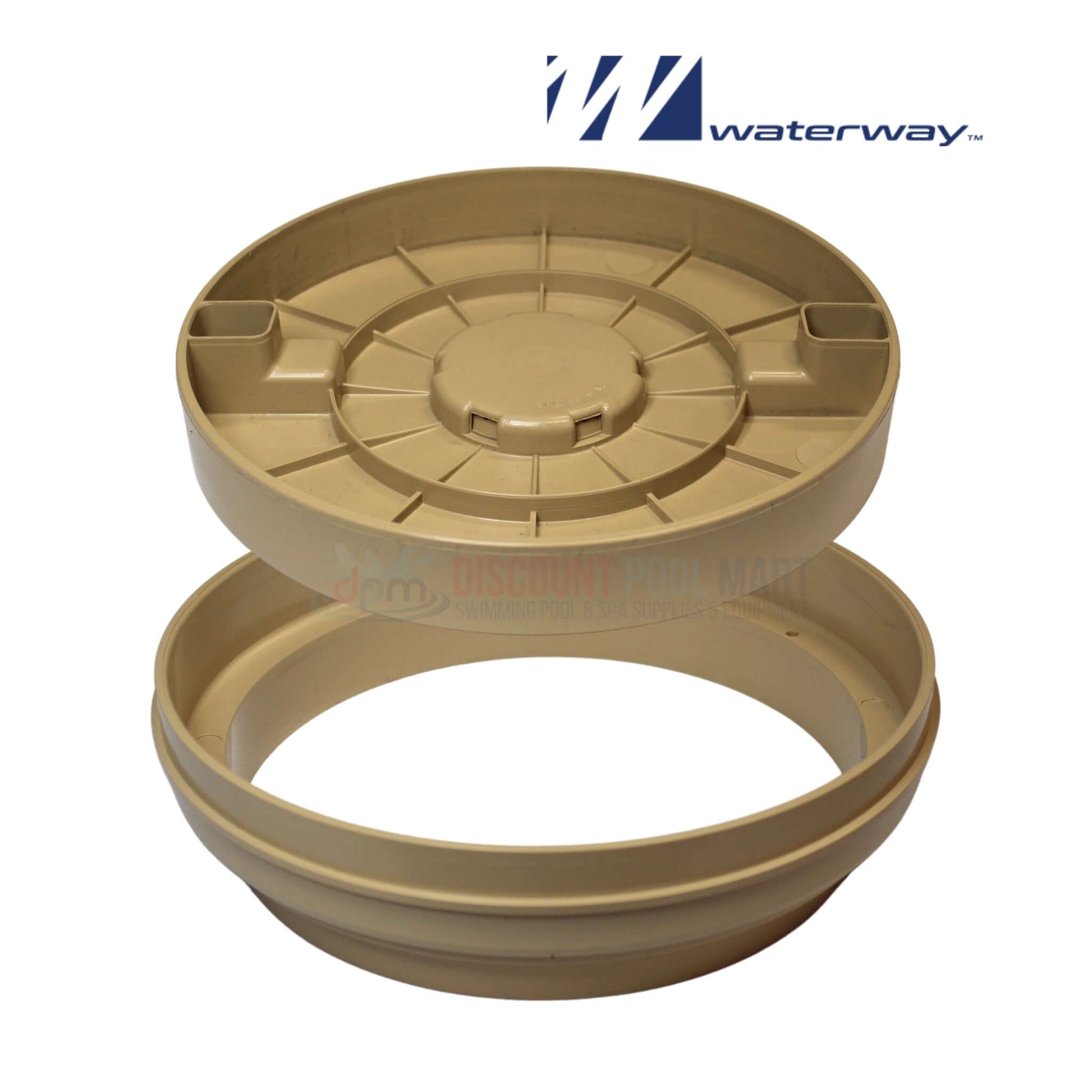

Easy Installation Kit: Includes frame, reversible lid, plaster shields, and screws for quick, no-fuss installation.
- (1) Frame
- (1) Revisable Lid
- (2) Screws
- (2) Plaster Shields
- Fits all Waterway skimmers and autofillers and most standard skimmers (Aquastar, Hayward, CMP, Sta-Rite, and Pentair)
