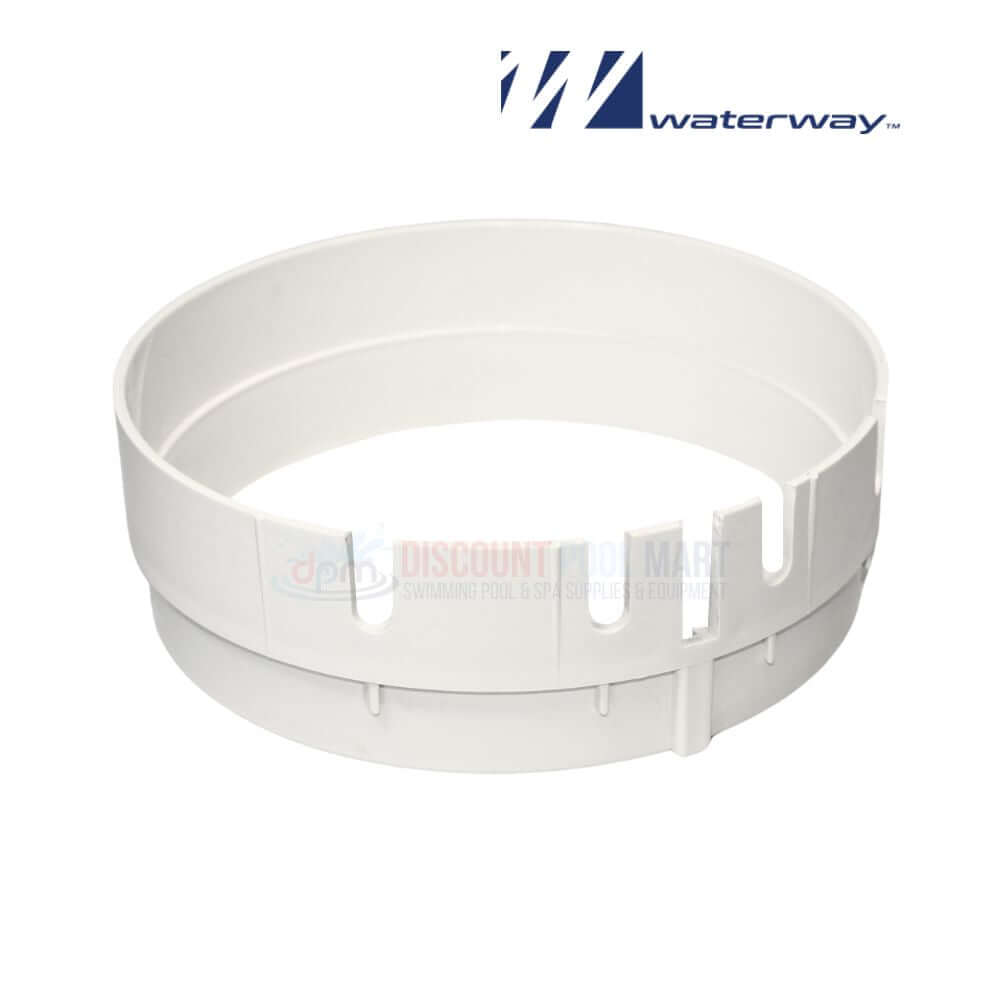

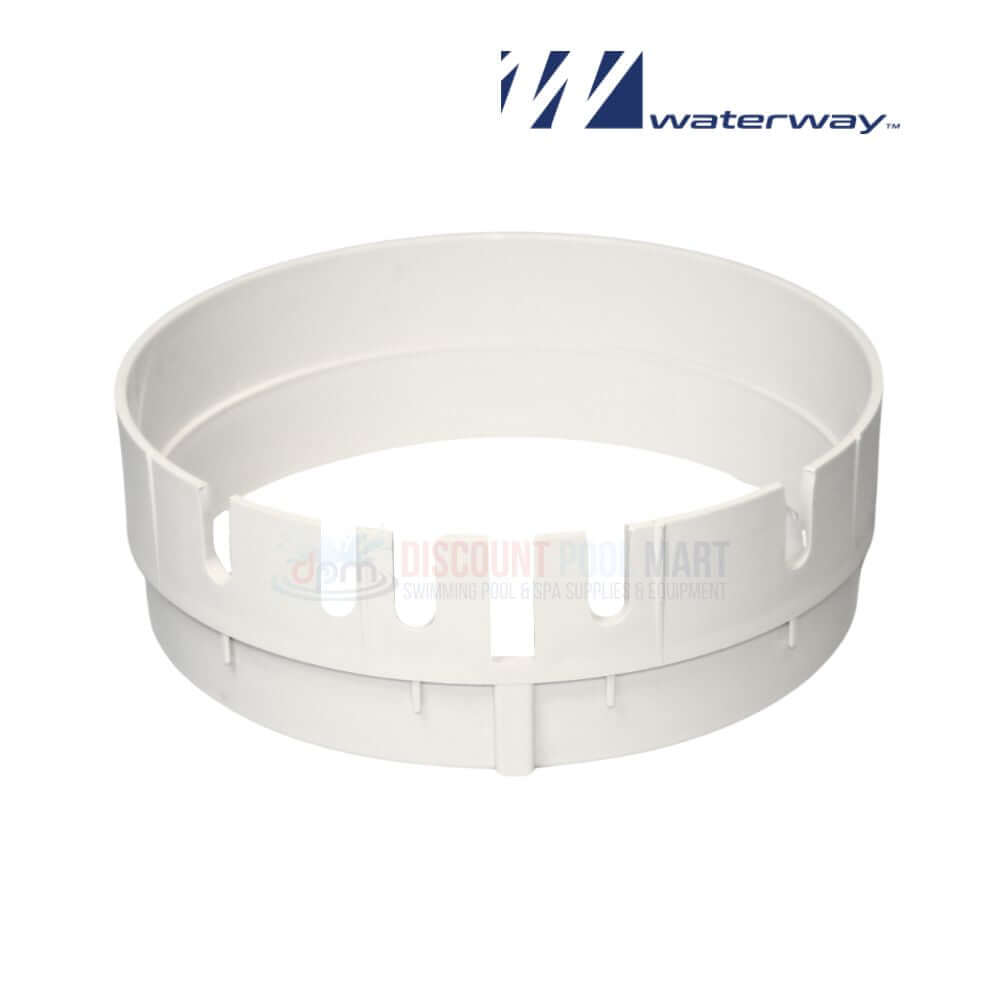

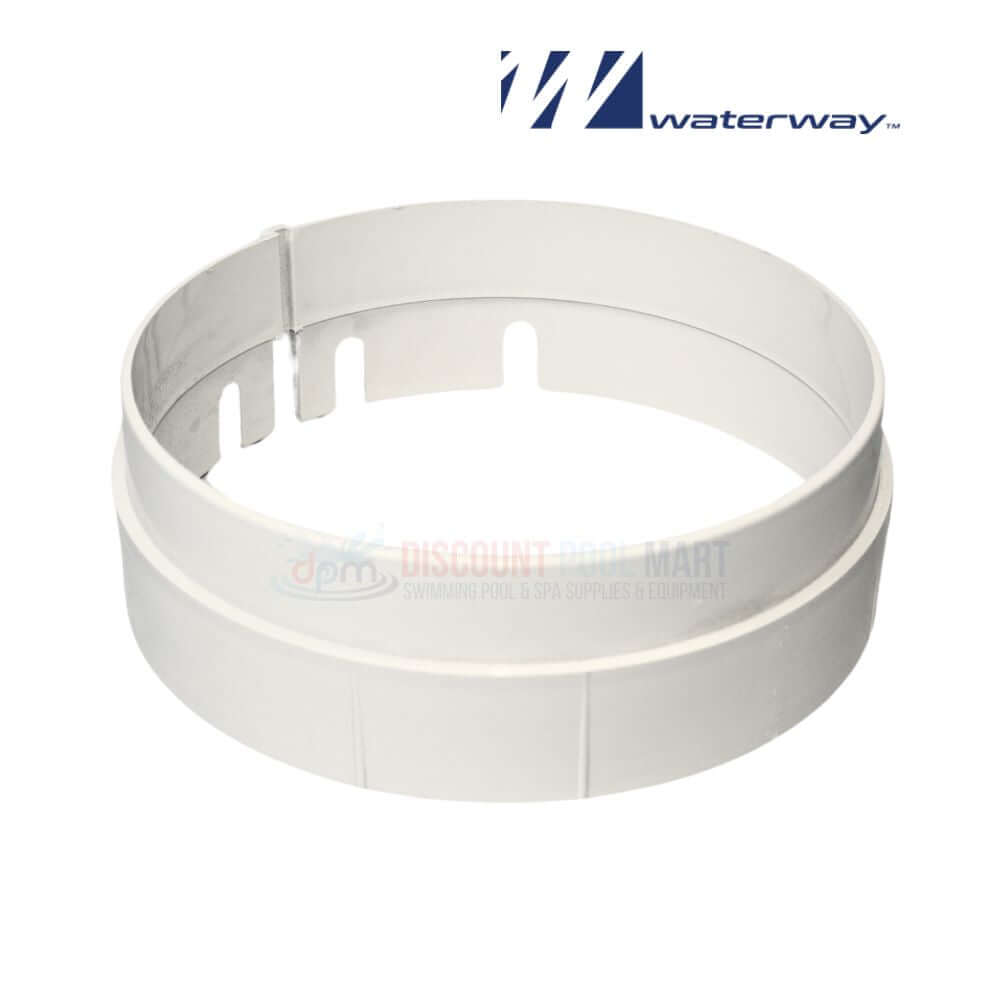

OEM Waterway Mounting Ring Extension 519-6560 is a durable accessory designed to extend the installation range of Waterway Vinyl Renegade skimmers. This precision-molded ring allows for deeper mounting configurations, making it easier to align skimmers with various pool wall types and deck structures. Its rugged, chemical-resistant construction ensures it can withstand prolonged exposure to chlorinated water and environmental stress. By maintaining proper skimmer alignment, this ring helps support efficient skimming and consistent system functionality across different pool designs.
-
Precision Fit for Renegade Models: Tailored for Waterway Vinyl Renegade skimmers to guarantee seamless integration and performance.
-
Increases Mounting Depth Range: Offers added installation flexibility for adapting to unique pool configurations or deeper wall structures.
-
Built for Harsh Conditions: Resistant to corrosion, chemicals, and UV rays, making it suitable for continuous use in poolside environments.
-
Optimizes Skimmer Function: Ensures that the skimmer remains properly aligned for maximum debris collection and water flow efficiency.
-
Long-Lasting Installation Support: Designed to hold up over time without warping, cracking, or degrading under pool operating conditions.
- Waterway Vinyl Renegade Skimmers
