Find your parts diagram
Waterway550-6300B

Waterway Segmented Metal Clamp For Crystal Water Cartridge and DE Filters | 550-6300B

Genuine Waterway part

Fits these models (4)

Waterway Crystal Water cartridge filter 570-0325-07 – 325 sq. ft.Waterway Crystal Water cartridge filter 570-0425-07 – 425 sq. ft.Waterway Crystal Water cartridge filter 570-0525-07 – 525 sq. ft.Waterway Crystal Water DE filters 570-0036, 570-0048, 570-0060 – 36, 48 and 60 sq. ft.
$329.99
$339.99 $329.99
-$10.00
Shipping calculated at checkout.
Pick up in storeChoose one of our 8 stores at checkout
Local deliveryWithin 5 miles of any store
Ships nationwideMost orders ship in 1–2 business days

Pickup, delivery and shipping times are estimates, not guarantees.

This "New Version" clamp fits the older-generation Crystal Water filters too — the new model is slightly different but fully compatible.

● 63 in stock30-day returns Secure checkout

CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

Fits these models

ModelDetails
Waterway Crystal Water cartridge filter 570-0325-07325 sq. ft.
Waterway Crystal Water cartridge filter 570-0425-07425 sq. ft.
Waterway Crystal Water cartridge filter 570-0525-07525 sq. ft.
Waterway Crystal Water DE filters 570-0036, 570-0048, 570-006036, 48 and 60 sq. ft.

Does not fit: Waterway ClearWater II DE filters (FD12, FD18)

Does not fit: Waterway ProClean and other non-Crystal Water filters

Checked against Waterway Crystal Water cartridge and DE filter parts lists.

Replaces these part numbers

BrandPart number
Waterway550-6300

Overview

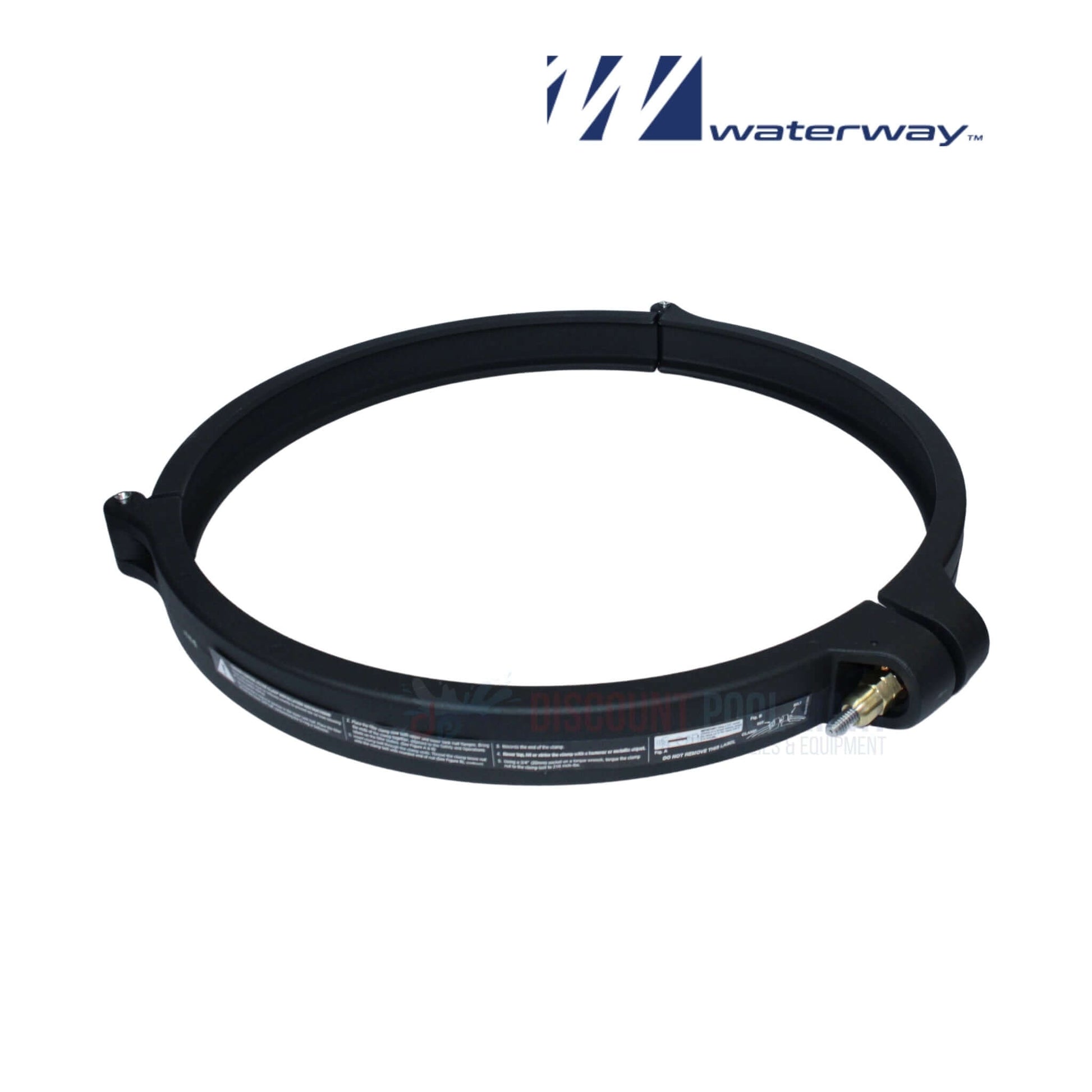

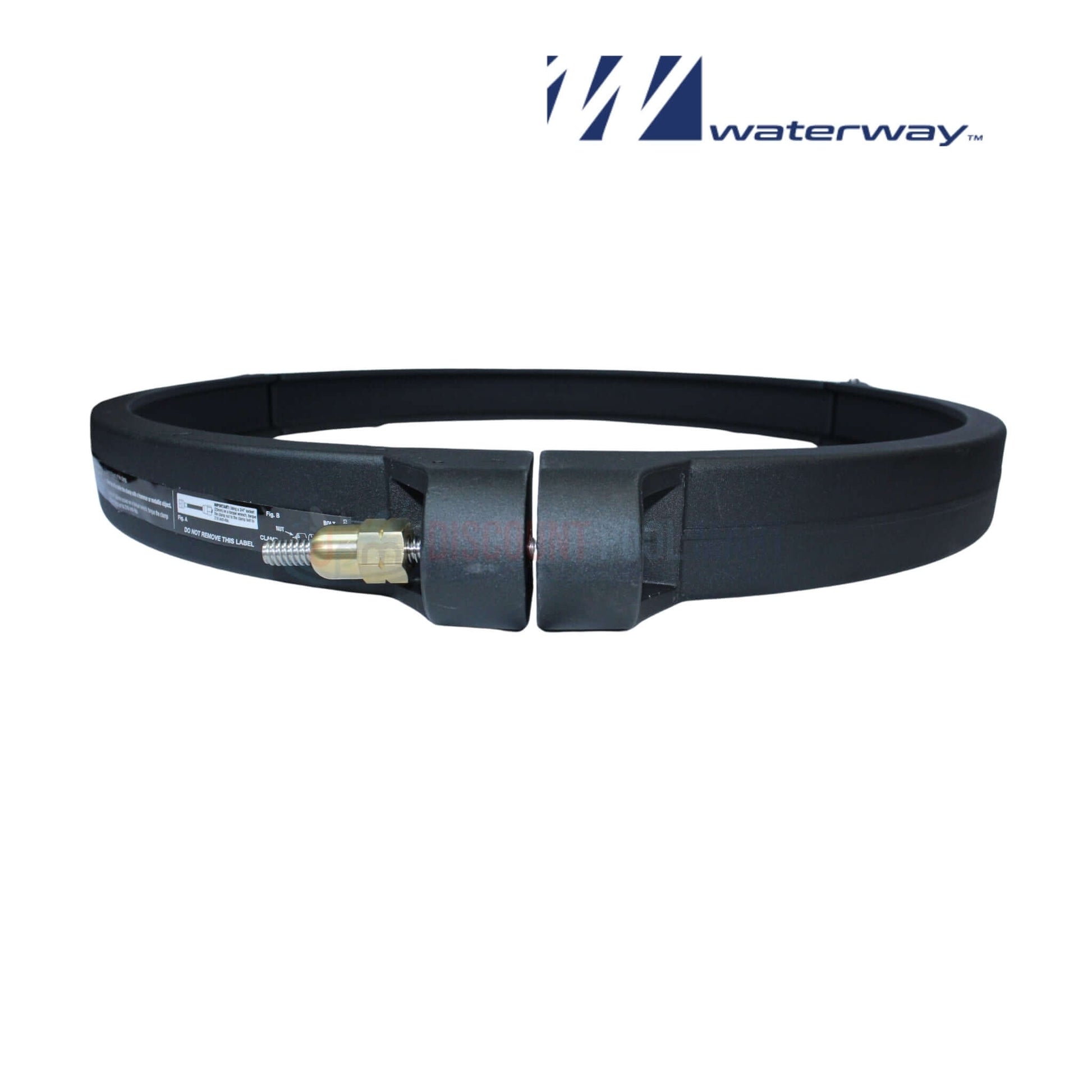

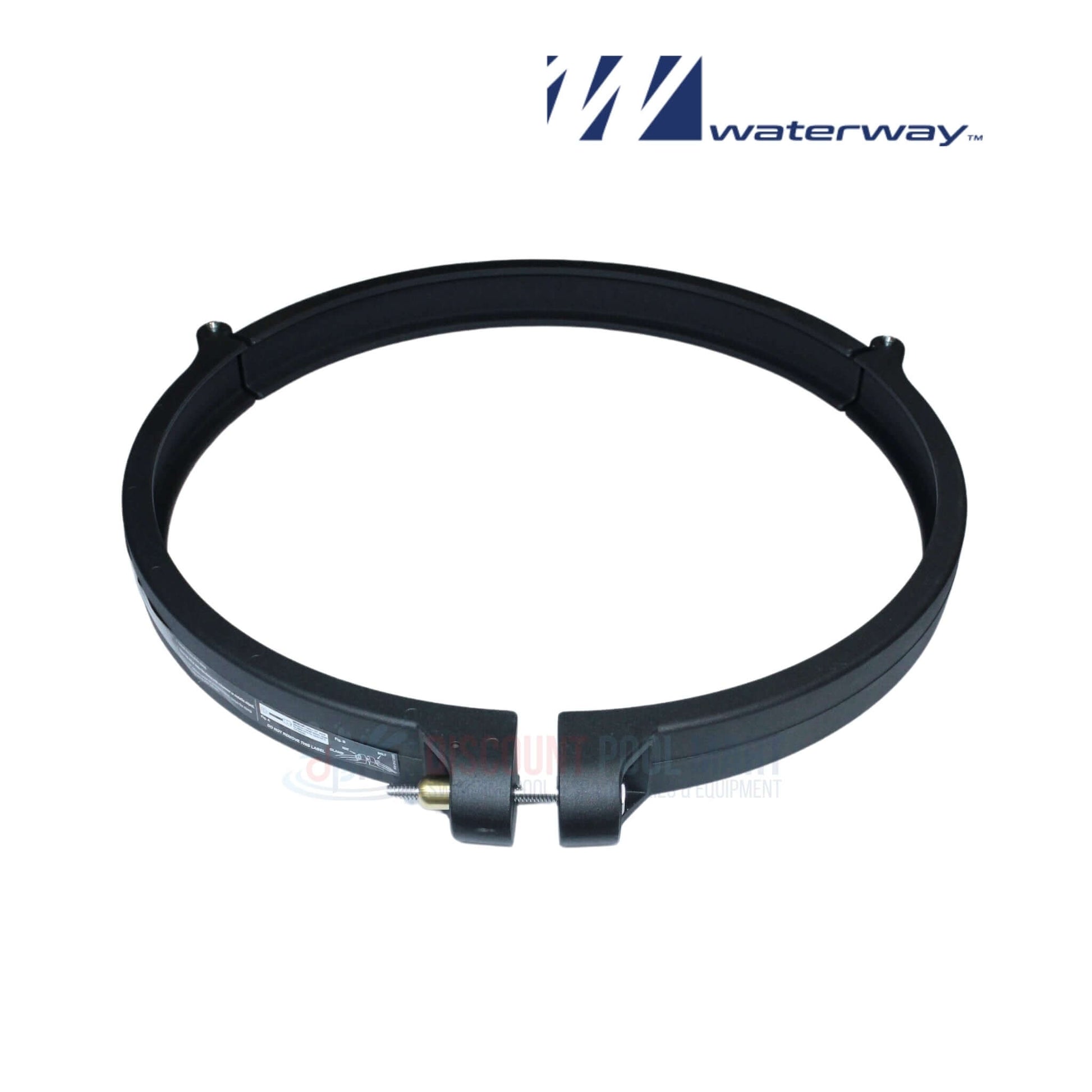

This is the metal band clamp that locks the lid to the tank on Waterway Crystal Water pool filters. Replace it if the clamp is bent, rusted, cracked or will not hold the lid tight, which can cause leaks or a dangerous lid separation under pressure. It is the current-style 3-segment clamp, which Waterway uses on both the cartridge and DE Crystal Water models.

Specs

Type3-segment metal band clamp
FinishChemical-resistant coating
Tightening tool3/4 in. socket with torque wrench
Clamp torque216 inch-lbs

In the box

  • Segmented metal clamp with clamp spring assembly
  • Clamp bolt and nut

Not included: Tank O-ring and filter lid

Diagram

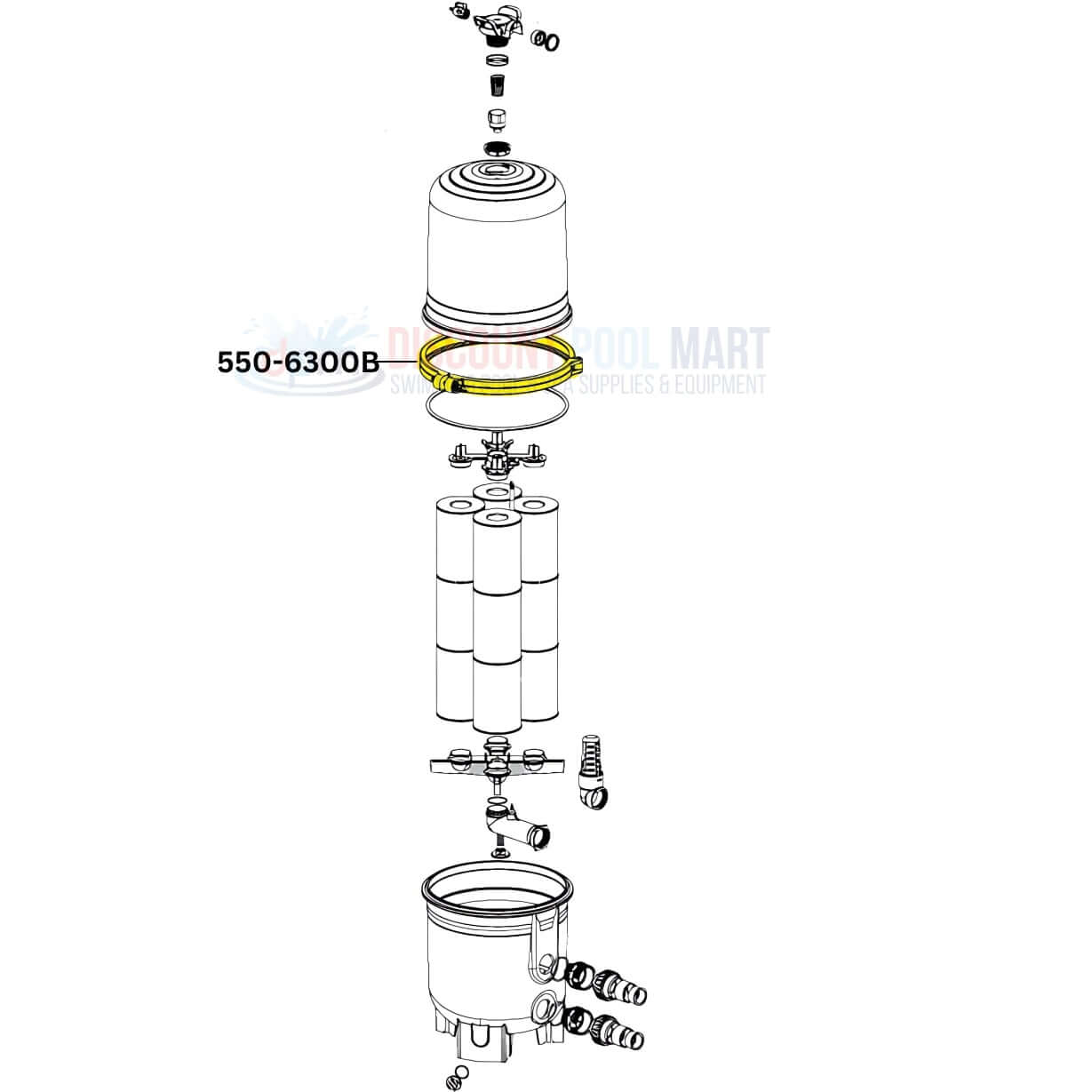

Diagram of Waterway Metal Clamp 550-6300B for Crystal Water Filters, available at Discount Pool Mart DPM. diagram

Questions

What tool do I need to tighten it?Waterway says to use a 3/4 in. socket on a torque wrench and tighten the clamp nut to 216 inch-lbs. Do not hand-tighten only, and never tap the clamp with a mallet.
