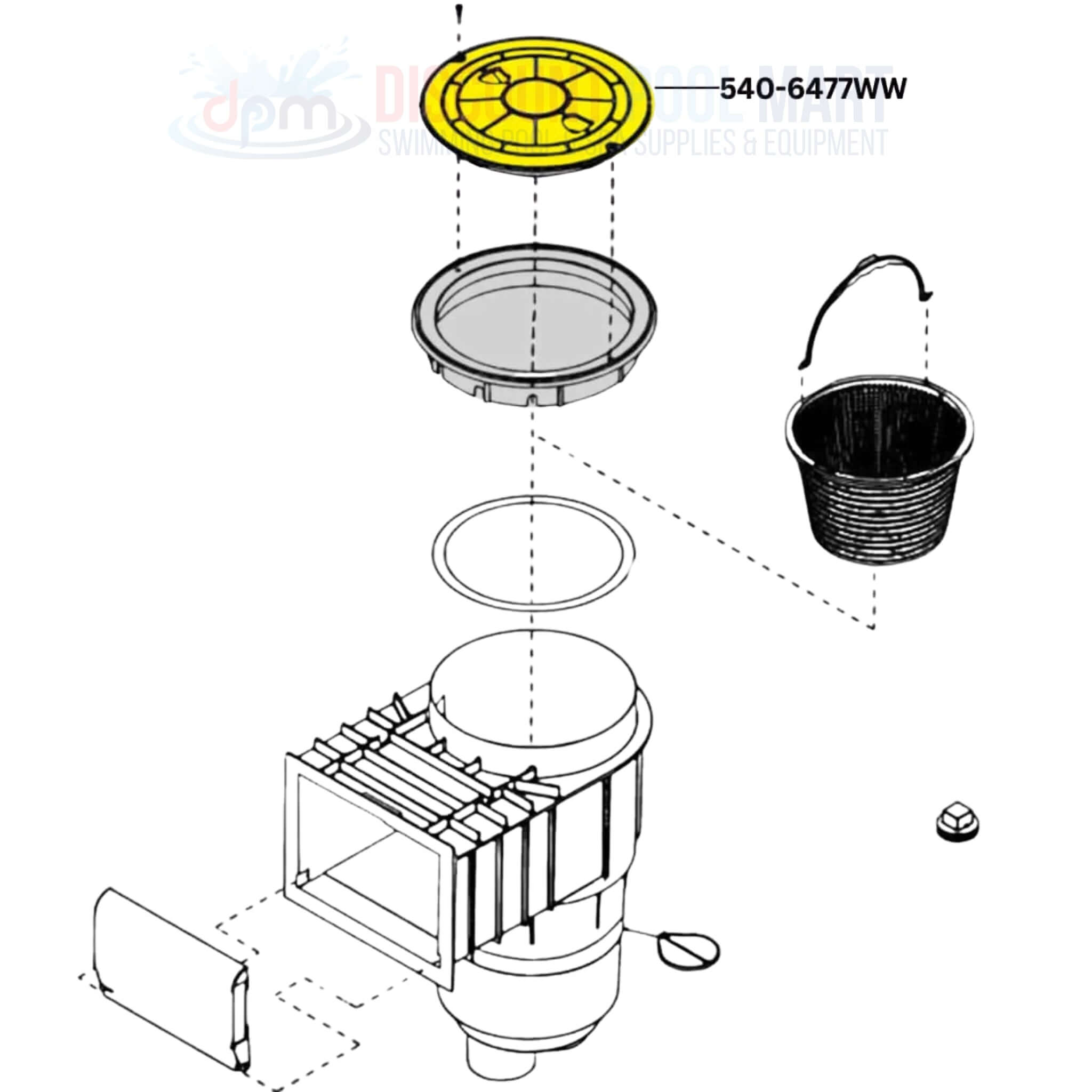

On the Waterway Renegade Gunite In-Ground Skimmer diagram
Open the full interactive diagram →
Other parts on the same Waterway Renegade Gunite In-Ground Skimmer

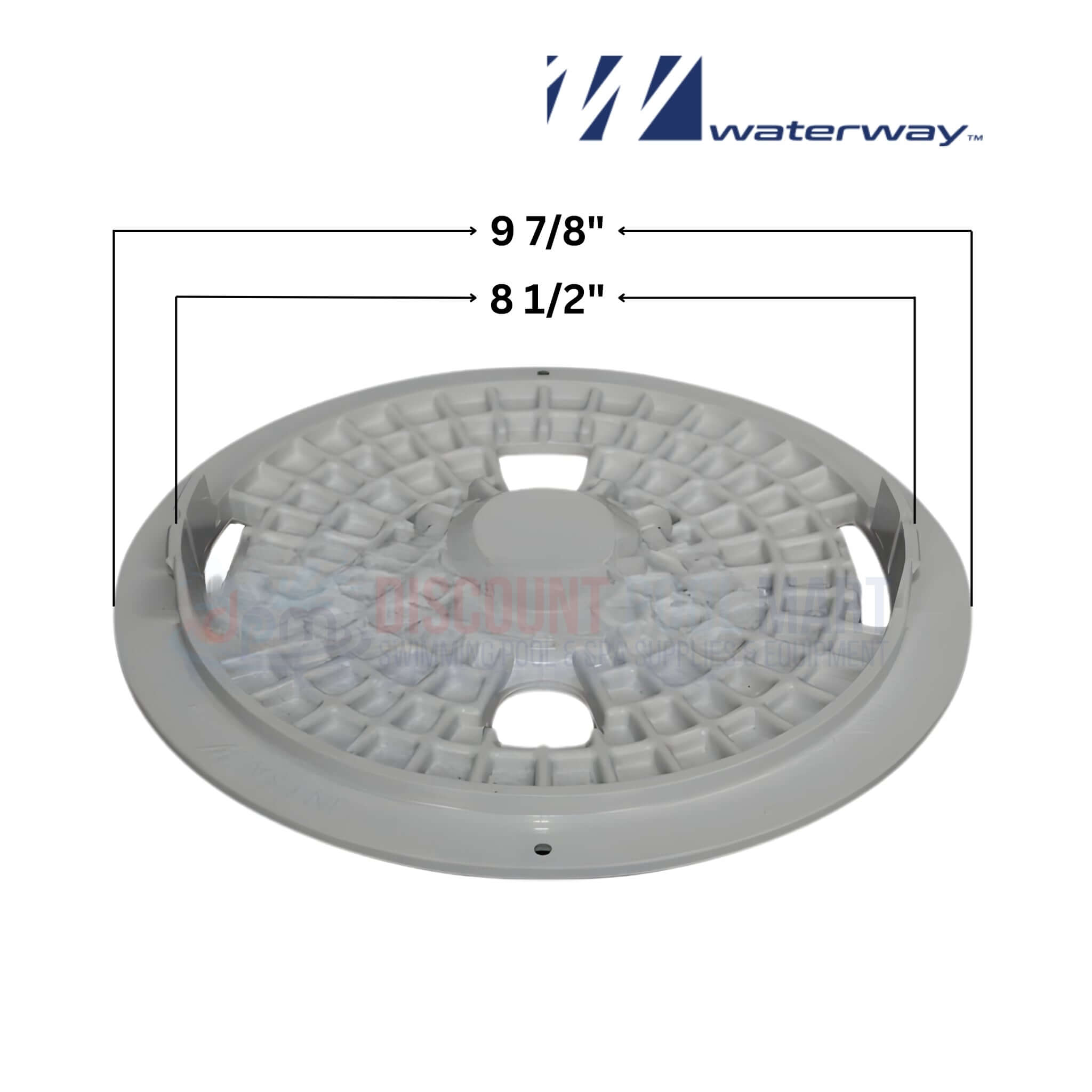

OEM Waterway 540-6477WW Round Skimmer Lid is a 9-inch gray cover system designed for Waterway Renegade Gunite Skimmers. This lid offers a sleek, unobtrusive look while securing the skimmer opening and facilitating easy maintenance access. All-weather construction stands up to harsh pool environments. This part ships standard with all round Renegade skimmers, eliminating SKU complexity and improving compatibility for installers and service techs.
-
9-Inch Gray Lid: Designed to match pool decks and provide a low-profile, finished look over Renegade skimmer access points.
-
Quick Access for Cleaning: Allows fast lid removal for access to the skimmer basket, simplifying routine pool maintenance.
-
Standard Issue for Renegade Skimmers: Supplied with all Waterway round skimmer models to ensure consistent and reliable fitment.
-
High-Endurance Material Construction: Built from durable materials capable of resisting cracking, fading, and chemical exposure.
-
Simplifies Inventory and Repairs: Eliminates the need for multiple lid types, streamlining stocking and replacement in the field.
- (1) Waterway 540-6477WW Lid
- Waterway Renegade Skimmers
