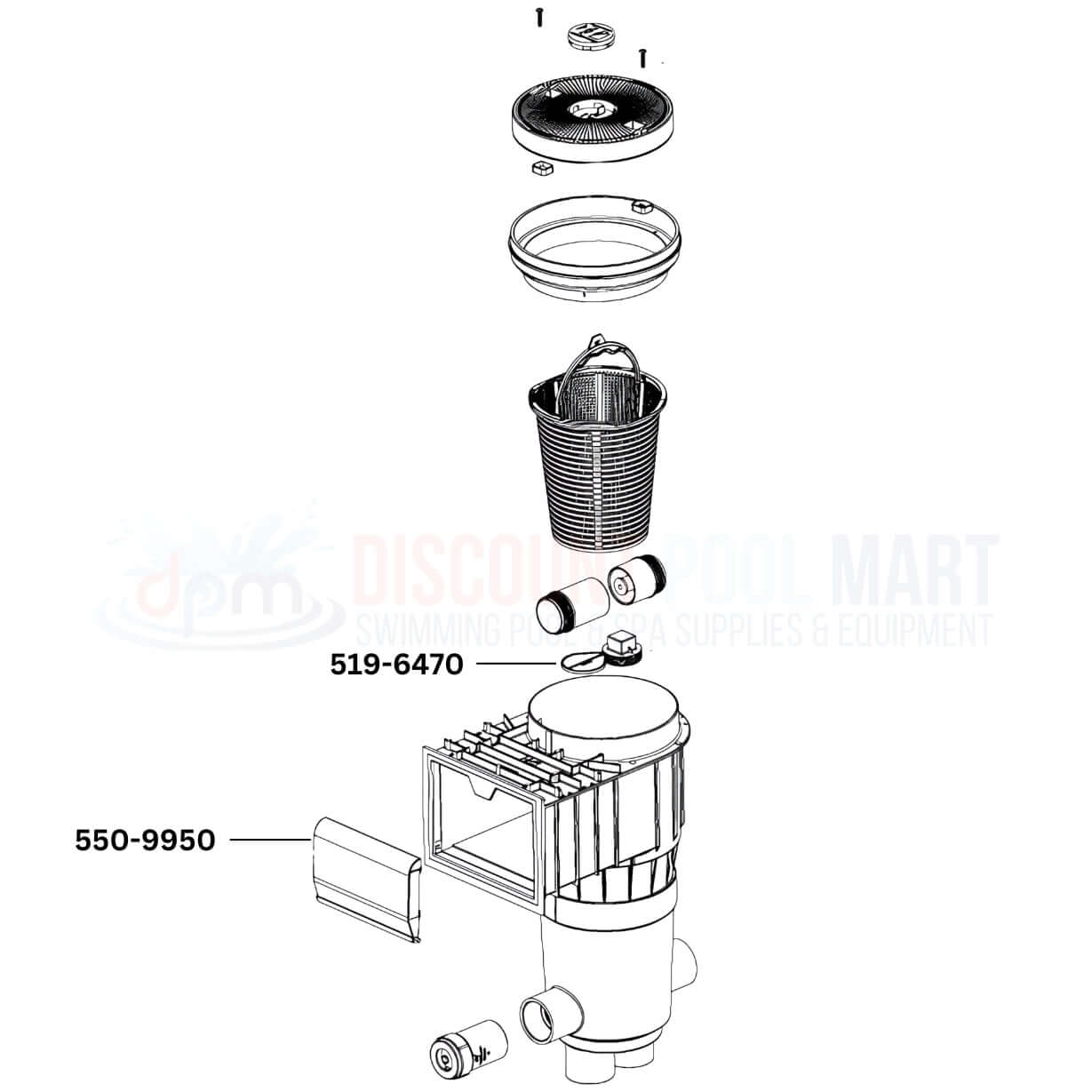

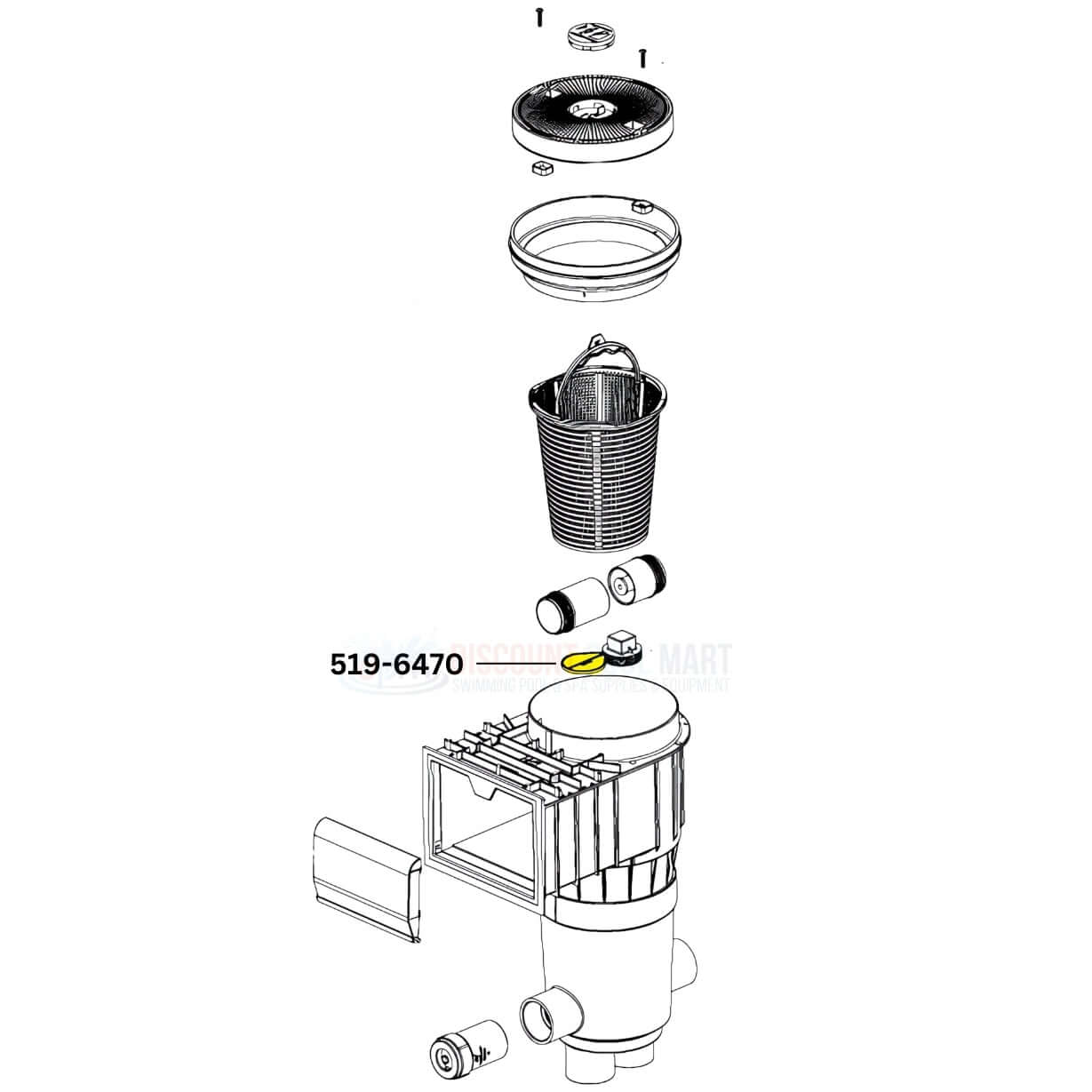

On the Waterway Renegade Gunite In-Ground Skimmer diagram
This part
Open the full interactive diagram →
Other parts on the same Waterway Renegade Gunite In-Ground Skimmer

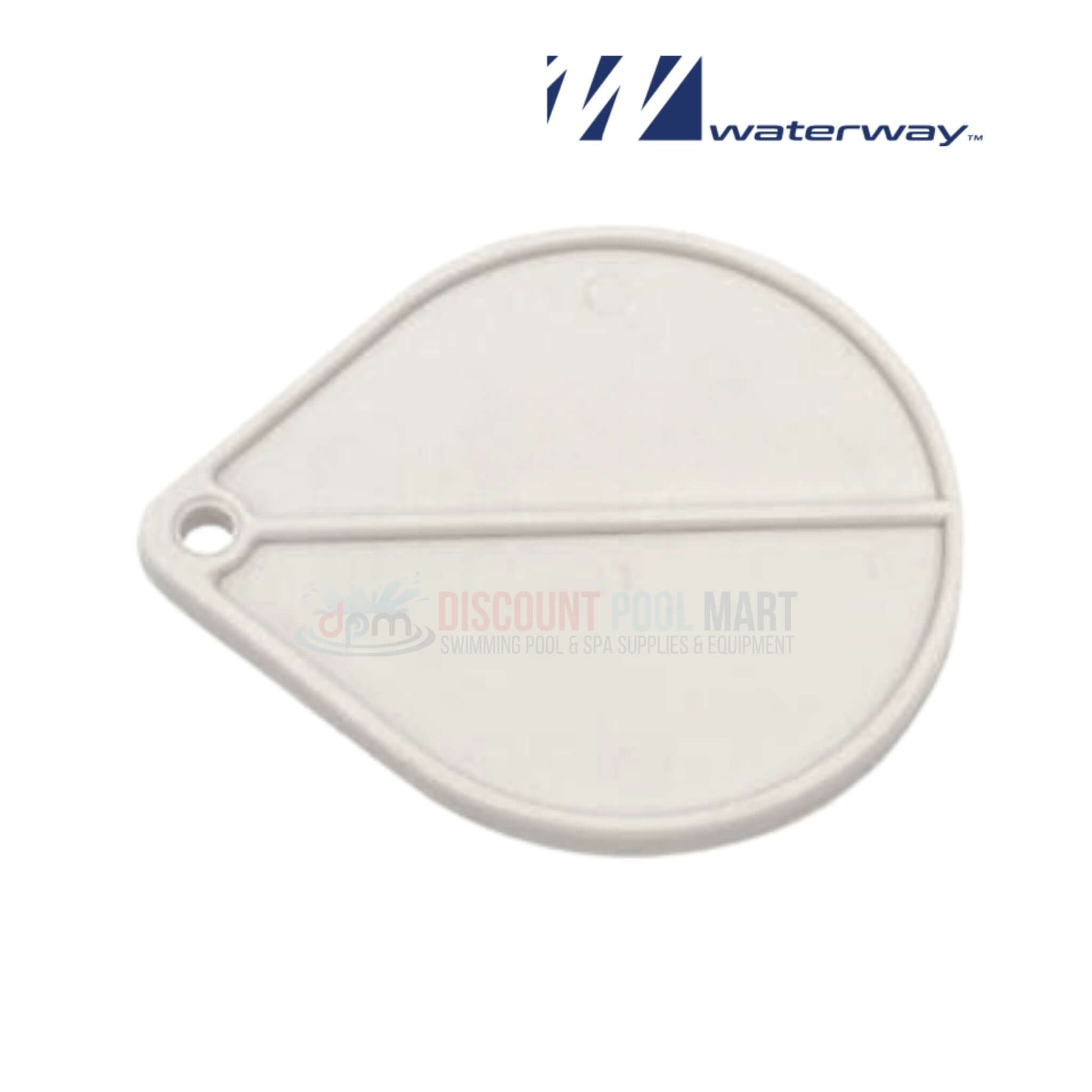

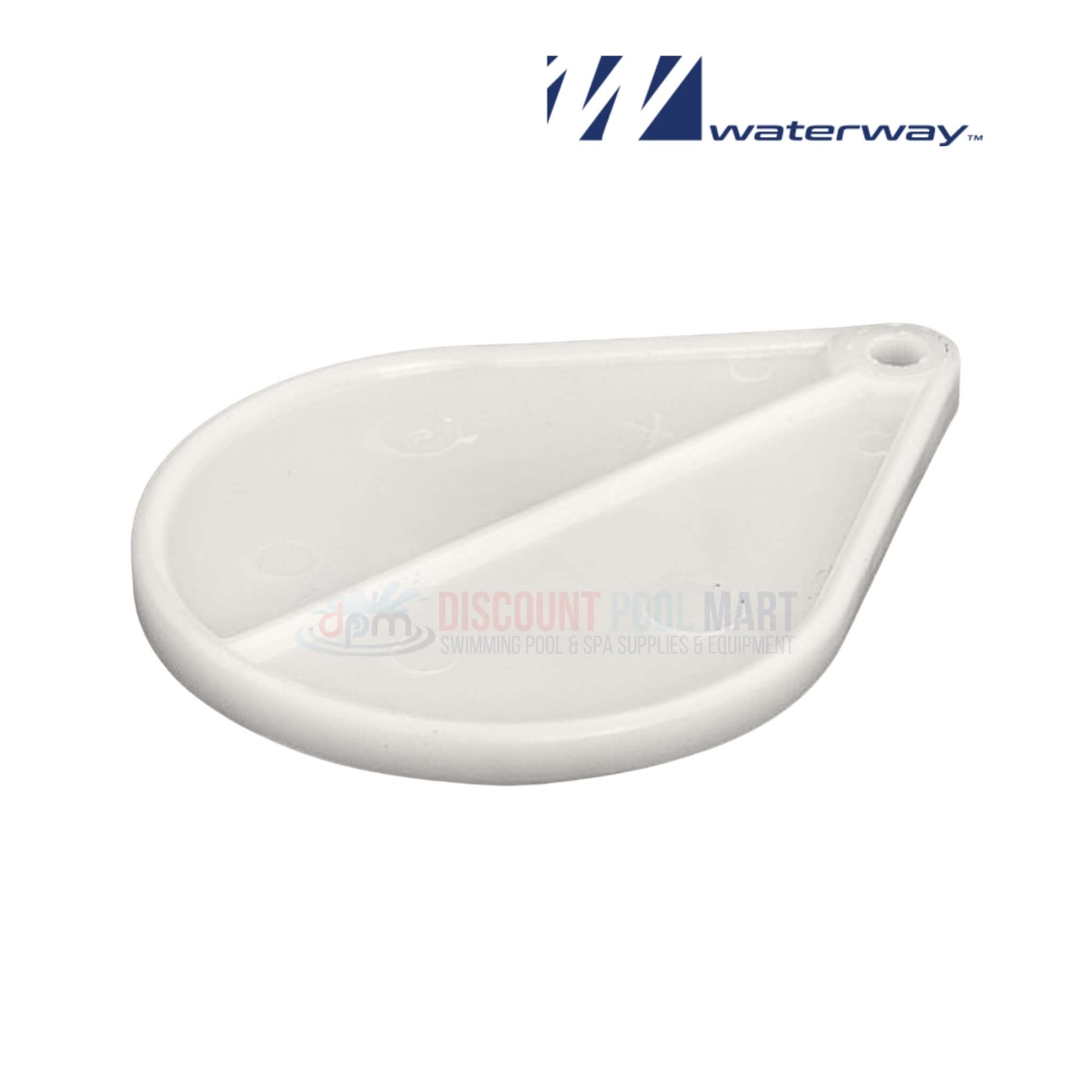

The Waterway Diverter Plate 519-6470 is a replacement component designed for use with Waterway Renegade skimmers in in-ground pools. This diverter equalizer plate allows for the adjustment of water flow between the skimmer and the main drain, enhancing the efficiency of the pool's filtration system. Constructed from durable, chemical-resistant materials, it ensures long-lasting performance in various pool environments. The plate is easy to install, facilitating proper water circulation and contributing to the maintenance of clean and clear pool water.
- Optimizes Water Flow: Designed to adjust water distribution between the skimmer and main drain, improving the efficiency of your pool's filtration system.
- Durable Construction: Made from chemical-resistant materials for reliable, long-lasting performance in harsh pool environments.
- Easy Installation: Simple to install, making it convenient to set up and ensuring proper water circulation to maintain clean, clear pool water.
- Enhanced Filtration Efficiency: Helps ensure balanced water flow, contributing to a more effective and efficient pool cleaning system.
- (1) Waterway 519-6470 Diverter Plate
- Waterway Renegade Skimmers
