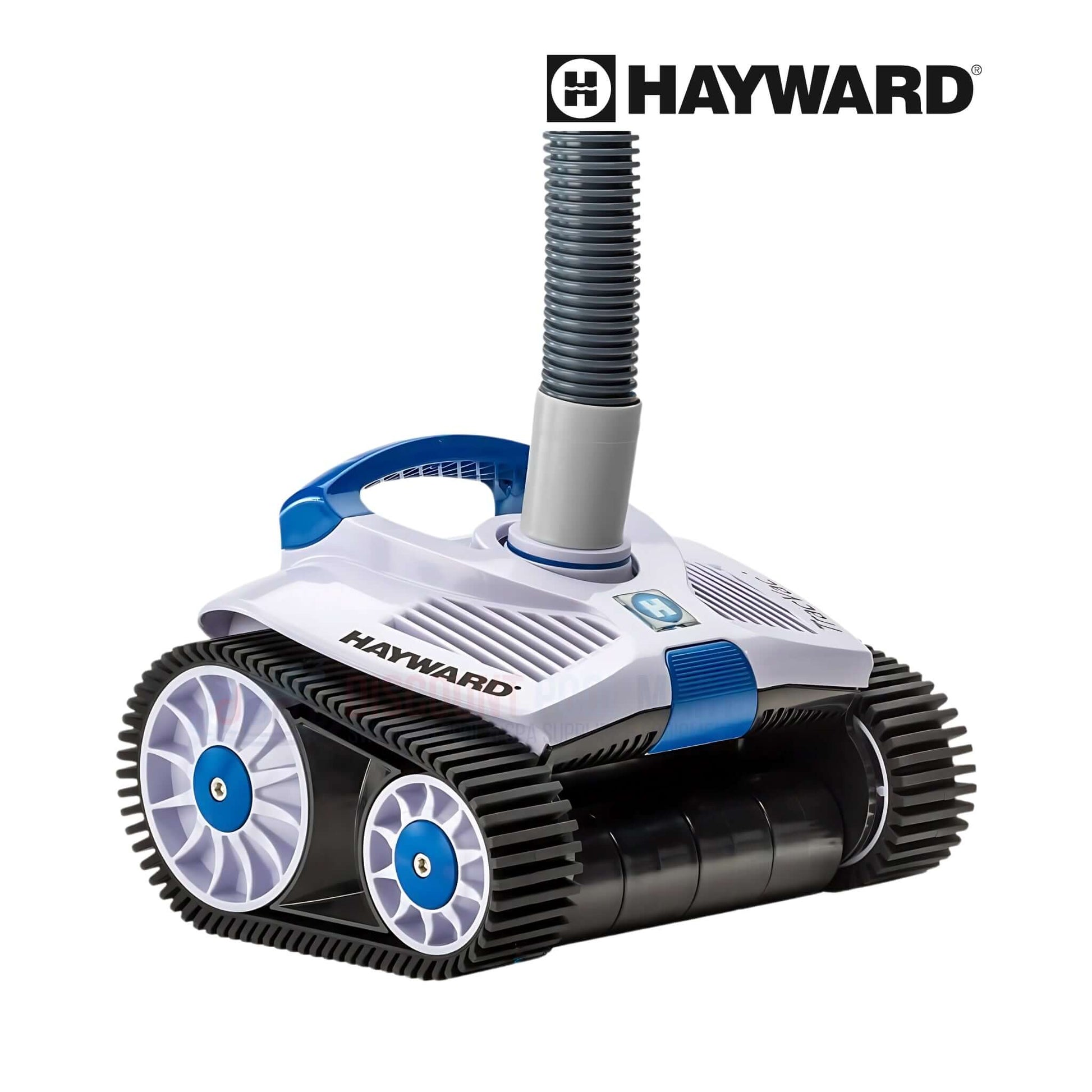

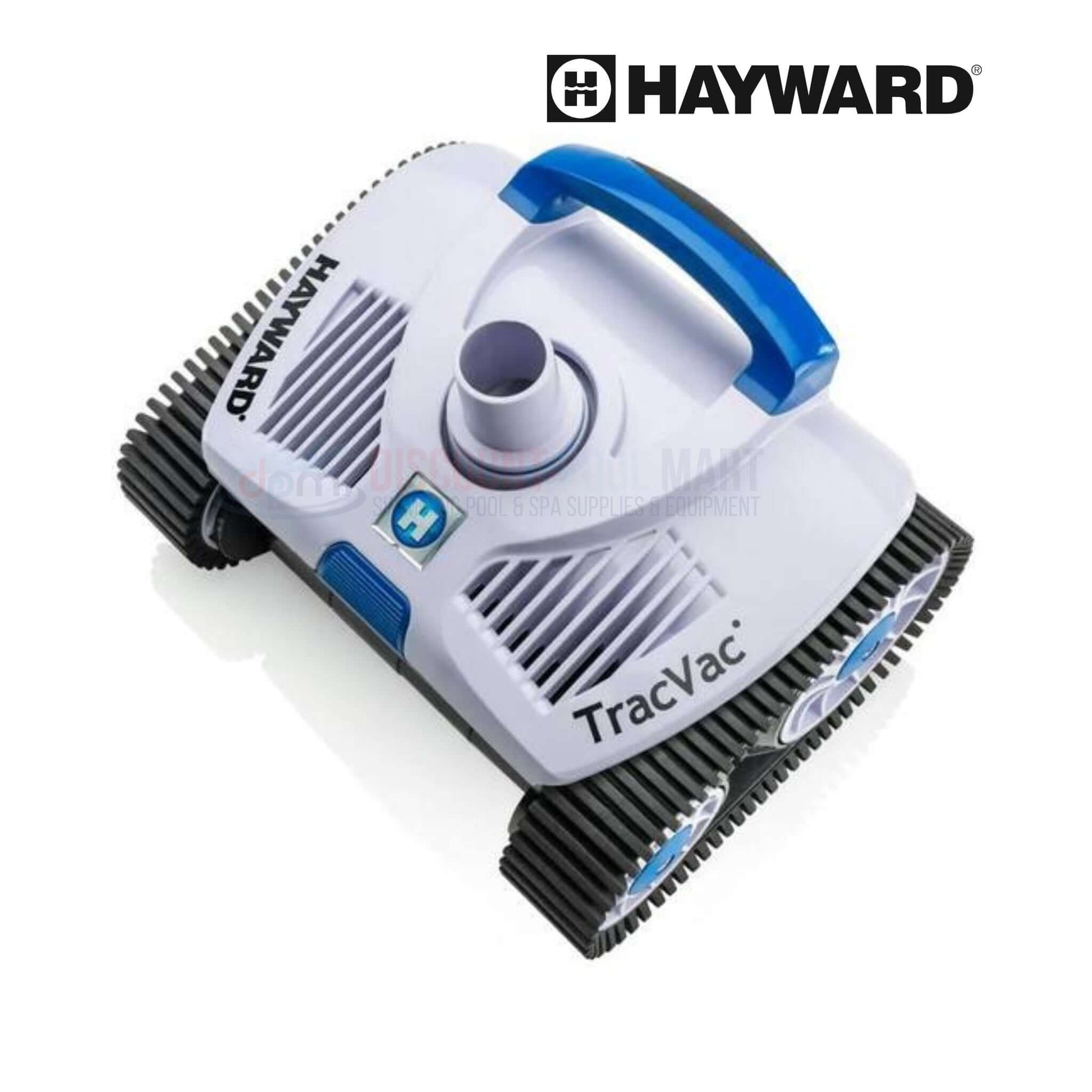

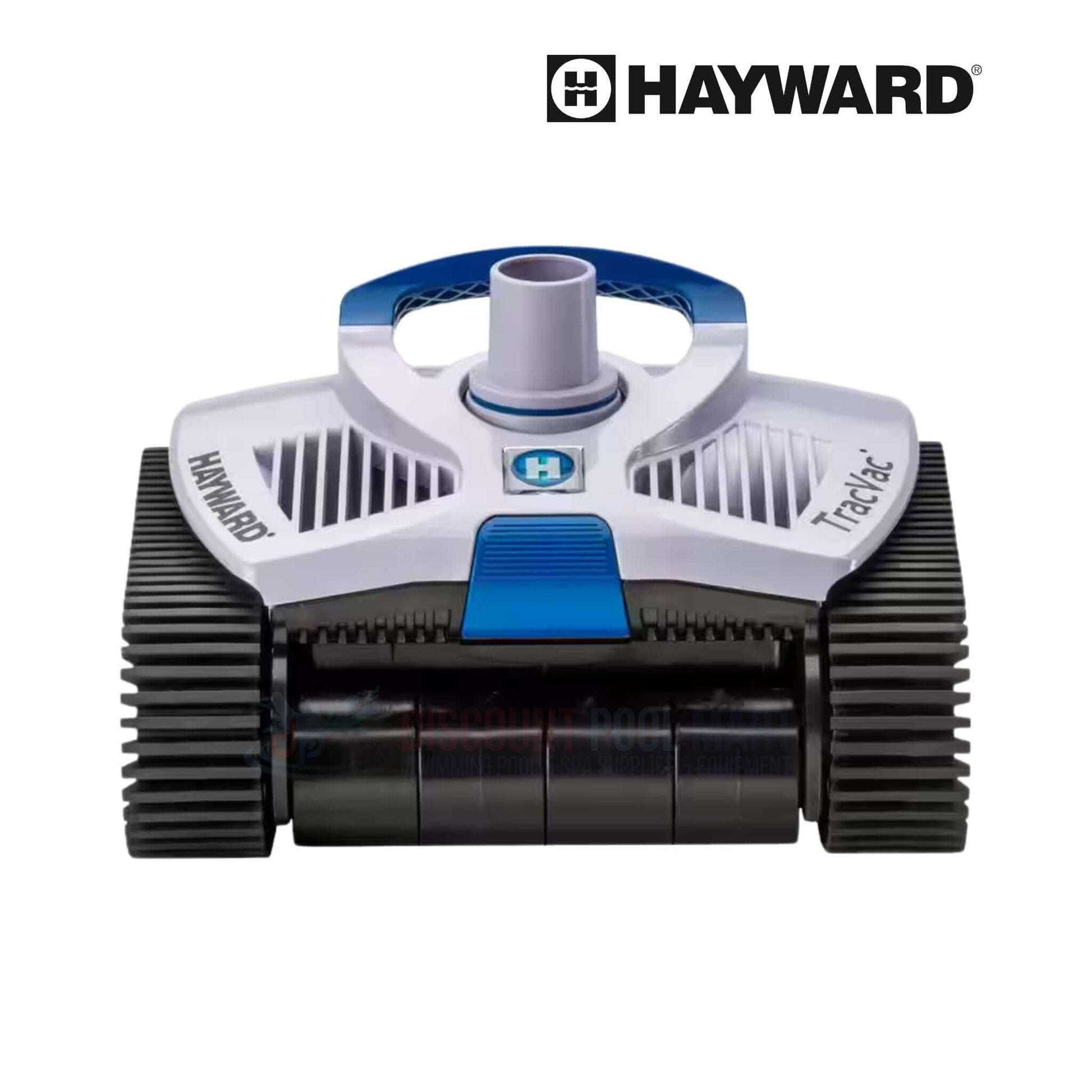

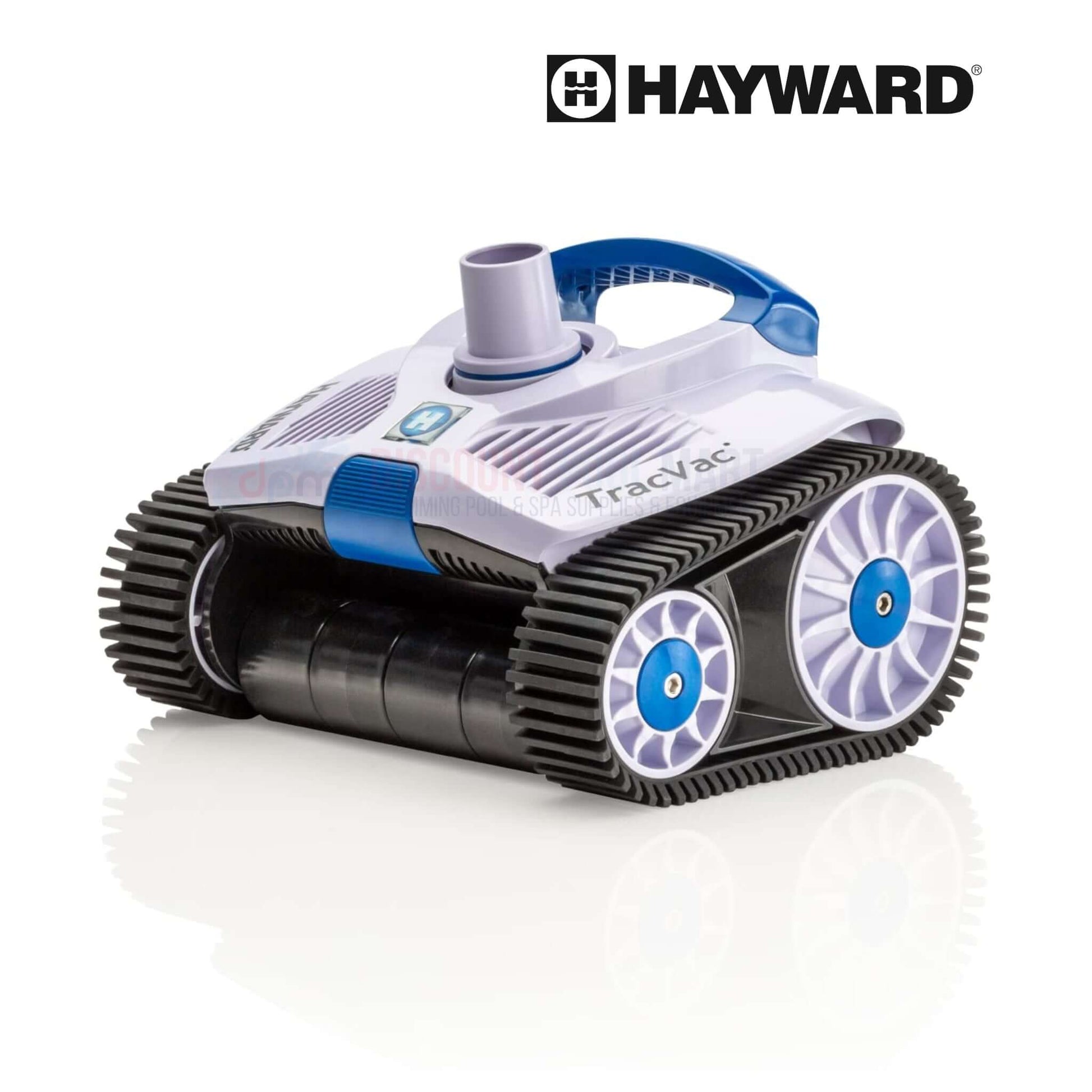

Hayward TracVac Inground Suction Pool Cleaner | W3HSCTRACCU
The Hayward TracVac Inground Suction Pool Cleaner | W3HSCTRACCU is built for dependable, energy-efficient pool cleaning in pools up to 20’ x 40’. Its innovative track-driven design provides exceptional traction and movement, allowing it to travel easily over uneven surfaces, deep ends, and main drains where standard wheeled cleaners can struggle. The compact body houses powerful suction performance that quickly removes dirt, sand, and leaves from concrete, vinyl, fiberglass, and tile pool surfaces. The TracVac connects directly to your pool’s suction line or skimmer, using the existing filtration system for consistent power without the need for additional pumps or equipment.
Weighing just under six pounds, the TracVac is lightweight and easy to maneuver for setup or storage. Its intelligent internal steering system executes six pre-programmed movement patterns to ensure complete floor and wall coverage with no missed areas. The rugged drivetrain and reinforced body offer long-lasting reliability and minimal maintenance requirements, making it a top choice for pool owners seeking practical, everyday cleaning power. Each unit comes with a full accessory kit including 11 connector hoses, a leader hose, a flow regulator valve, a hose float, and all necessary adapters for quick installation and precise flow control.
Key Features of the Hayward TracVac Inground Suction Pool Cleaner
-
Track-Driven Traction System: Uses advanced tracks to maintain grip and consistent motion over drains, slopes, and textured surfaces for full coverage.
-
Six-Mode Steering Program: Integrated internal steering cycles through six directional patterns to ensure efficient, complete cleaning routes.
-
Compact and Lightweight Construction: Easy to handle at only 5.76 lbs, simplifying installation, operation, and storage between uses.
-
All-Surface Cleaning Capability: Cleans concrete, fiberglass, tile, and vinyl pools efficiently, adapting to multiple pool shapes and finishes.
-

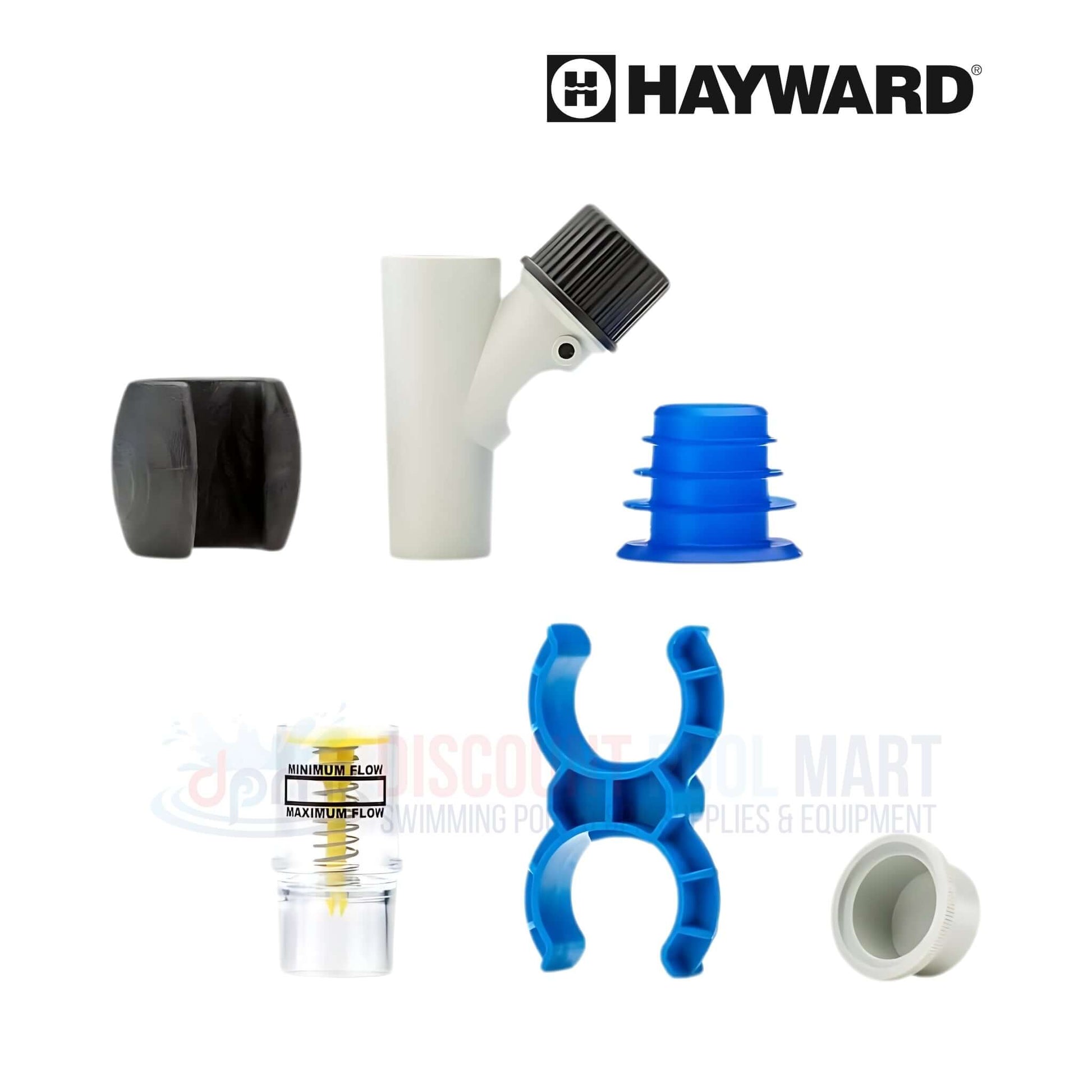

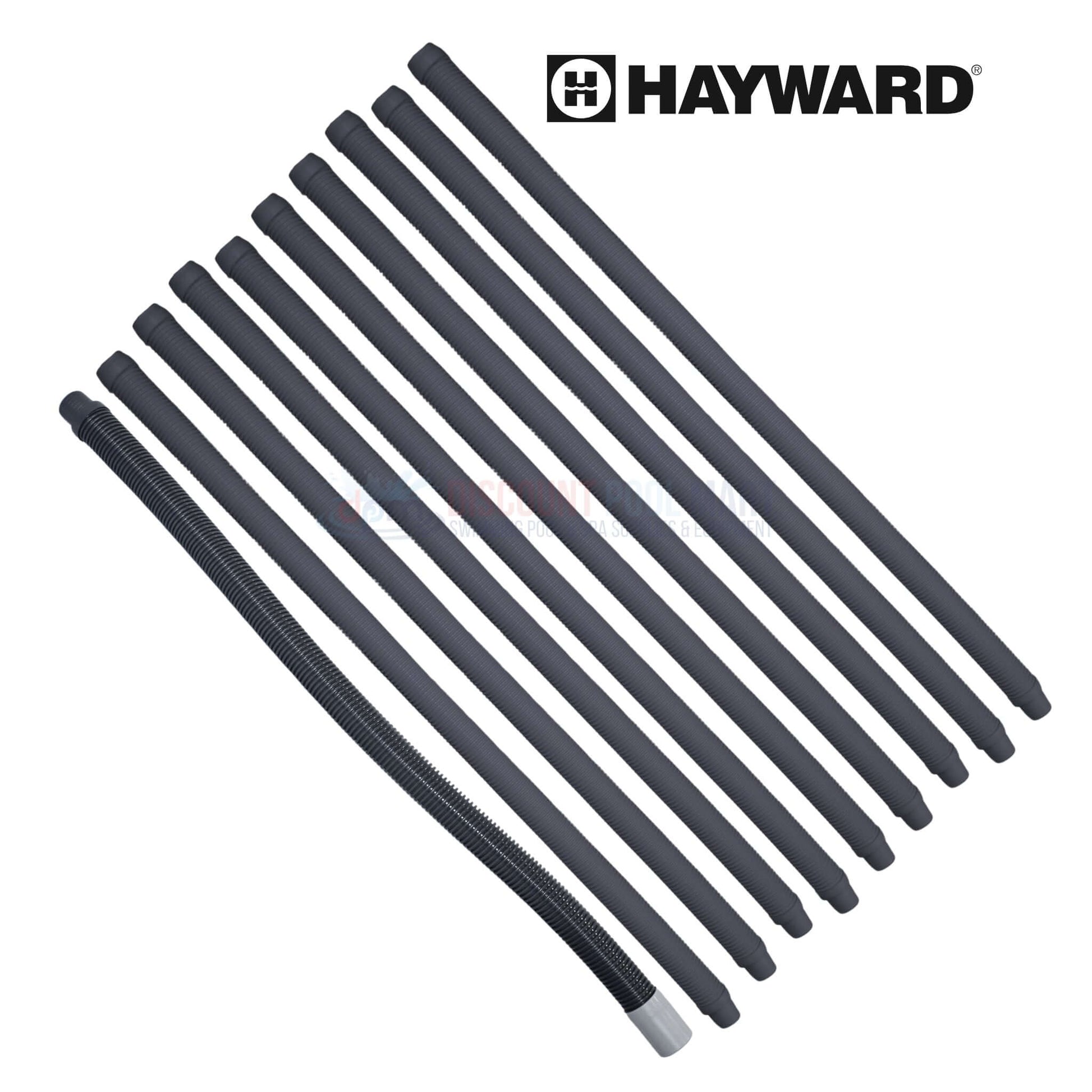

Comprehensive Setup Kit: Includes 11 connector hoses, leader hose, valves, adapters, and a hose float for total installation flexibility.
-
Durable and Low-Maintenance Build: Reinforced components and rugged tracks extend lifespan and reduce servicing needs.
-
Energy-Saving Design: Operates using the pool’s own pump and filter, lowering electricity consumption and operating costs.
-
Quick, Hassle-Free Setup: Assembles easily without tools and starts cleaning immediately after connection.

Key Features
-

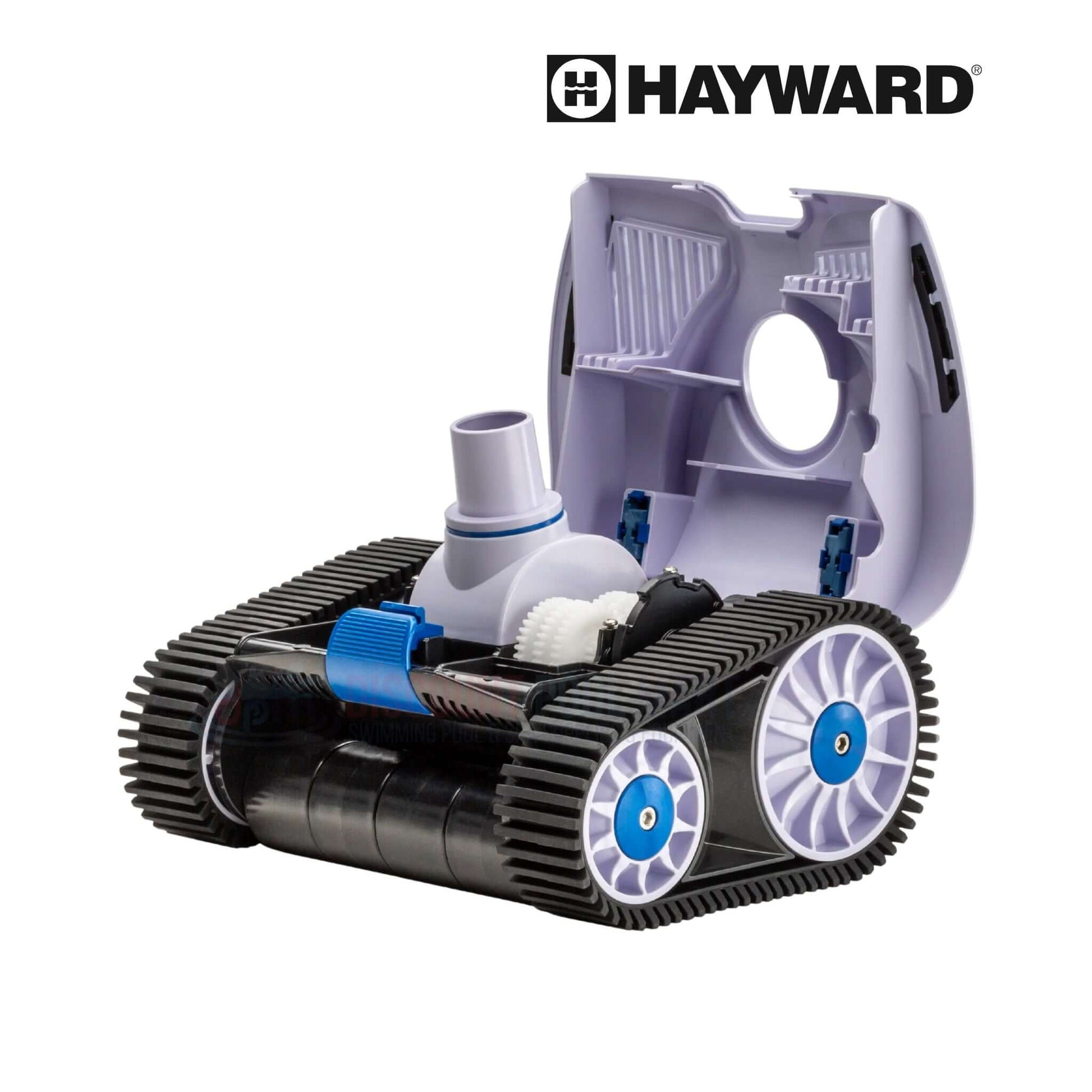

Hollow Turbine
This cleaner utilizes a hollow turbine which enables flow to bypass the blades in the event of large debris blockage. This ensures the pool system is always provided flow.
-
Steering System and Hose Swivel
The tracked suction cleaner has an internal programmed steering system, allowing it to turn and then move into another direction. This steering system has 6 different programmed turns settings at various degrees that allow the cleaner to fully navigate the entire pool. The external hose swivel allows the cleaner to turn freely without interference from the hose due to debris buildup as well as unwanted hose coiling. -
Robust Tracks
The TracVac’s patented track system and unique underbody ensures that the cleaner can easily negotiate main drains, uneven surfaces, strange shapes and steep corners on both the deep and shallow ends of the pool. This makes the Cleaner ideal for all pool surfaces and shapes. -
Wall Climbing
The TracVac will only climb walls on pools with sufficient floor to wall radius. The cleaner has patented adjustable skirts that allow the cleaner to maintain optimal suction under the machine even when it encounters obstacles. When the cleaner encounters an obstacle, one or more of the skirts will lift up (adjust) over the obstacle while maintaining suction under the cleaner.
What's In The Box?
