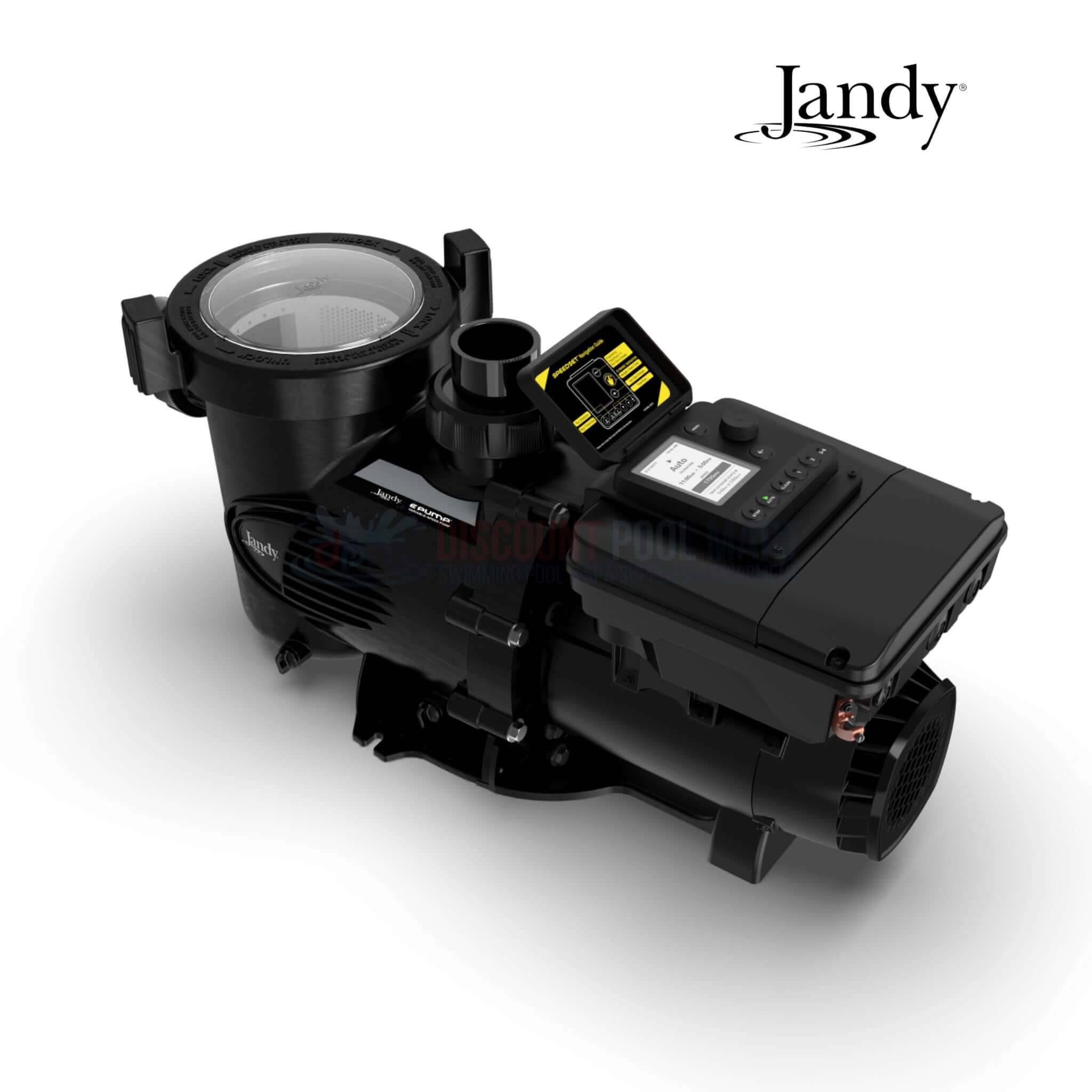

OEM Jandy ePump Variable Speed Pump VSSHP3802AS is a high-efficiency 3.8 HP pump designed to deliver powerful performance with superior energy savings for residential pools and spas. Featuring advanced variable-speed technology, it allows precise flow control and significantly reduces energy consumption compared to traditional single-speed pumps. Its durable, corrosion-resistant construction ensures long-lasting operation, even under demanding conditions. The ePump is automation-ready and fully compatible with Jandy AquaLink® systems, enabling seamless integration into smart pool management setups. Quiet operation, user-friendly programming, and a compact design make it an ideal upgrade for maximizing efficiency and performance.

ePump 3.8 HP, 208-230 VAC, 2-Auxiliary Relay Variable-Speed Pump Specifications
-
HP/THP -3.8 THP
-
WEF - 6.5
-
Voltage - 208-230 VAC
- Carton Weights - 70 lbs.
- Motor Type - TEFC
- Overall Length - 30 1/8"
- Phase - 1
- Port Connections - Unions (Included)
- RPM - Variable
- Strainer Included - Yes
- Watts / AMPS - 208-230V, 3120W, 16.0A
- Pump Controller - SpeedSet Controller Included
- AUX Relays- 2
ePump 3.8 HP, 208-230 VAC, 2-Auxiliary Relay Variable-Speed Pump Features
-
Maximum Savings - Save over $1,100* per year in energy costs! The ePump allows for dramatic energy savings compared to high energy consuming single-speed pumps.
*Based on a 28,000 gallon pool with 2 turnovers per day at an average power cost of 0.195/kWh; when tested in accordance with the applicable requirements of 10 CFR 429. - Less Noise - Bigger does not mean louder. “Quiet Pump“ technology controls flow dynamics within the pump, resulting is less hydraulic noise — allowing you to simply enjoy a peaceful day by your pool.
- Better Performance - Small pump baskets fill faster — restricting flow and eroding performance. The ePump features the largest capacity smooth surface basket in the industry for reduced maintenance and improved performance.
- Pool Control in the Palm of Your Hand - Take control of your pump, whether at home or on the go. When paired with iQPUMP01 or a Jandy Aqualink® Automation system the ePump offers anytime, anywhere control of your pump with iAquaLink — the highest-rated pool control app.
- Multiple Control Options - The ePump is completely programmable and customizable with the Jandy® AquaLink® line of automation systems, iQPUMP01, or the JEP-R controller (controller sold separately).
- Maximum Convenience - Featuring two auxiliary relays which, when combined with iQPUMP01, enables instant automation for your pump — plus two additional pieces of equipment — eliminating the need for an extra timeclock to control equipment such as a booster pump or salt chlorinator.
- 115v/230v Dual Voltage - Auto-sensing dual voltage variable-speed motor automatically recognizes and adapts to 115- or 230-volt power supplies, providing installation flexibility and eliminating the need for expensive main power rewiring.

-
Power All Your Features
With excellent hydraulic performance, the applications are endless. From filtration to negative edges and everything in between—waterfalls, water features and spa jets.
-
Fast, Simple Setup
Quick and intuitive, the optional SpeedSet™ Controller allows you to quickly set up and program the ePump, making installation and maintenance a breeze.
-
Better Performance
Small pump baskets fill faster — restricting flow and eroding performance. The ePump helps reduce maintenance and improve performance with the largest-capacity, smooth-surface basket in the industry.
-
Two Programmable Auxiliary Relays for Instant Automation
Two programmable auxiliary relays allow the pump to control other equipment, such as a salt chlorinator and booster pump, without a separate timeclock.
-
No Rewiring Necessary
Auto-sensing dual voltage motor automatically recognizes and adapts to 115 or 230-volt power supplies.
-
Additional Features
Available in 2.2 and 2.7 HP models.
RS485 Quick Connect Port for faster installation maintenance.
Four-Speed Dry Contact Relay Control.
East controller setup auto detects connection to an automation system or a traditional controller, eliminating the need to adjust settings manually.
2" x 2.5" unions included / 2.5" x 3" compatible.
Ergonomic carry handle for easy installation.
Tool free lid allows quick and easy cleaning of the pump basket.
Zero Clearance Totally Enclosed Fan-Cooled permanent magnet brushless DC motor that provides cooler operation and extended motor life. -
Choose Your Own Controller
Designed to work with the following Jandy control systems for complete programmability and costumization:SpeedSet Controller (included and preinstalled from factory on all DV2AS models).
iQPUMP with iAquaLink App Control.
Jandy AquaLink Automation Systems.
JEP-R Controller.

Highlights
-
High-Efficiency Performance: 3.8 HP motor delivers powerful flow with exceptional energy savings
-
Variable-Speed Technology: Provides precise control and reduces energy costs versus single-speed models
-
Durable Construction: Built with corrosion-resistant materials for lasting reliability
-
Automation Ready: Fully compatible with Jandy AquaLink® systems for smart pool management
- Quiet and Compact Design: Offers quiet operation and fits easily into existing pool equipment setups
