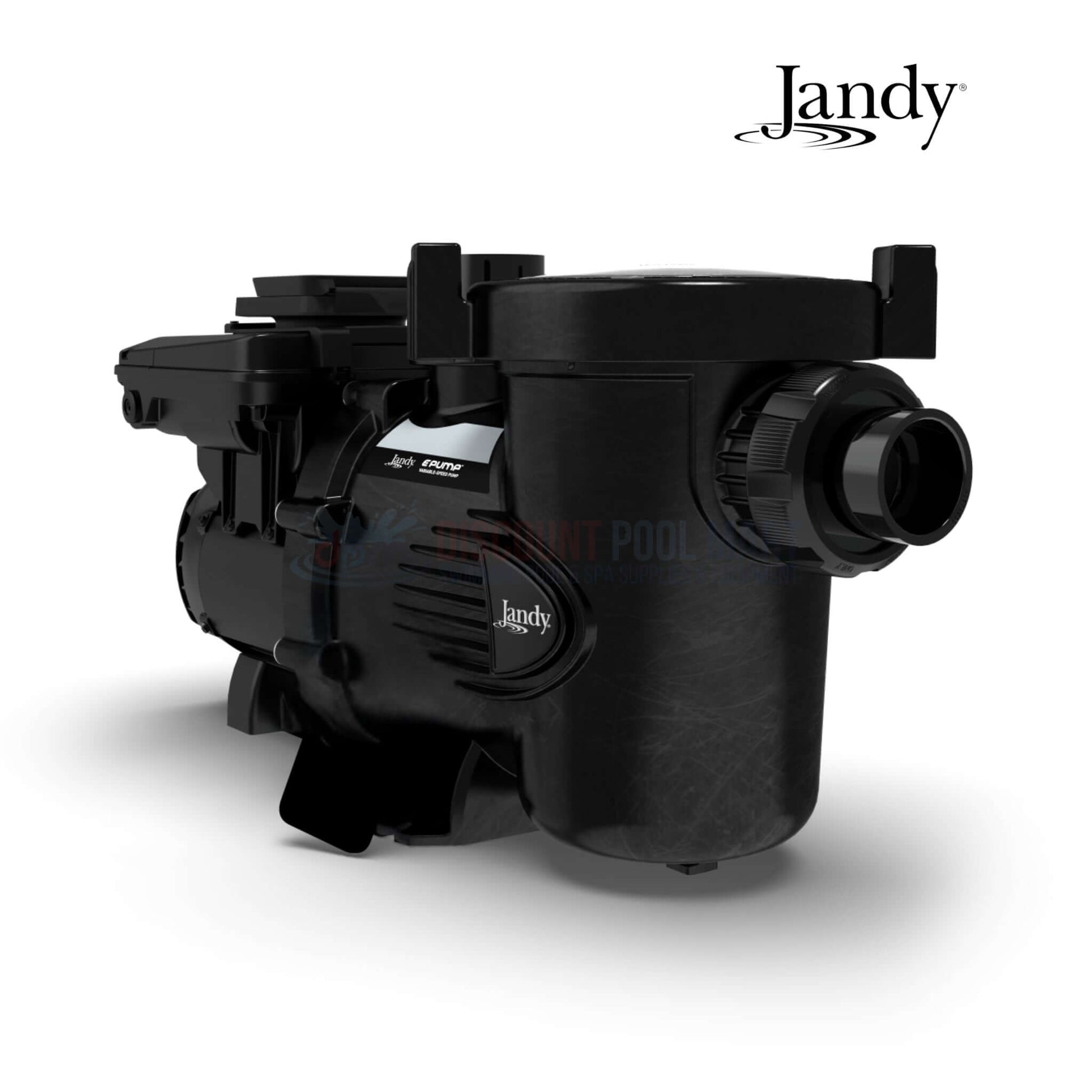

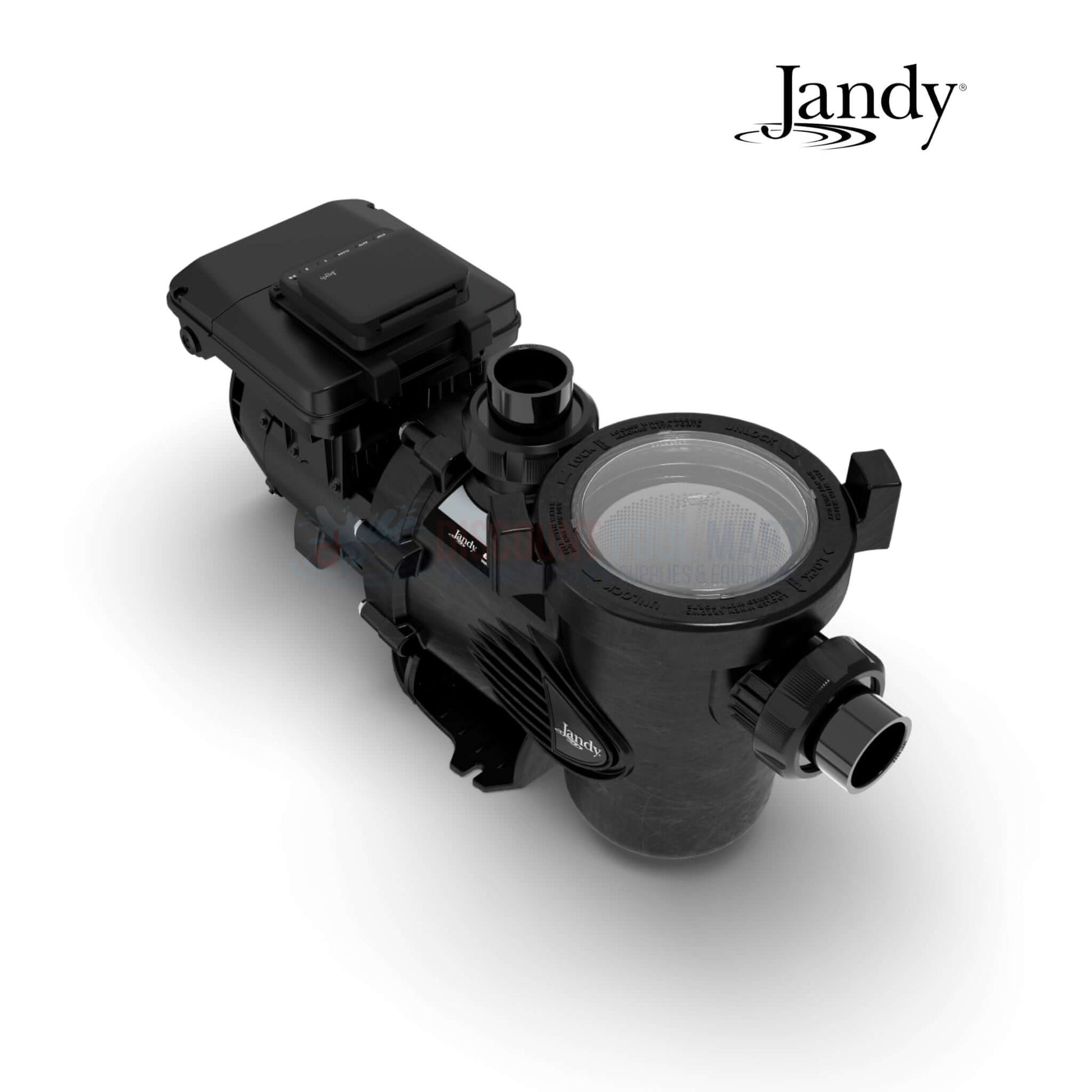

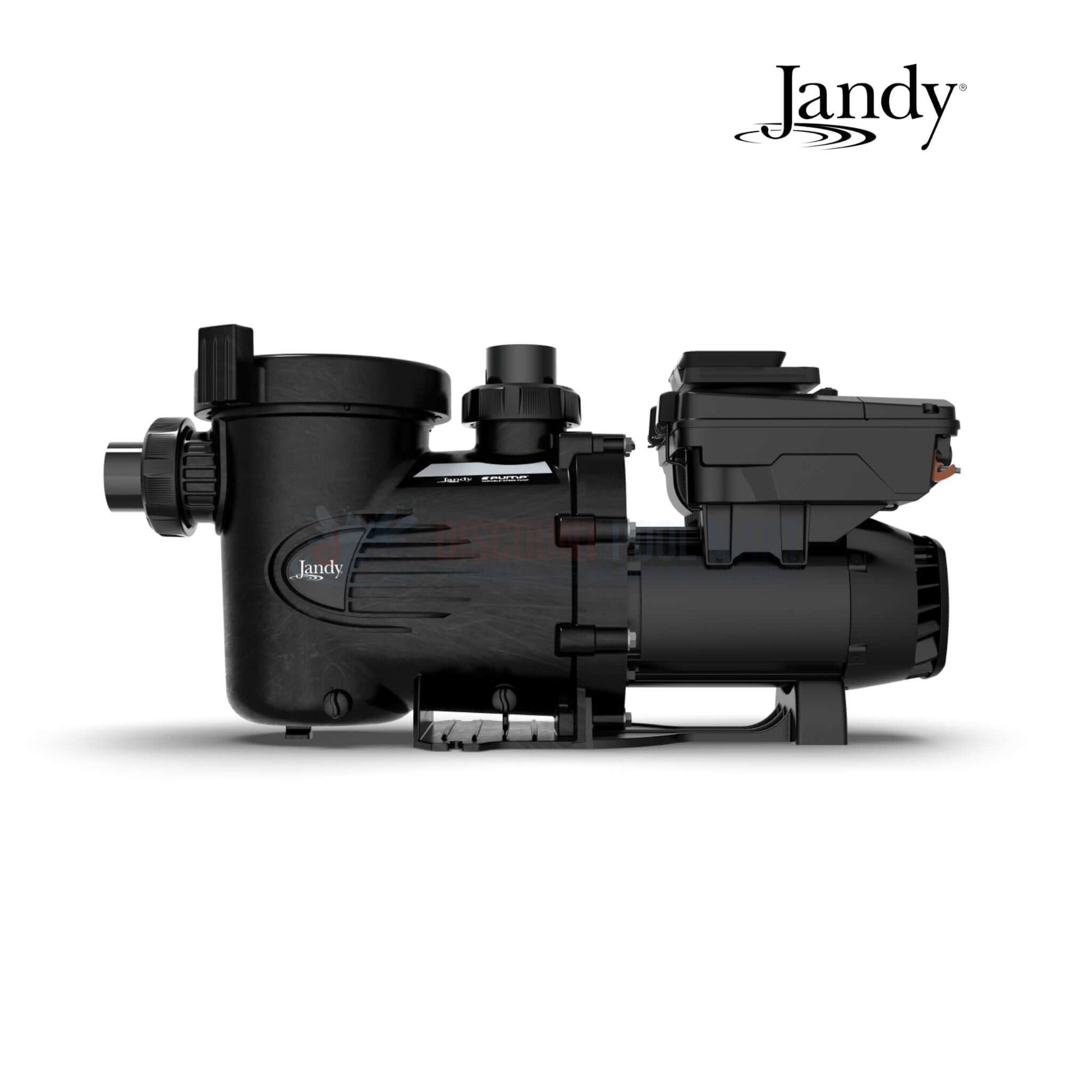

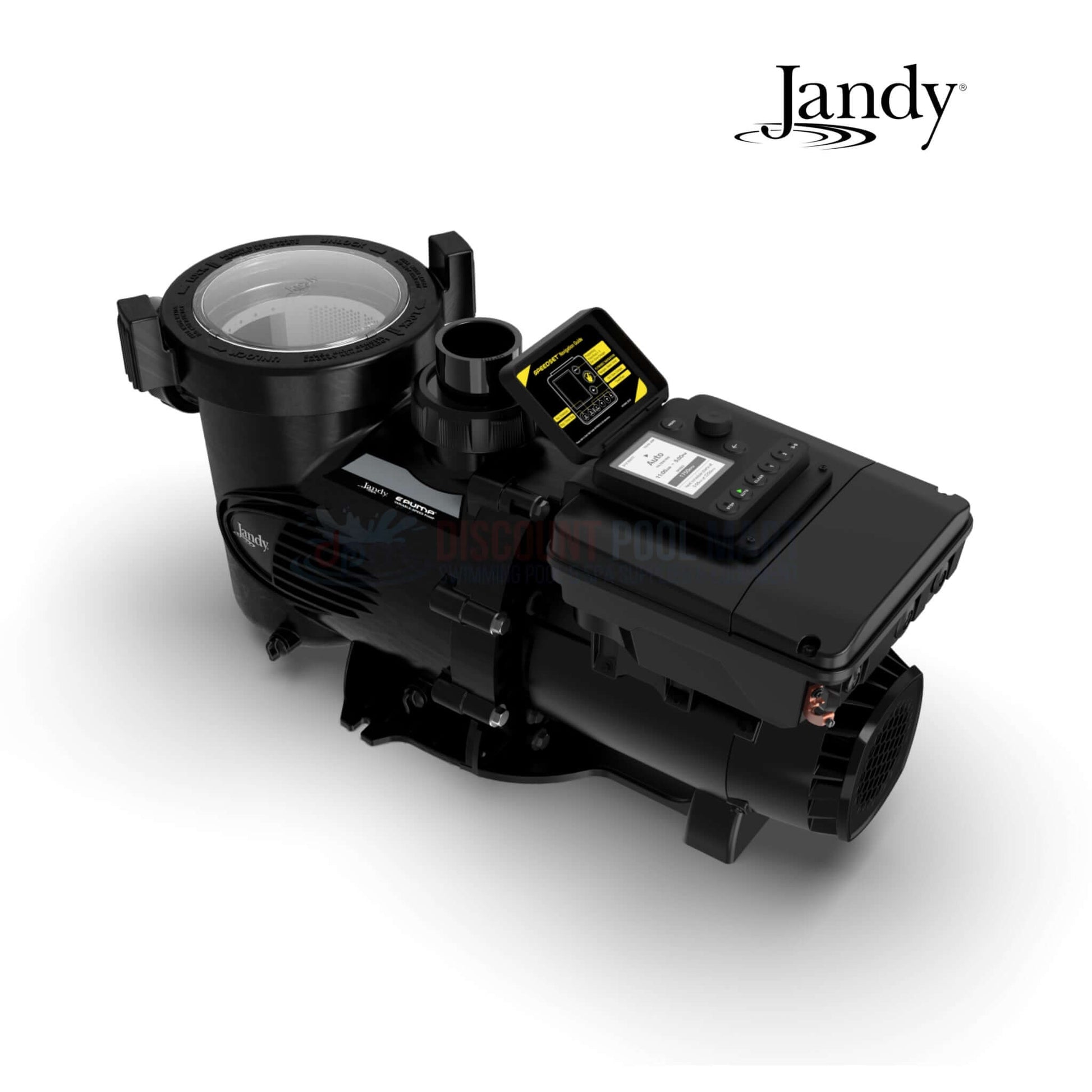

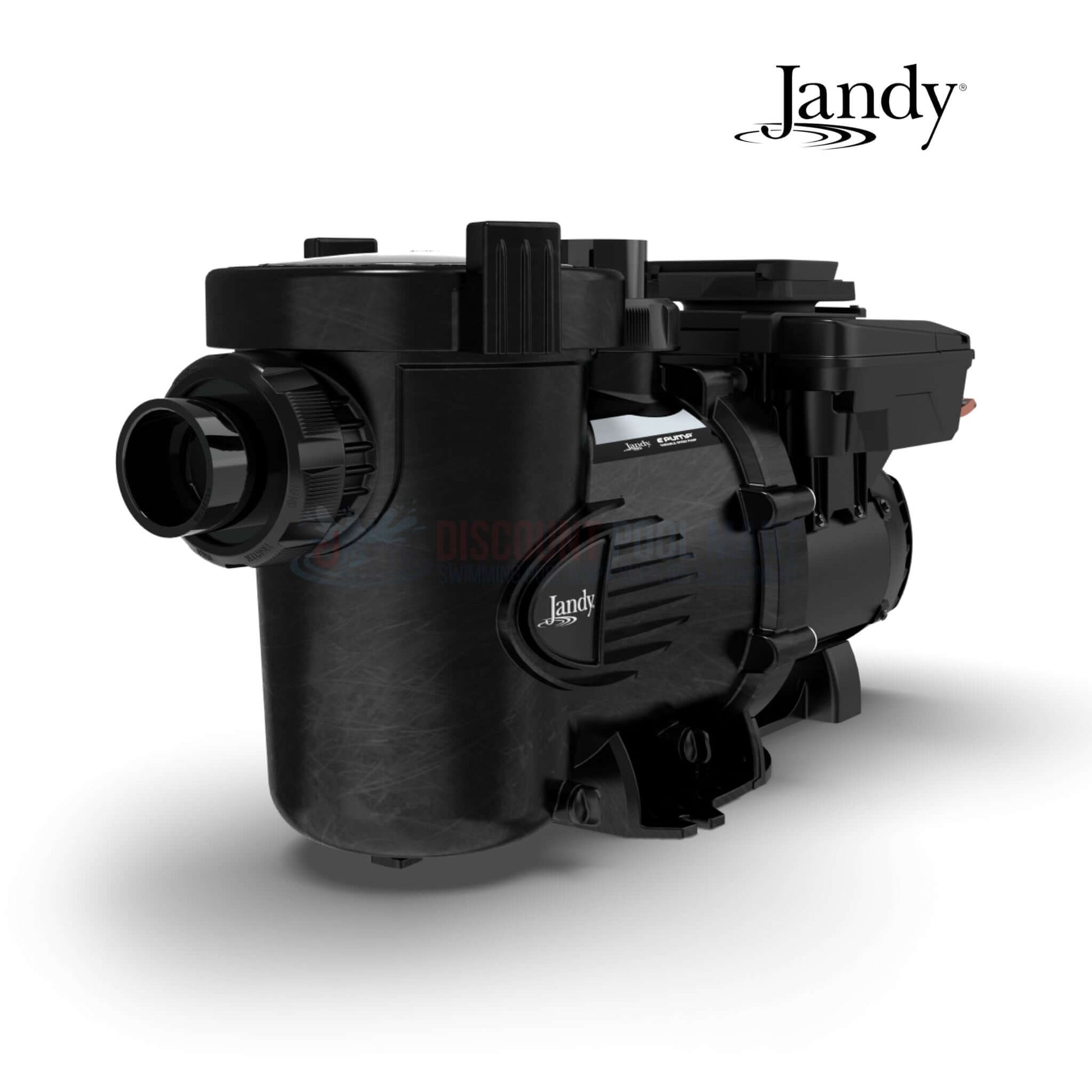

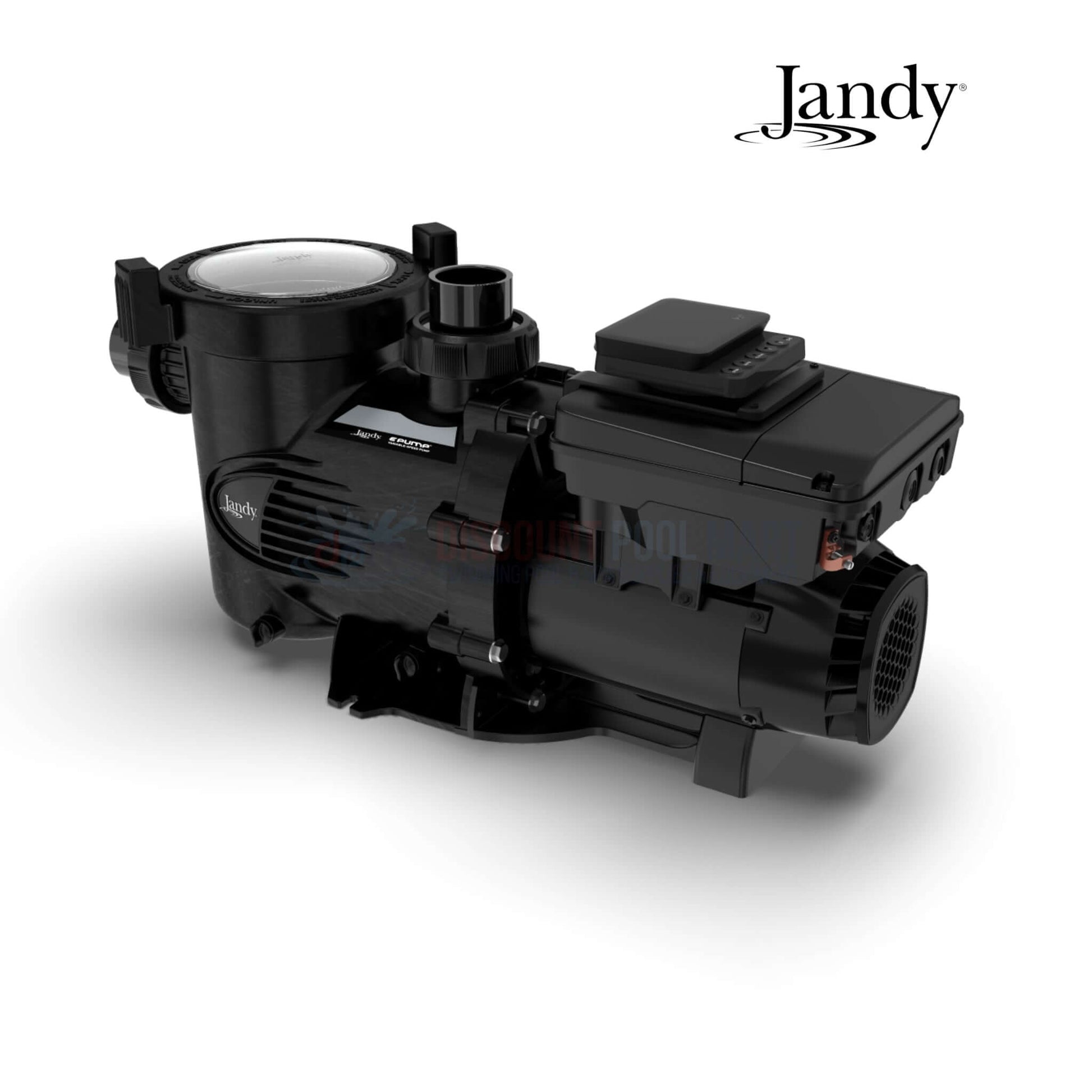

OEM Jandy ePump Variable Speed Pump VSSHP270DV2AS is a 2.7 HP high-efficiency pool pump engineered for both residential and commercial applications, featuring the pre-installed SpeedSet™ Controller for intuitive operation. Its auto-sensing dual voltage motor (115V/230V) simplifies installation, while the Totally Enclosed Fan-Cooled (TEFC) design ensures quiet, reliable performance. Equipped with two auxiliary relays, it allows for seamless integration with additional pool equipment. The pump boasts a Weighted Energy Factor (WEF) of 7.5/9.3 and includes a large-capacity strainer basket to minimize maintenance. Certified by ENERGY STAR®, it delivers significant energy savings and is compatible with Jandy automation systems.

ePump 2.7 HP, 115/208-230 VAC, 2-Auxiliary Relay Variable-Speed Pump Specifications
-
HP/THP - 2.70 THP
-
WEF - 7.5/9.3
-
Voltage - 208-230/115 VAC
- Carton Weights - 71.5 lbs.
- Port Size - 2" x 2.5"
- Energy Star - Yes
- Motor Type - TEFC
- Phase - 1
- Pool/Spa Application(s) - in-ground
- Port Connections - Unions (Included)
- Professional Installation Required - Yes
- Recommended Pipe Size - 2" to 2.5"
- RPM - Variable
- Smart Product- Automation Compatible (AquaLink RS, AquaLink PDA, AquaLink Z4, JEP-R Pump Controller)
- Strainer Included - Yes
- Watts / AMPS - 208-230V, 2370W, 11.5-10.5A / 115V, 1875W, 16.0A
- Pump Controller - SpeedSet Controller Included
- AUX Relays- 2
ePump 2.7 HP, 115/208-230 VAC, 2-Auxiliary Relay Variable-Speed Pump Features
-
Maximum Savings - Save over $1,100* per year in energy costs! The ePump allows for dramatic energy savings compared to high energy consuming single-speed pumps.
*Based on a 28,000 gallon pool with 2 turnovers per day at an average power cost of 0.195/kWh; when tested in accordance with the applicable requirements of 10 CFR 429. - Less Noise - Bigger does not mean louder. “Quiet Pump“ technology controls flow dynamics within the pump, resulting is less hydraulic noise — allowing you to simply enjoy a peaceful day by your pool.
- Better Performance - Small pump baskets fill faster — restricting flow and eroding performance. The ePump features the largest capacity smooth surface basket in the industry for reduced maintenance and improved performance.
- Pool Control in the Palm of Your Hand - Take control of your pump, whether at home or on the go. When paired with iQPUMP01 or a Jandy Aqualink® Automation system the ePump offers anytime, anywhere control of your pump with iAquaLink — the highest-rated pool control app.
- Multiple Control Options - The ePump is completely programmable and customizable with the Jandy® AquaLink® line of automation systems, iQPUMP01, or the JEP-R controller (controller sold separately).
- Maximum Convenience - Featuring two auxiliary relays which, when combined with iQPUMP01, enables instant automation for your pump — plus two additional pieces of equipment — eliminating the need for an extra timeclock to control equipment such as a booster pump or salt chlorinator.
- 115v/230v Dual Voltage - Auto-sensing dual voltage variable-speed motor automatically recognizes and adapts to 115- or 230-volt power supplies, providing installation flexibility and eliminating the need for expensive main power rewiring.

-
Power All Your Features
With excellent hydraulic performance, the applications are endless. From filtration to negative edges and everything in between—waterfalls, water features and spa jets.
-
Fast, Simple Setup
Quick and intuitive, the optional SpeedSet™ Controller allows you to quickly set up and program the ePump, making installation and maintenance a breeze.
-
Better Performance
Small pump baskets fill faster — restricting flow and eroding performance. The ePump helps reduce maintenance and improve performance with the largest-capacity, smooth-surface basket in the industry.
-
Two Programmable Auxiliary Relays for Instant Automation
Two programmable auxiliary relays allow the pump to control other equipment, such as a salt chlorinator and booster pump, without a separate timeclock.
-
No Rewiring Necessary
Auto-sensing dual voltage motor automatically recognizes and adapts to 115 or 230-volt power supplies.
-
Additional Features
Available in 2.2 and 2.7 HP models.
RS485 Quick Connect Port for faster installation maintenance.
Four-Speed Dry Contact Relay Control.
East controller setup auto detects connection to an automation system or a traditional controller, eliminating the need to adjust settings manually.
2" x 2.5" unions included / 2.5" x 3" compatible.
Ergonomic carry handle for easy installation.
Tool free lid allows quick and easy cleaning of the pump basket.
Zero Clearance Totally Enclosed Fan-Cooled permanent magnet brushless DC motor that provides cooler operation and extended motor life. -
Choose Your Own Controller
Designed to work with the following Jandy control systems for complete programmability and costumization:SpeedSet Controller (included and preinstalled from factory on all DV2AS models).
iQPUMP with iAquaLink App Control.
Jandy AquaLink Automation Systems.
JEP-R Controller.

Highlights
-
High-Efficiency Motor: 2.7 HP TEFC motor delivers quiet and reliable performance
-
Dual Voltage Capability: Auto-sensing 115V/230V motor simplifies installation
-
Integrated Automation: Two auxiliary relays for controlling additional equipment
-
User-Friendly Controller: SpeedSet™ Controller offers intuitive operation
- Energy Star Certified: Delivers significant energy savings with a WEF of 7.5/9.3
