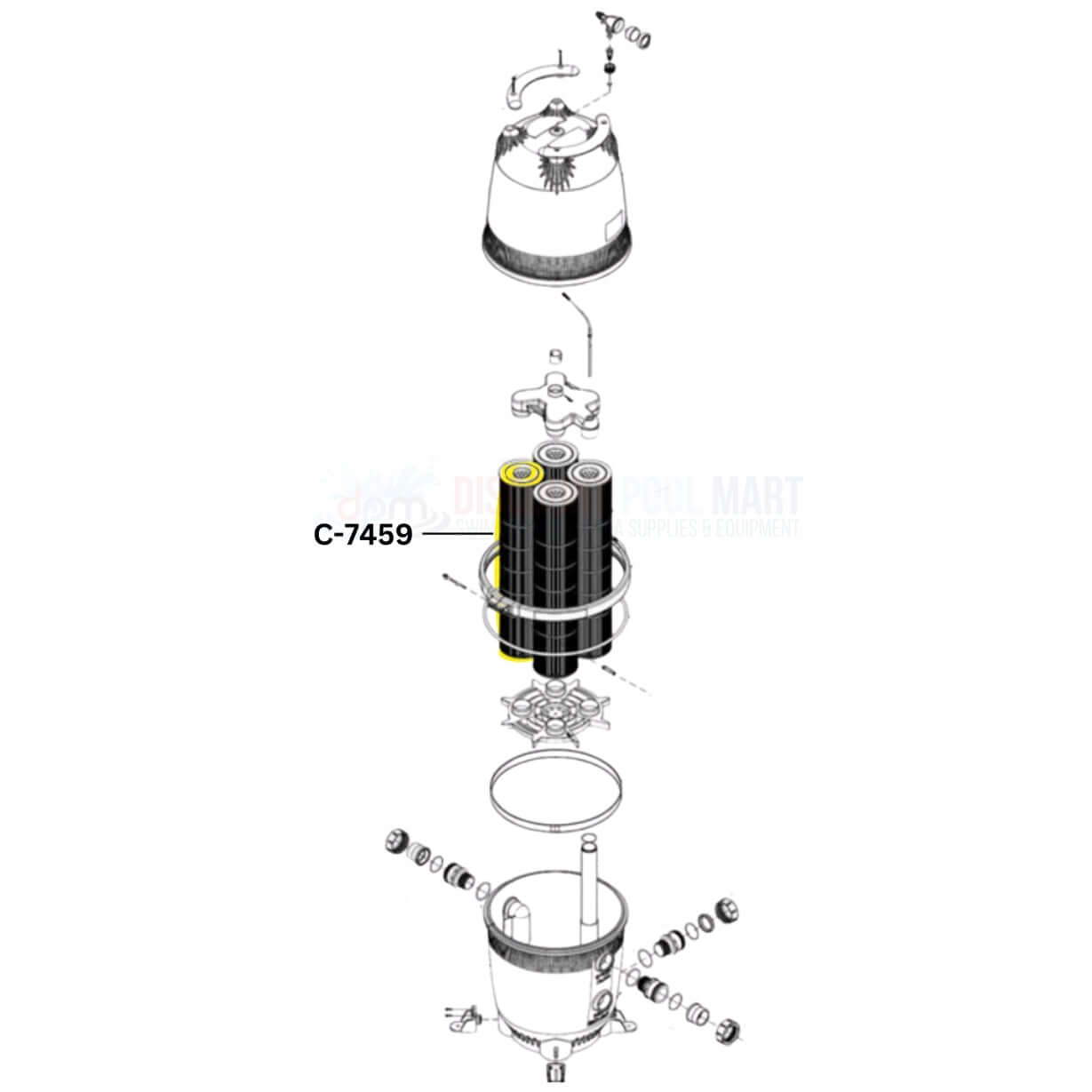

On the Jandy CV & CL Series Four-Cartridge Filter diagram
Open the full interactive diagram →

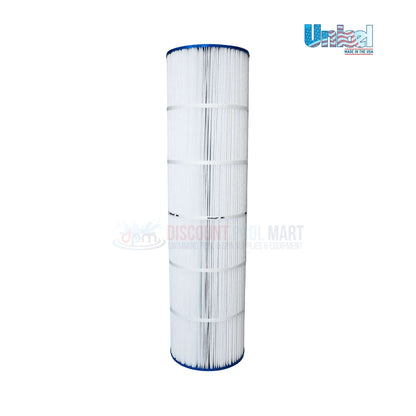

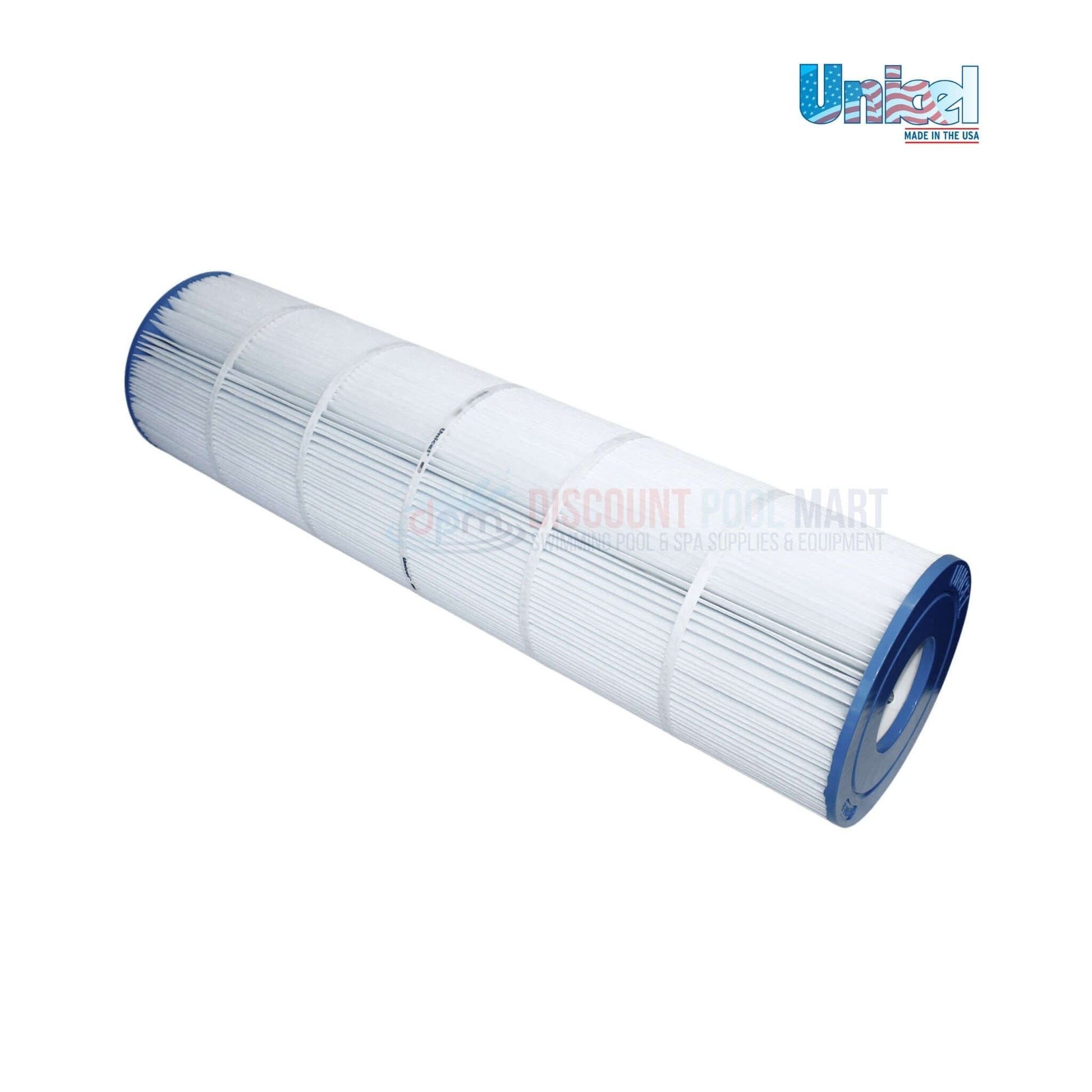

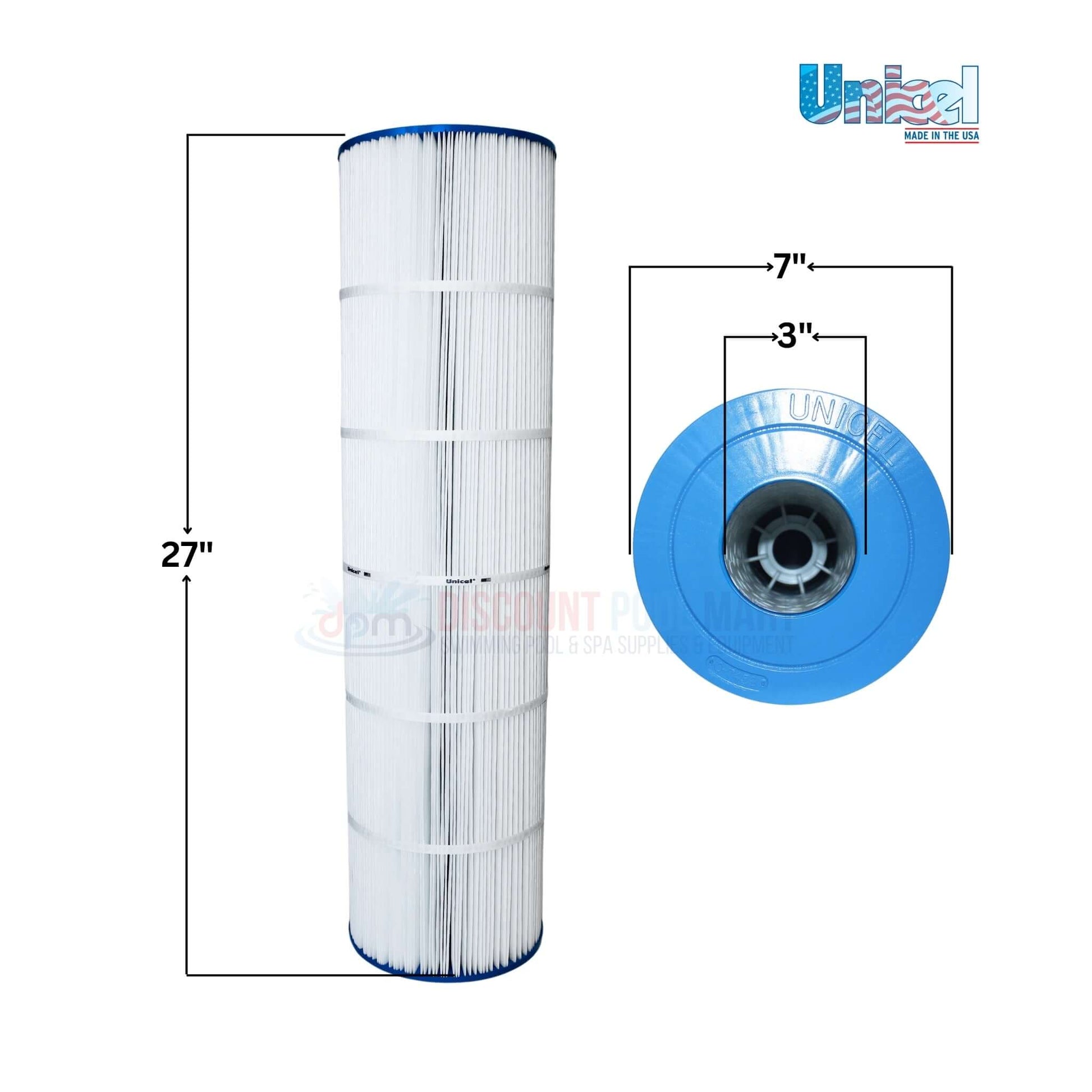

The Unicel C-7468 Replacement Cartridge is designed for Jandy CL340 and CV340 pool filters, providing 85 square feet of high-performance filtration. It features a durable, spunbonded polyester media that captures fine debris and optimizes water clarity. The C-7459 serves as a direct replacement for R0554500 and A0557900. The cartridge measures 27 inches in length, with a 7-inch outer diameter and 3-inch open end caps on both sides, ensuring a snug fit and easy installation. With 130 pleats, this cartridge delivers superior dirt-holding capacity and maximizes flow efficiency, helping to reduce strain on your pool pump and extend the time between cleanings.
- High-Performance Filtration: Delivers 85 square feet of filtration area, effectively capturing fine debris to maintain crystal-clear pool water.
- Durable Polyester Media: Constructed from spunbonded polyester with 130 pleats, offering long-lasting durability and exceptional dirt-holding capacity.
- Perfect Replacement Fit: Designed to replace Jandy CL340 and CV340 filter cartridges, matching part numbers R0554500 and A0557900 for easy setup.
-
Efficient Water Flow: Optimizes flow efficiency and reduces pump strain, extending the time between cleanings and enhancing overall pool system performance.
- Unicel C-7459 Cartridge
- Jandy CL340 Filters
- Jandy CV340 Filters
