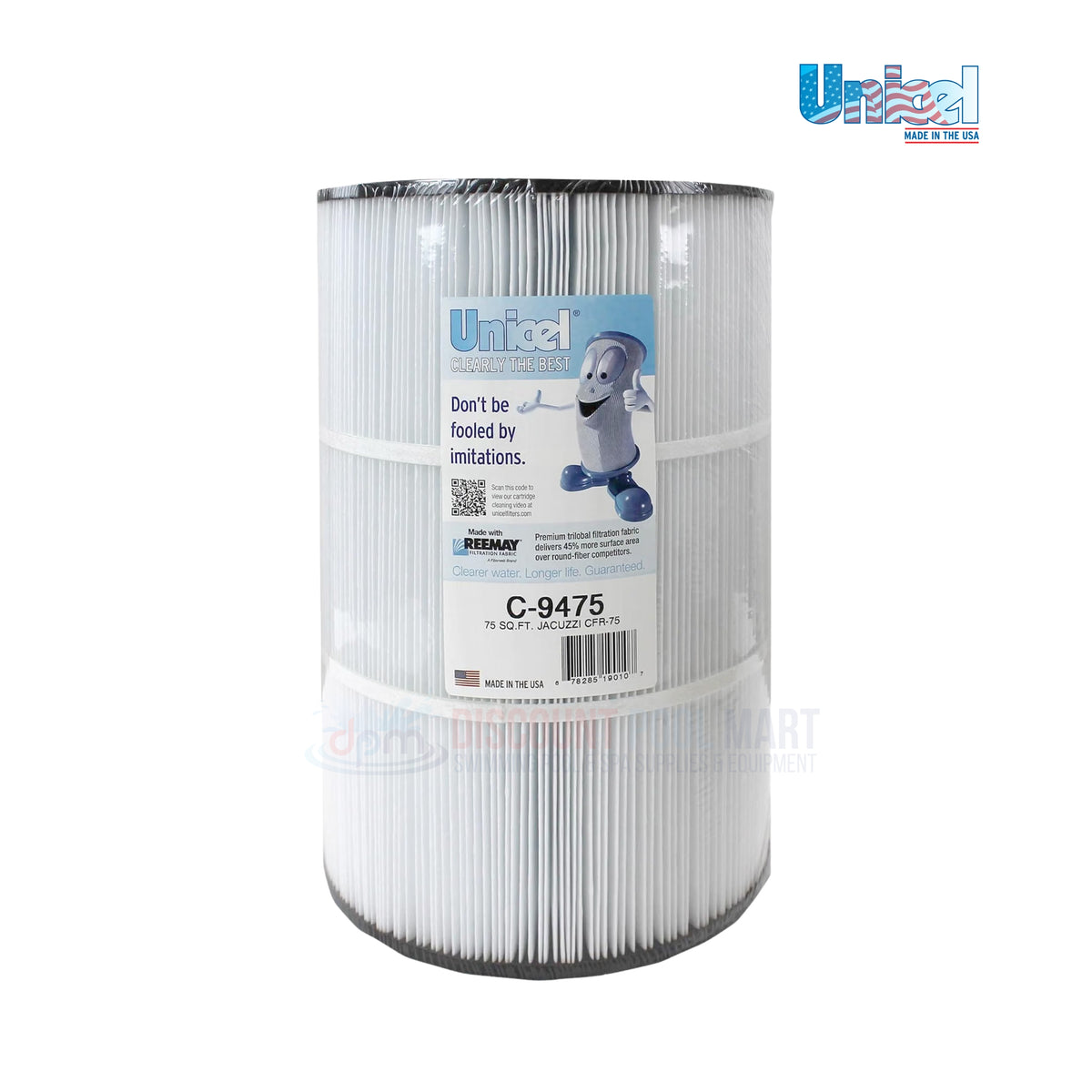

Crystal-clear water starts with a fresh cartridge. The Unicel C-9475 is a 75 sq ft replacement filter cartridge with 193 pleats of Reemay polyester media. It fits the Jacuzzi CFR-75 (Jacuzzi Brothers) and crosses to PJ75-4 and FC-1480, capturing fine debris while resisting pool chemicals for a long, cleanable service life.
- 75 sq ft replacement cartridge, 193 pleats of Reemay polyester media.
- Fits Jacuzzi CFR-75 (Jacuzzi Brothers); crosses to PJ75-4 and FC-1480.
- Captures fine debris and resists chemicals for long service.
- Turn off the pump and relieve filter pressure, then open the filter.
- Remove the old cartridge, rinse the housing, and insert the new C-9475.
- Reassemble and purge air. Rinse the cartridge periodically to keep flow strong.
- Media area: 75 sq ft

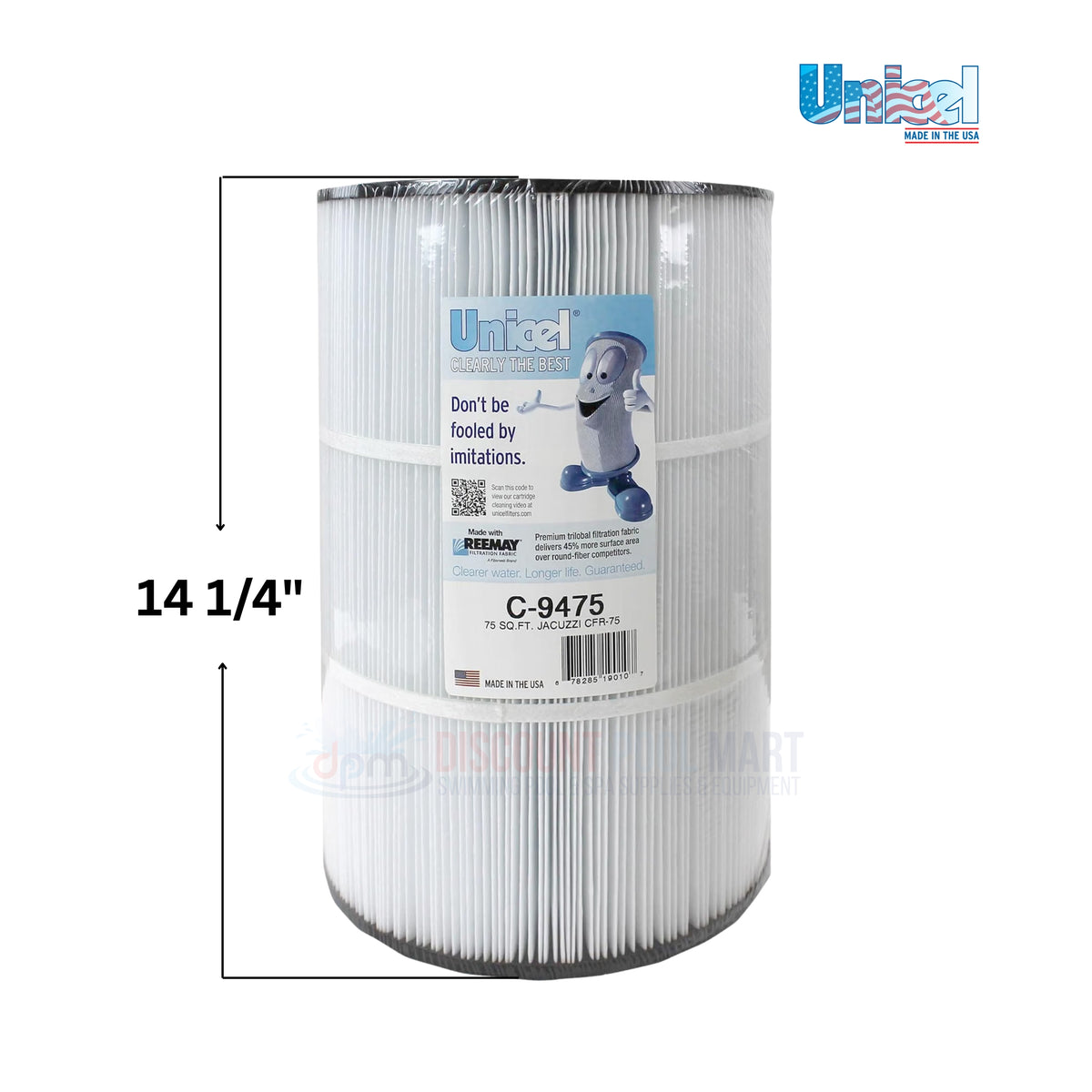

- Length: 14-1/4 in.; outer diameter: about 10 in.

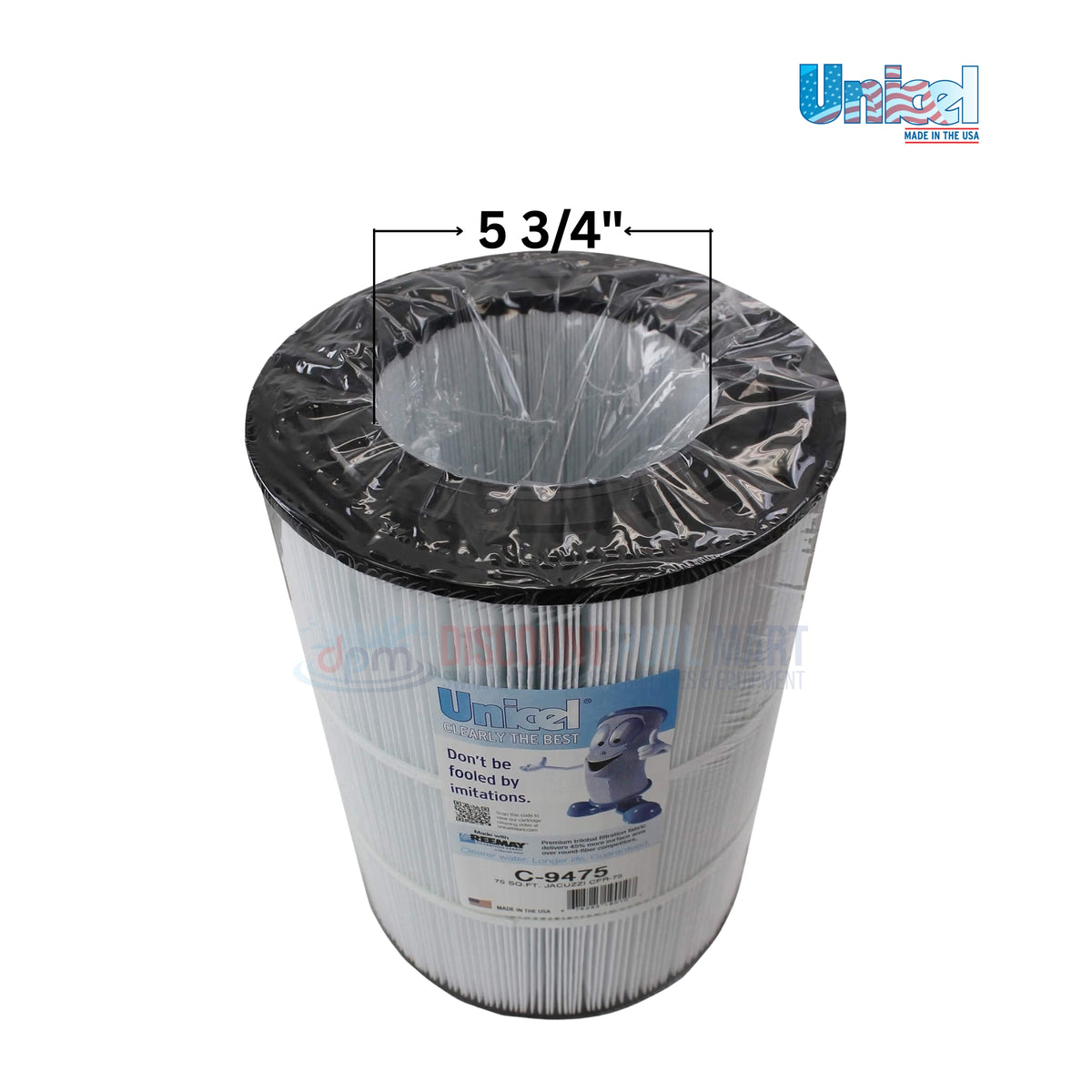

- Top inner diameter: 5-13/16 in.; bottom inner diameter: 6-1/16 in.
- Pleats: 193
