S.R. Smith Stainless Steel Handrail Figure-4 | 30" | F4H-101-MG
In-store pickup & local delivery only. This item can't be shipped — choose pickup or local delivery at checkout.
Couldn't load pickup availability
● 1 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
Manuals & documents
- S.R. Smith Rails and Ladders Brochure PDF · 21.9 MB View PDF
- S.R. Smith Ladder and Rail Installation Guide PDF · 525 KB View PDF
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

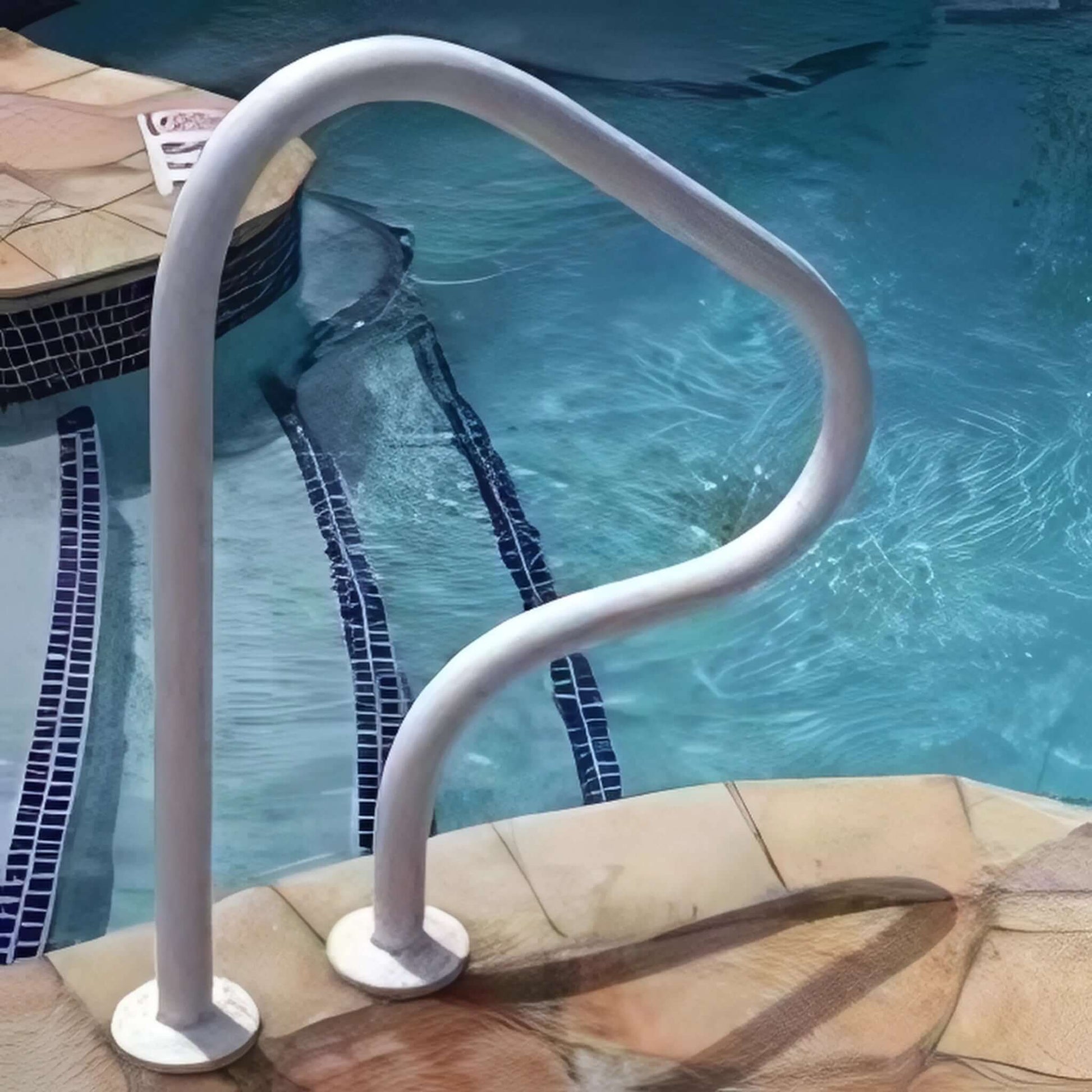

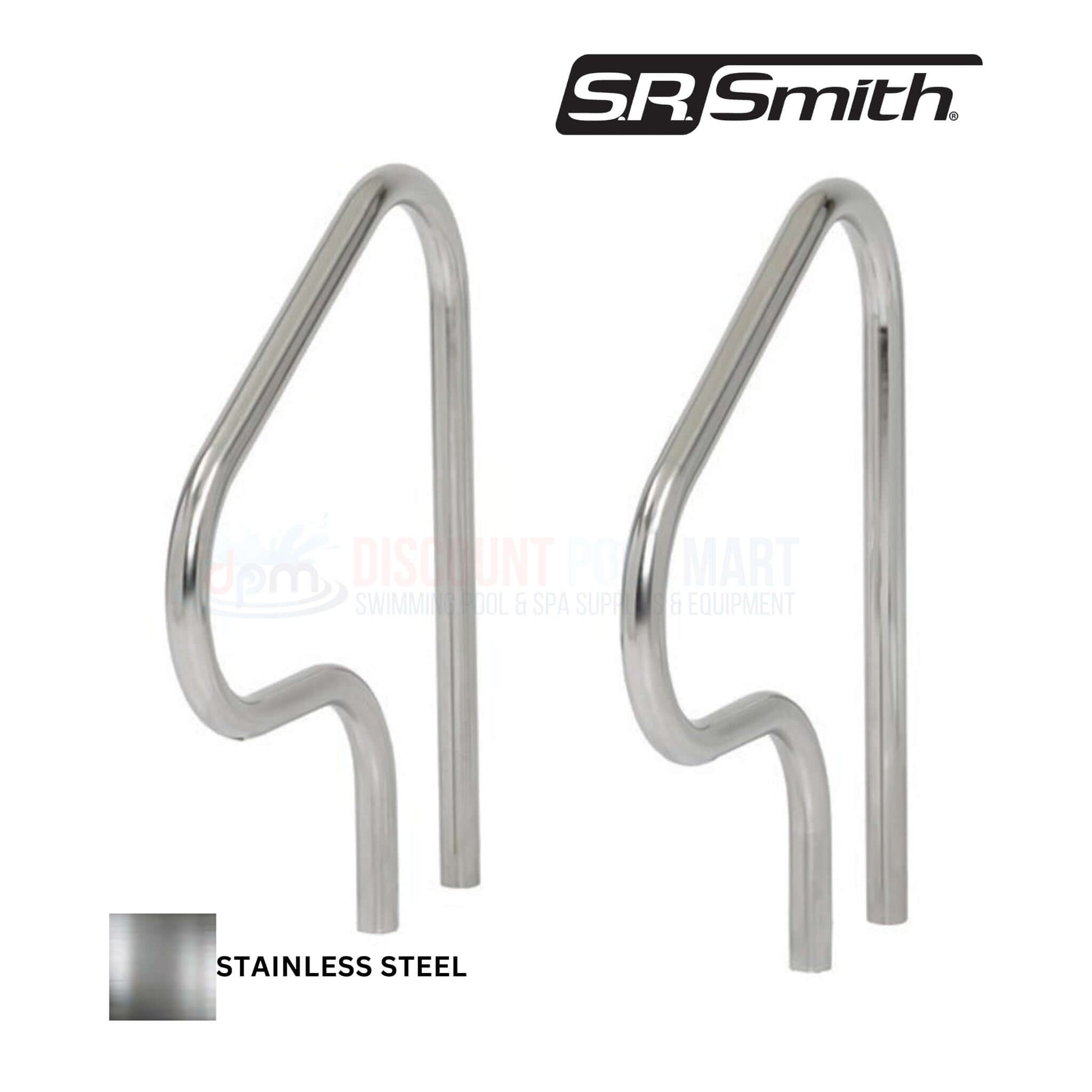

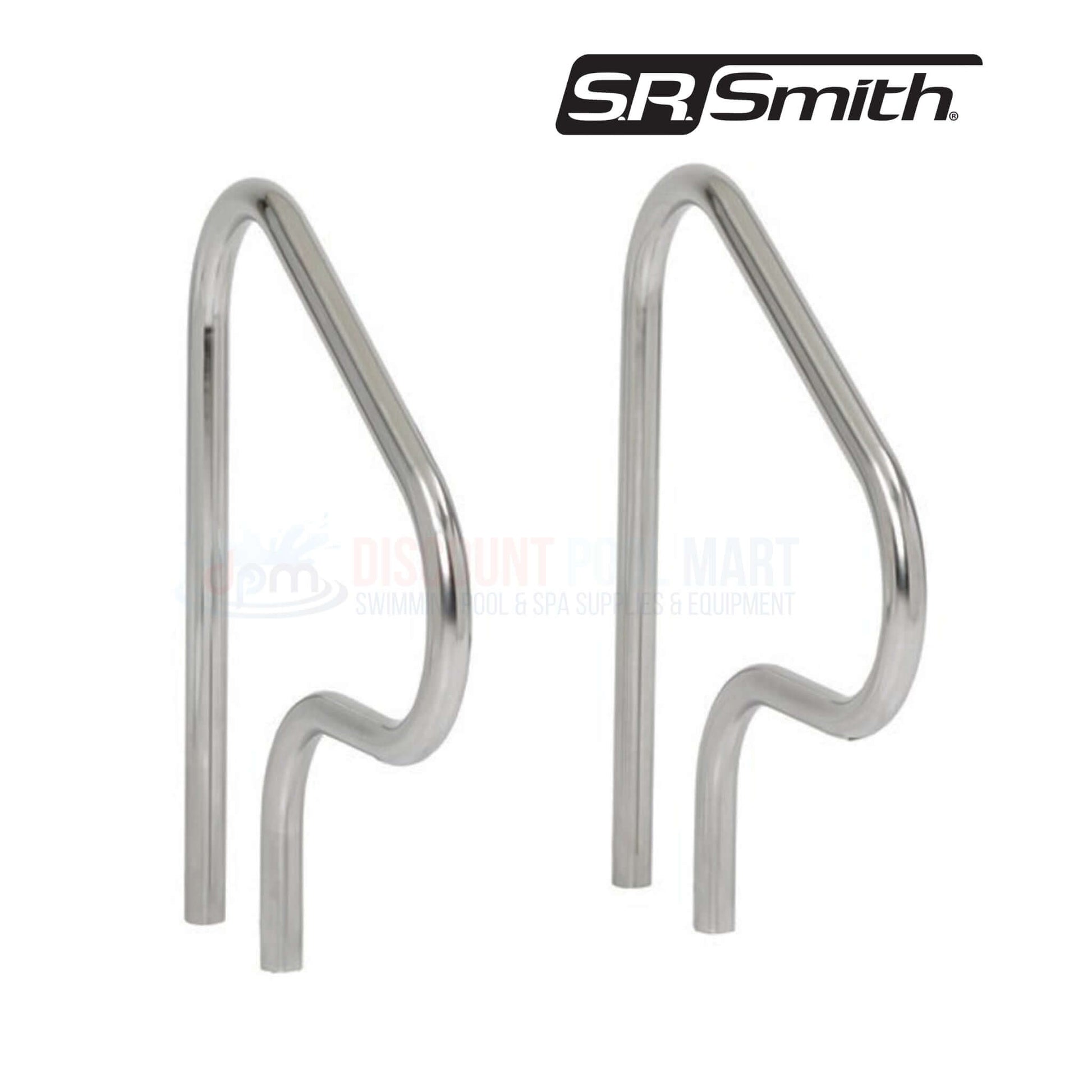

S.R. Smith Stainless Steel Handrail Figure-4 F4H-101-MG is a 30-inch handrail designed for poolside safety and accessibility. Made from durable stainless steel, it provides reliable strength and resistance to corrosion, ensuring long-lasting performance in pool environments. The Figure-4 design offers a secure and ergonomic grip, making it easier for swimmers to enter and exit the pool. Ideal for both residential and commercial pools, this handrail is easy to install and provides added safety and convenience for pool users.
-
30" Stainless Steel Handrail: Provides strong and reliable support for pool entry and exit.
-
Figure-4 Design: Offers an ergonomic, secure grip for enhanced safety and comfort.
-
Corrosion-Resistant Construction: Built to withstand harsh pool environments.
-
Ideal for Residential & Commercial Pools: Suitable for various installation settings.
-
Easy to Install: Enhances poolside safety and accessibility with minimal effort.

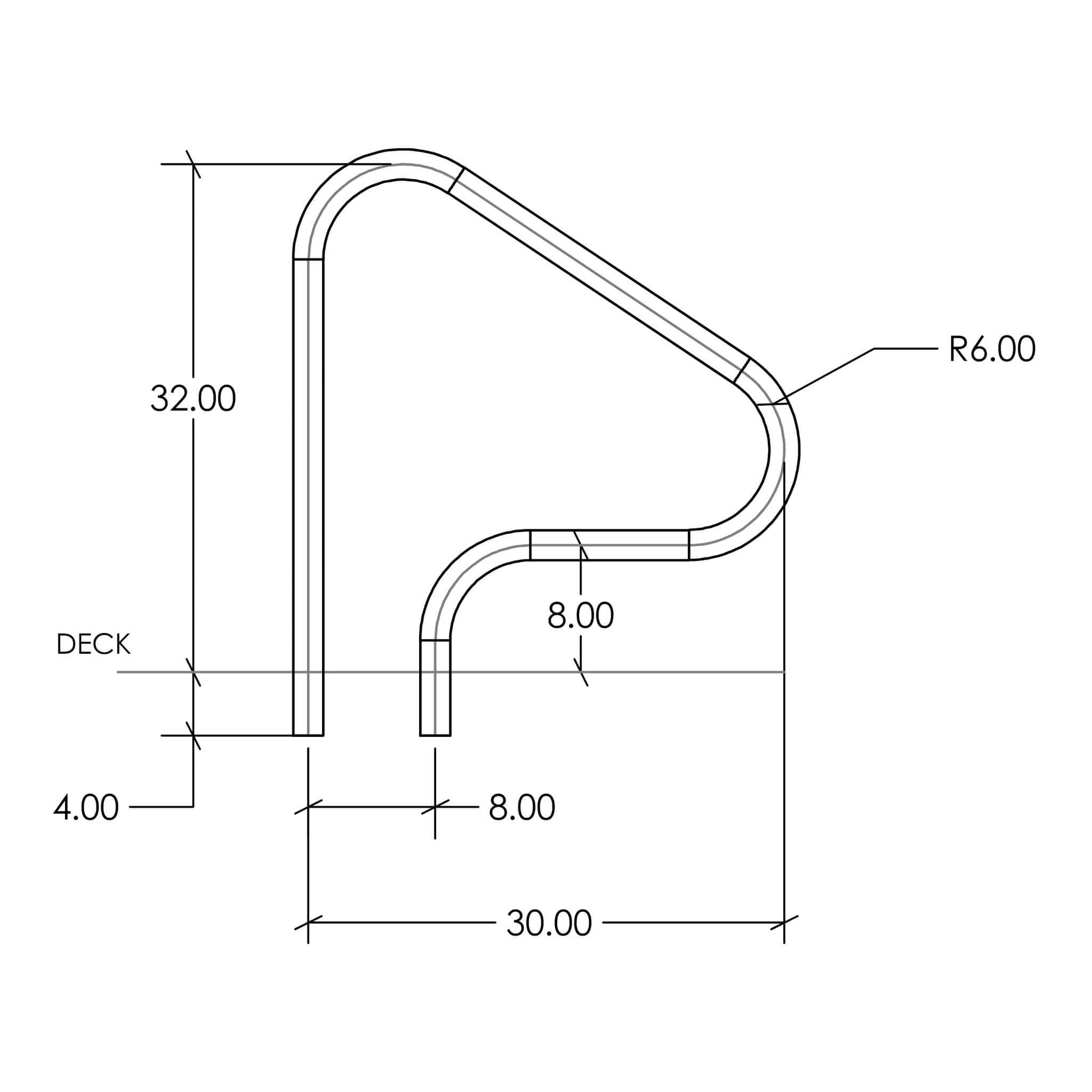

| Tubing | 1.90” OD |
| Wall Thickness | .049” or .065" |
| Stainless Steel | 304 or 316L Marine Grade |
| Bends | 6” Radius |
| Recommended Anchors | AS-100P (order separately) |
| Recommended Escutcheon | EP-100F (order separately) |
