S.R.Smith Stainless Steel 3-Bend Center Grab Rail | 51" | DMS-100A
In-store pickup & local delivery only. This item can't be shipped — choose pickup or local delivery at checkout.
Couldn't load pickup availability
● 10 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
Manuals & documents
- S.R. Smith Rails and Ladders Brochure PDF · 21.9 MB View PDF
- S.R. Smith Ladder and Rail Installation Guide PDF · 525 KB View PDF
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

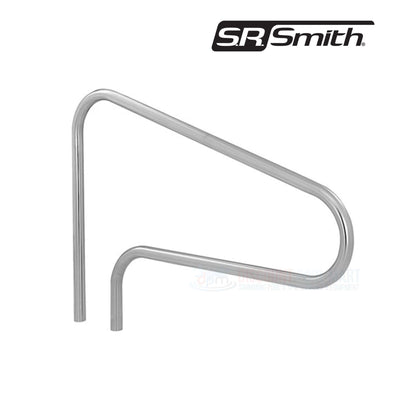

The S.R. Smith DMS-100A 3-Bend Deck Mounted Handrail is a 51-inch stainless steel rail designed to enhance safety and accessibility for pool stairs and sloped entries. Crafted from polished 304-grade stainless steel with a 1.90" outer diameter and 0.049" wall thickness, it offers durability and corrosion resistance. This single-piece rail features smooth 6" radius bends for comfortable grip and is ideal for residential pools. Please note that escutcheons and anchors are sold separately.
-
Polished Stainless Steel Build: Made from 304-grade stainless steel for lasting strength and corrosion resistance.
-
Compact 51-Inch Design: Slightly shorter rail provides a secure grip while maintaining a clean, low-profile look.
-
Smooth 3-Bend Structure: Features 6" radius bends for a comfortable and ergonomic handhold on entry.
-
Ideal for Residential Use: Perfect for stairs and sloped entries in backyard in-ground pools.
-
Installation Ready: Compatible with deck-mounting; escutcheons and anchors sold separately.

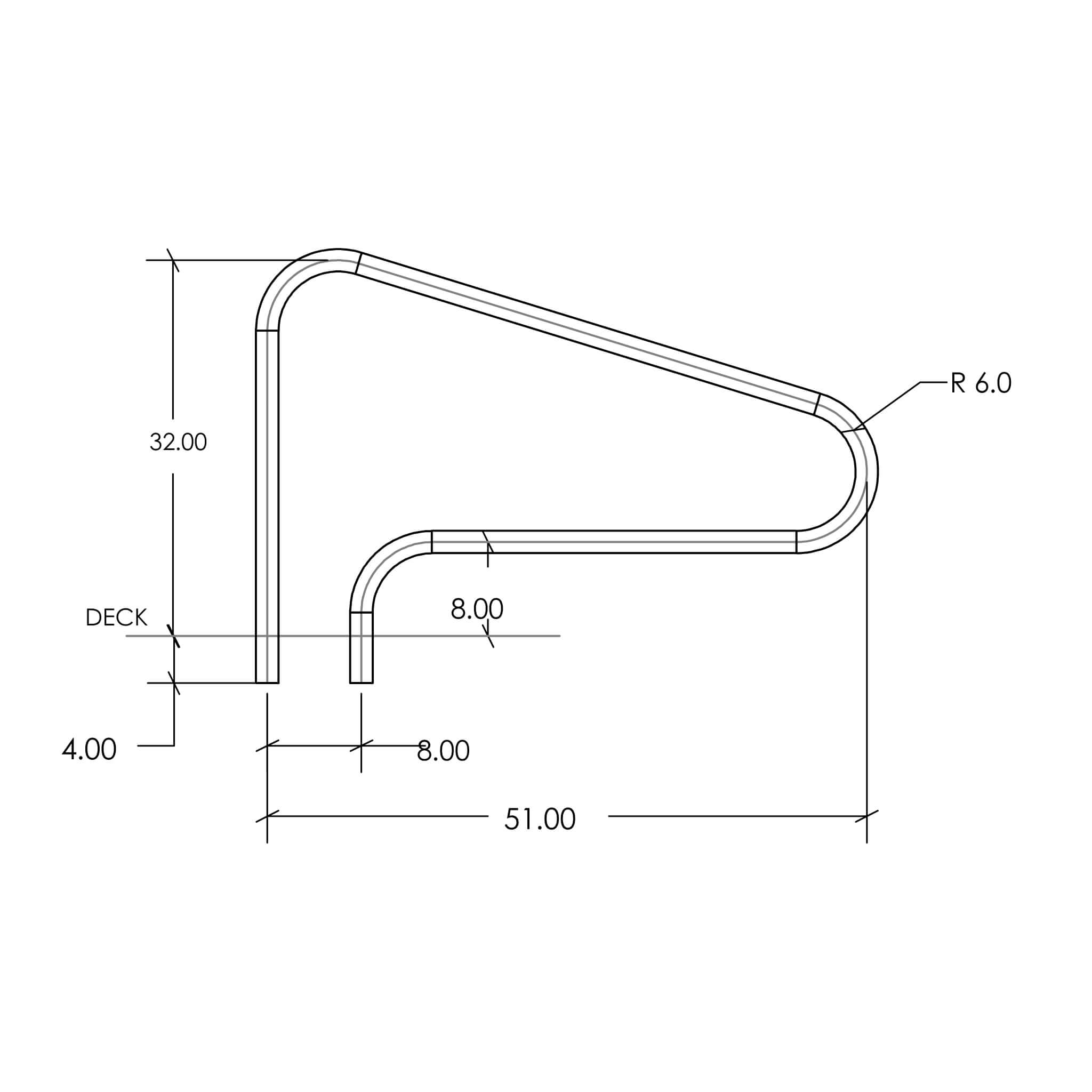

| Tubing | 1.90” OD |
| Wall Thickness | .049” or .065" |
| Stainless Steel | 304 or 316L Marine Grade |
| Bends | 6” Radius |
| Recommended Anchors | AS-100P or AS-100B (order separately) |
| Recommended Escutcheon | EP-100F (order separately) |
