S.R.Smith Single Deck Rail Artisan Series | ART-1001S
In-store pickup & local delivery only. This item can't be shipped — choose pickup or local delivery at checkout.
Couldn't load pickup availability
● 16 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
Manuals & documents
- S.R. Smith Rails and Ladders Brochure PDF · 21.9 MB View PDF
- S.R. Smith Ladder and Rail Installation Guide PDF · 525 KB View PDF
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

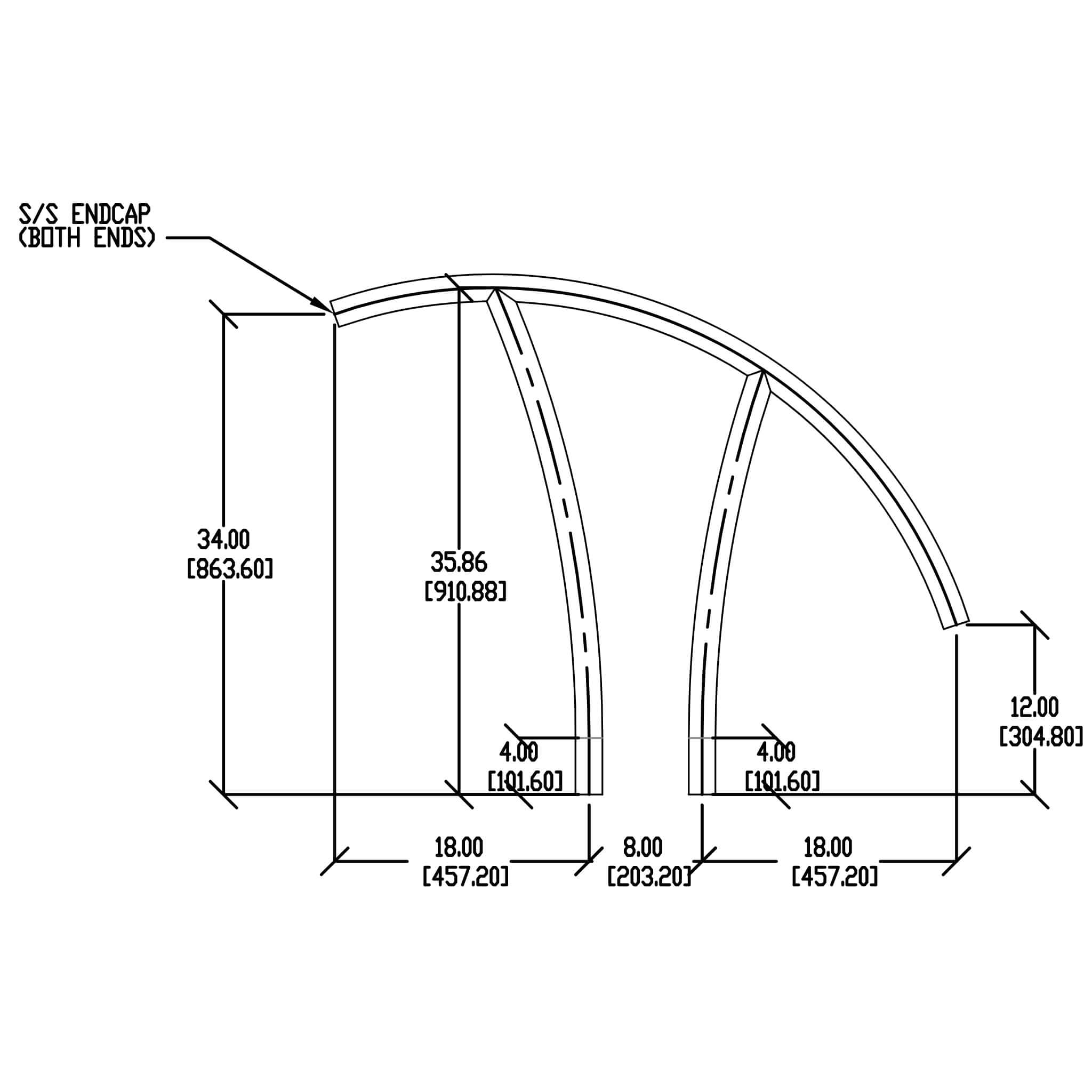

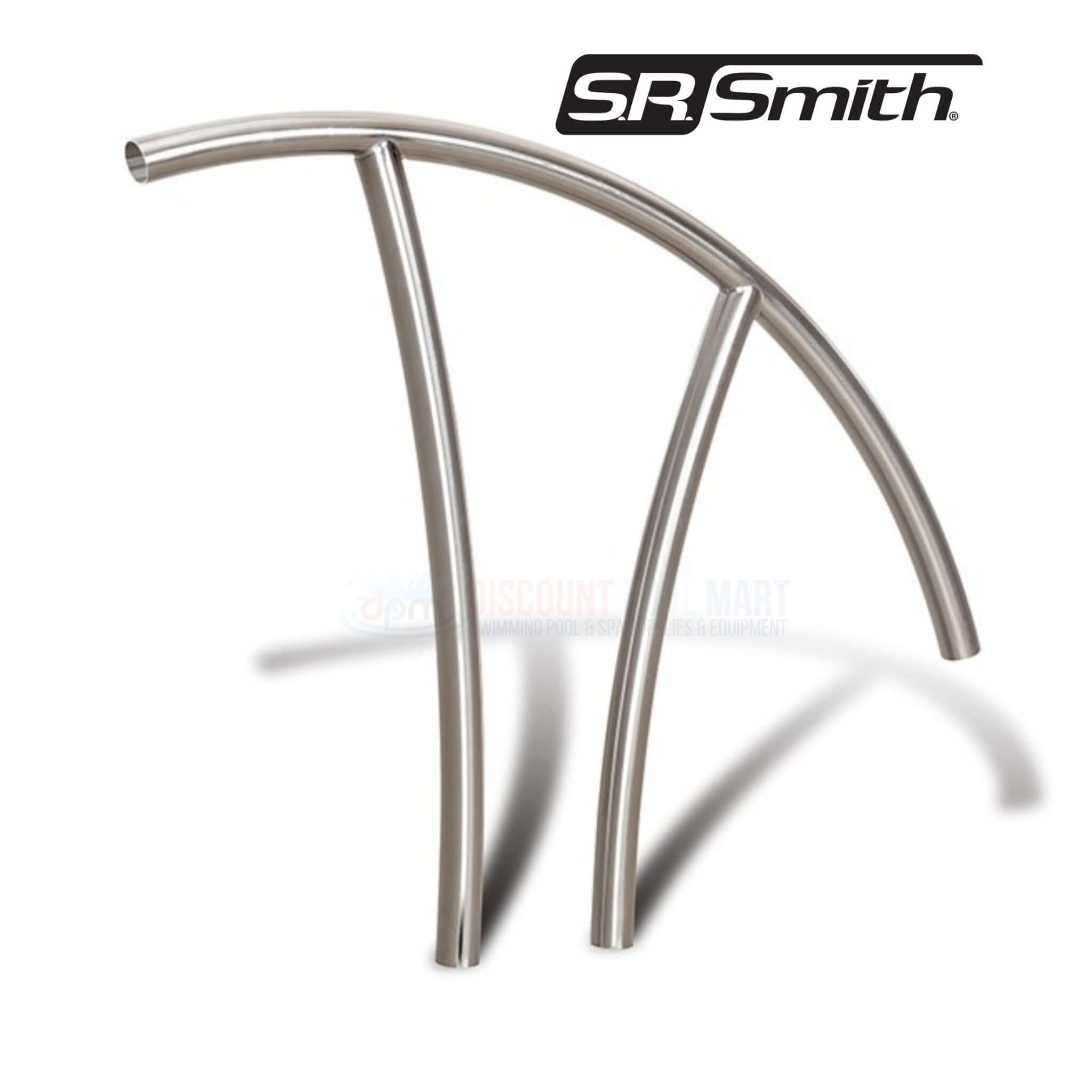

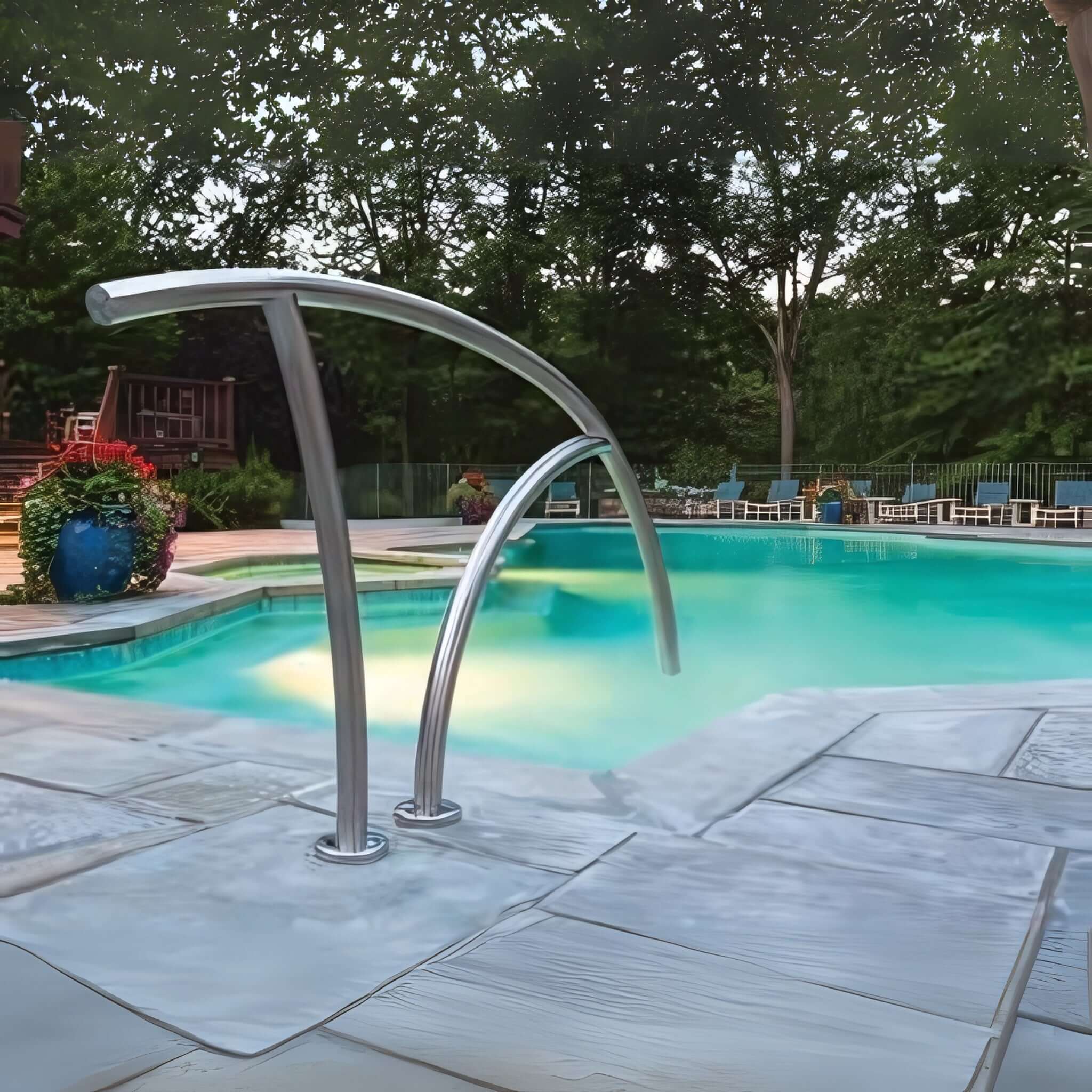

The S.R.Smith ART-1001S Artisan Series Single Pool Hand Rail is a designer-inspired, patented rail that adds elegance to any pool environment. Crafted from polished 304L stainless steel with a 1.90" outer diameter and a 0.065" wall thickness, it ensures durability and corrosion resistance. Measuring 42 inches in length with an 8-inch anchor spacing, this handrail is ideal for retrofitting existing Figure 4 settings or new installations. Its sleek, curved design enhances both safety and aesthetics, making it a perfect choice for pool renovations. Please note that anchors and escutcheons are sold separately.
-
Elegant Designer Look: Part of the Artisan Series, featuring a patented, modern curve that enhances poolside aesthetics.
-
Polished 304L Stainless Steel: Made with 1.90" OD tubing and 0.065" wall thickness for added strength and corrosion resistance.
-
Ideal for Retrofits: 42-inch length with 8-inch anchor spacing makes it perfect for upgrading existing Figure 4 handrail setups.
-
Enhanced Safety and Style: Combines functionality with architectural flair to improve pool access and visual appeal.
-
Installation Flexibility: Suitable for new installs or renovations; anchors and escutcheons sold separately.
| Tubing | 1.90” OD |
| Wall Thickness | .065" |
| Stainless Steel | 304 or 316L Marine Grade |
| Recommended Anchors | AS-100P or AS-100B (order separately) |
| Recommended Escutcheon | EP-100F (order separately) |
