S.R. Smith | PoolLux Plus Lighting Control System with Wireless Remote | 3TR-PLX-PL60

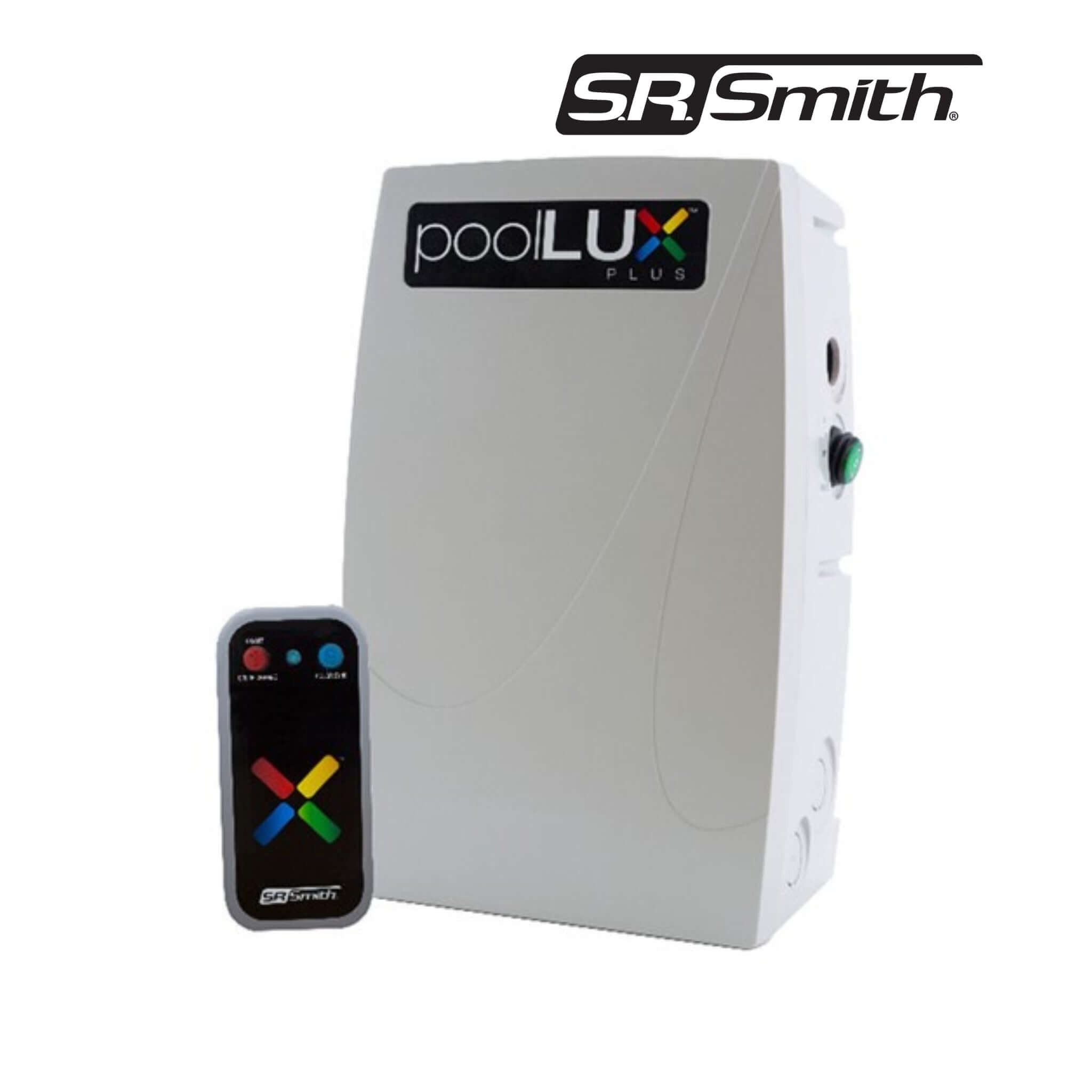

The PoolLux Plus combines a 60 W low-voltage transformer and switched lighting control into a single, sleek NEMA 3R-rated polycarbonate unit, engineered to withstand harsh poolside environments. Featuring an external on/off switch, this system removes the need for additional electrical installations and saves on installation costs. The included spread-spectrum wireless remote offers up to 100 ft line-of-sight control and one-touch color sync for S.R.Smith LED lights (six colors and two light shows). Installation is simplified with oversized wiring space and a convenient terminal-strip setup—no wire nuts necessary. Safety features include a self-resetting thermal fuse, a fast-acting replaceable fuse, and corrosion-resistant housing that minimizes noise. ETL-listed to ANSI/UL 379 and CSA C22.2#218.1 standards, and backed by a two-year manufacturer warranty, PoolLux Plus ensures reliable, safe pool lighting control. The 3TR package also includes three Treo RGB LED lights with 80′ cords—delivering vibrant, even illumination and eliminating the classic “end-shadow” effect.

Highlights

• All-in-One Control & Power: Integrates a 60 W low-voltage transformer and lighting control system in a weather-resistant NEMA 3R enclosure.

• Wireless Convenience: Includes a spread-spectrum remote with 100 ft range and one-touch sync for six colors and two light shows.

• Simplified Installation: Features oversized wiring space and a terminal-strip connection—no wire nuts needed.

• Safety Built-In: Equipped with self-resetting thermal fuse, replaceable fast-acting fuse, and corrosion-resistant housing for safe, quiet operation.

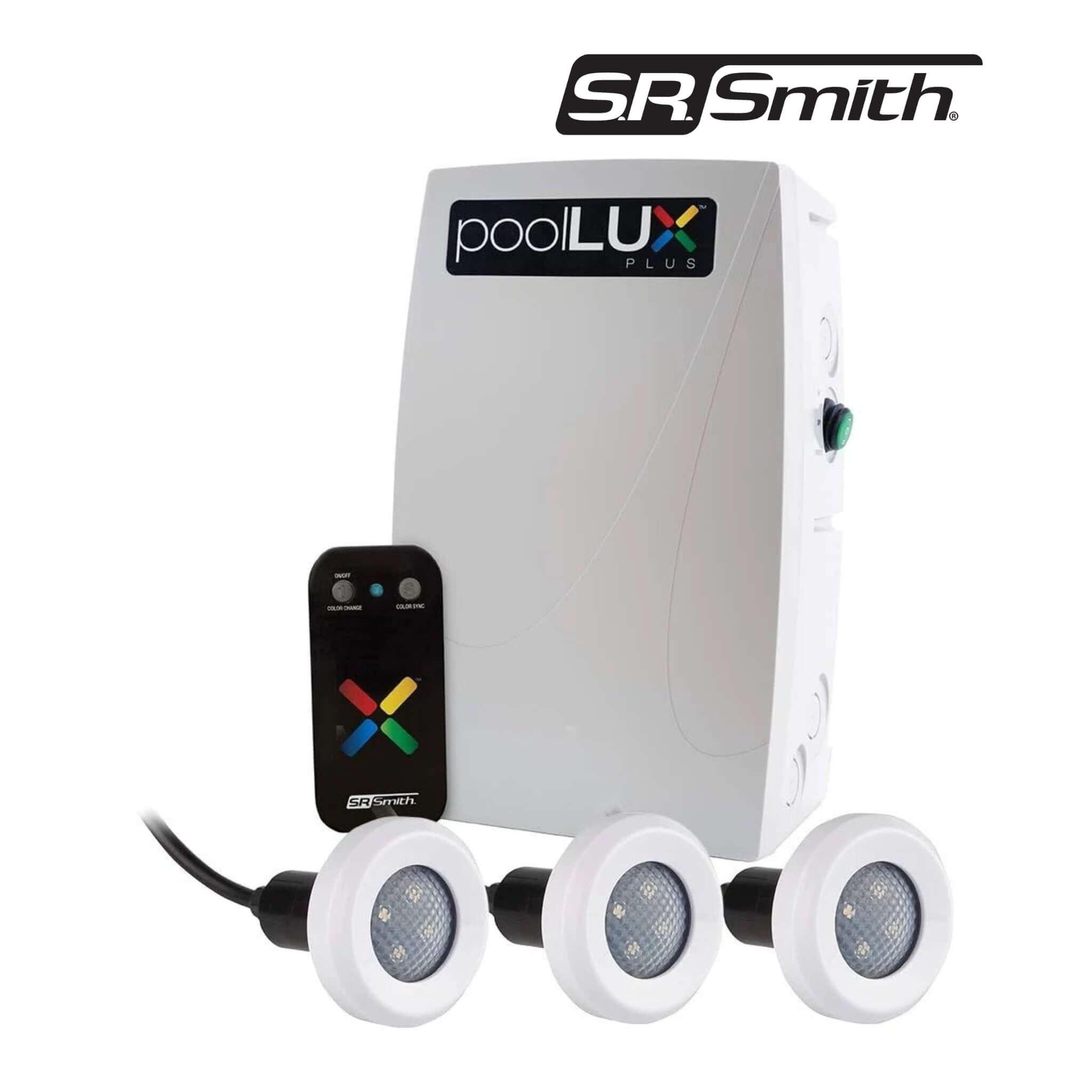

• Complete Lighting Package: Comes with three Treo RGB LED lights (80′ cords) for vibrant, uniform illumination with no end-shadow effect.

S.R. Smith poolLUX Plus Pool Lighting Transformer

The poolLUX Plus is a combined low-voltage transformer and lighting controller designed specifically for pool, spa, and fountain LED lighting. It delivers up to 60 W (also available in 100 W) of 12–13 VAC output and includes a built-in wireless remote with a 100 ft line‑of‑sight range for color and scene control.

• Integrated Power & Control – Replaces separate transformer and switch setups, saving installation time and electrician costs.

• Wireless Control – Remote offers 6 static colors and 2 dynamic light shows, plus a one‑touch sync for multi‑light setups.

• Manual Override – External on/off switch on the unit allows direct control without the remote.

• Safety Built‑Ins – Includes an internal self‑resetting thermal fuse and fast‑acting replaceable fuse to protect against overheating or short circuits.

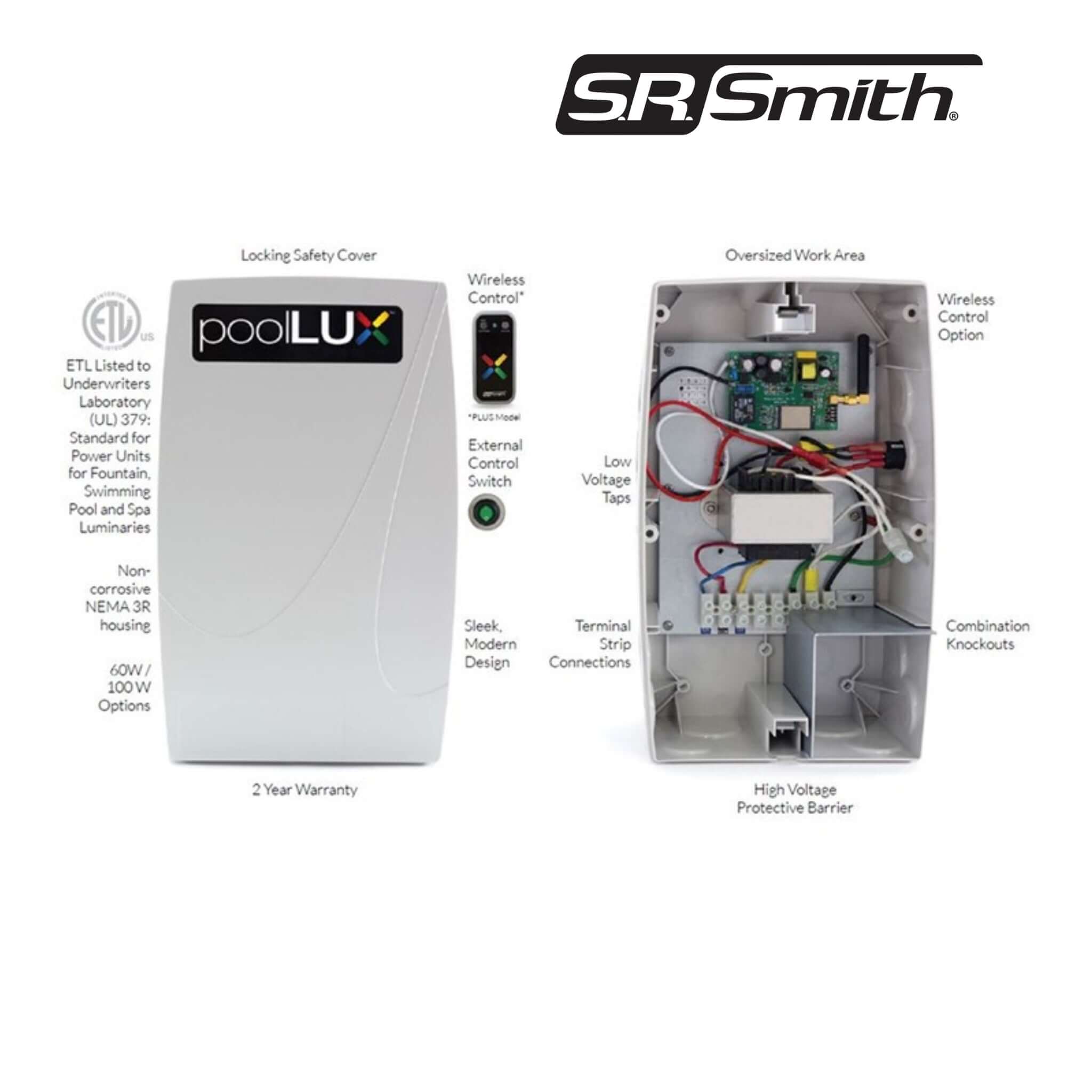

• Easy Installation – Features terminal strip wiring (no nuts), oversized compartment, multiple knock‑outs (for conduit), and NEMA‑3R-rated polycarbonate housing for outdoor durability.

• Certifications – ETL-listed and CSA‑certified to UL 379, meeting pool and spa electrical safety standards.

Features

• Power & Control Integration: Combines low-voltage transformer with lighting control to simplify installation

• Wiring Convenience: Oversized terminal-strip wiring—no wire nuts needed; accommodates standard or extended runs

• Built-in Switch: Manual on/off switch eliminates need for electrician costs

• Safety & Protection:

  • Self-resetting thermal fuse and replaceable current fuse guard against overheating and short circuits

  • ETL/UL-379 and CSA-certified for pools, spas, fountains

• Durability: NEMA 3R-rated, sound-dampening housing ideal for outdoor environments

• Flexible Compatibility: Works with S.R. Smith LED lights or other 12 VAC toggle lights
