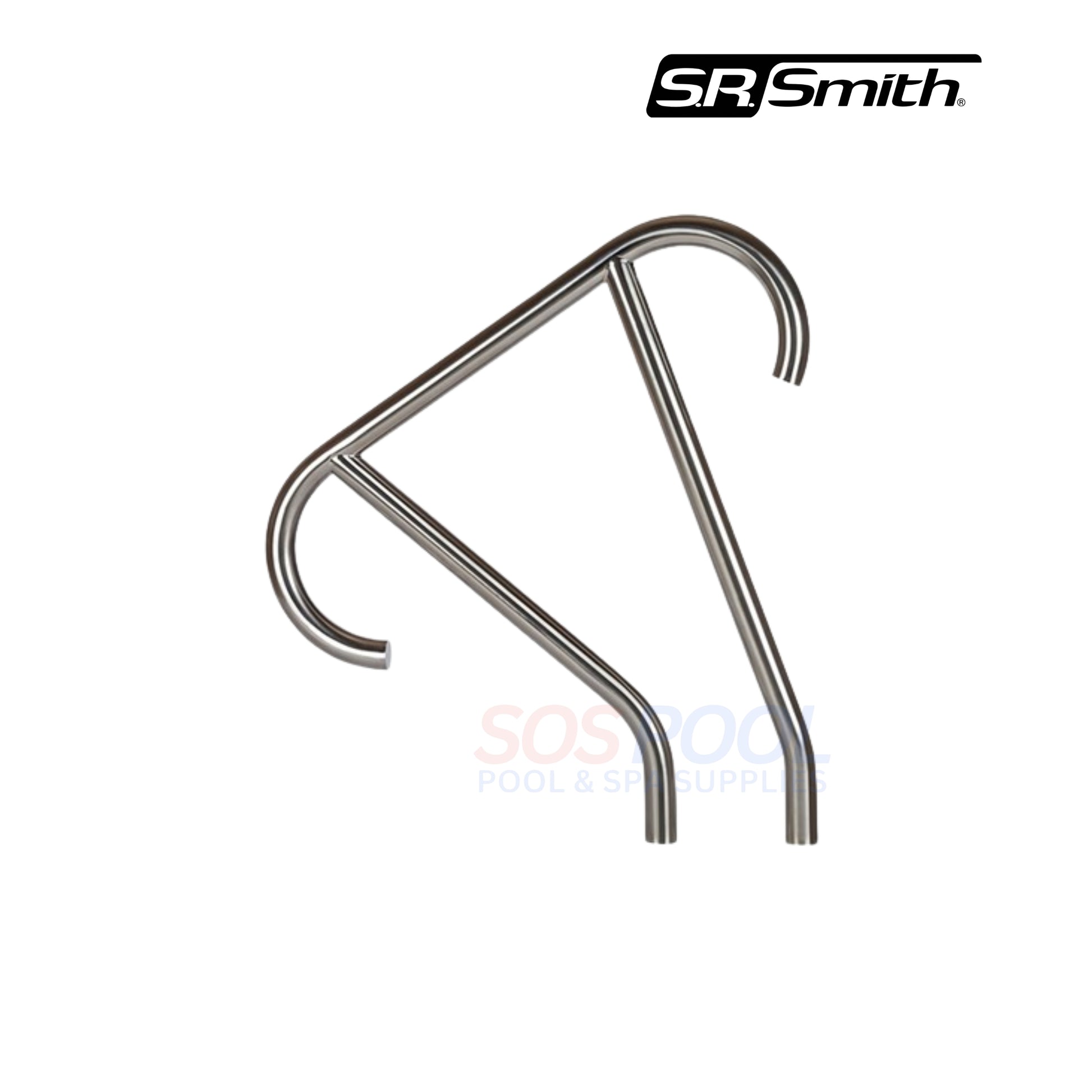

S.R. Smith Meridian Series Single Only Deck Hand Rail 1.90 OD | MER-1001S
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 1 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
Manuals & documents
- S.R Smith Meridian Series Rails PDF · 4.7 MB View PDF
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
The S.R. Smith MER-1001S is a single patent-pending Meridian Series deck hand rail that brings designer-inspired elegance and functional pool entry support to any residential or commercial pool environment. Its modern, curved profile delivers a custom, upscale aesthetic that stands apart from traditional straight-bar rails — making it an ideal upgrade for both new pool construction and renovation projects where visual impact matters as much as safety. The Meridian's Figure 4 retrofit compatibility allows it to drop directly into most existing pool rail anchor settings without excavating or re-pouring deck — significantly simplifying installation on renovation jobs. Constructed from commercial-grade 304 stainless steel tubing at 1.90 inches outside diameter with a .065-inch wall thickness, the MER-1001S delivers the structural integrity and corrosion resistance expected from S.R. Smith — one of the most trusted names in pool rails and ladders. Sold as a single rail. Anchors (AS-100P or AS-100B) and escutcheon (EP-100F) are sold separately. For salt water pools, the 316L Marine Grade version (MER-1001S-MG) is strongly recommended. Backed by S.R. Smith's 3-year limited warranty.
- Patent-Pending Designer Curved Profile: The Meridian's modern curved design delivers a custom, architectural look that elevates the aesthetic of any pool deck — a significant visual upgrade over traditional straight handrails in both residential and commercial pool environments.
- Figure 4 Retrofit Compatible — Fits Existing Anchors: Engineered to install directly into most existing Figure 4 pool rail anchor settings without deck cutting or re-poring, making the MER-1001S the ideal choice for pool renovation projects where minimizing installation disruption is a priority.
- Ideal for Limited Deck Space: The Meridian's compact footprint and efficient rail geometry make it specifically well-suited for pools with restricted deck areas around the entry point — providing full hand support without requiring the wider anchor spread of traditional rails.
- Commercial-Grade 304 Stainless Steel Construction: Built from 1.90" OD, .065"-wall 304 stainless steel tubing to S.R. Smith's commercial standards, delivering the structural rigidity, polished finish, and corrosion resistance required for long-term pool deck use.
- Sold as Single Rail | Anchors & Escutcheon Sold Separately: The MER-1001S is sold as one rail — for a pair, see MER-1001. Recommended anchors are AS-100P or AS-100B and recommended escutcheon is EP-100F, all sold separately. Salt pool installations require the 316L Marine Grade version MER-1001S-MG. Backed by S.R. Smith's 3-year limited warranty.
