S.R. Smith Stainless Steel 3-Step Ladder Econoline | 24" | RLF-24E-3B
In-store pickup & local delivery only. This item can't be shipped — choose pickup or local delivery at checkout.
Couldn't load pickup availability
● 11 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
Manuals & documents
- S.R. Smith Rails and Ladders Brochure PDF · 21.9 MB View PDF
- S.R. Smith Ladder and Rail Installation Guide PDF · 525 KB View PDF
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

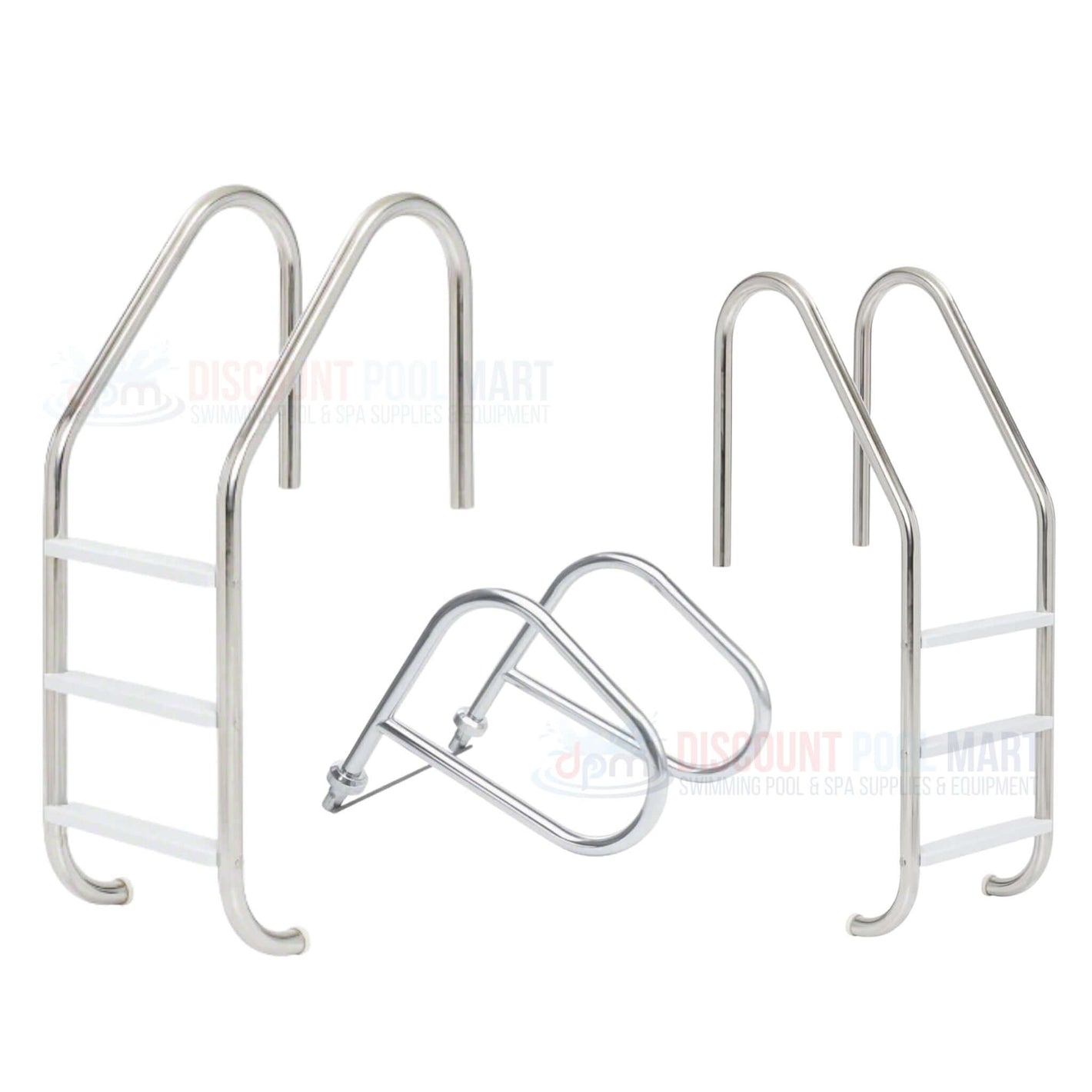

The S.R.Smith 3-Step Econoline Ladder (Model RLF-24E-3B) is a durable and reliable pool ladder designed for residential in-ground pools. Constructed from 304 stainless steel with a 1.90" outer diameter and a .049" wall thickness, it ensures strength and longevity. The ladder features three high-impact plastic treads for secure footing and includes two white rubber bumpers on the lower ends to protect pool walls and vinyl liners. Its 24" width and 6" radius bends provide a comfortable and safe entry and exit point for swimmers. Compatible with concrete, fiberglass, and vinyl pools, this ladder is an excellent choice for enhancing pool accessibility and safety.
-
Heavy-Duty Stainless Steel: Built from 304-grade stainless steel with a 1.90" diameter and .049" wall thickness for superior strength and corrosion resistance.
-
Secure Plastic Treads: Three high-impact plastic steps provide reliable, slip-resistant footing for swimmers of all ages.
-
Vinyl Liner Protection: Equipped with white rubber bumpers to prevent damage to pool walls and liners during use.
-
Comfort-Focused Design: 24" width with 6" radius bends ensures a smooth, ergonomic entry and exit experience.
-
Universal Pool Compatibility: Suitable for use with concrete, fiberglass, and vinyl residential in-ground pools.
| Tubing | 1.90” OD |
| Wall Thickness | .049” |
| Stainless Steel | 304 or 316L Marine Grade |
| Treads | LTDF-101 Plastic (Econoline) |
| Bends | 4” Radius |
| Options | Powder-coating and SealedSteel Salt Friendly (rails only) |
| Recommended Anchors | AS-100B (order separately) |
| Recommended Escutcheon | EP-100F (order separately) |
