Rola-Chem Pro Series 300 Peristaltic Metering Pump - 77 GPD, 120V | 543824
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 1 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

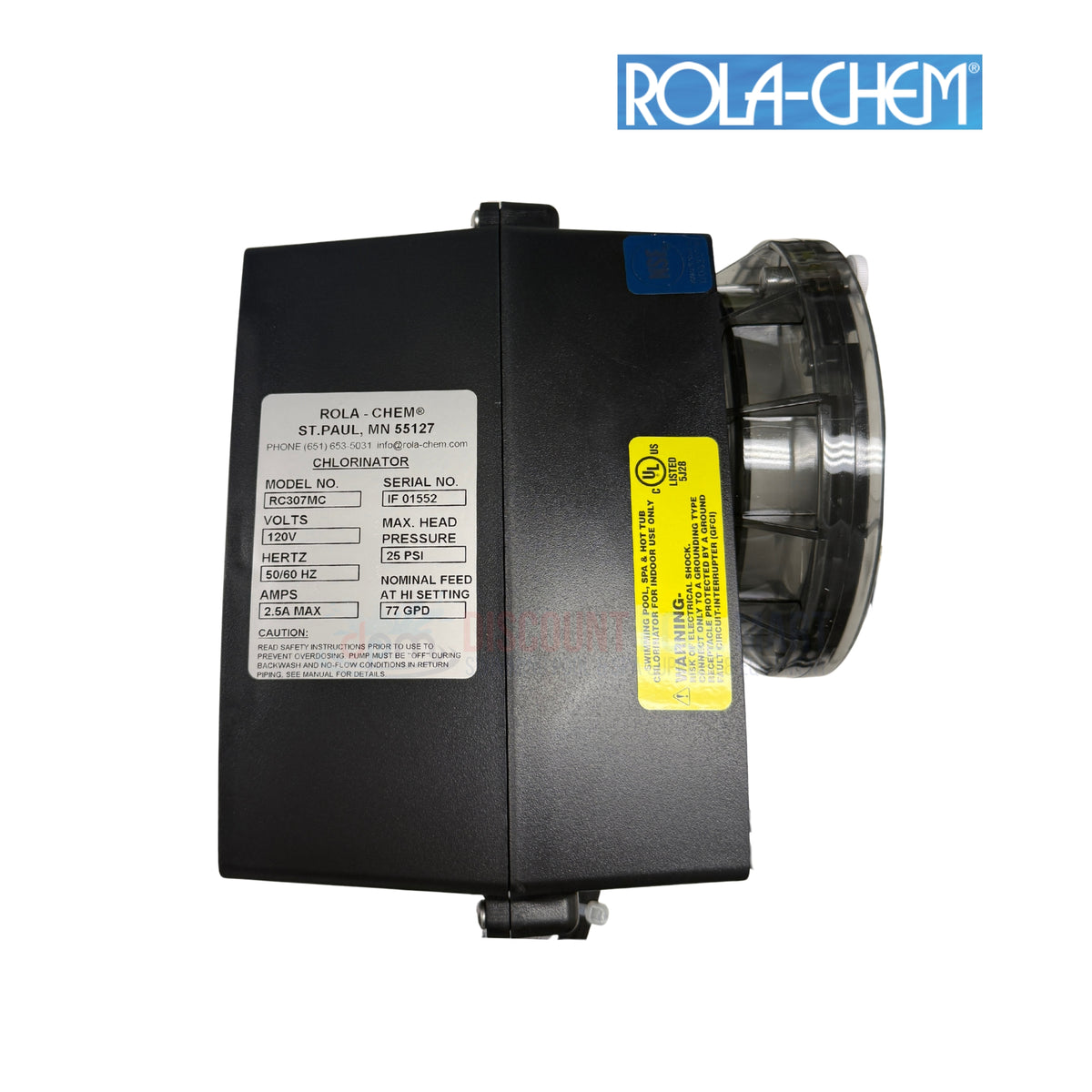

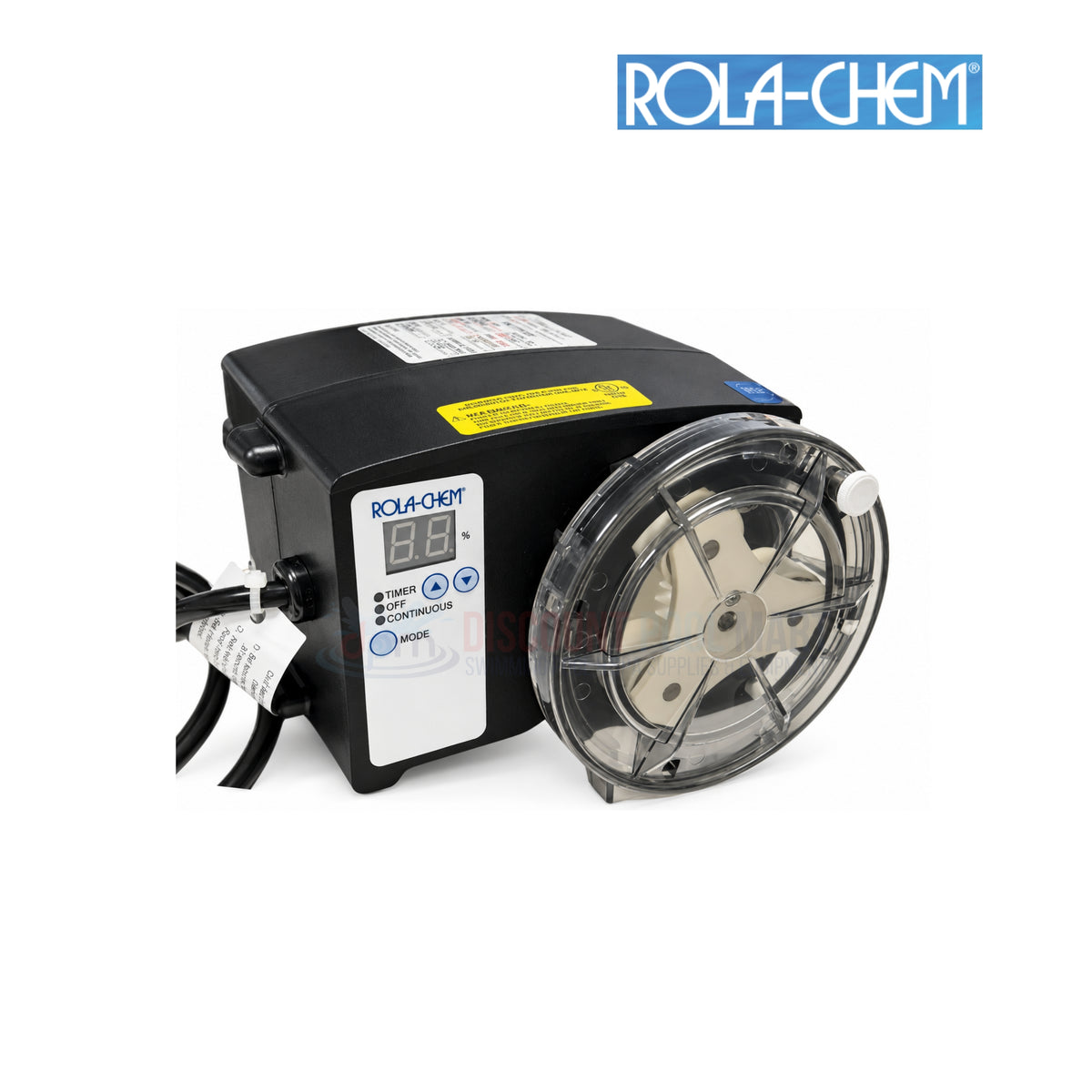

Precise chemical dosing for big pools. The Rola-Chem 543824 is a Pro Series 300 (RC307MC) peristaltic metering pump that feeds liquid chlorine, acid, or other pool chemicals at up to 77 gallons per day at 30 PSI on 120V power. A digital timer and fine dosing increments let you dial in exactly how much and how often, so your water stays balanced without hand-dosing. It is sized for large residential and commercial pools, roughly 180,000 to 400,000 gallons.
- Automatically meters liquid pool chemicals (chlorine, acid, and more) into the system.
- Feeds up to 77 GPD at 30 PSI on 120V; self-priming with an 18 ft suction lift.
- Built for large residential and commercial pools (about 180,000 to 400,000 gallons).
- Fully digital timer with refined dosing increments for precise control.
- Three-way switch: timer, off, or continuous feed.
- Quick-release cover for fast squeeze-tube access.

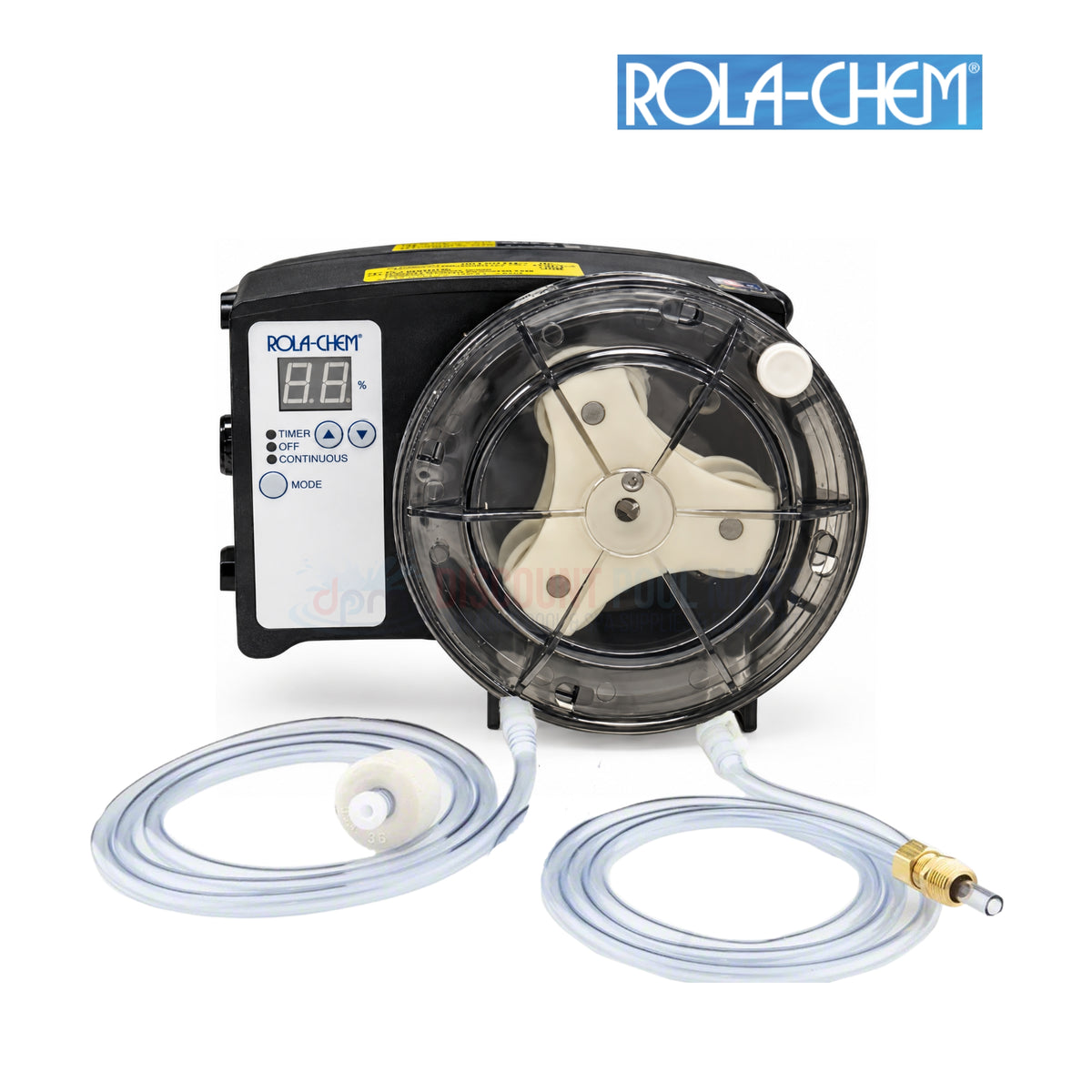

- Includes clear Tygon and black Norprene squeeze tubes, a 1/4 in. plastic injection adapter, and a 1/2 in. brass injection fitting.
- Heavy-duty air-cooled motor with thermal overload protection; Lexan polycarbonate pump head.
- Mount the pump near your chemical supply and injection point per the manual.
- Route the suction tube to the chemical tank and the discharge to the injection fitting on the return line.
- Set the digital timer for the dose and schedule your pool needs.
- Prime the pump and confirm it is drawing and injecting correctly.
Note: 120V model. Handle and store pool chemicals safely; professional setup is recommended.
