  3. Raypak Transformer For AVIA 404 and 264 Heaters | 120/240/24V | 018858F
By Raypak

Raypak Transformer For AVIA 404 and 264 Heaters | 120/240/24V | 018858F

$59.99
$69.99 $59.99
-$10.00
Shipping calculated at checkout.
Brand: Raypak
SKU: 018858F

CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

Found In These Collections

  • Raypak equipment parts including components for pool heating, available at Discount Pool Mart DPM. Quality products collection.

    All Raypak Equipment Products & Parts

    Collection
  • Heater & heat pump parts including copper coil, valves, and connectors from Discount Pool Mart DPM for pool heating.

    Heater & Heat Pump Parts for Pools

    Collection
  • Pool Valves, Plumbing & Electrical Parts

    Pool Valves, Plumbing & Electrical Parts

    Collection
  • Raypak Avia 018045 Heater replacement parts diagram from Discount Pool Mart DPM, showing essential components for pool heating.

    Raypak Avia NiTek 404K BTU 018045 Heater Replacement Parts Diagram

    Collection

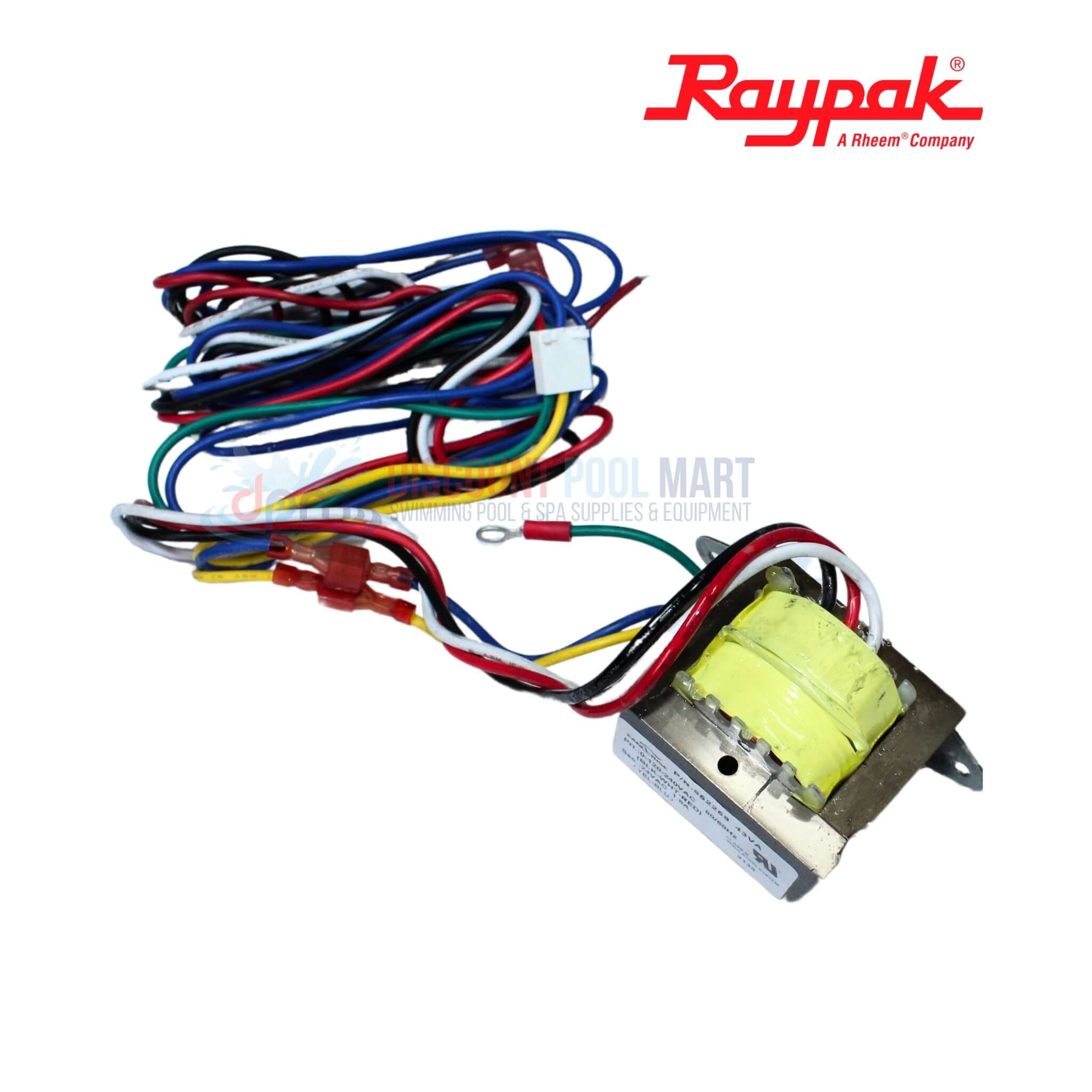

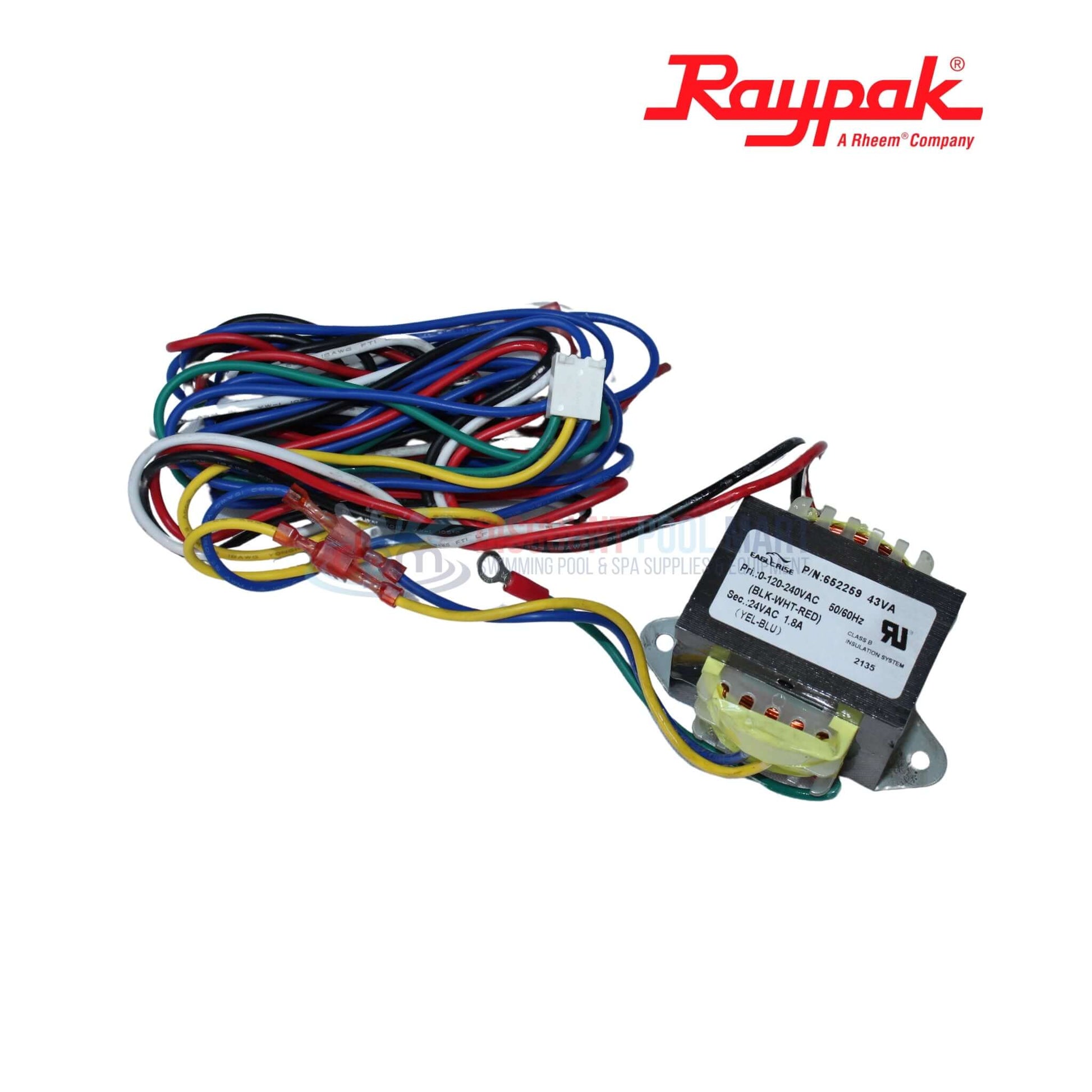

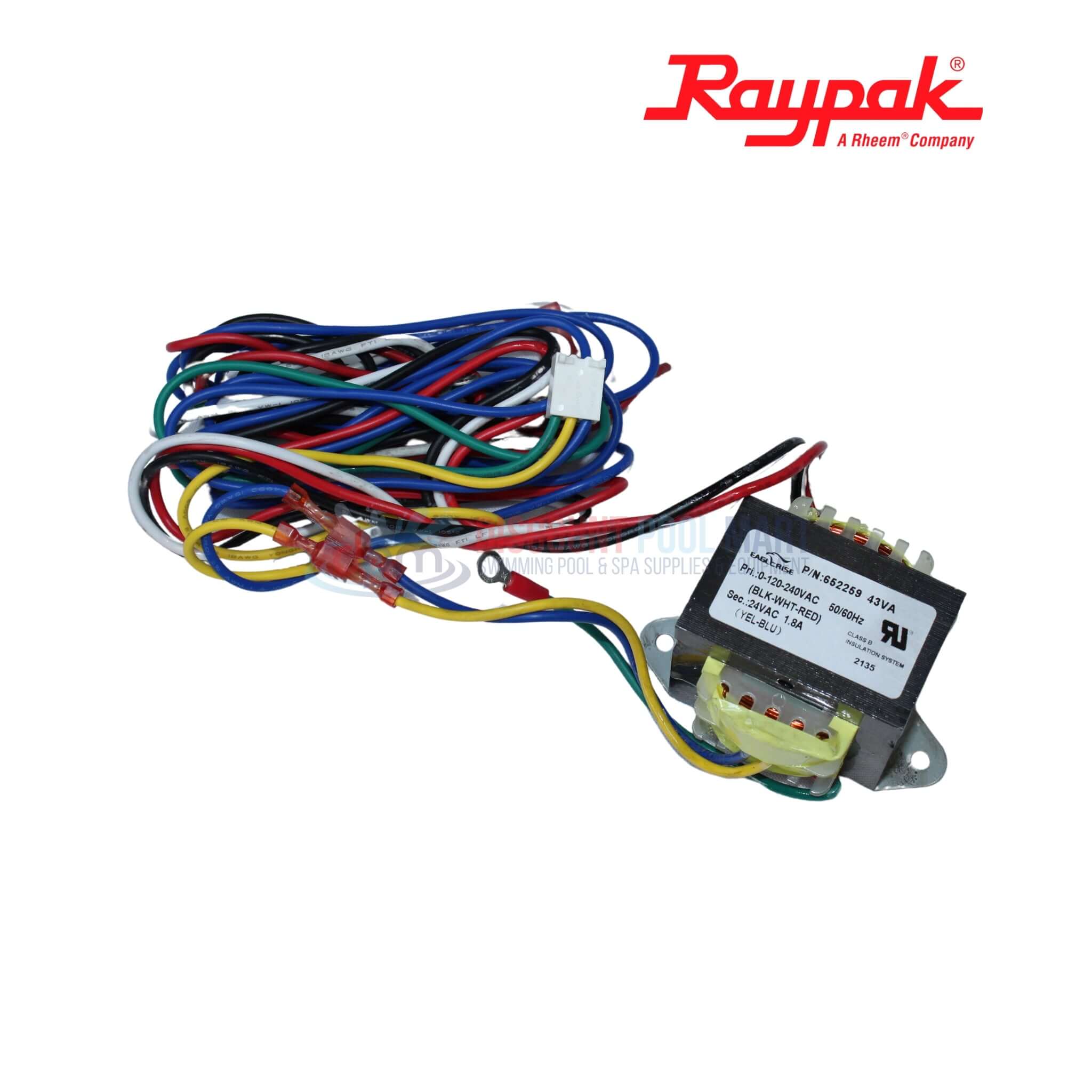

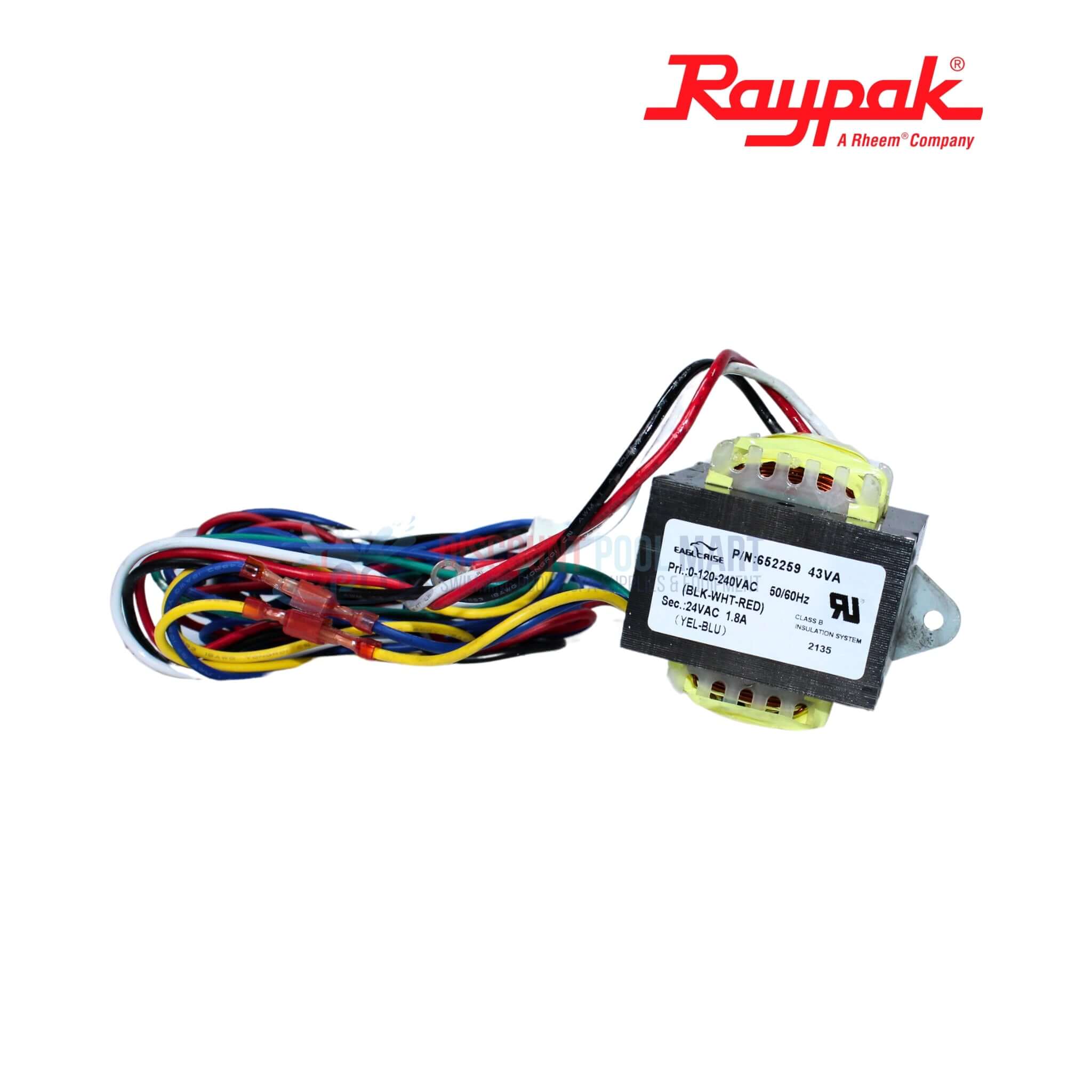

The Raypak Transformer, model 018858F, is designed for AVIA 404 and 264 heaters, offering versatile voltage compatibility with 120V, 240V, and 24V connections. This transformer ensures efficient power conversion and reliable performance for your heating system. Built to meet high standards of durability and reliability, the 018858F transformer is essential for maintaining the optimal operation of your AVIA heaters. Easy to install, it provides stable voltage to ensure your heater functions smoothly and efficiently, making it a crucial component for both installation and maintenance.

Highlights

  • Versatile Voltage Compatibility: Designed for AVIA 404 and 264 heaters, it supports 120V, 240V, and 24V connections for versatile installation options.
  • Efficient Power Conversion: Ensures efficient power conversion and reliable performance, maintaining the optimal operation of your heating system.
  • High Standards of Durability: Built to meet high standards of durability and reliability, making it a long-lasting component for your AVIA heaters.
  • Easy Installation: Simple to install, providing stable voltage to ensure your heater functions smoothly and efficiently.
  • Essential for Maintenance: A crucial component for both installation and maintenance, ensuring your heaters operate at peak efficiency.

Instructions

240 VAC Wiring

120 VAV Wiring

For 240 VAC input power to the unit, connect the black wires to the L1 or hot leg of the power supply. Connect the red and red/white wires to the “L2” or second hot leg of the power supply. There should be no connection to the white wire for 240 VAC operation. Attach a wire nut to the white wire.

For 120 VAC input power to the unit, connect the field supplied Black wire (L1) to the (2) Black wires from the heater. There should be no connection to the red wire for 120 VAC operation. Attach a wire nut to the red wire.

Compatibility

  • Compatible with Raypak AVIA Heater Models: 404 and 264

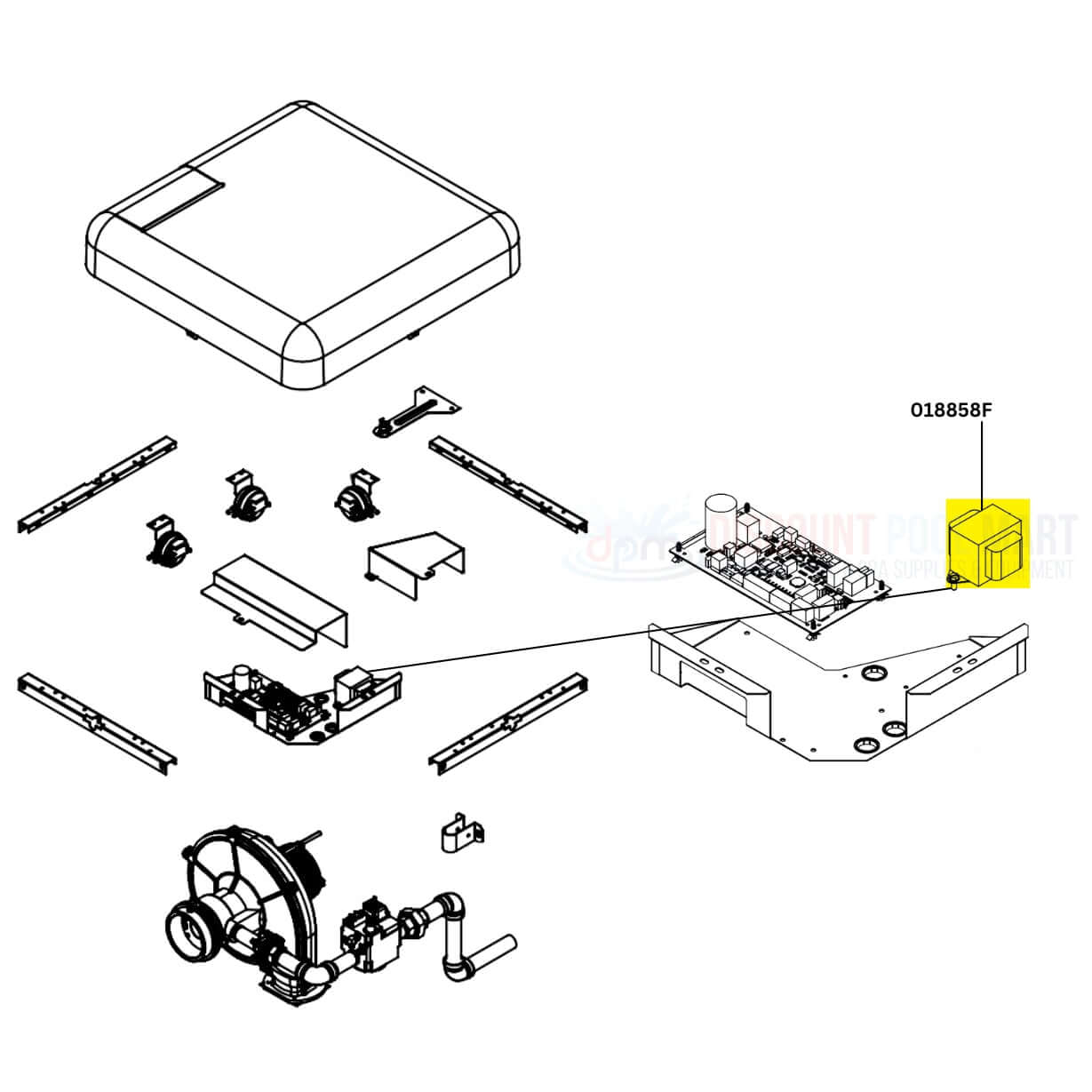

Diagram

Description

The Raypak Transformer, model 018858F, is designed for AVIA 404 and 264 heaters, offering versatile voltage compatibility with 120V, 240V, and 24V connections. This transformer ensures efficient power conversion and reliable performance for your heating system. Built to meet high standards of durability and reliability, the 018858F transformer is essential for maintaining the optimal operation of your AVIA heaters. Easy to install, it provides stable voltage to ensure your heater functions smoothly and efficiently, making it a crucial component for both installation and maintenance.

Highlights
  • Versatile Voltage Compatibility: Designed for AVIA 404 and 264 heaters, it supports 120V, 240V, and 24V connections for versatile installation options.
  • Efficient Power Conversion: Ensures efficient power conversion and reliable performance, maintaining the optimal operation of your heating system.
  • High Standards of Durability: Built to meet high standards of durability and reliability, making it a long-lasting component for your AVIA heaters.
  • Easy Installation: Simple to install, providing stable voltage to ensure your heater functions smoothly and efficiently.
  • Essential for Maintenance: A crucial component for both installation and maintenance, ensuring your heaters operate at peak efficiency.
Instructions

240 VAC Wiring

120 VAV Wiring

For 240 VAC input power to the unit, connect the black wires to the L1 or hot leg of the power supply. Connect the red and red/white wires to the “L2” or second hot leg of the power supply. There should be no connection to the white wire for 240 VAC operation. Attach a wire nut to the white wire.

For 120 VAC input power to the unit, connect the field supplied Black wire (L1) to the (2) Black wires from the heater. There should be no connection to the red wire for 120 VAC operation. Attach a wire nut to the red wire.

Compatibility
  • Compatible with Raypak AVIA Heater Models: 404 and 264
Diagram
