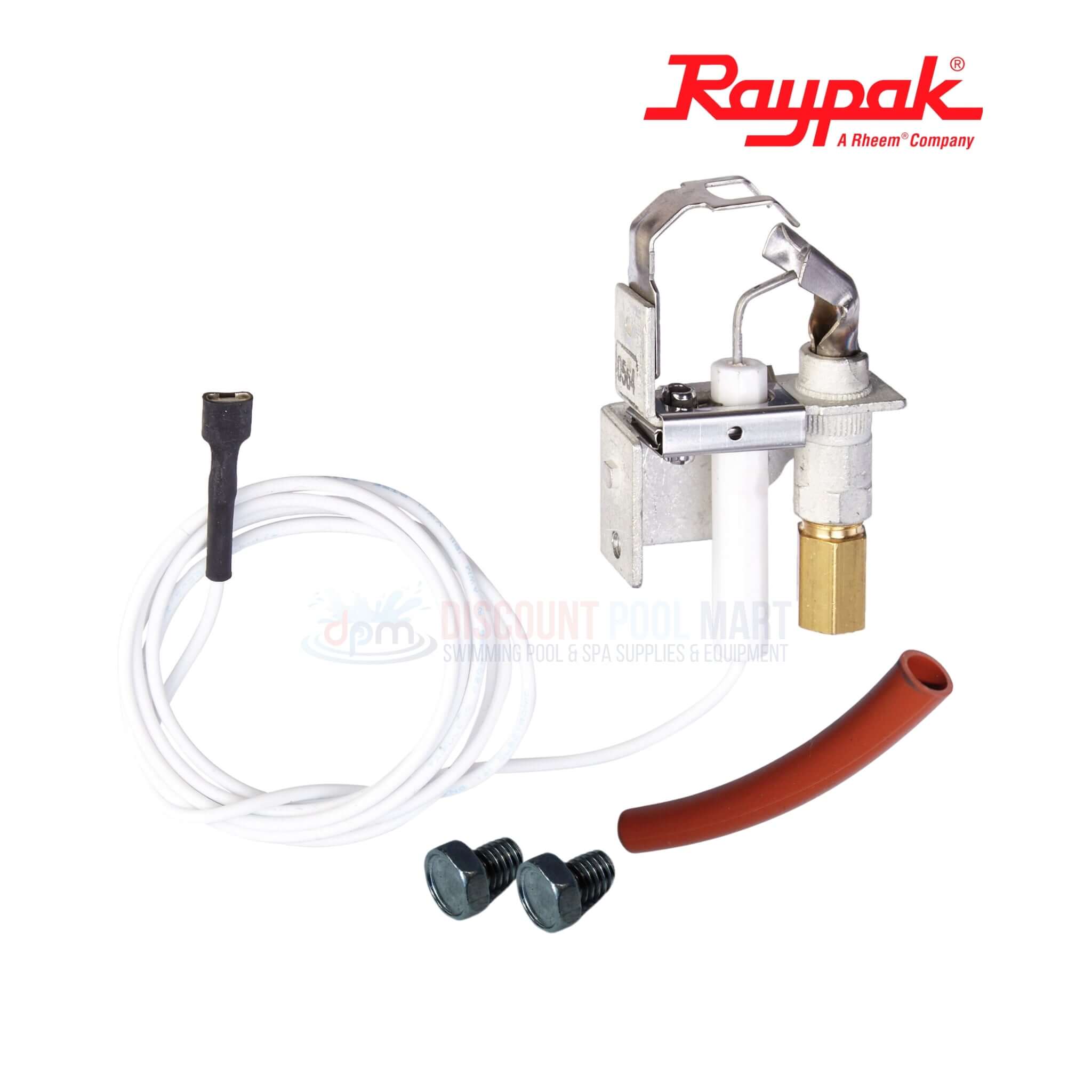

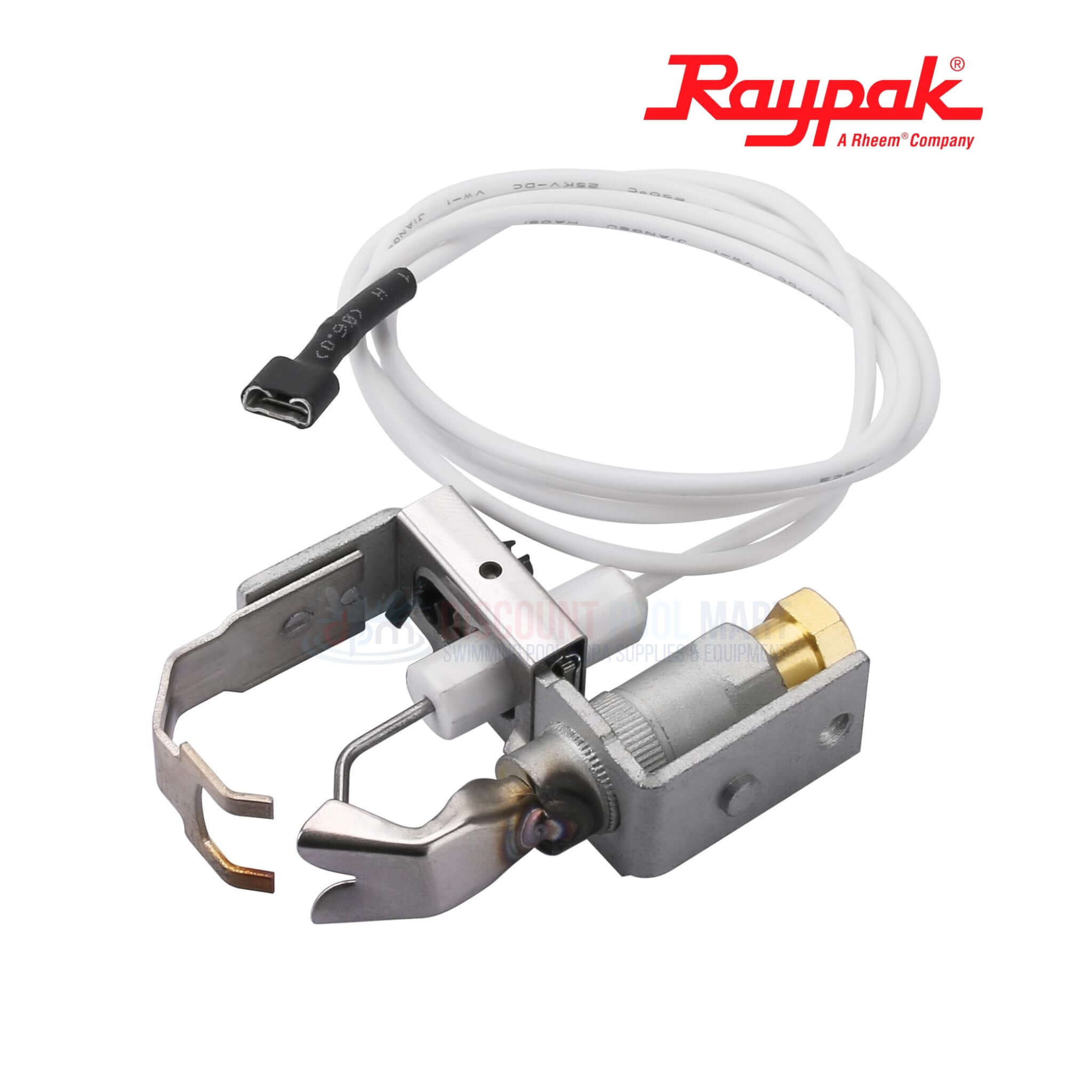

The Raypak Pilot Assembly 002003F is a versatile replacement component designed for Raypak pool and spa gas heaters. This assembly is compatible with models such as 106A, 156A, 181, 183, 185, 401, 403, and 405. It includes orifices for both natural gas and propane, allowing for easy conversion between fuel types. Constructed from high-quality materials, the 002003F ensures reliable performance and durability. Regular inspection and timely replacement of the pilot assembly are recommended to maintain optimal heater operation.
-
Compatible with multiple Raypak models – Fits 106A, 156A, 181, 183, 185, 401, 403, and 405 gas pool and spa heaters.
-
Includes orifices for natural gas and propane – Allows for easy fuel type conversion without additional components.
-
Ensures reliable ignition performance – Plays a key role in maintaining consistent and safe heater operation.
-
Built from high-quality materials – Designed to withstand heat and exposure to outdoor elements for long-lasting durability.
-
Supports regular maintenance routines – Timely replacement helps prevent ignition issues and ensures optimal heating efficiency.
- Raypak Heater Models: 106A, 156A, 181, 183, 185, 401, 403, and 405
- Raypak IID Heater Models: 53A, 53B, 055A, 055B, 105A, 105B, 151, 153
Note: This part may be compatible with your system, please refer to your owners manual to ensure compatibility.
