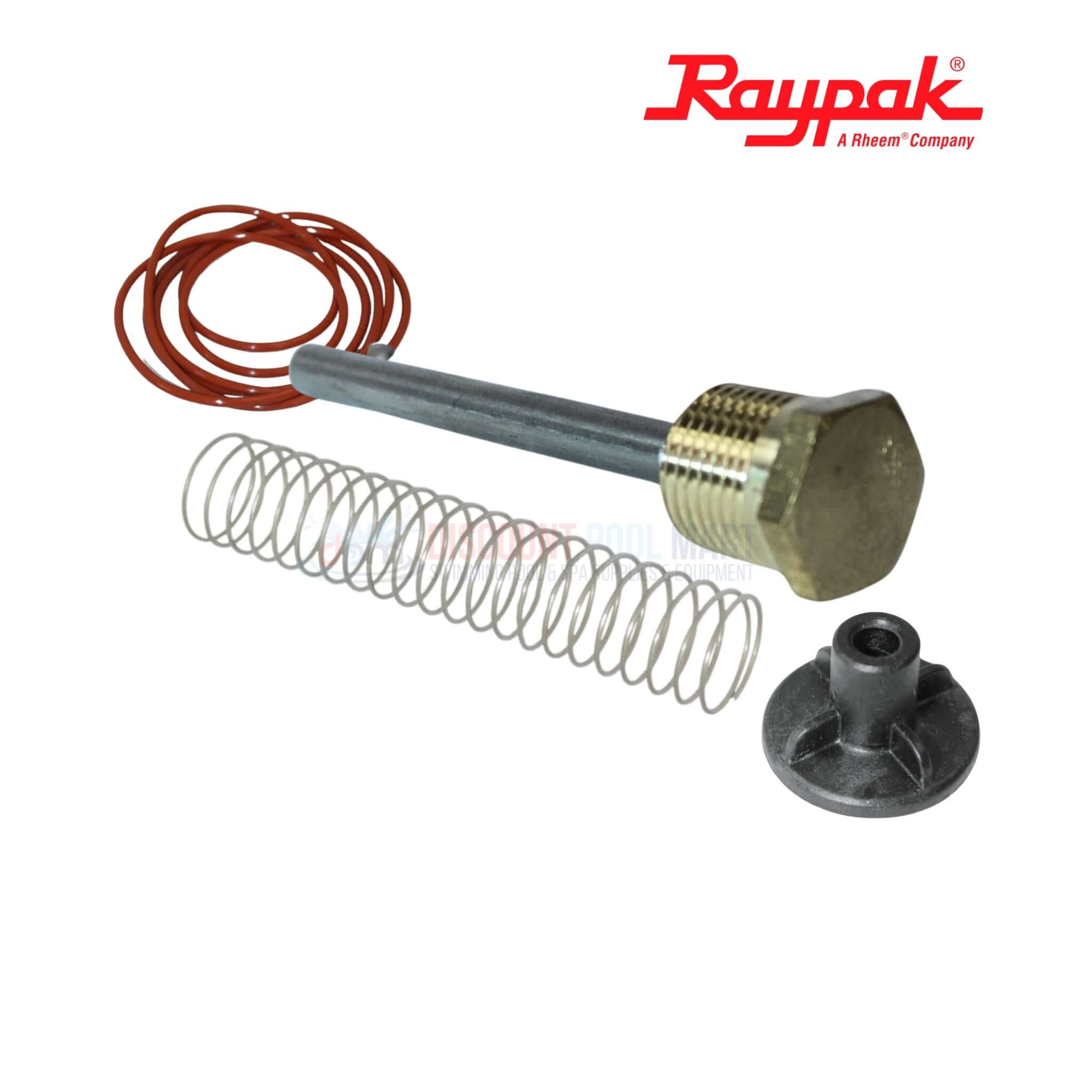

Raypak Bypass Valve Assembly for Digital Heaters | 016194F
Fits these models (6)
+2 more models
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 11 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

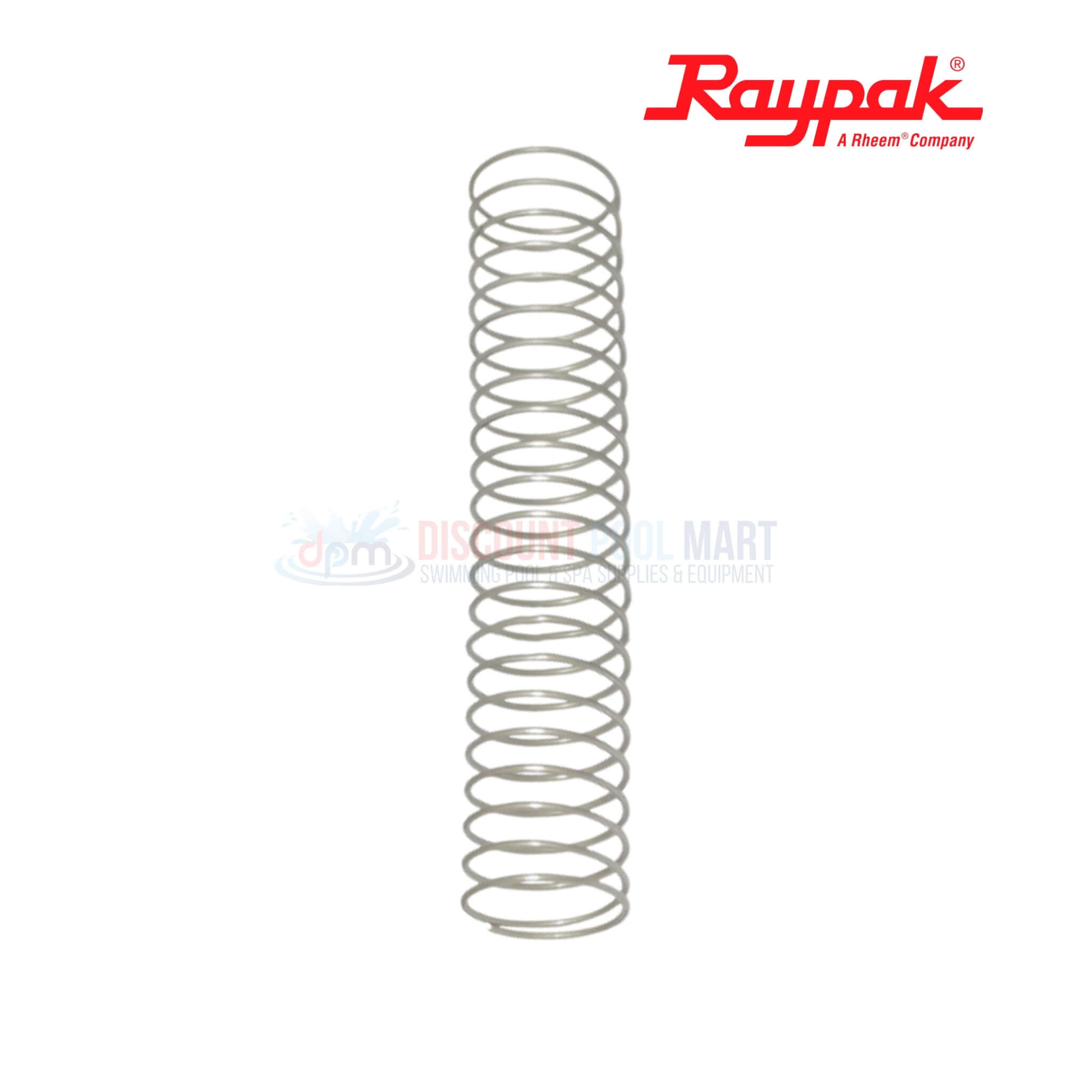

Raypak Bypass Valve Assembly 016194F is designed for use with Raypak digital heaters, including models 206A-406A, 105A, and 405A. It ensures proper water flow regulation and efficient heater operation. Made from durable materials, this assembly helps maintain optimal performance and longevity of your Raypak heater system. Easy to install, it is an essential replacement component for maintaining water circulation and preventing overheating.
-
Fits Multiple Raypak Digital Heater Models: Compatible with 206A-406A, 105A and 405A.
-
Regulates Water Flow: Ensures efficient circulation and prevents overheating.
-
Durable Construction: Built to withstand pool conditions for long-lasting performance.
-
Essential for Heater Efficiency: Supports consistent and safe heater operation.
