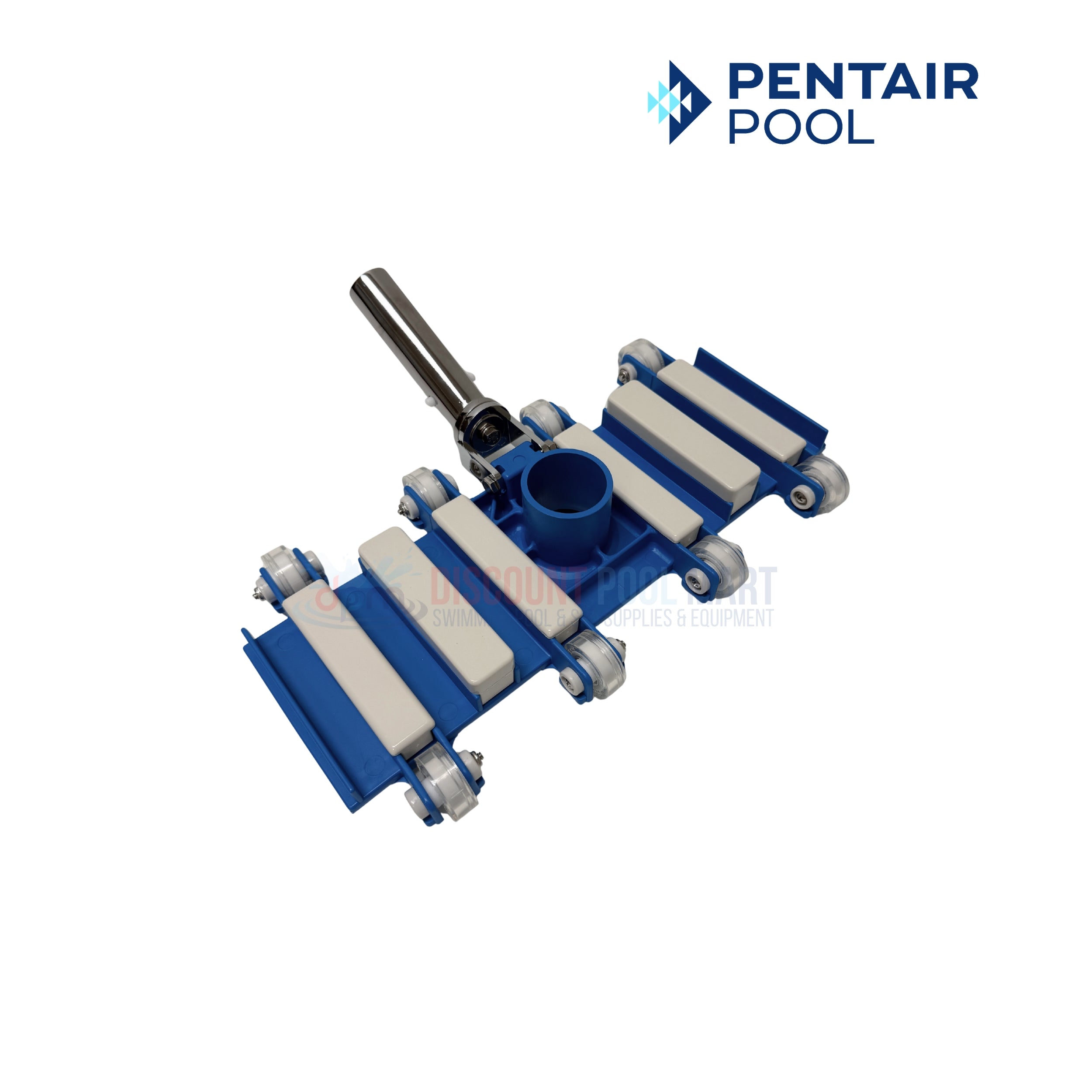

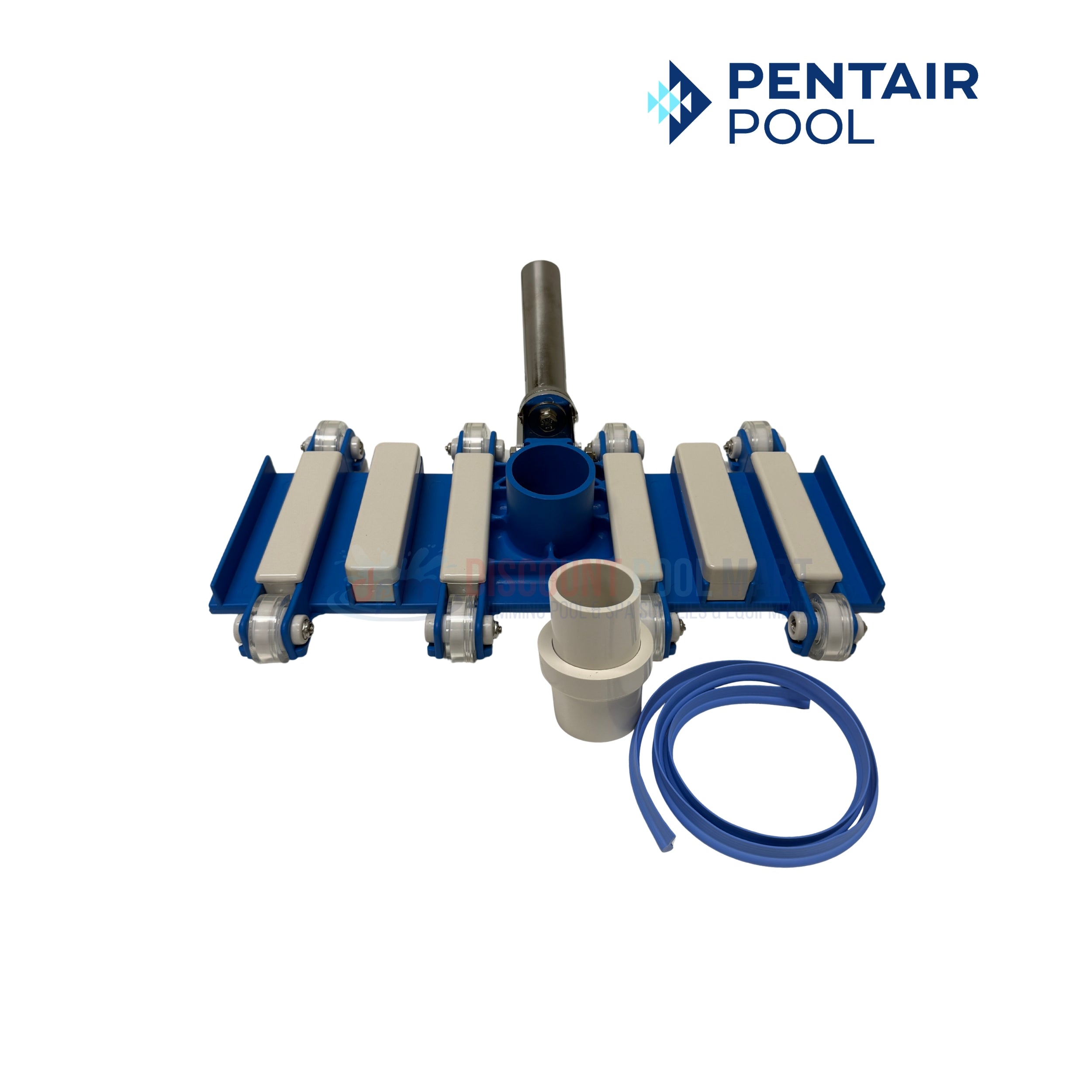

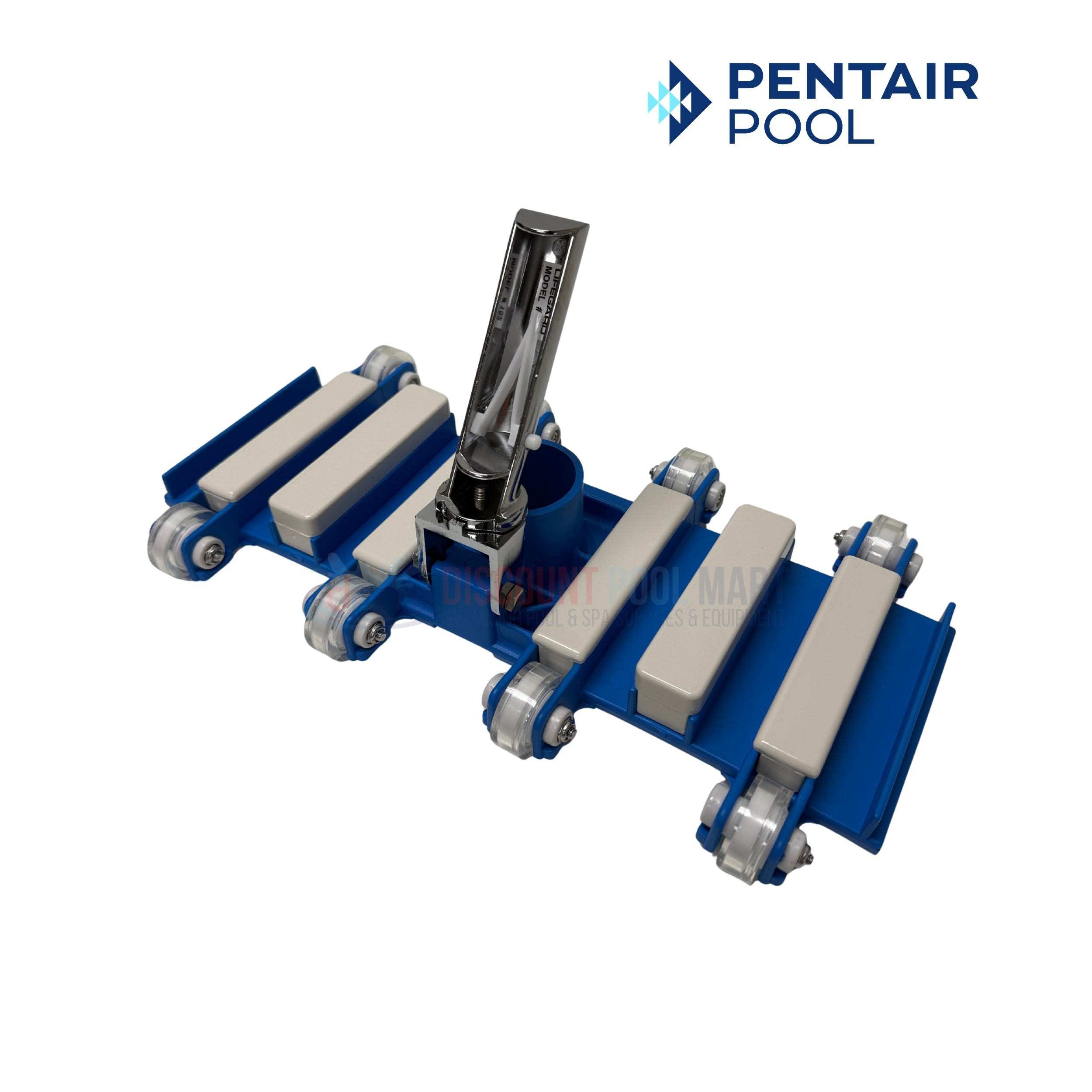

The Pentair R201276 ProVac #214 is a 14-inch lead-weighted commercial vacuum head engineered for residential concrete and commercial pool cleaning where professional-grade suction performance and durability are required. Its patented suction chamber concentrates vacuum velocity equally from both ends and front to back, a design that delivers more effective debris pickup than standard vacuum heads even under low-flow suction conditions. Full-width flex strips across the bottom guide debris directly into the suction chamber, ensuring nothing gets pushed aside during cleaning passes. Adjustable wheels allow fine-tuning of the vacuum head's height off the pool floor to increase or decrease velocity as needed for different debris loads and pool surfaces. The ProVac 214 is constructed from ABS and polyethylene with a metal swivel handle, ball-bearing wheels, and stainless steel nut and bolt hardware, measures 24-3/4 inches long by 15 inches wide, and connects directly to a 1-1/2-inch vac hose swivel. The vacuum head is backed by a 1-year manufacturer warranty.
- Patented Suction Chamber Design: The unique converging suction chamber concentrates vacuum velocity equally from both ends and from front to back across the head, delivering significantly more effective debris pickup than standard vacuum heads, including in low-flow suction conditions where conventional vacuum heads lose much of their cleaning performance.

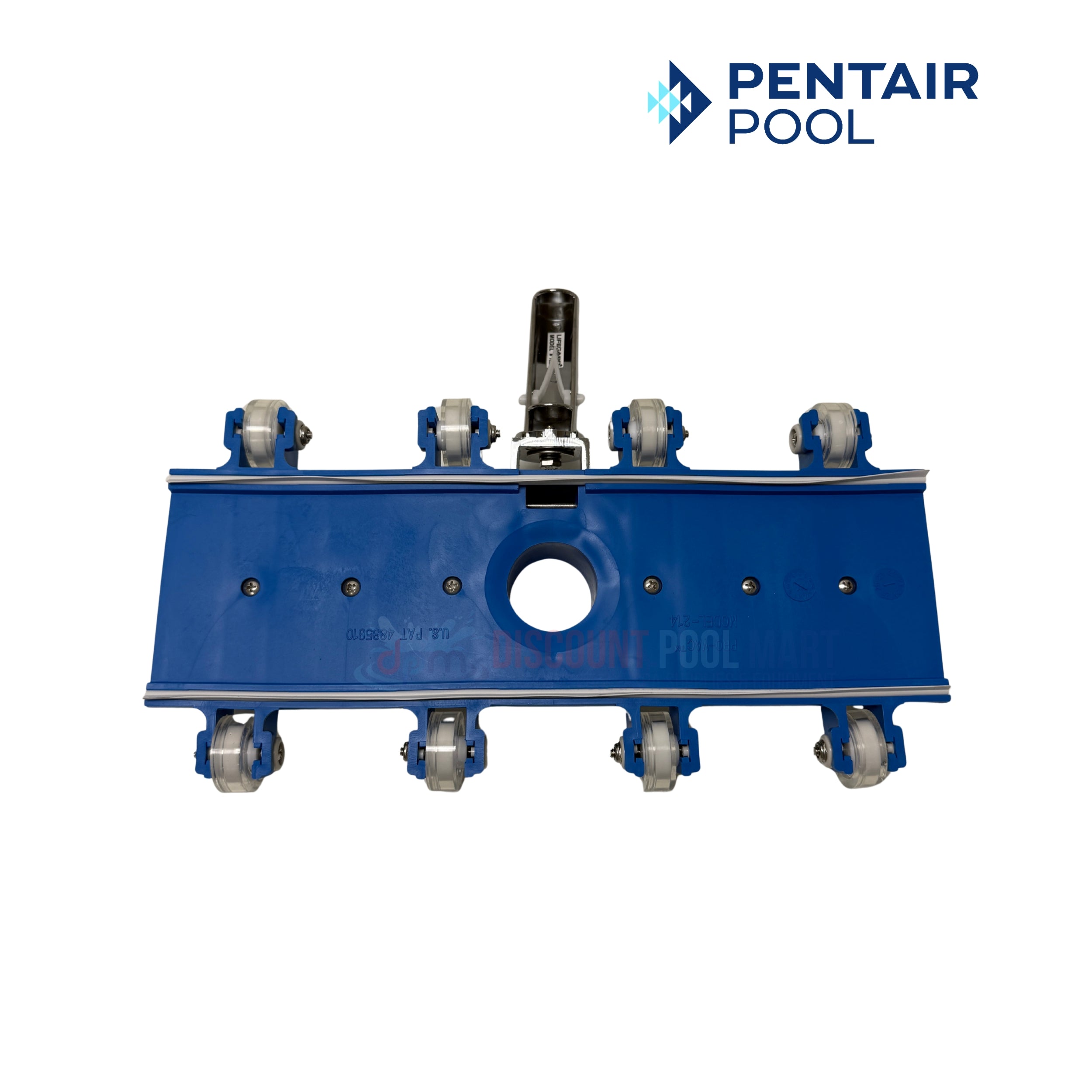

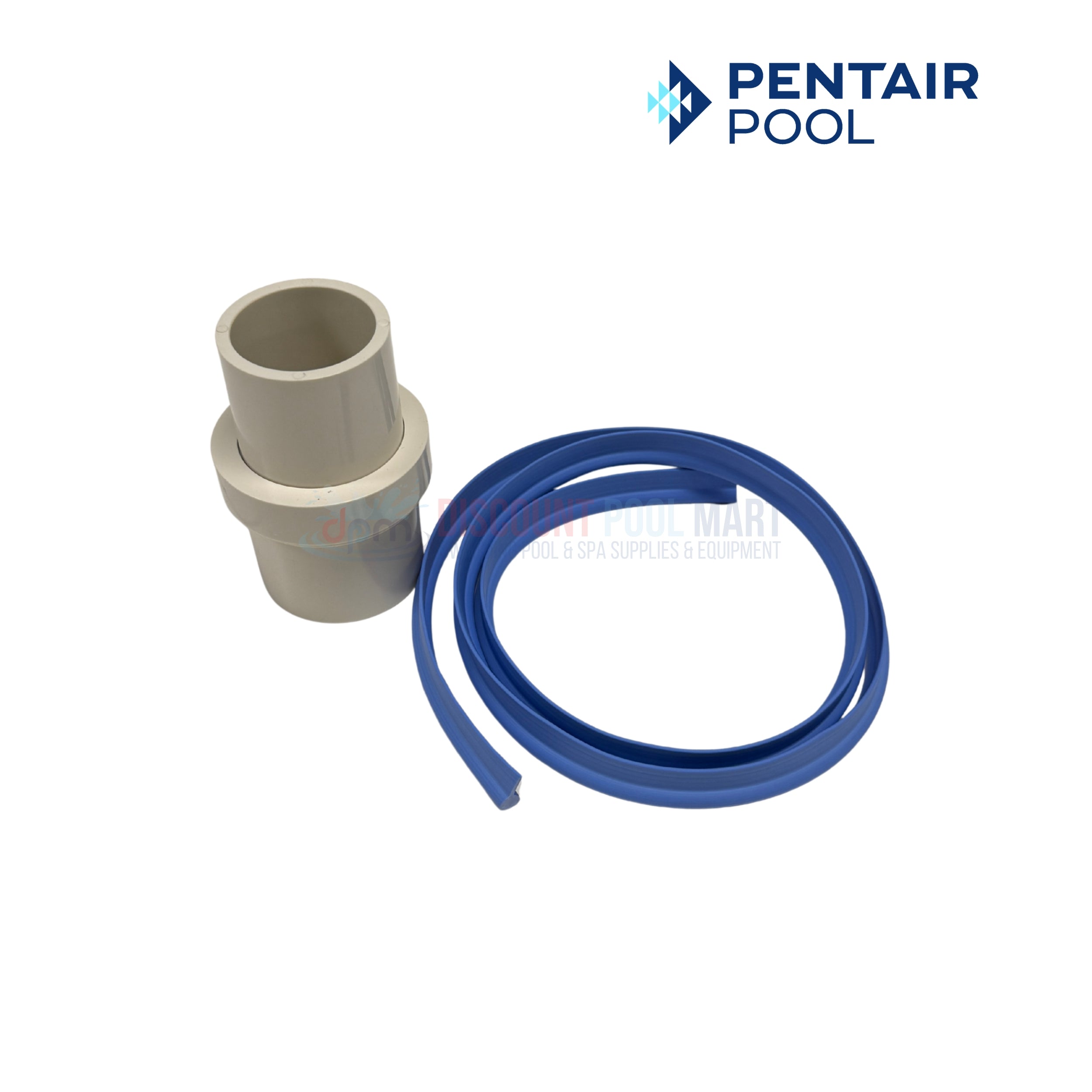

- Full-Width Flex Strips for Debris Capture: Flexible strips spanning the full width of the head guide dirt, leaves, and fine debris directly into the suction chamber rather than allowing material to push aside the brush line, ensuring thorough, consistent pickup across the entire cleaning path on every pass the operator makes across the pool floor.
- Lead-Weighted for Surface Contact: Strategically placed lead weights keep the ProVac 214 pressed firmly and evenly against the pool floor throughout the cleaning cycle, reducing the effort required to maintain solid contact on rough concrete and plaster surfaces where lighter vacuum heads tend to skip and float off the floor.
- Adjustable Ball-Bearing Wheels: All wheels on the ProVac 214 are adjustable to raise or lower the head's clearance from the pool floor, allowing pool service professionals to fine-tune suction velocity for different debris types and surface conditions, a level of control not available on standard fixed-wheel vacuum heads commonly used in residential service.
- Commercial-Grade Build with Warranty: Built with a metal swivel snap adapter handle, ball-bearing wheels, and stainless steel nut and bolt hardware for long-term durability in high-frequency commercial service routes, the ProVac 214 is backed by a 1-year manufacturer warranty and is compatible with both 1-1/2-inch and 2-inch vac hoses for flexible plumbing setup.
