The Jandy Center Plate Kit (R0408700) is a comprehensive service kit designed for the Jandy/JVA valve actuators (models 2444 and 4424) that restores proper mechanism alignment and performance. This OEM-grade replacement kit includes the center plate, cams, microswitches, output shaft, spring, O-rings, screws and bridge component to fully rebuild the actuator’s internal assembly. Ideal for technicians and pool professionals performing maintenance or refurbishment, the kit ensures precise positioning of the actuator’s output and microswitch engagement so your multiple-port valves operate reliably in automation systems.
Highlights
-
Full OEM Service Kit: Contains all major internal components—including cams, center plate, output shaft, spring, O-rings and mounting hardware—allowing complete actuator rebuild rather than partial repairs.
-
Restores Precision Alignment: With the included top and bottom cams and center plate, this kit returns the actuator to exact manufacturer tolerances, ensuring correct port indexing and repeatable valve switching cycles.
-
Cost-Effective Maintenance Solution: Instead of replacing an entire actuator housing, using this kit enables service professionals to refurbish the existing unit at lower cost and less disruption.
-
Compatibility with Key Models: Specifically engineered for the JVA actuator models 2444 and 4424, making it the correct selection for systems using Jandy automation setups requiring 24-volt valve actuators.
-
Enhanced System Longevity: By replacing worn internal parts, the kit helps maintain consistent operation, reduces wear on valve guts and minimizes the risk of misalignment or actuator jam—protecting your automation investment.

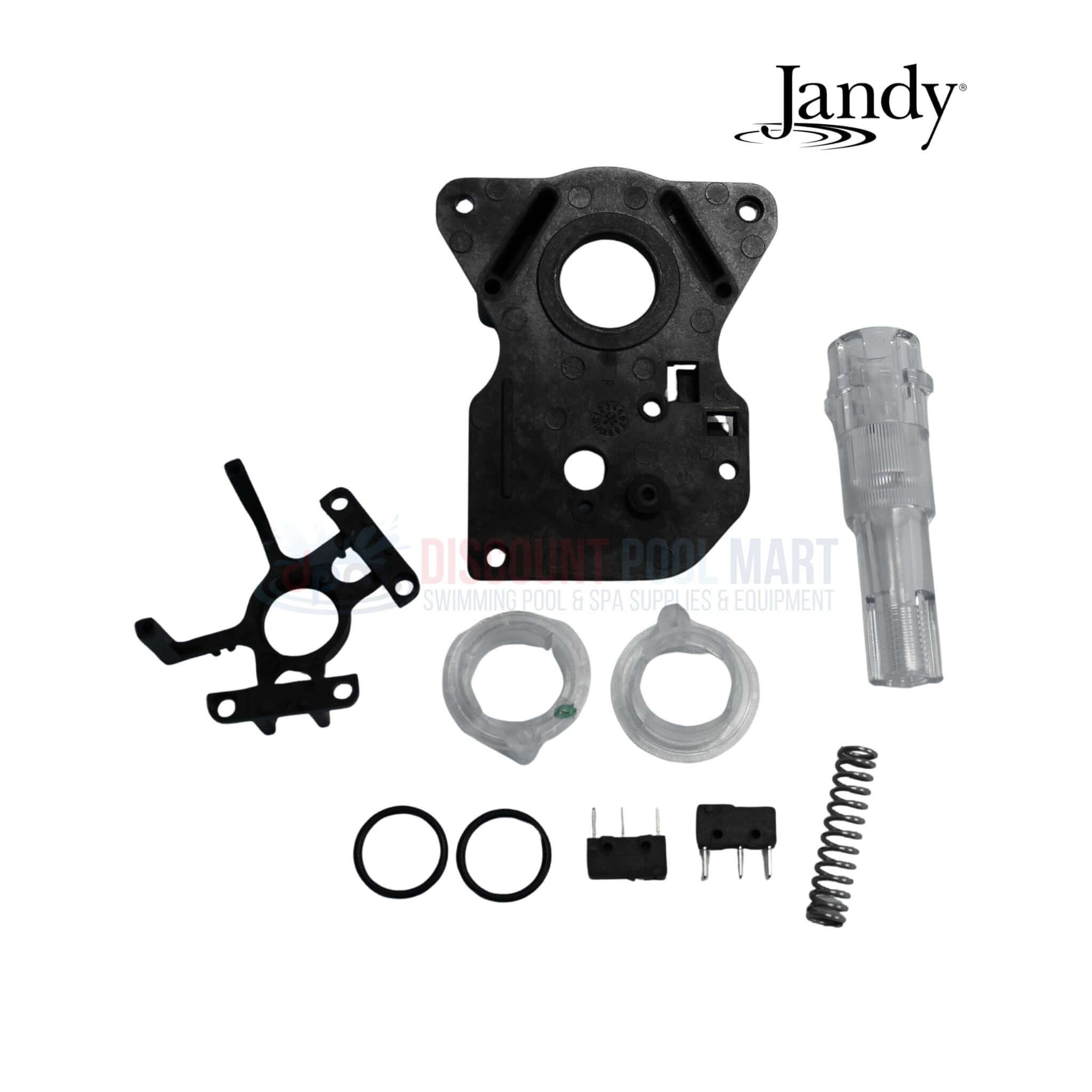

Includes

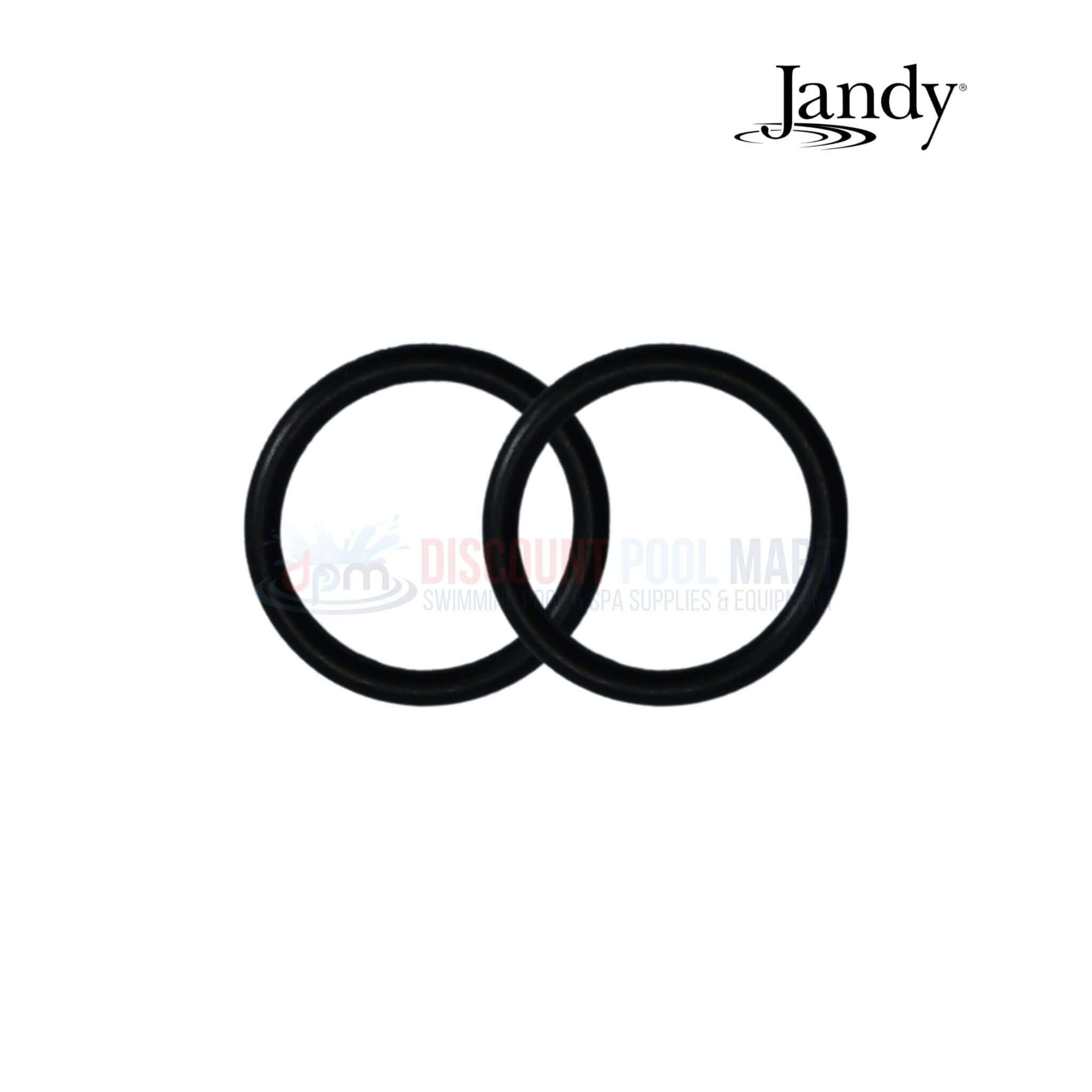

- (2) O-Rings

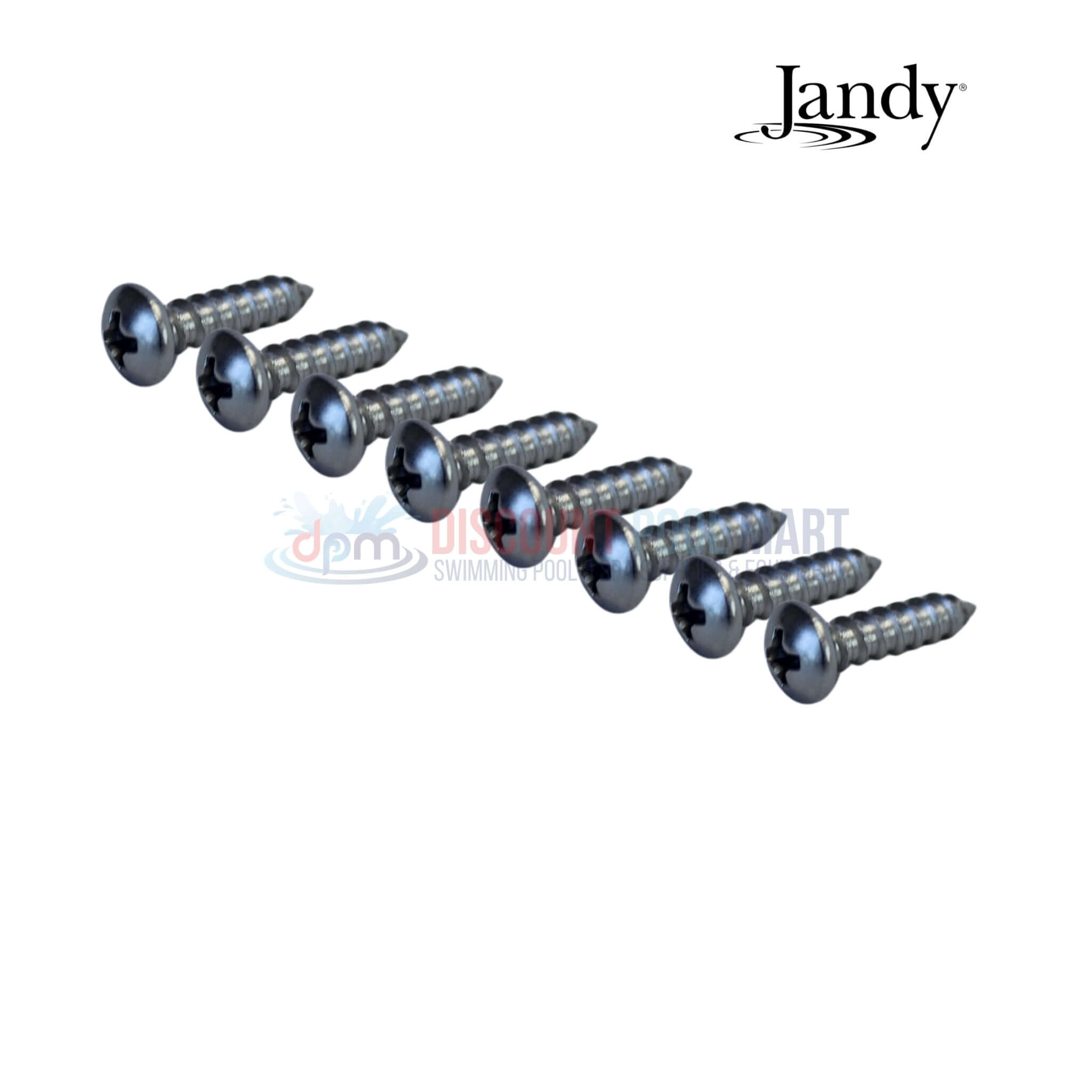

- (8) Screws

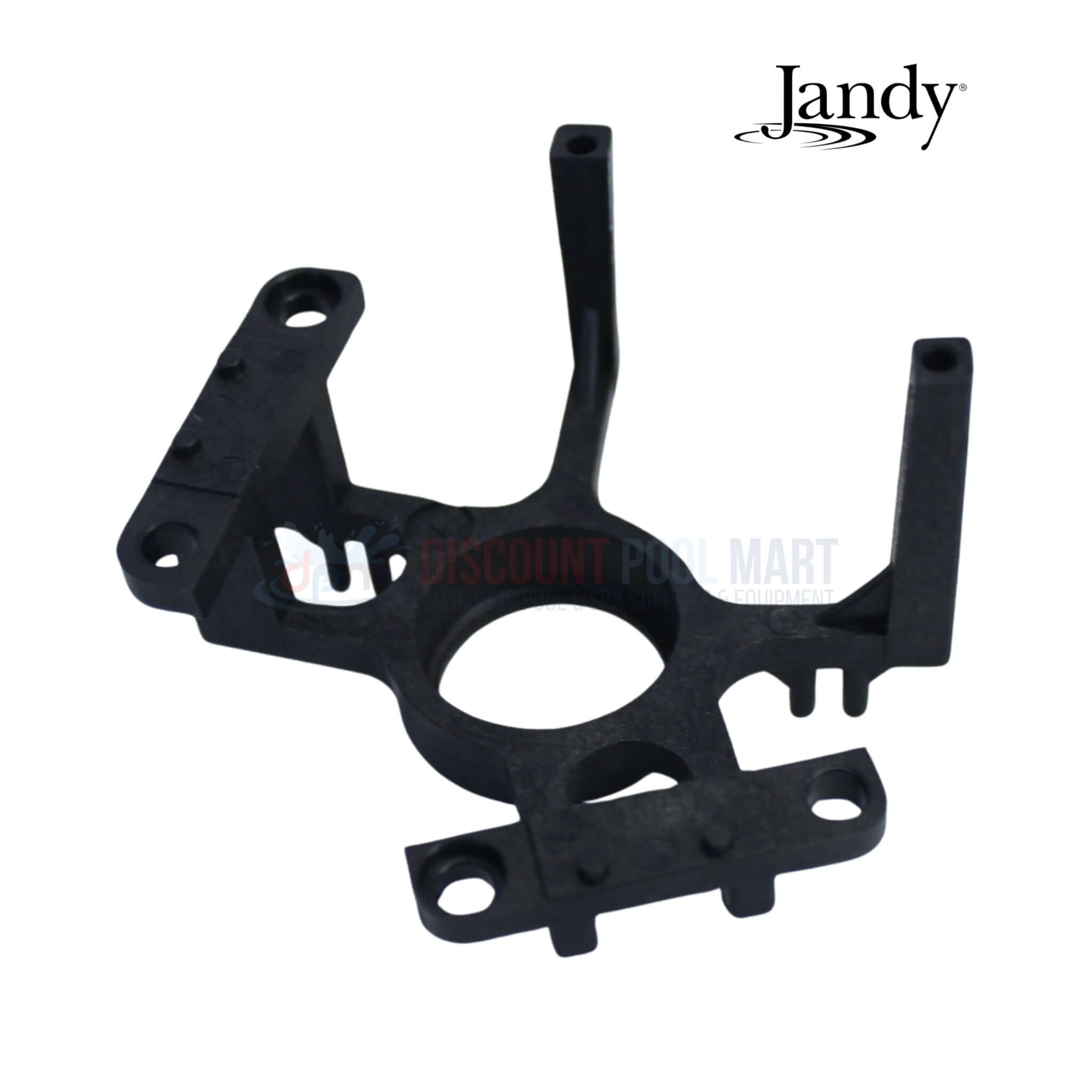

- (1) Bridge

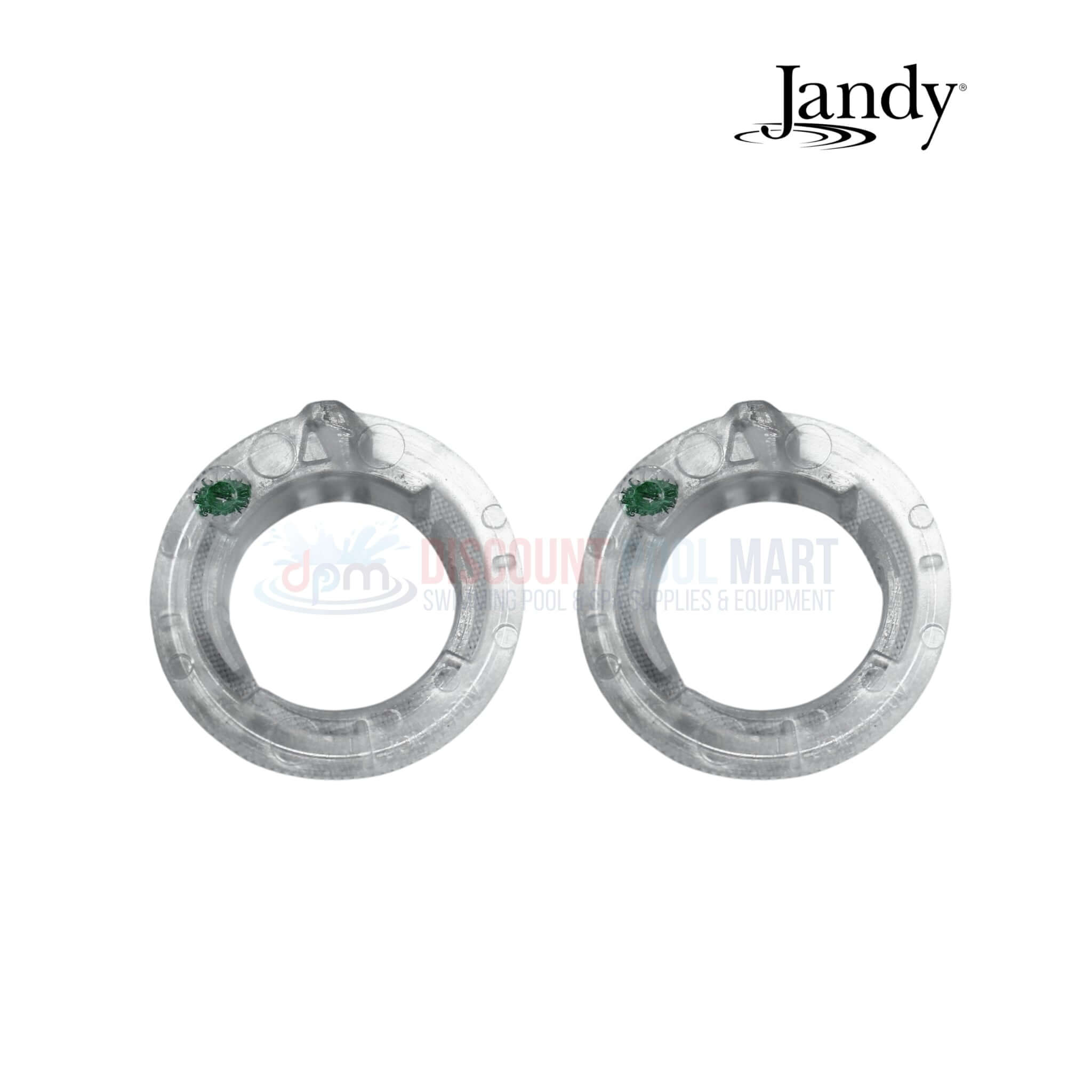

- (1) Clear Top Cam
- (1) Bottom Cam

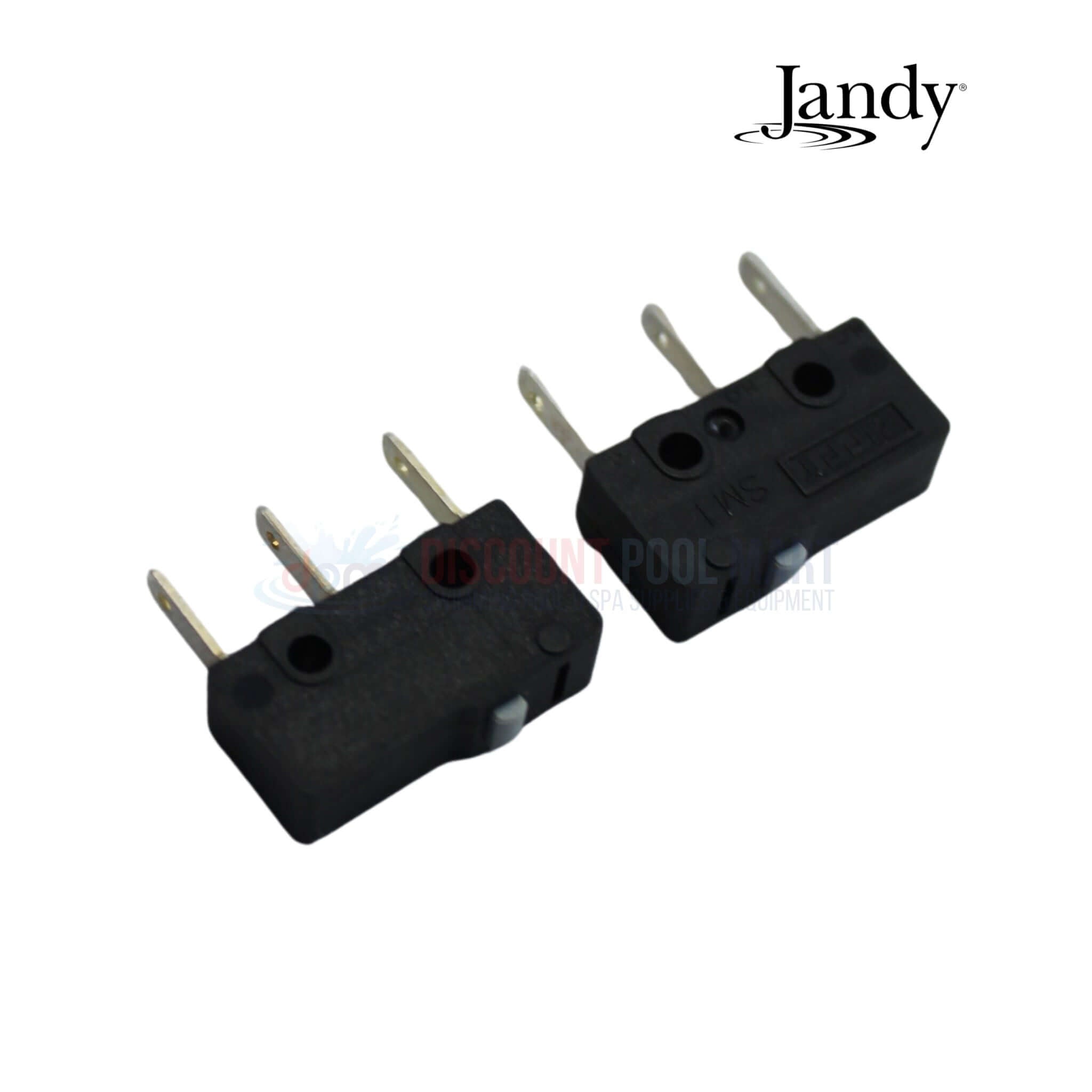

- (2) Microswitch

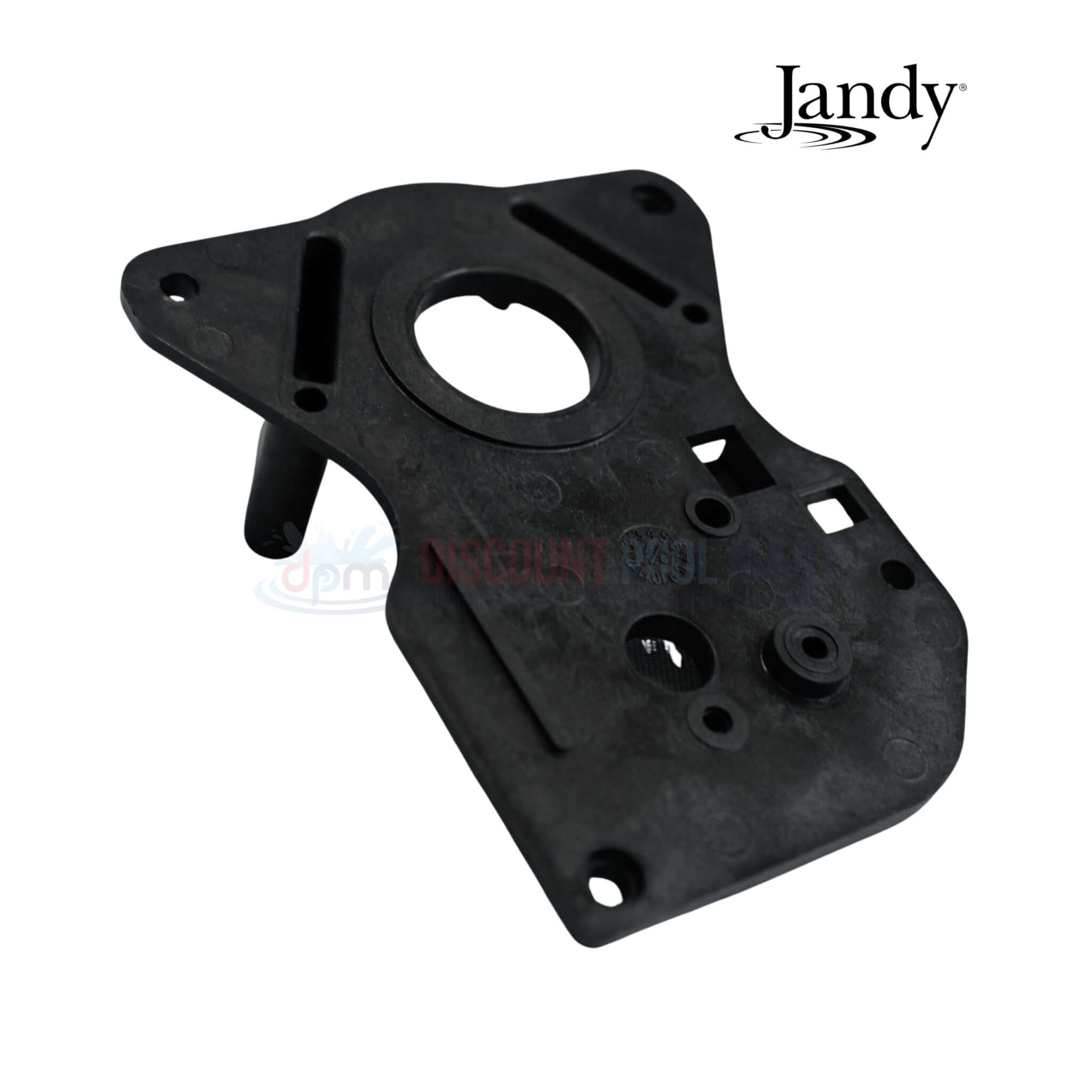

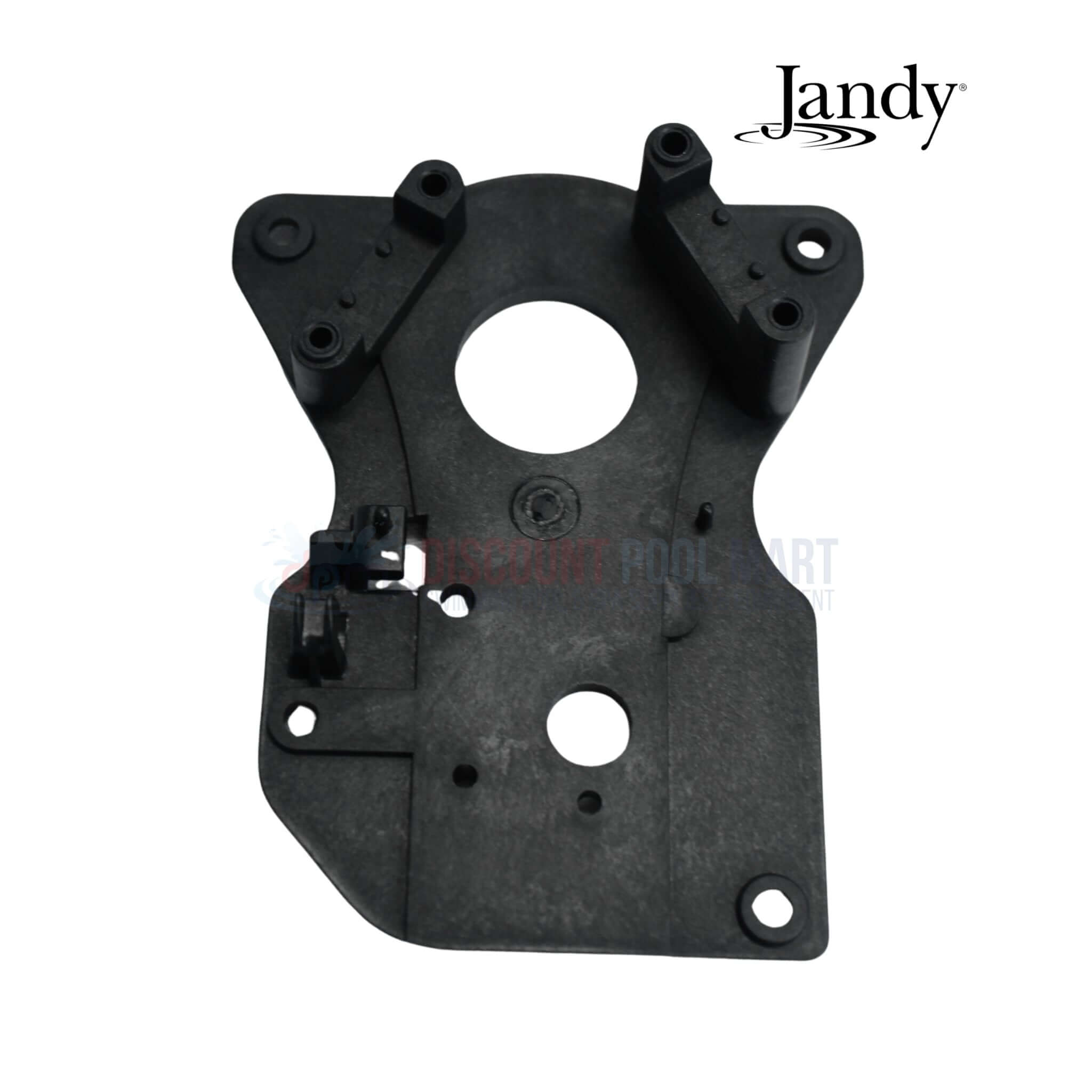

- (1) Center Plate

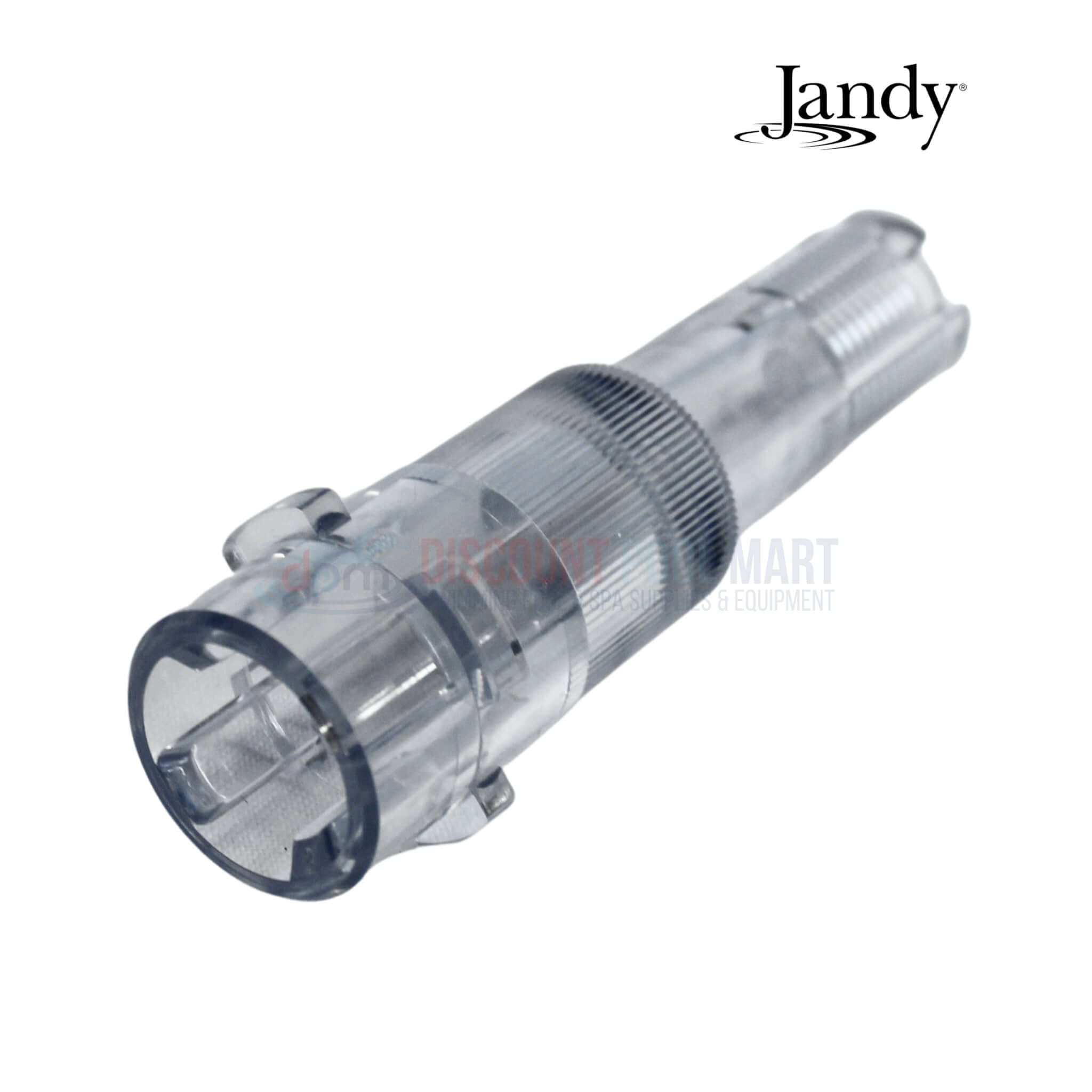

- (1) Threaded Output Shaft

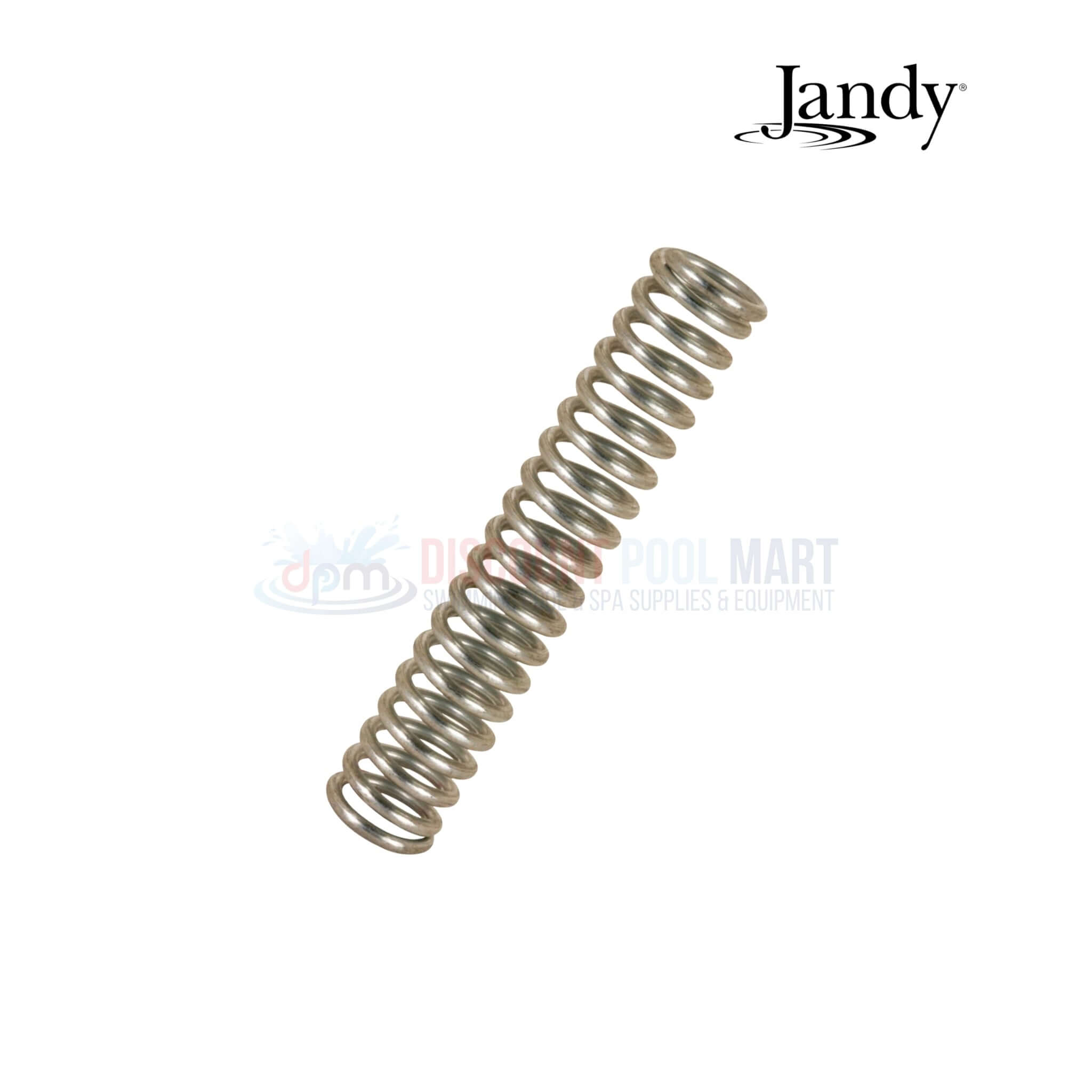

- (1) Spring
Compatibility
- Jandy Zodiac Pro Series JVA 2444 Valve Actuators
- Jandy Zodiac Pro Series JVA 4424 Valve Actuators
Additional Info
Need help repairing or rebuilding your Jandy valve actuator? The Jandy Center Plate Kit R0408700 provides all the parts required to restore full function to JVA models 2444 and 4424. This section covers installation guidance, compatibility, and in-store replacement details for Discount Pool Mart customers.
Installing the Jandy R0408700 Center Plate Kit
This kit includes cams, microswitches, O-rings, and hardware for complete actuator restoration. Carefully remove the actuator cover and replace components in the same orientation to maintain proper valve indexing.
How to install the Jandy R0408700 kit in a JVA 2444 or 4424 actuator
What tools are needed to rebuild a Jandy actuator using kit R0408700
Can I buy the Jandy R0408700 Center Plate Kit in-store at Discount Pool Mart
How to align the new cams when replacing the actuator plate
Do I need to reset the valve actuator after installing the R0408700 kit
Compatibility and Function
The R0408700 rebuild kit fits Jandy/JVA actuators used on 24V automation systems. It replaces worn or damaged internal parts, restoring rotation accuracy and microswitch timing.
Which Jandy actuator models are compatible with R0408700
Can R0408700 be used for other Zodiac or JVA actuators
How to confirm if my Jandy actuator needs a new center plate kit
What symptoms indicate misalignment or cam wear
Does Discount Pool Mart carry complete Jandy actuators if the rebuild fails
Maintenance and Service Tips
Regular inspection of actuator components can prevent valve misalignment and system errors. Using genuine OEM parts ensures durability and accurate operation.
How often should I rebuild a Jandy valve actuator with R0408700
How to clean the internal actuator housing before reassembly
Should I lubricate O-rings when installing the R0408700 kit
How to test actuator function after rebuilding
Discount Pool Mart support for Jandy automation and replacement parts
