Pentair Vacuum Skirt For Great White Cleaners | GW9508

$18.99
$27.99 $18.99
-$9.00
Brand: Pentair
SKU: GW9508
Collections:

CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

Found In These Collections

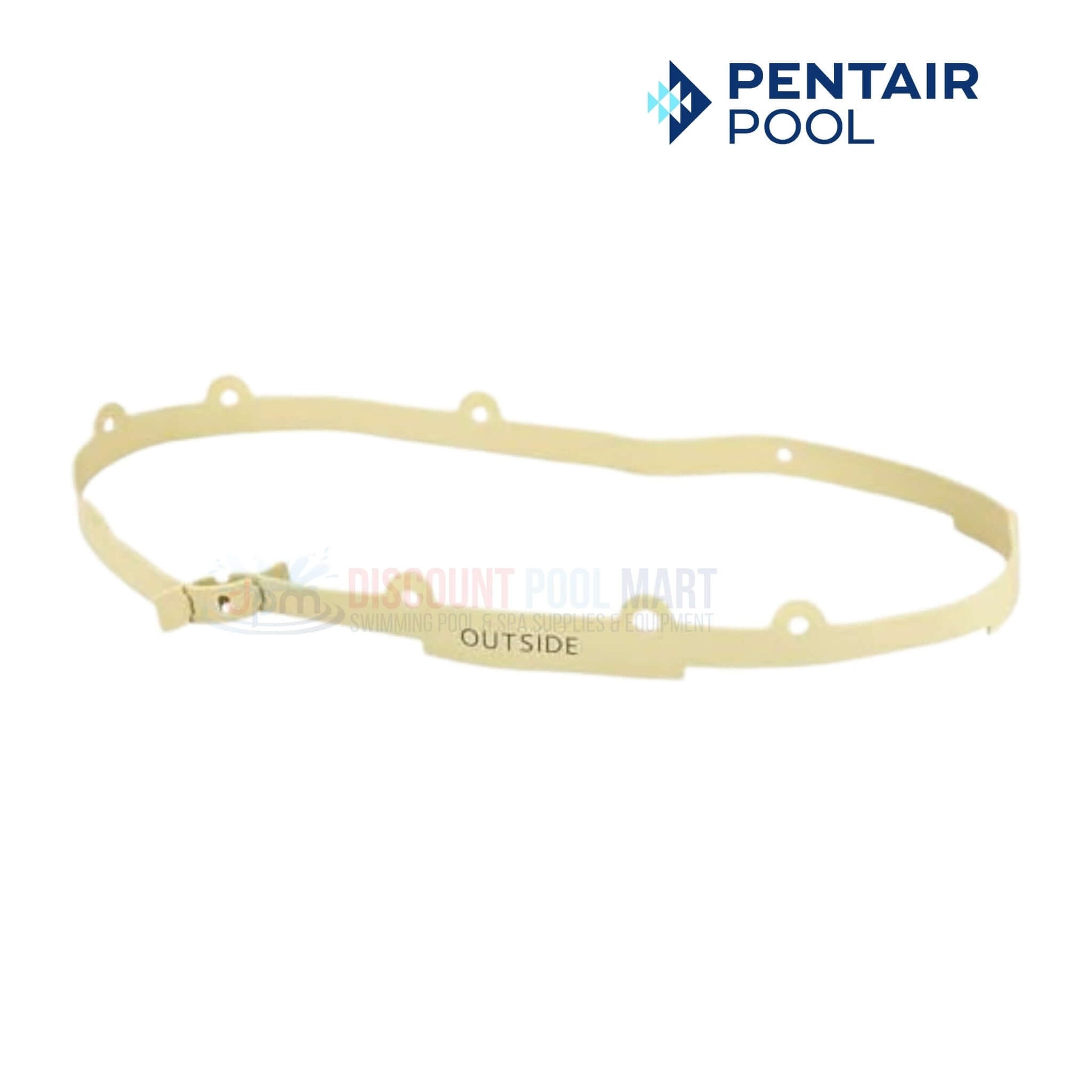

The OEM Pentair GW9508 Vacuum Skirt is a replacement part designed for the Pentair Kreepy Krauly Great White and Dorado pool cleaners. This vacuum skirt is essential for maintaining the cleaner's traction and stability as it moves across the pool surface. It aids the brush ring kit by providing support while the brush agitates to clean algae and dirt from the pool. The skirt also acts as a protective cover for the cleaner's lower body, reducing wear and potential damage. Made from high-quality rubberized plastic, this OEM part ensures durability and long-lasting performance. It's designed to fit around the lower body of the cleaner and attaches securely to the built-in tabs. Regular replacement of this part is recommended to maintain the optimal performance of your pool cleaner.

Highlights

  • Maintains Traction and Stability: Essential for ensuring the cleaner's stability as it moves across the pool surface, enhancing its cleaning efficiency.

  • Supports Brush Ring Kit: Works in conjunction with the brush ring kit, aiding in the agitation of algae and dirt for thorough cleaning.

  • Protective Cover: Acts as a protective layer for the cleaner's lower body, reducing wear and potential damage over time.

  • Durable Construction: Made from high-quality rubberized plastic, ensuring durability and long-lasting performance in demanding pool environments.

  • Easy Installation: Fits around the lower body of the cleaner and attaches securely to built-in tabs, making replacement straightforward and hassle-free.

Includes

  • (1) Pentair GW9508 Vacuum Skirt

Instructions

1. Put both white seals in the oscillator; hold them in place.
2. Install the oscillator on the long gear shaft. Install the ratchet gear on the shaft so that the teeth engage the ratchet on the oscillator. Install the spring, ratchet drum, pinion gear (large gear first), and cam (gear end first) on the shaft (See Figure 19). Hold the gears on the shaft while installing them, and compress the clutch spring to allow assembly to slip into place between the posts (See Figure 19).
3. Install the long gear shaft and end blocks in the cleaning head with the large arm of the cam down (see Figure 20).
4. Reinstall the short gear shaft and two gears (See Figure 21); the small pinion gears and the shaft pin go on the side toward the
end of the cleaneraway from the oscillator box. Make sure that the gears engage the gears on the long gear shaft.
5. Install the oscillator chamber cap and clip it in place.
6. Install the rubber vacuum skirt on the cleaner with the word ‘OUTSIDE’ showing. Start at the large pin on the back of the cleaner head (see Figure 22) and work around the cleaner. Make sure the skirt is flush against the stop strips on the cleaner head (see Figure 23).
7. Turn the cleaner over. If you removed the bumper and brush ring, replace them now.
8. Install the lower body assembly in the shroud. Fasten the cleaning head in place with 4 screws (2 long, 2 short – see Figure 24).
NOTE: Make sure that you do not dislodge the rubber vac skirt while inserting the lower body assembly past the brush ring

Compatibility

  • Pentair Cleaner Models: Great White and Dorado

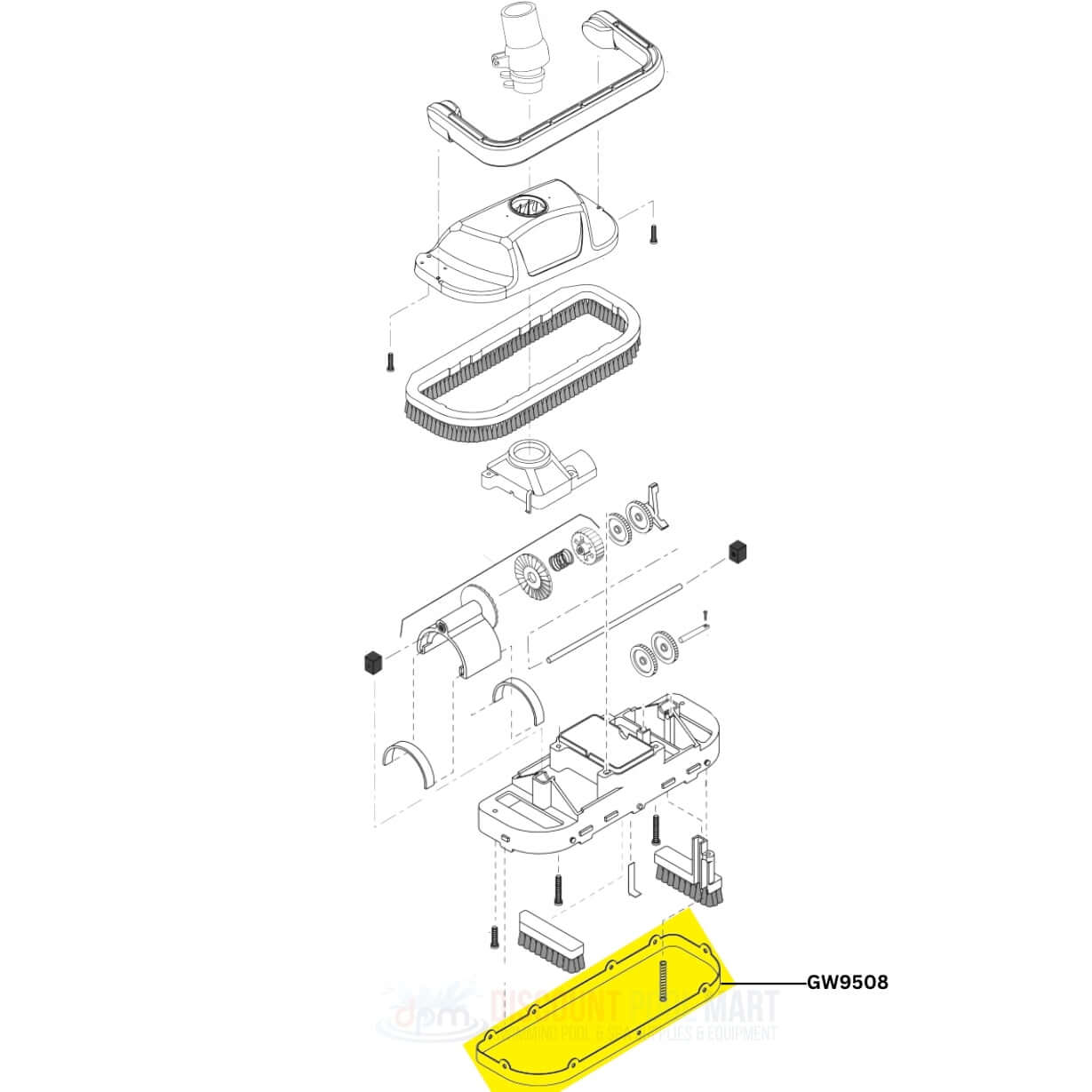

Diagram
