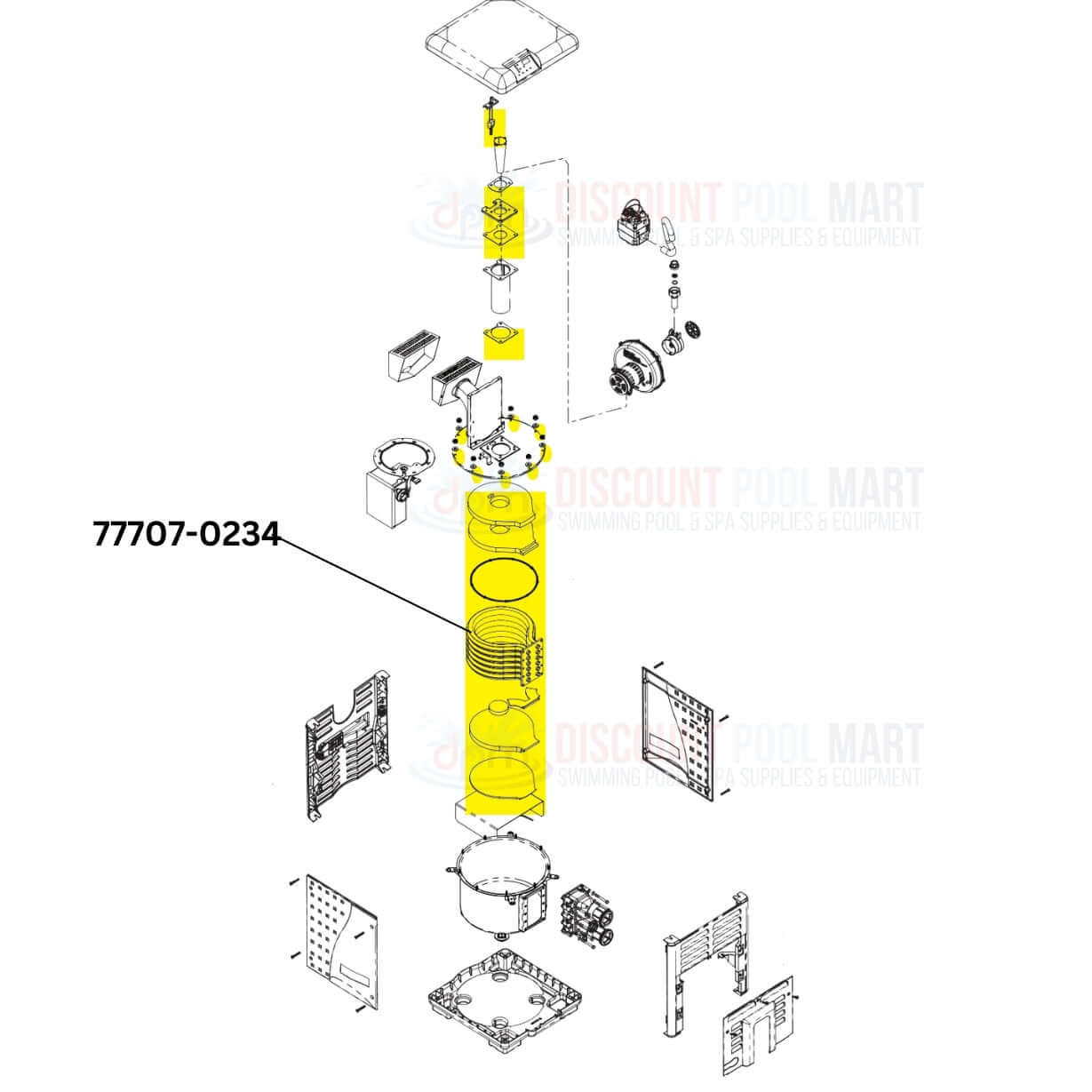

Pentair Tube Sheet Coil Assembly for MasterTemp And Max-E-Therm 400 Heaters | 77707-0234
Fits these models (2)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 11 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
The Pentair Tube Sheet Coil Assembly, model 77707-0234, is specifically designed for use with MasterTemp and Max-E-Therm 400 heaters. This high-quality component ensures efficient heat transfer and reliable performance, helping to maintain optimal water temperatures in your pool or spa. Constructed from durable materials, the assembly is engineered for longevity and easy installation, making it a vital part for keeping your heating system running smoothly.
- Specific Compatibility: Engineered specifically for use with MasterTemp and Max-E-Therm 400 heaters, ensuring a precise fit and optimal functionality.
- Efficient Heat Transfer: Guarantees efficient heat transfer and reliable performance, helping to maintain optimal water temperatures in your pool or spa.
- Durable Construction: Constructed from high-quality, durable materials, ensuring longevity and robust operation under demanding conditions.
- Easy Installation: Designed for easy installation, making it a convenient and essential component for maintaining your heating system.
- Vital for System Reliability: A crucial part of keeping your heating system running smoothly, contributing to the overall efficiency and performance of your pool or spa maintenance.

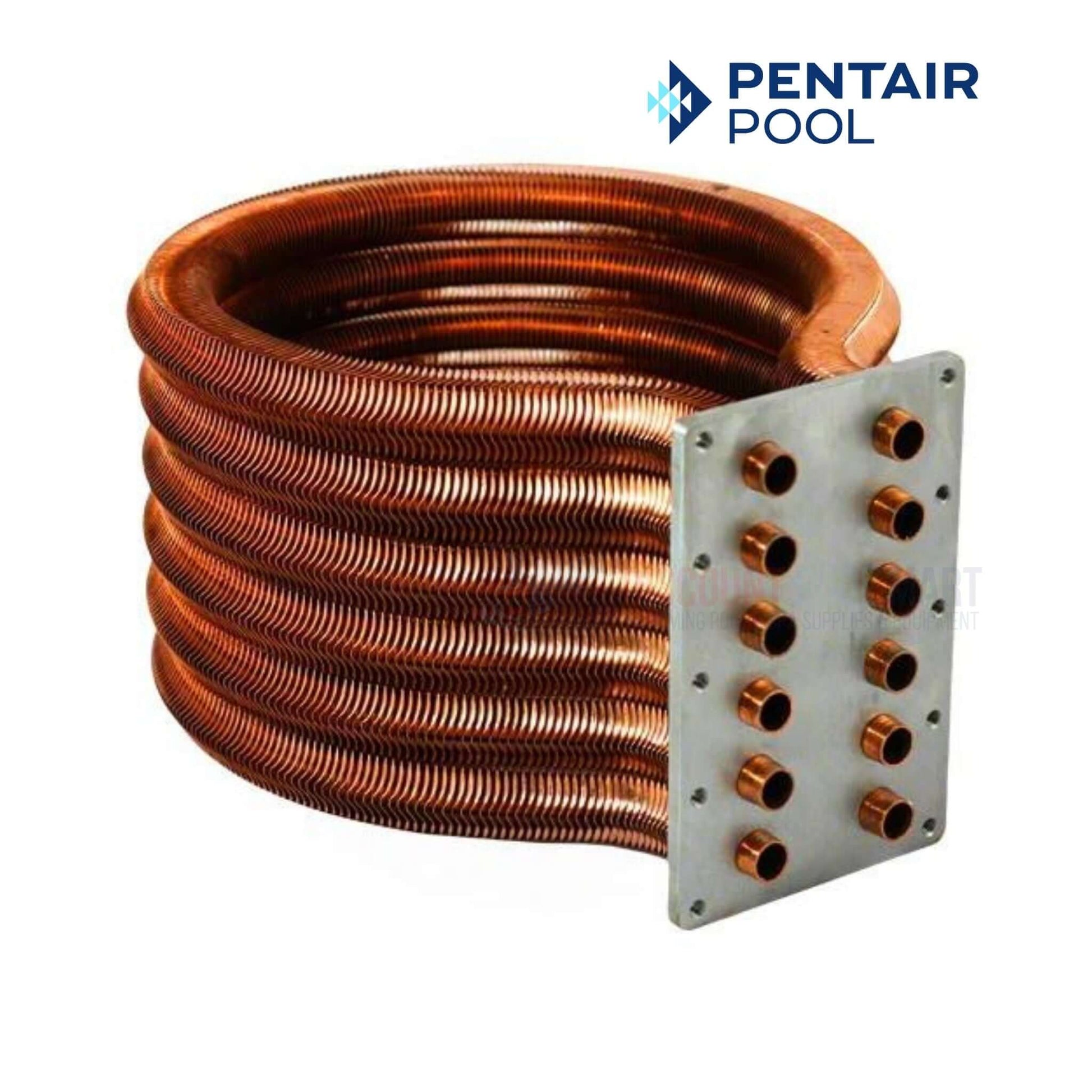

- (1) Pentair Tube Sheet Coil

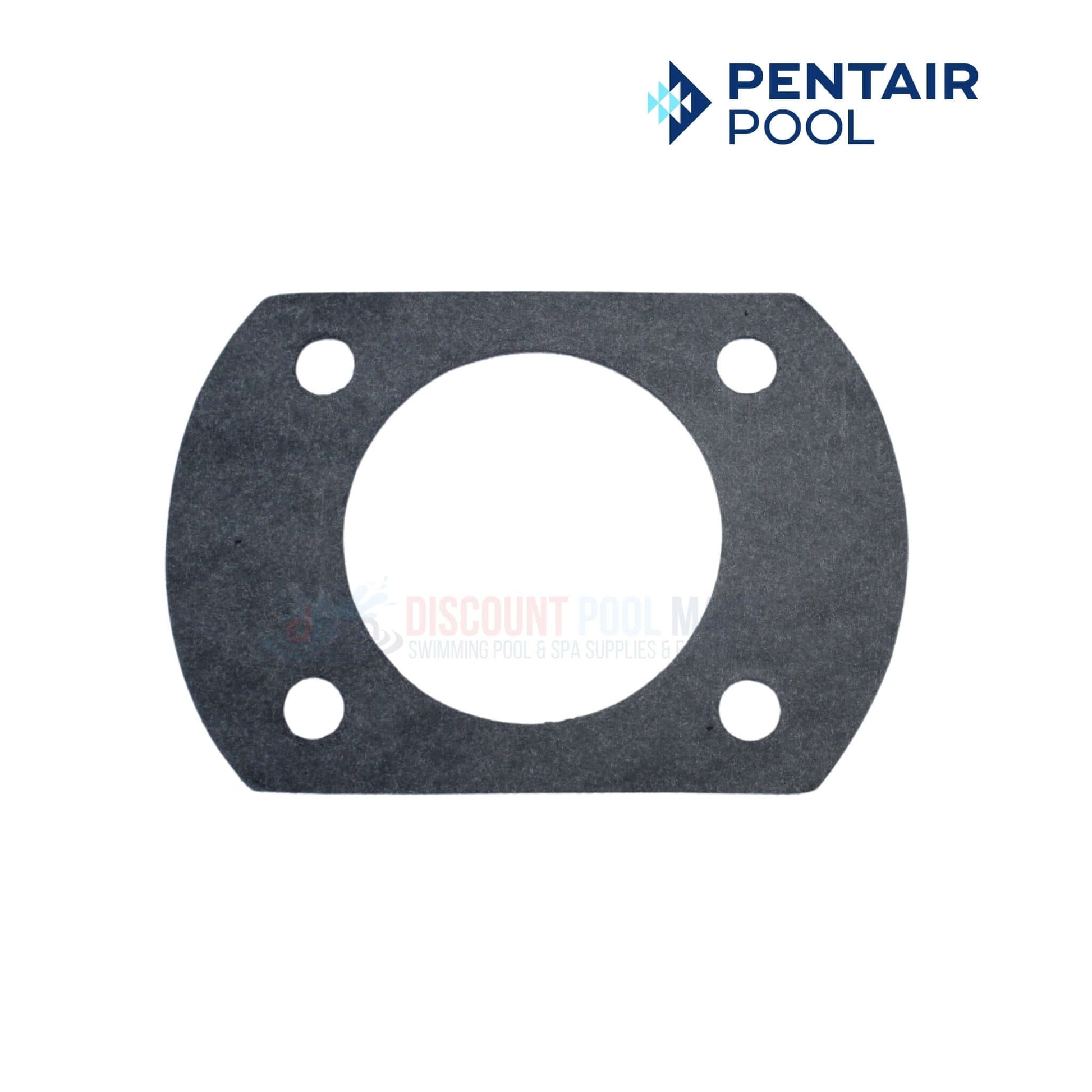

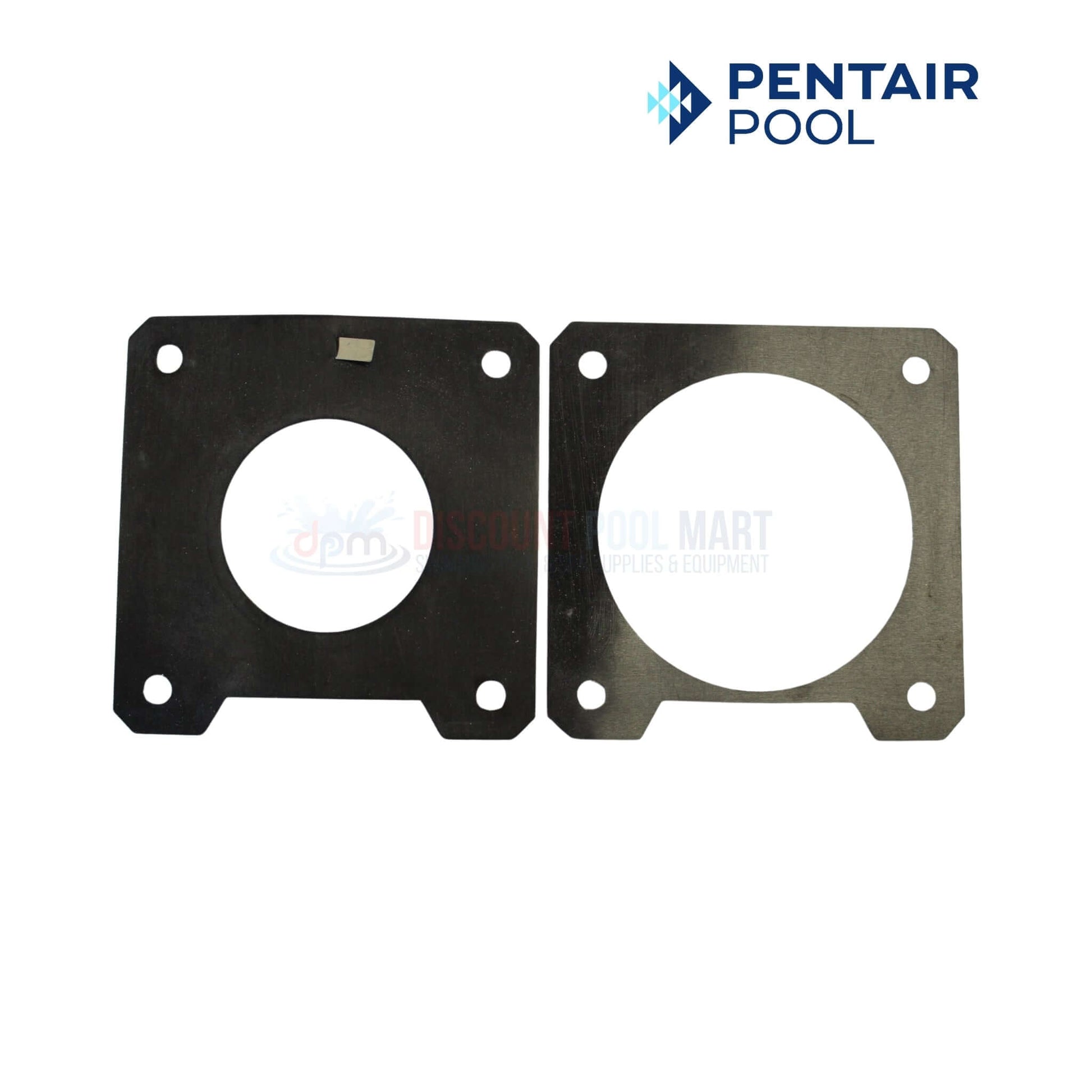

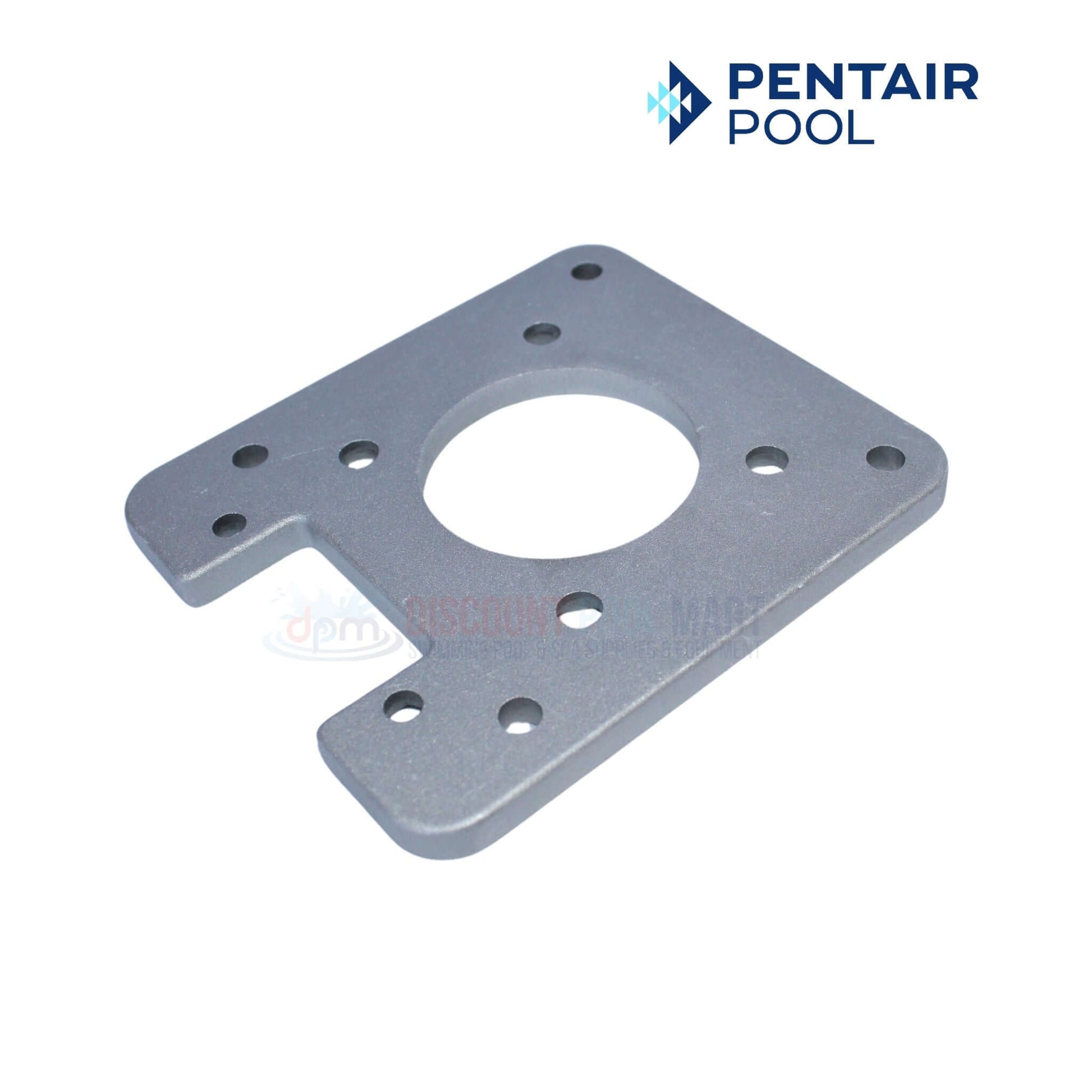

- (1) Pentair 77707-0011 Blower Adapter Plate Gasket Kit

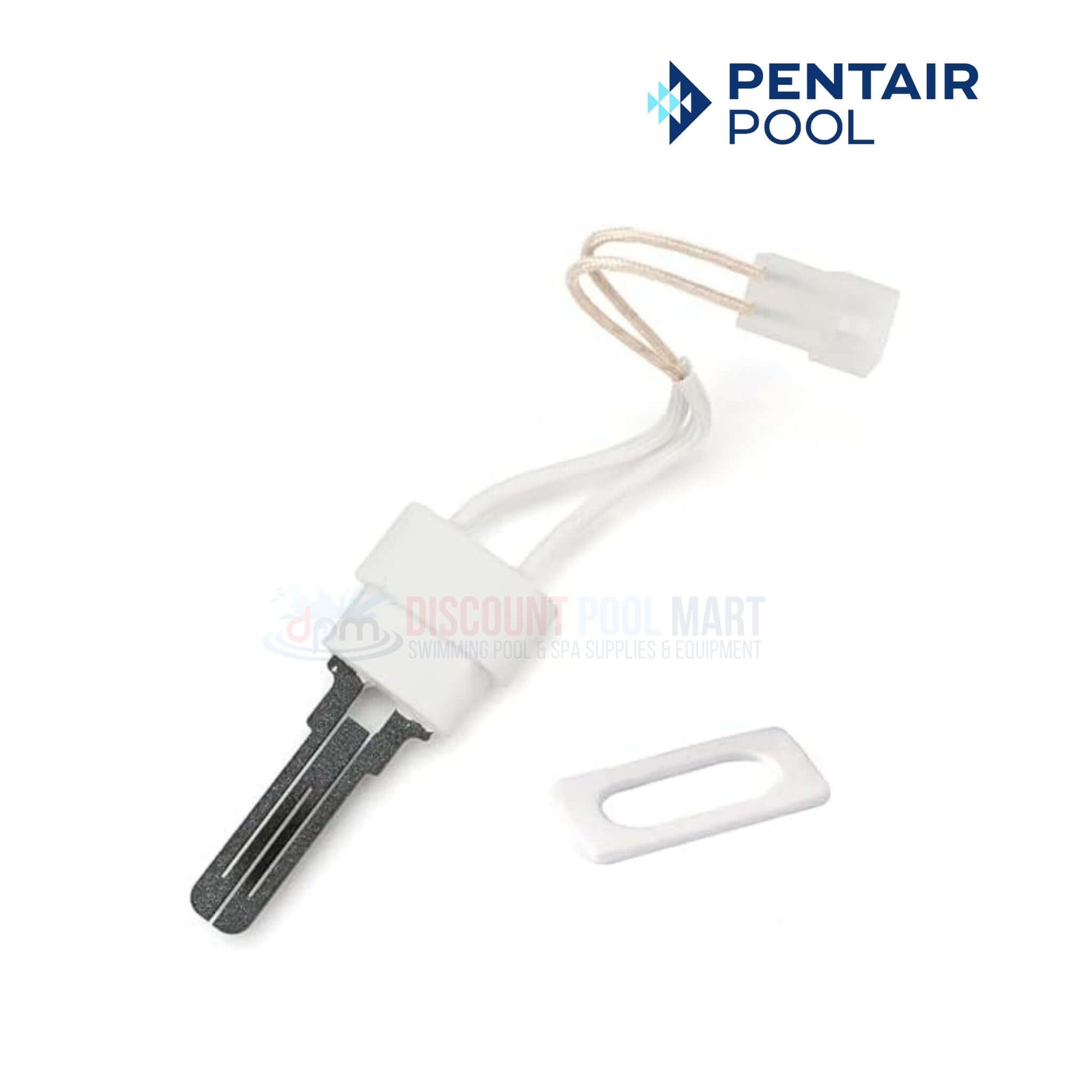

- (1) Pentair 77707-0054 Igniter and Gasket Kit

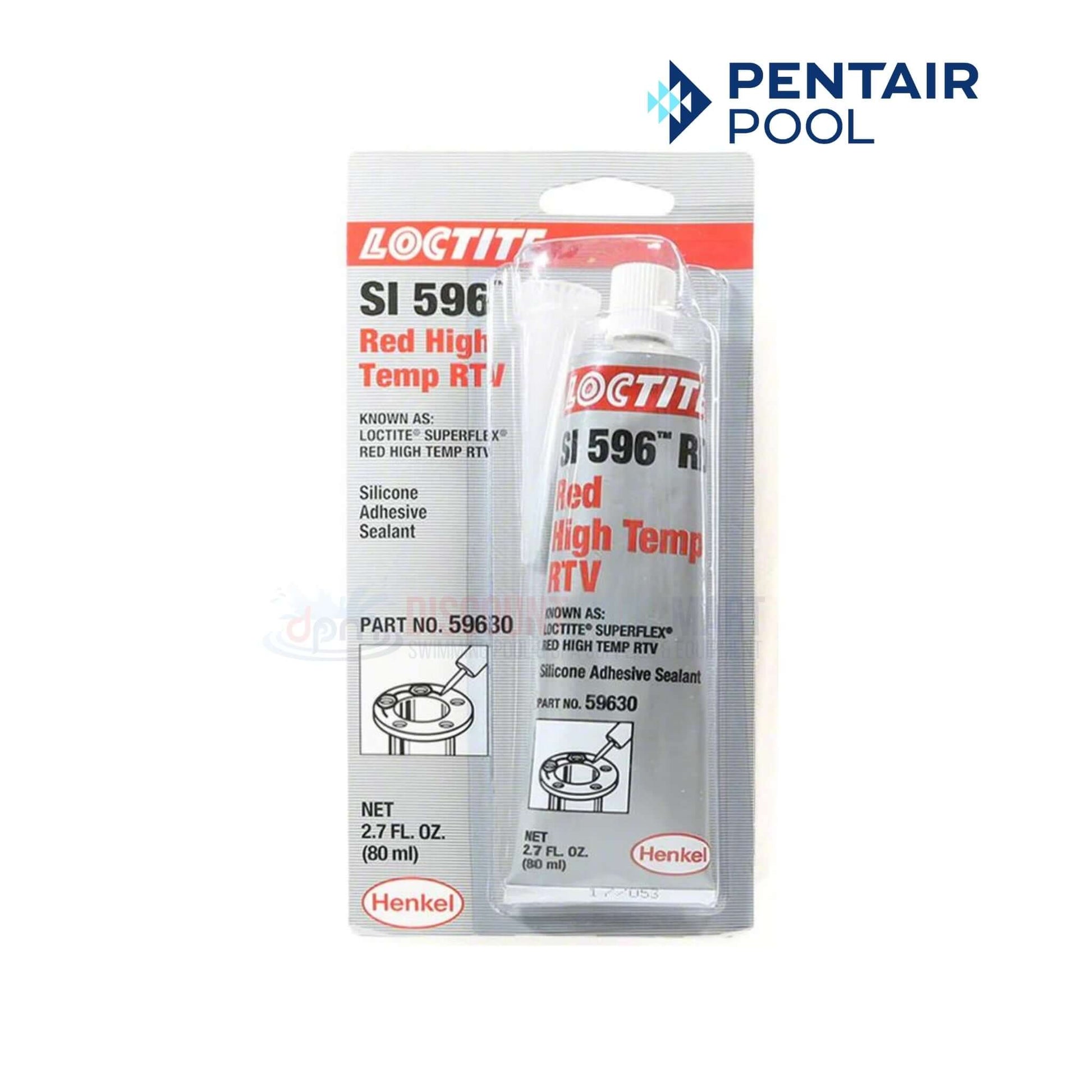

- (1) Pentair RTV Silicone

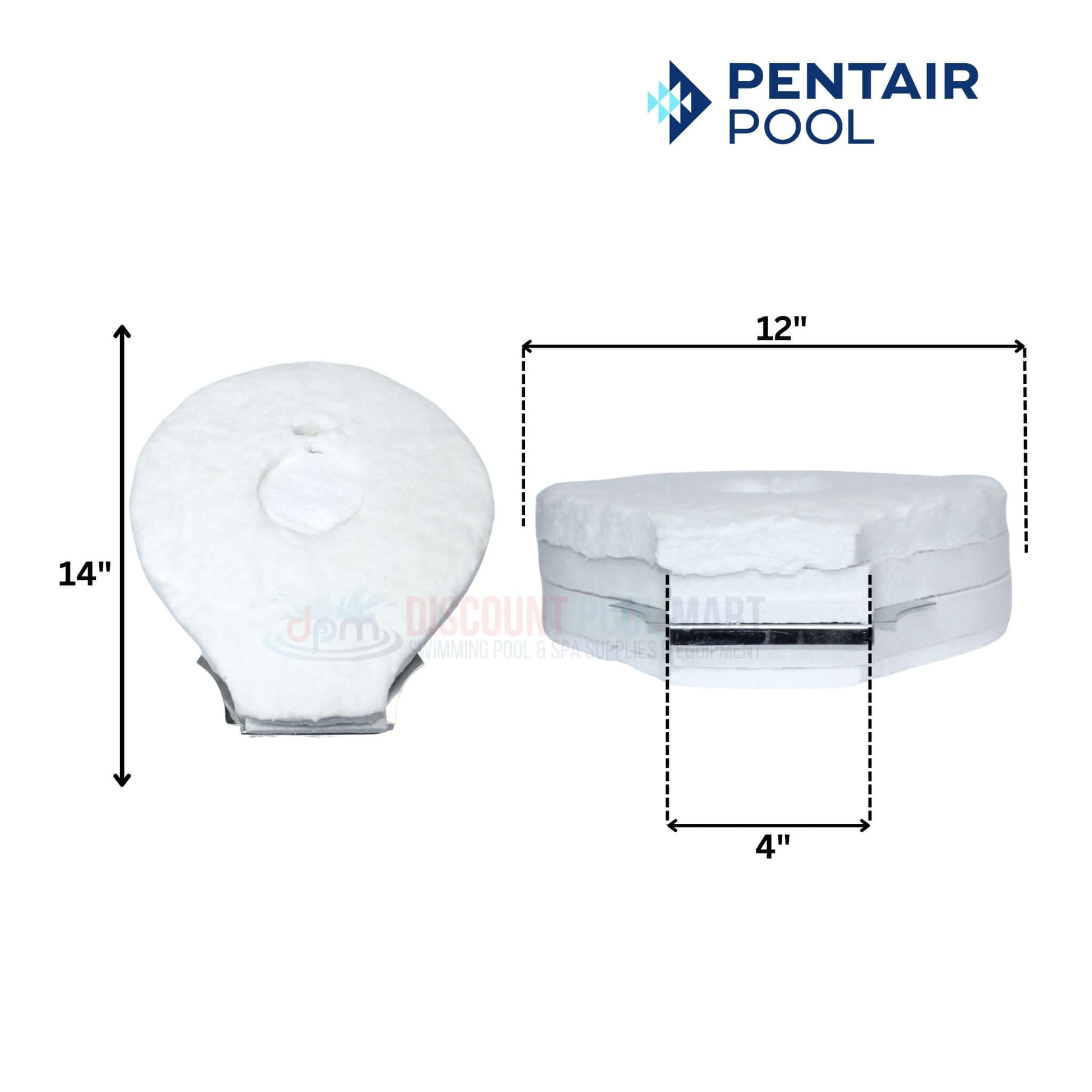

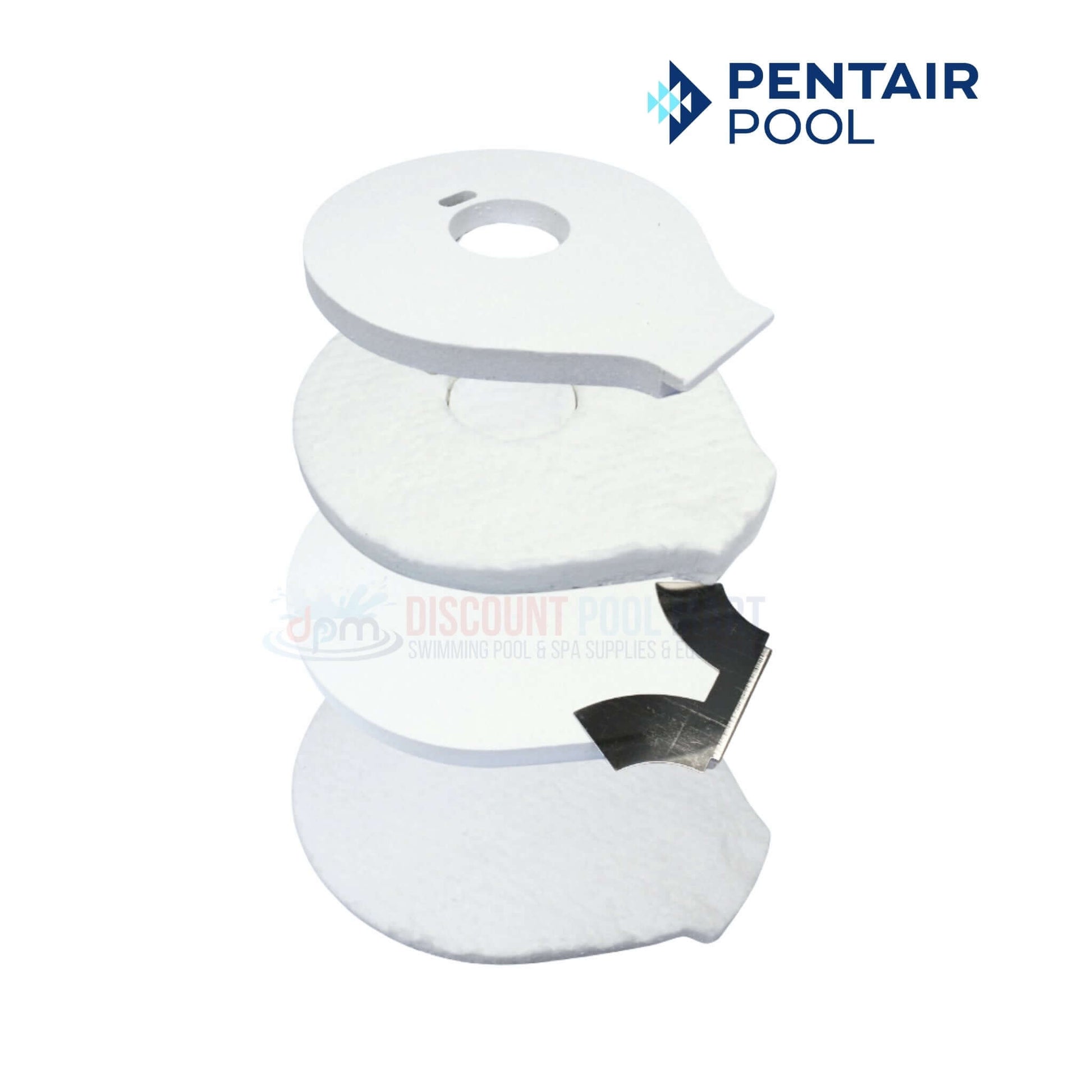

- (1) Pentair 77707-0008 Insulation Kit

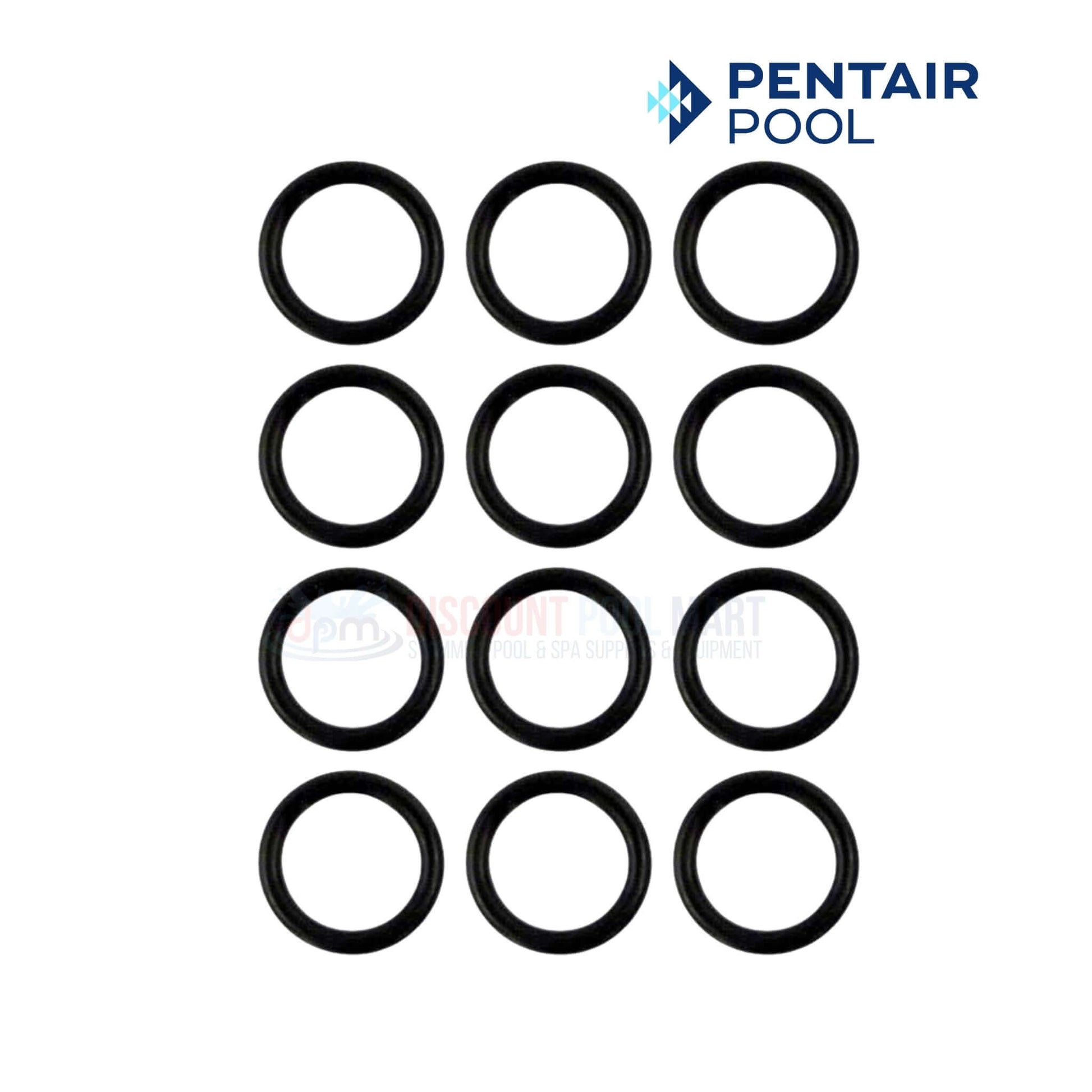

- (12) O-Rings
- Pentair MasterTemp Heaters Models: 400
- Pentair Sta-Rite Max-E-Therm Heater Models: 400
Note: For 400k BTU heaters manufactured before January 12, 2009
