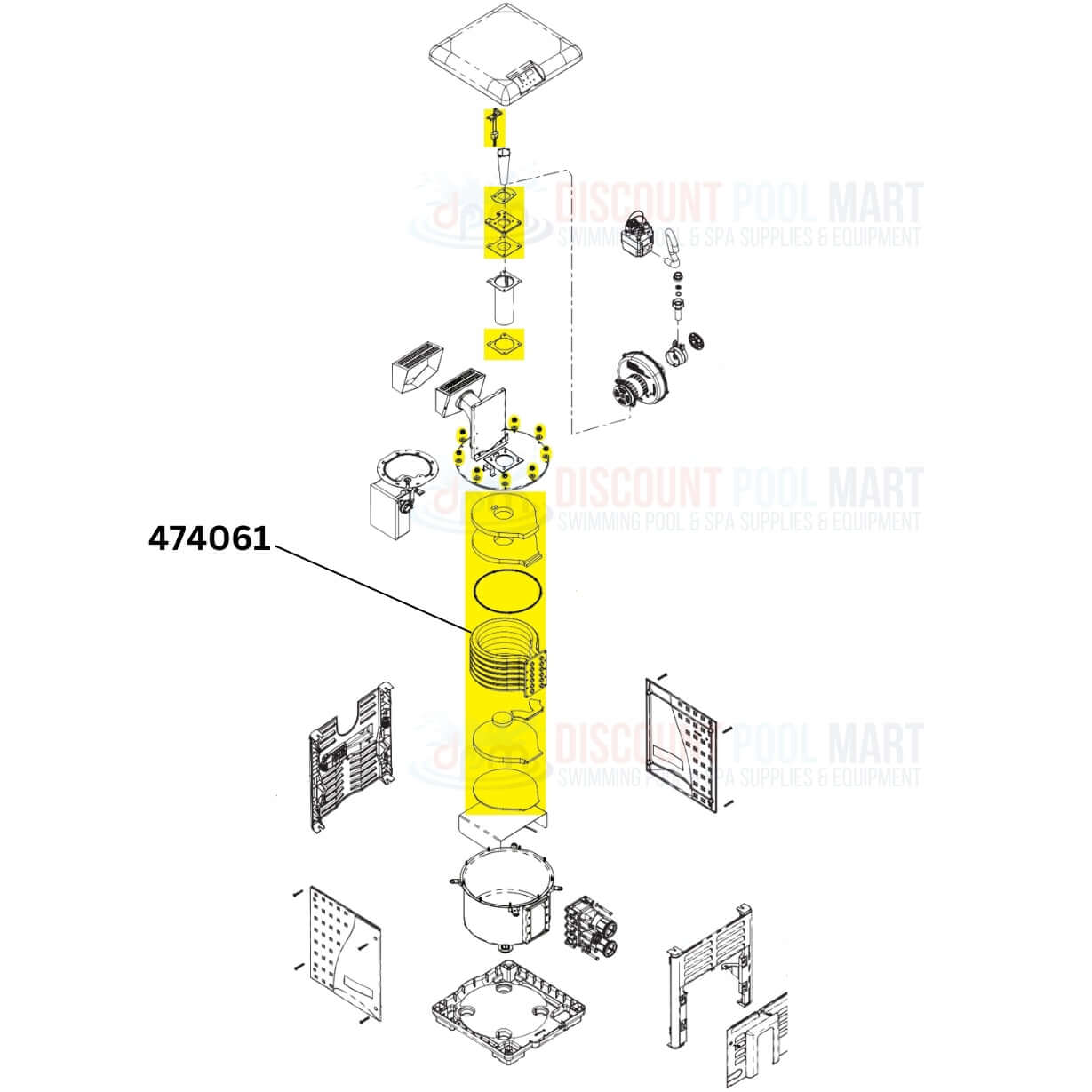

Pentair Tube Sheet Coil Assembly for MasterTemp And Max-E-Therm 400 Heaters | 474061
Fits these models (2)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 16 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

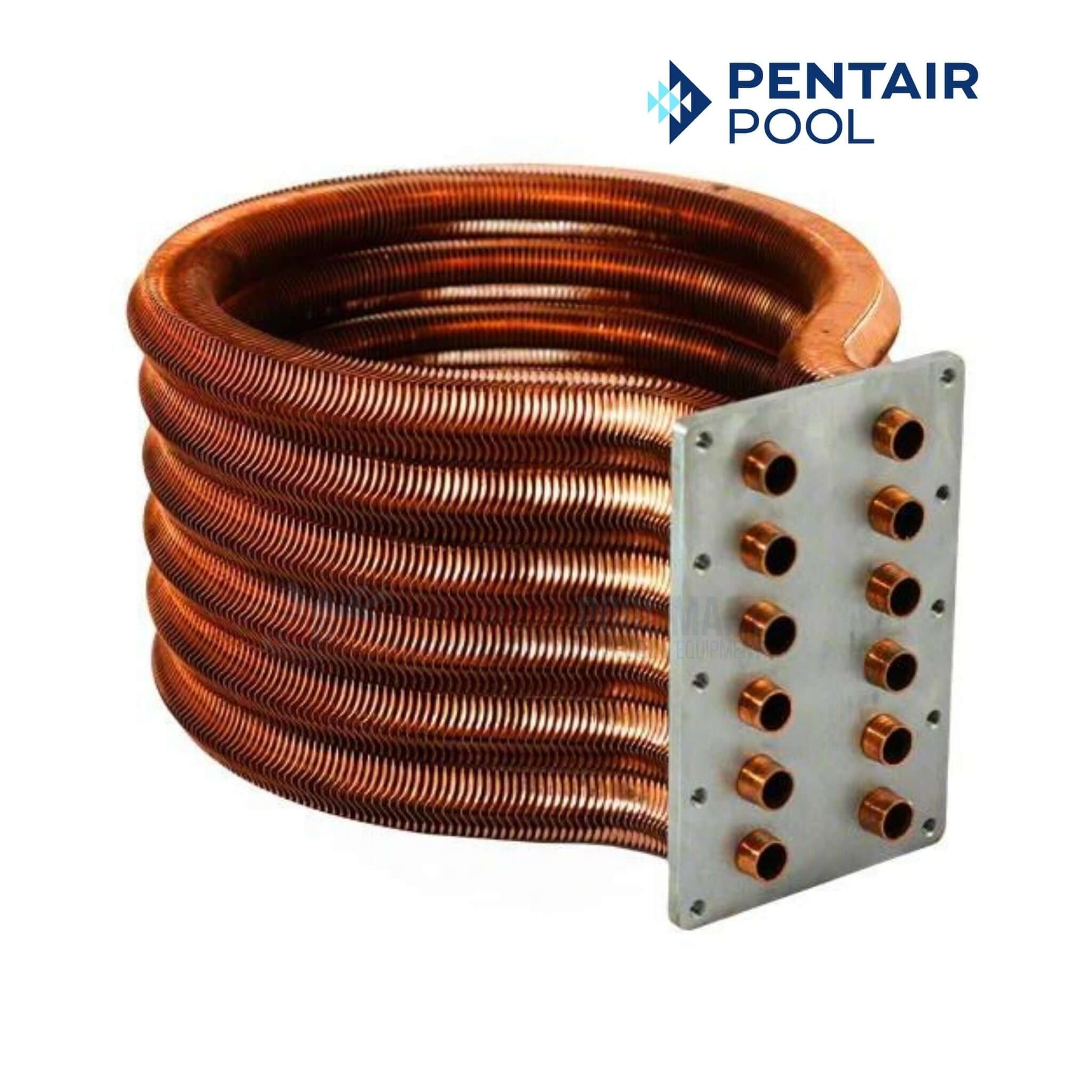

The Pentair Tube Sheet Coil Assembly, model 474061, is designed for use with MasterTemp and Max-E-Therm 400 heaters. This essential component facilitates highly efficient heat transfer, ensuring your pool or spa maintains optimal water temperature. Built from robust and durable materials, it promises long-lasting performance and reliability. Easy to install, the coil assembly is key to keeping your heating system functioning smoothly and effectively.
- Designed for 400 Heaters: Specifically created for use with MasterTemp and Max-E-Therm 400 heaters, ensuring precise compatibility and optimal performance.
- Highly Efficient Heat Transfer: Facilitates highly efficient heat transfer, helping to maintain optimal water temperatures in your pool or spa.
- Robust and Durable: Built from robust and durable materials, promising long-lasting performance and dependable reliability.
- Easy Installation: Designed for straightforward installation, making it a convenient and essential component for your heating system.
- Key for Smooth Operation: Essential for keeping your heating system functioning smoothly and effectively, ensuring consistent and efficient performance.
- (1) Pentair Tube Sheet Coil

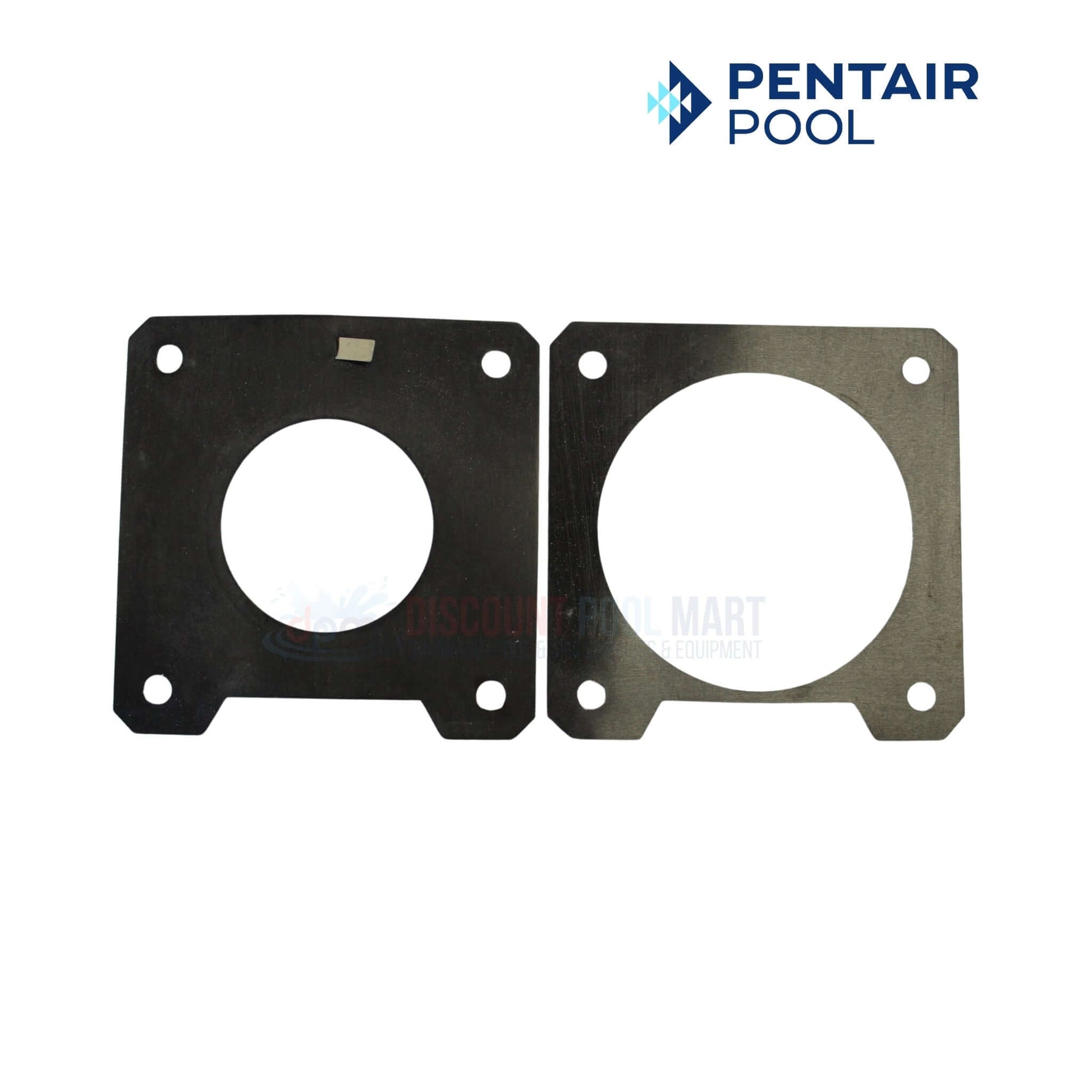

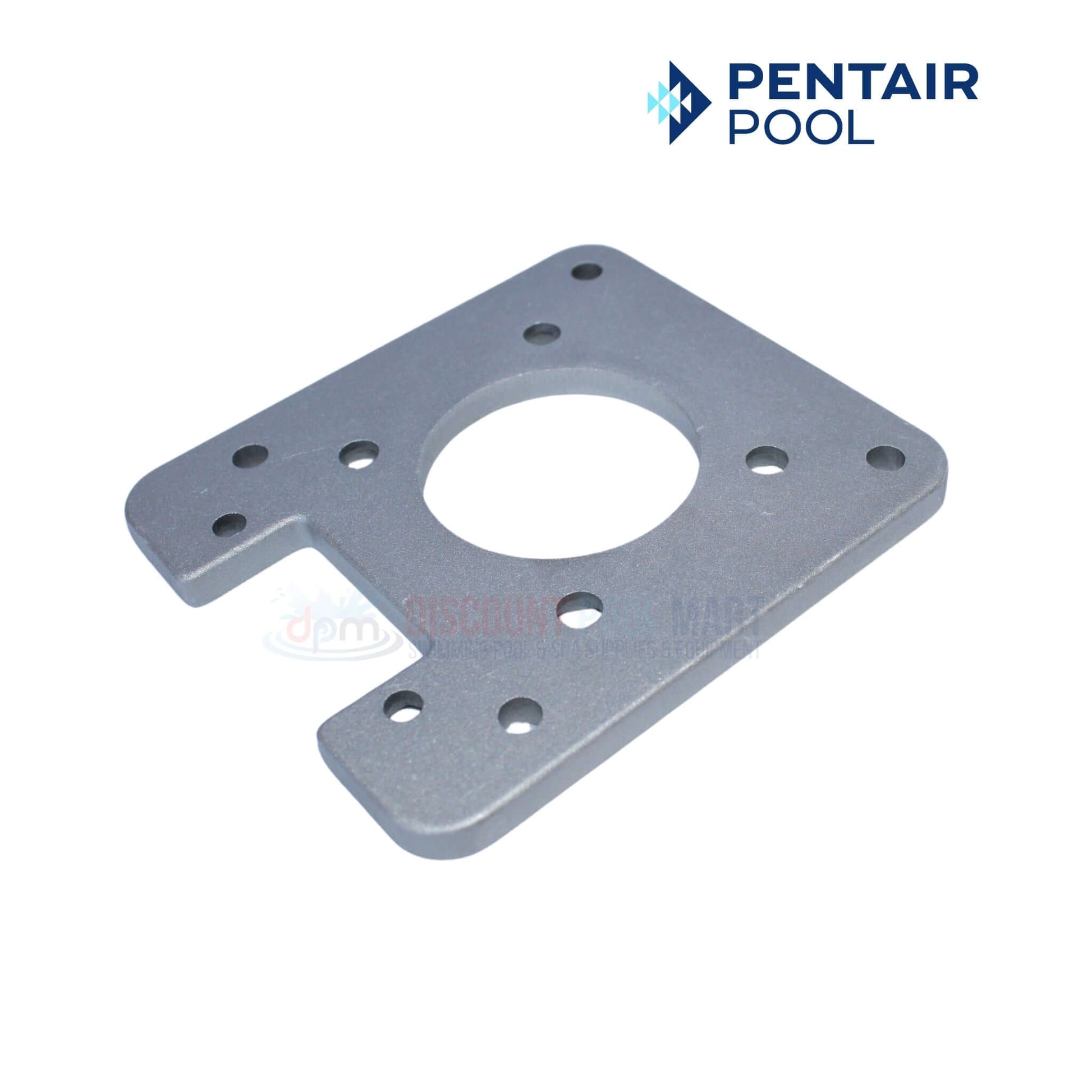

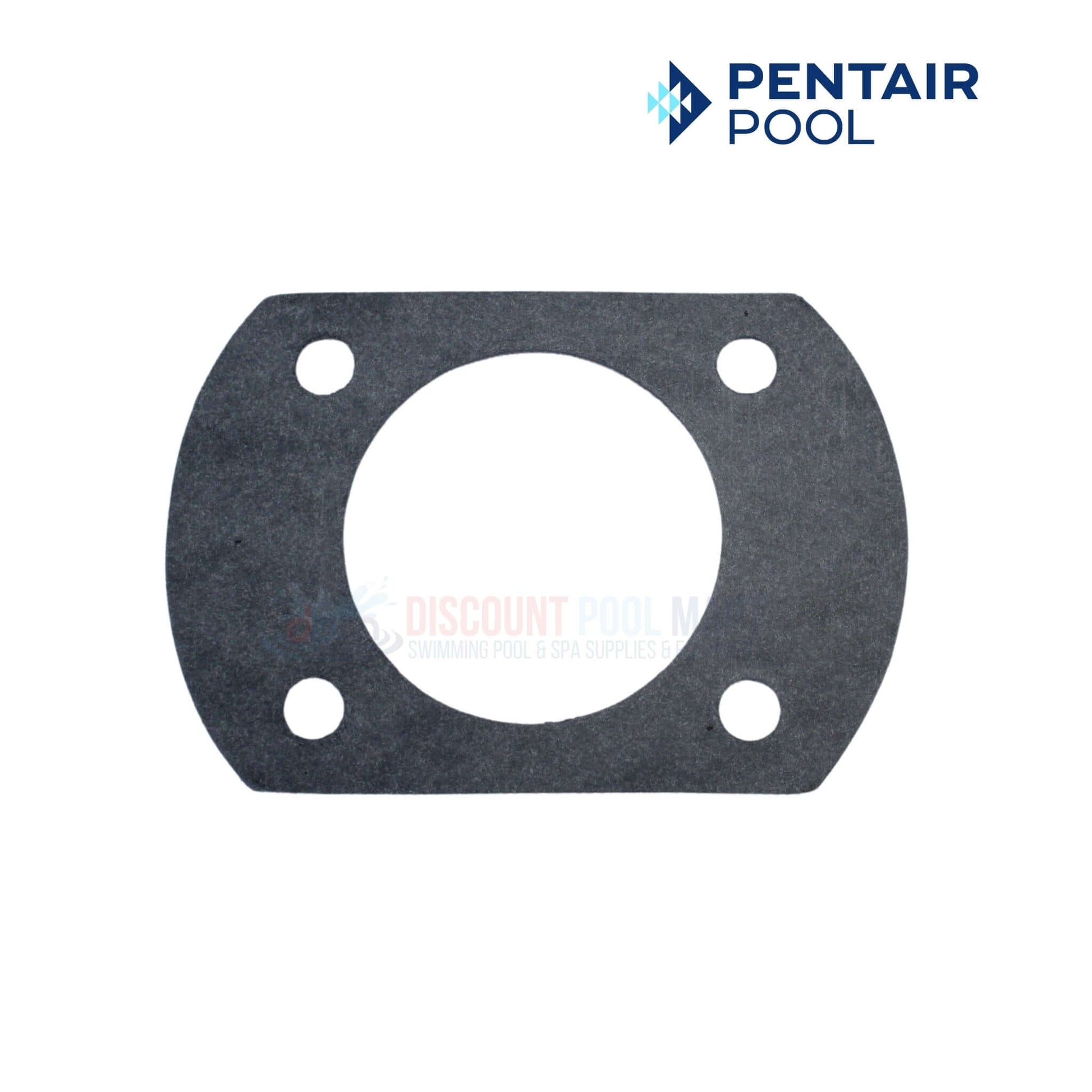

- (1) Pentair 77707-0011 Blower Adapter Plate Gasket Kit

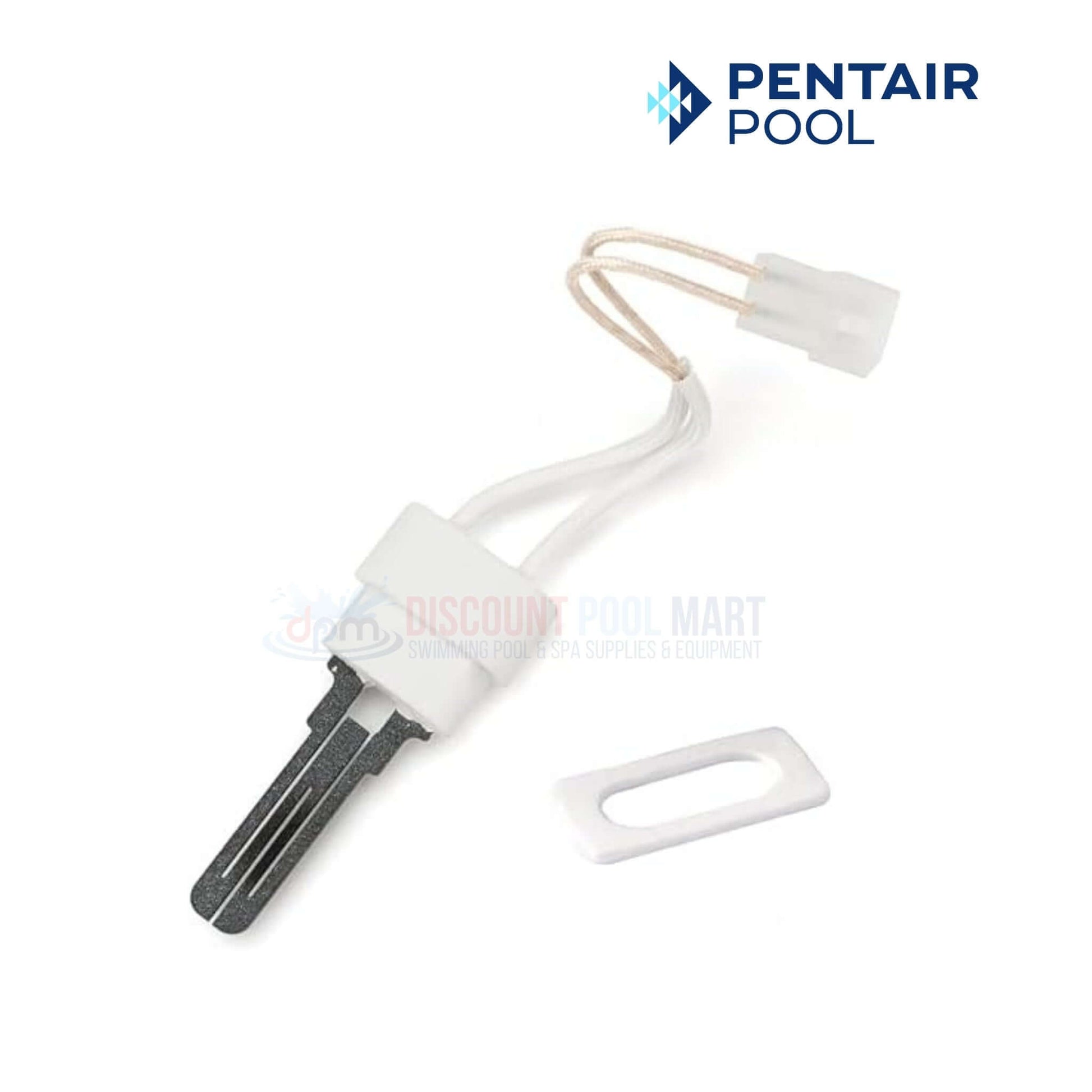

- (1) Pentair 77707-0054 Igniter and Gasket Kit

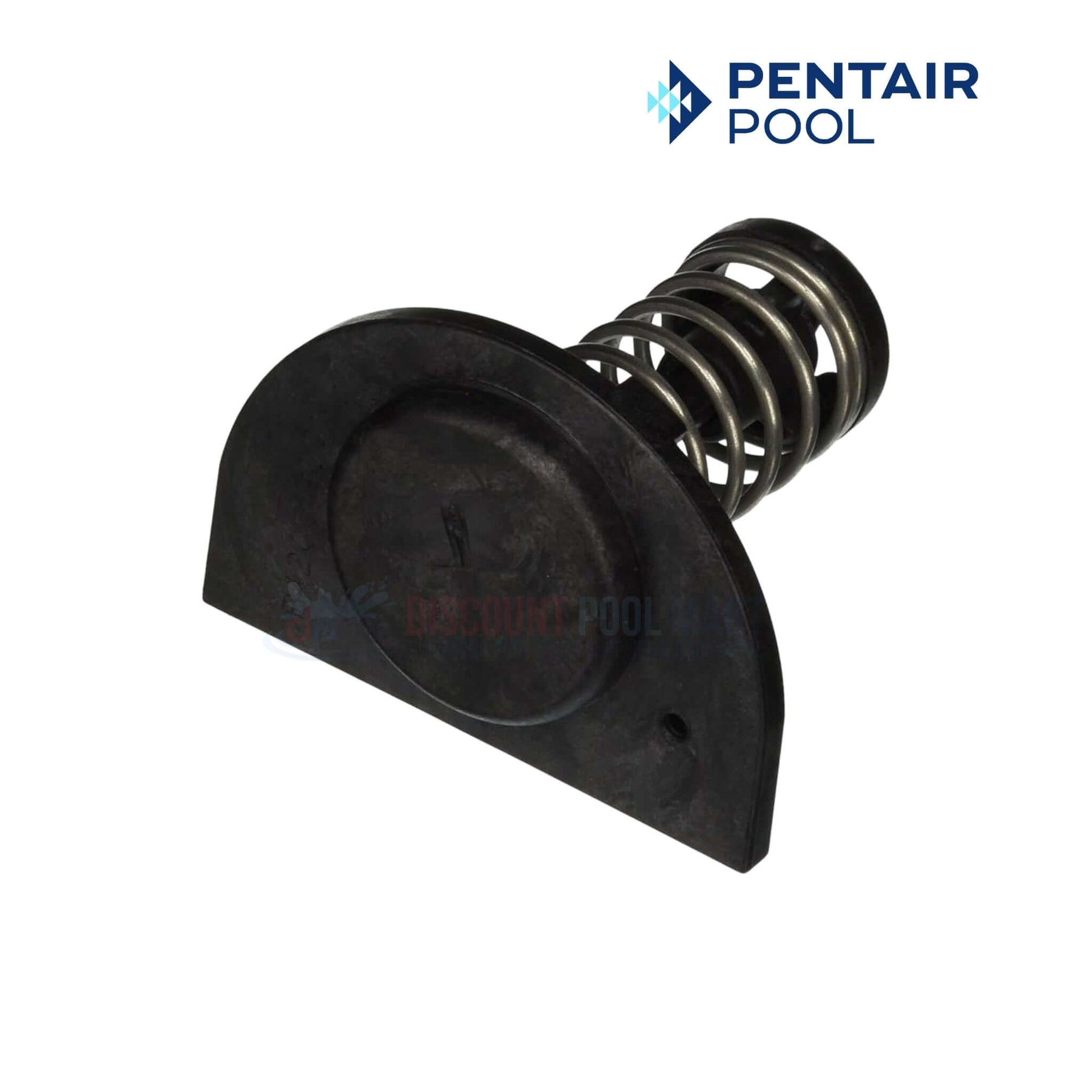

- (1) Pentair 77707-0001 Manifold Bypass Valve

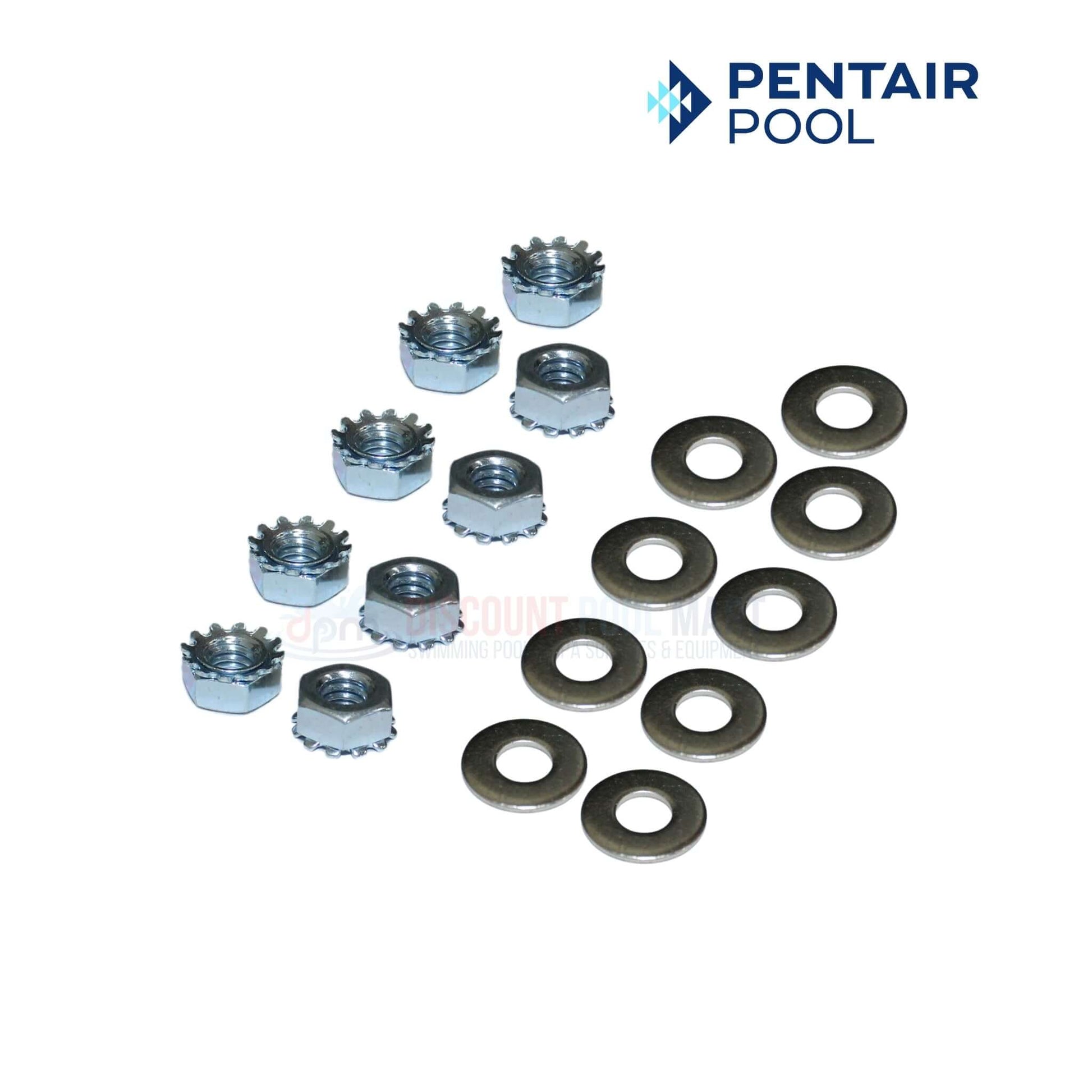

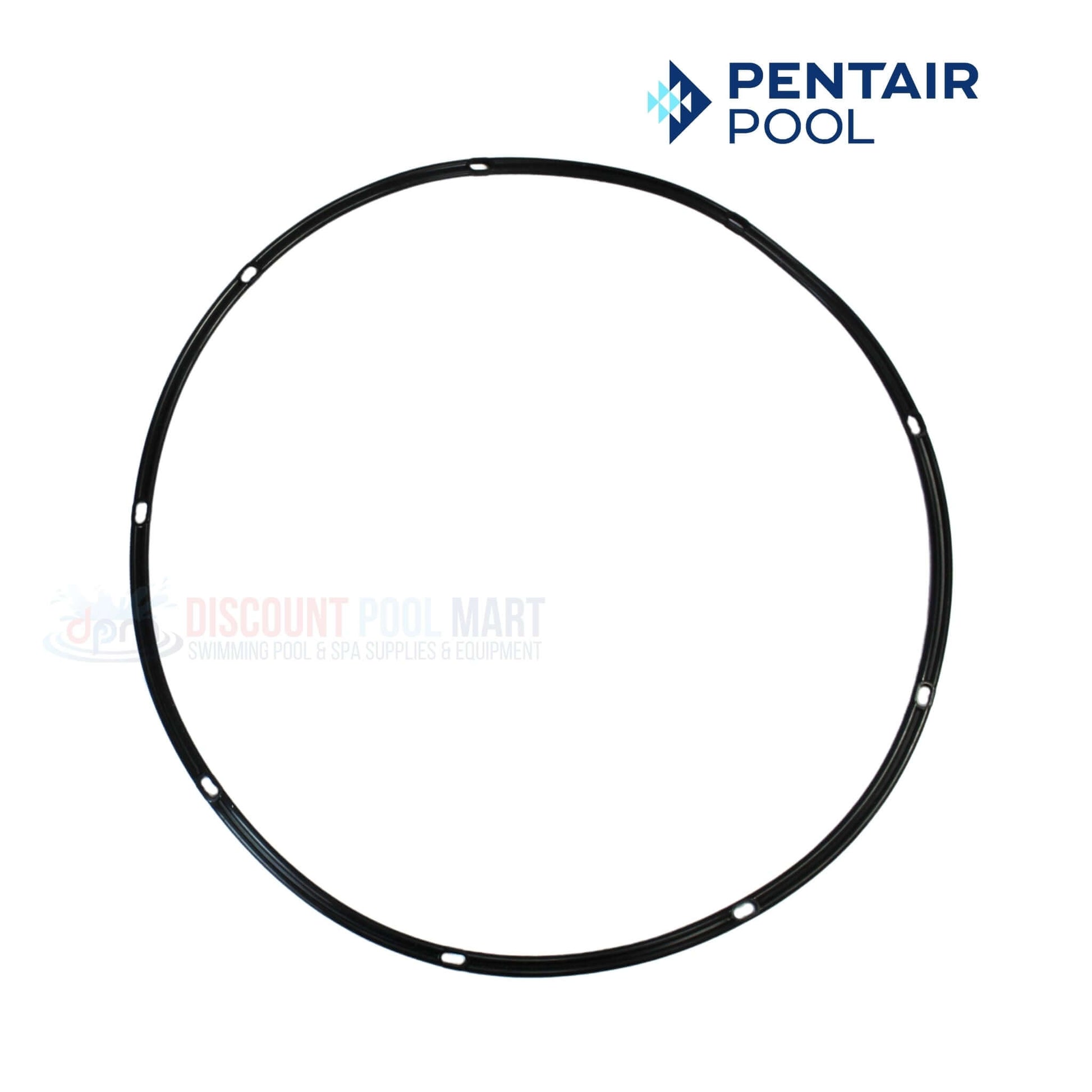

- (1) Pentair 474952 Combustion Chamber Gasket Kit (9 nuts and 9 washers)

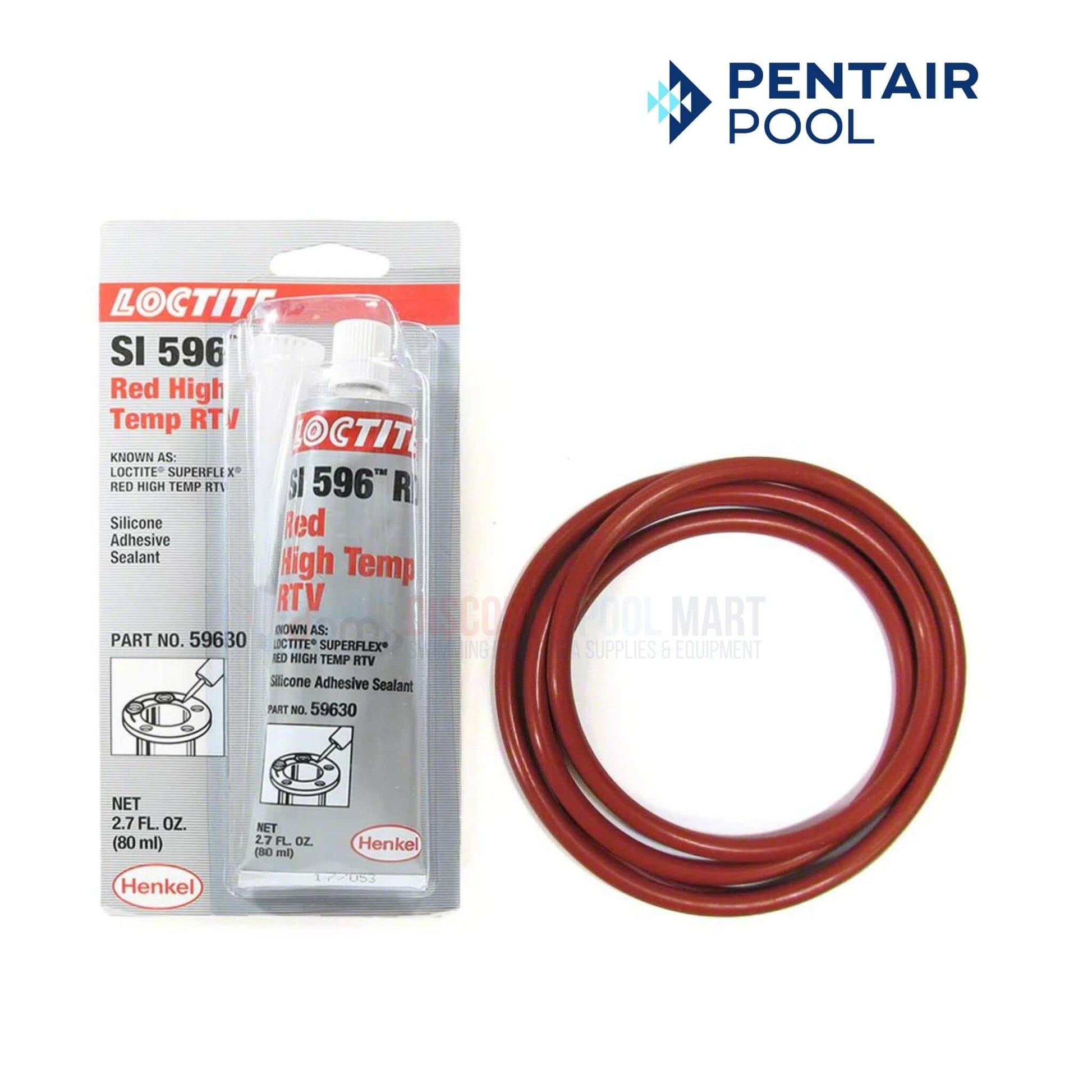

- (1) Pentair 474201 RTV Silicone and Combustion Chamber O-Ring Kit

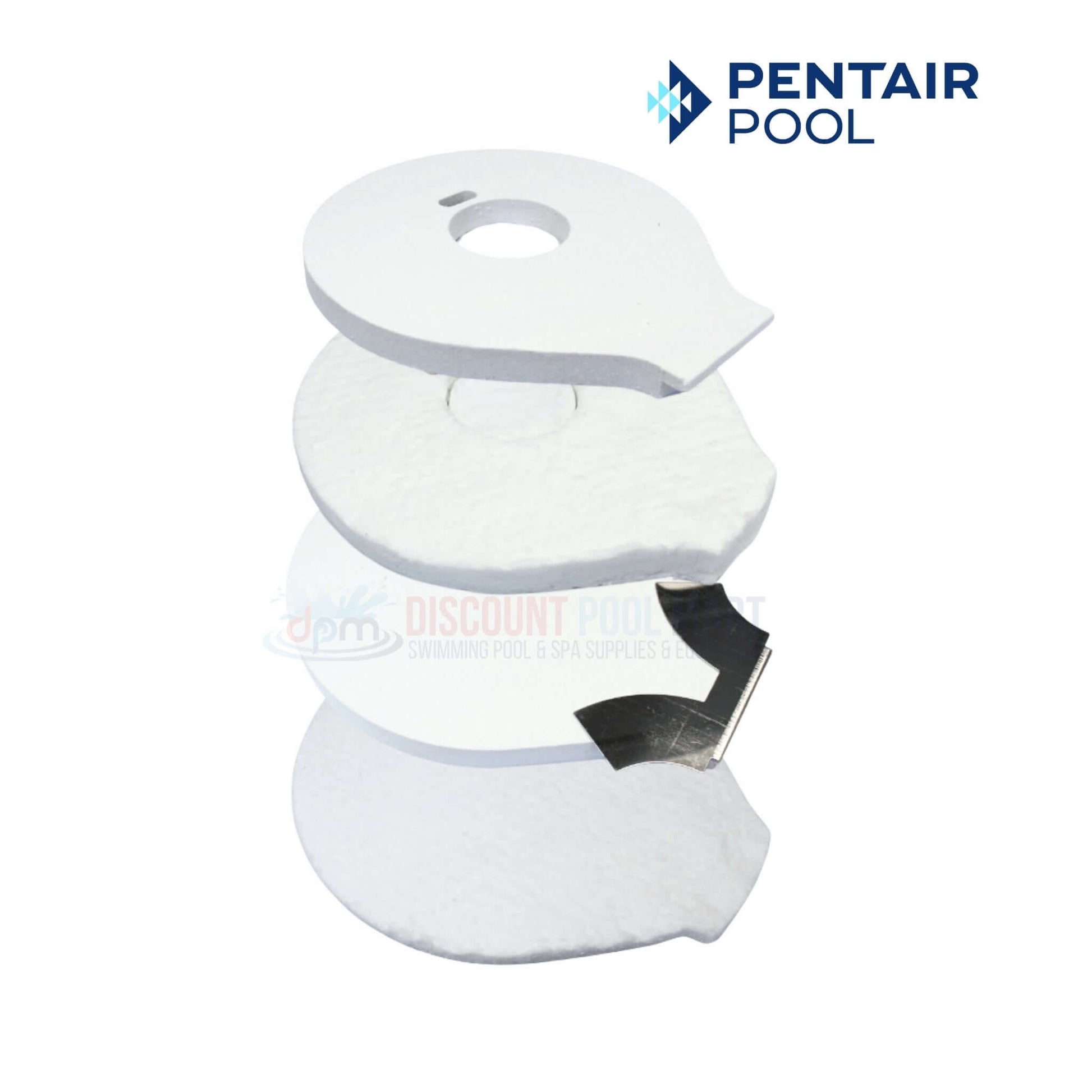

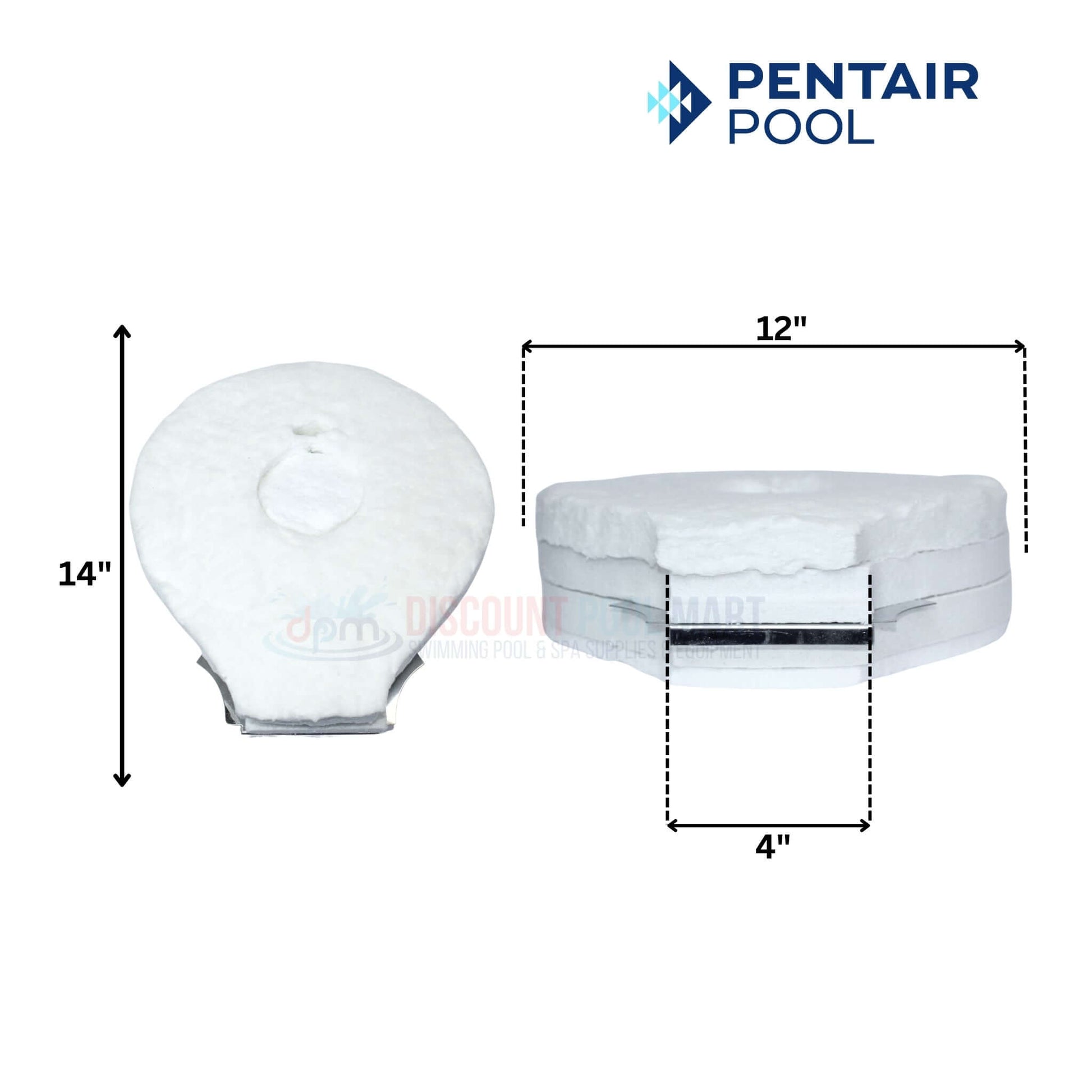

- (1) Pentair 77707-0008 Insulation Kit

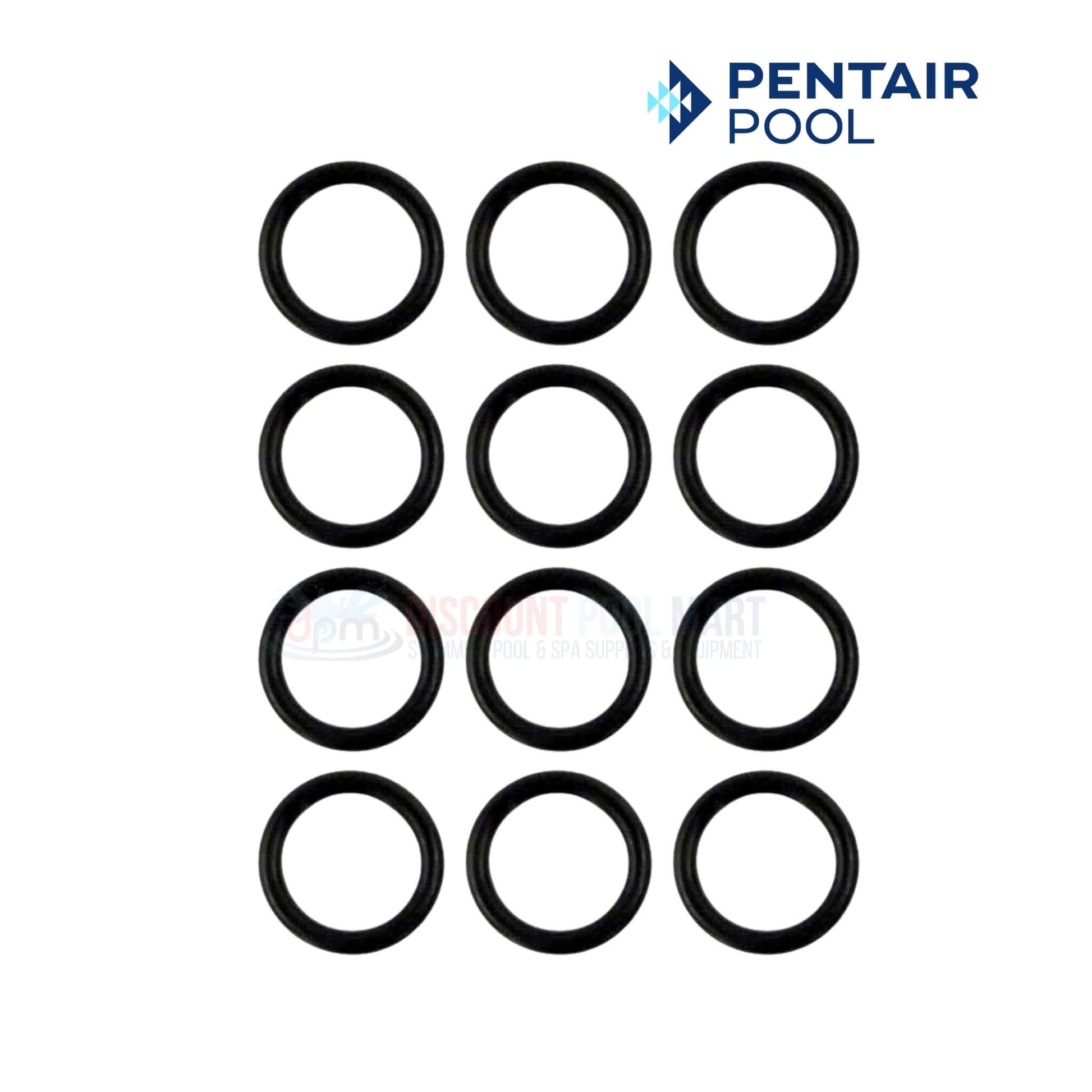

- (6) O-Rings
- Pentair MasterTemp Heaters Models: 400NA, 400LP
- Pentair Sta-Rite Max-E-Therm Heater Model: 400
Note: This tube coil may be compatible with your heater, please refer to your systems owners manual to ensure compatibility.
