Pentair Triton II TR100 Side Mount Sand Filter | EC-140210

Pentair Triton II TR100 Side Mount Sand Filter | EC-140210

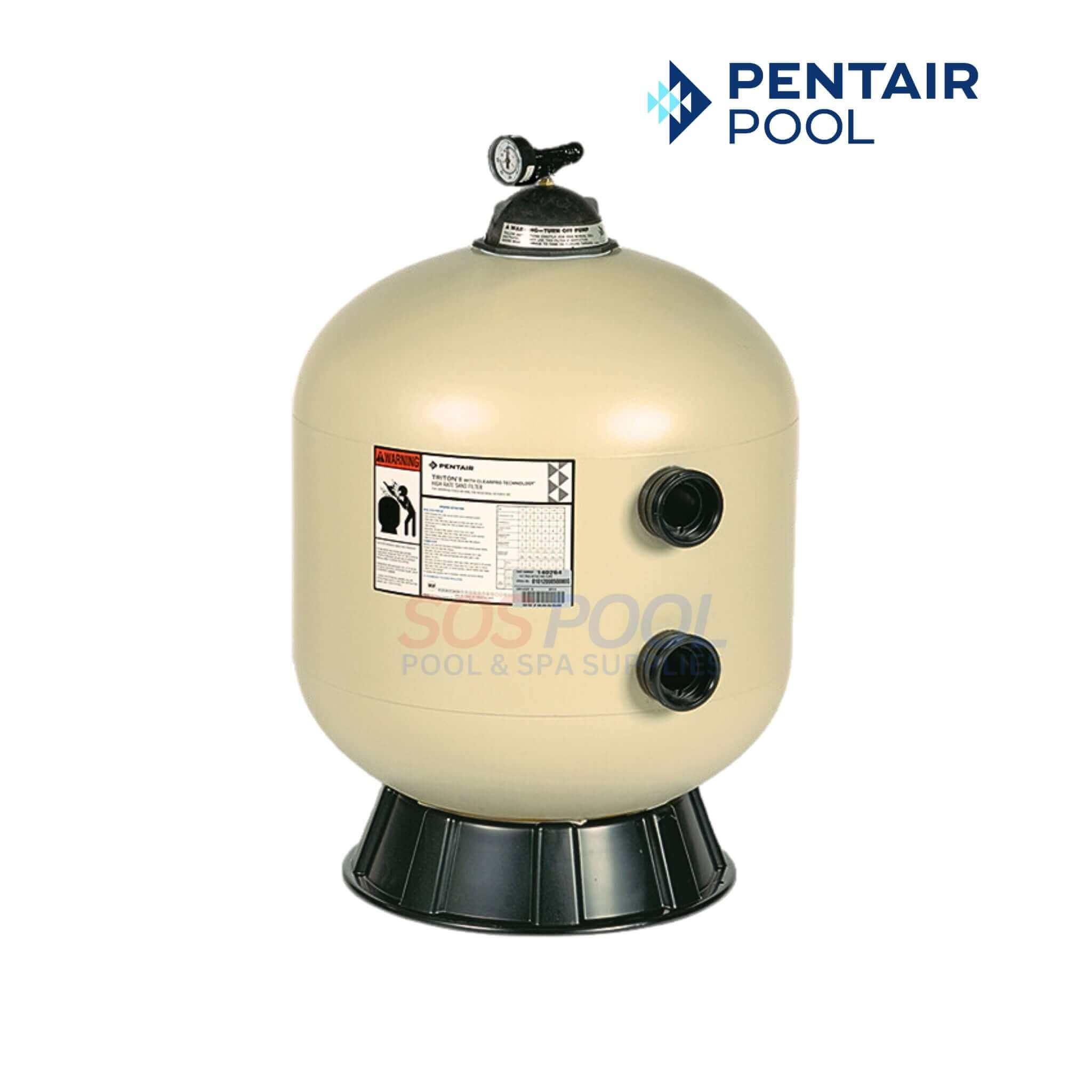

The Pentair Triton II TR100 EC-140210 Sand Filter is a professional-grade fiberglass sand filter built to handle large residential pools and light commercial applications. With 4.91 sq. ft. of effective filtration area, a flow rate of 74 GPM, and a 600 lb. sand capacity, it is designed to deliver maximum water clarity with minimal maintenance. Its GlasLok™ one-piece fiberglass-reinforced tank is finished with a UV-resistant coating, providing exceptional durability against pool chemicals and outdoor elements.

Engineered with Pentair’s time-proven internal design, the TR100 ensures the sand bed remains level for consistent flow and superior filtration. A swing-away water diffuser distributes water evenly across the sand bed, while the heavy-duty closure with a built-in pressure relief valve makes inspection and maintenance easier. The six-position side mount Hi-Flow™ valve allows simple control of all operating functions including filter, backwash, rinse, and waste. Combined with threaded internal components, a combination sand-and-water drain, and long run times between backwashes, the Triton II TR100 delivers reliable performance, extended cycles, and outstanding water clarity season after season.

Key Features of the Pentair Triton II TR100 EC-140210 Filter

• 4.91 Sq. Ft. Filtration Area with 74 GPM Flow: Provides superior filtration capacity sized for large residential pools and light commercial facilities.

• 600 Lb. Sand Capacity: Designed for high-demand systems, supporting long filtration cycles and dependable turnover for larger bodies of water.

• Durable GlasLok™ Tank Construction: Fiberglass-reinforced one-piece tank with UV-resistant finish resists corrosion, chemicals, and outdoor exposure.

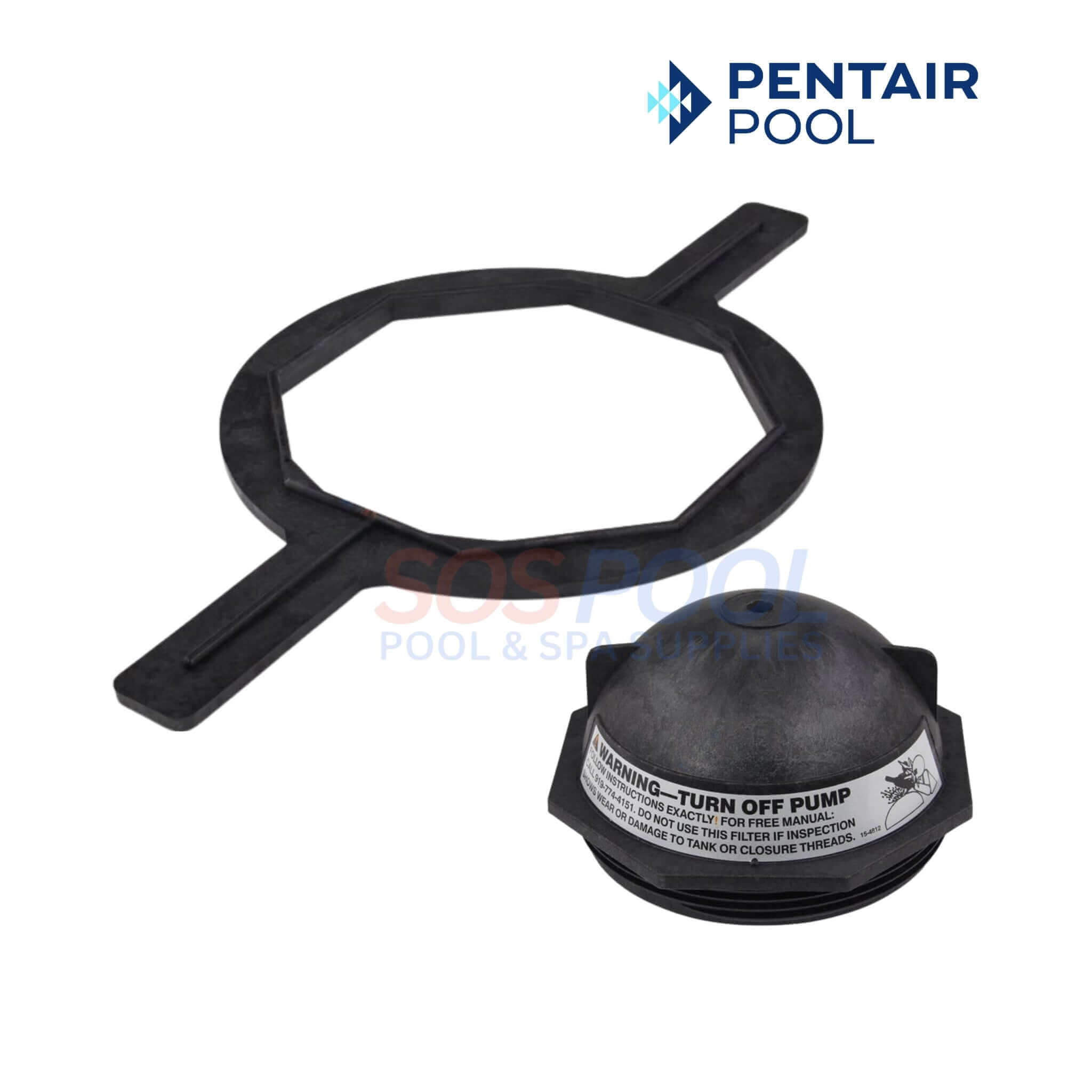

• Heavy-Duty Closure with Relief Valve: Built-in pressure relief valve makes inspection, cleaning, and routine maintenance easier and safer.

• Swing-Away Diffuser Design: Ensures even water distribution across the sand bed, improving clarity and extending filter performance.

• Side Mount Hi-Flow™ Valve: Six-position valve offers easy operation for filter, backwash, rinse, waste, and recirculation modes.

• Threaded Internal Components: Simplifies servicing and replacement without the need for special tools, reducing maintenance time.

• Combination Sand and Water Drain: Allows fast draining for servicing or winterizing, streamlining seasonal care and filter management.

Specifications

• Sand Required: 600 pounds (sold separately)
• Material: Fiberglass
• Flow Rate: Maximum flow rate of 74 gallons per minute (GPM)
• Weight: Approximately 70 pounds
• Filtration Area: 4.91 sq. ft.

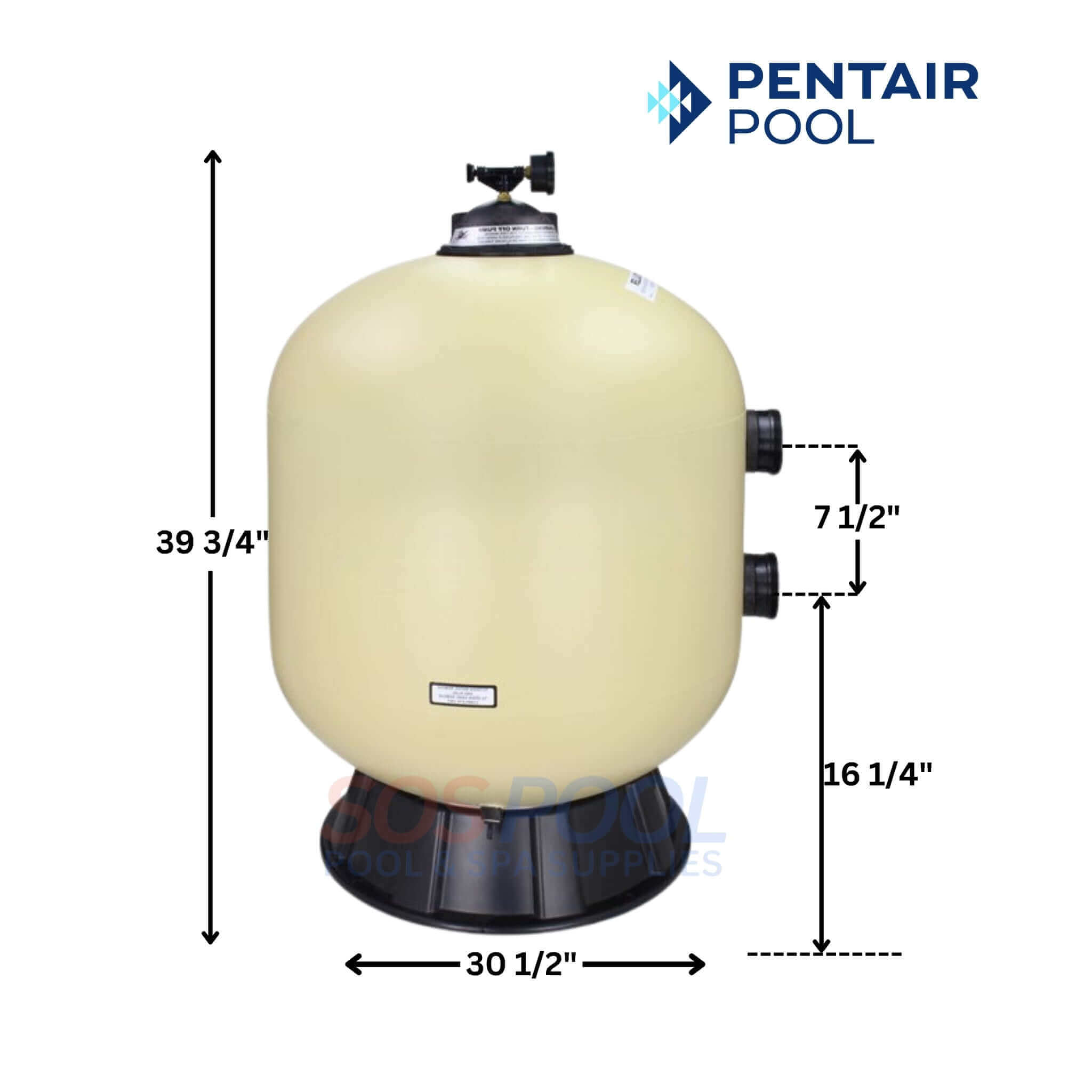

• Dimensions: 30.5" inches in diameter and 39.75" inches in height
• Vertical Clearance: 41.75"
• Maximum Psi: 50 psi

Includes

• (1) Pentair EC-140264 Triton Sand Filter

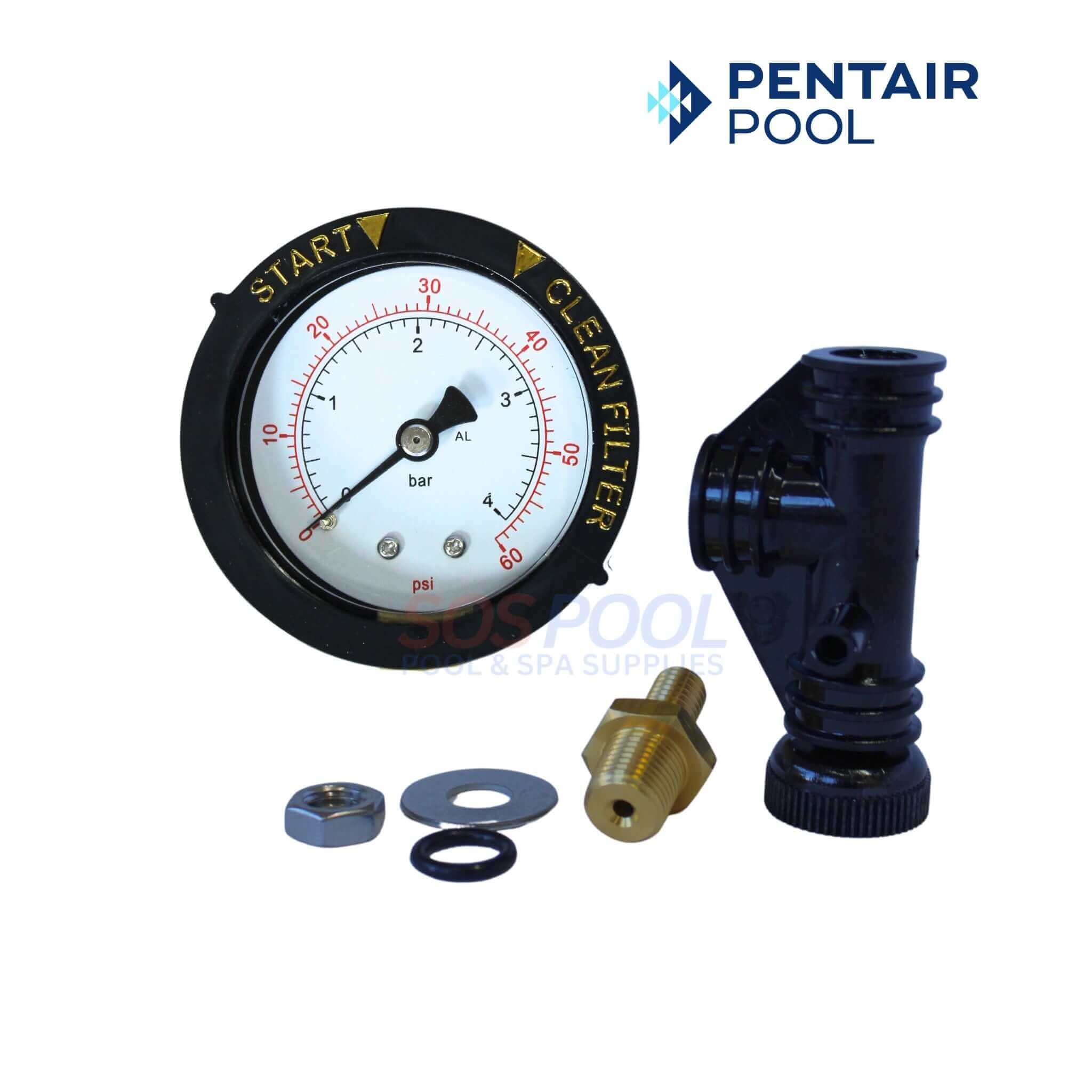

• (1) Pressure Gauge
• (1) Air relief
