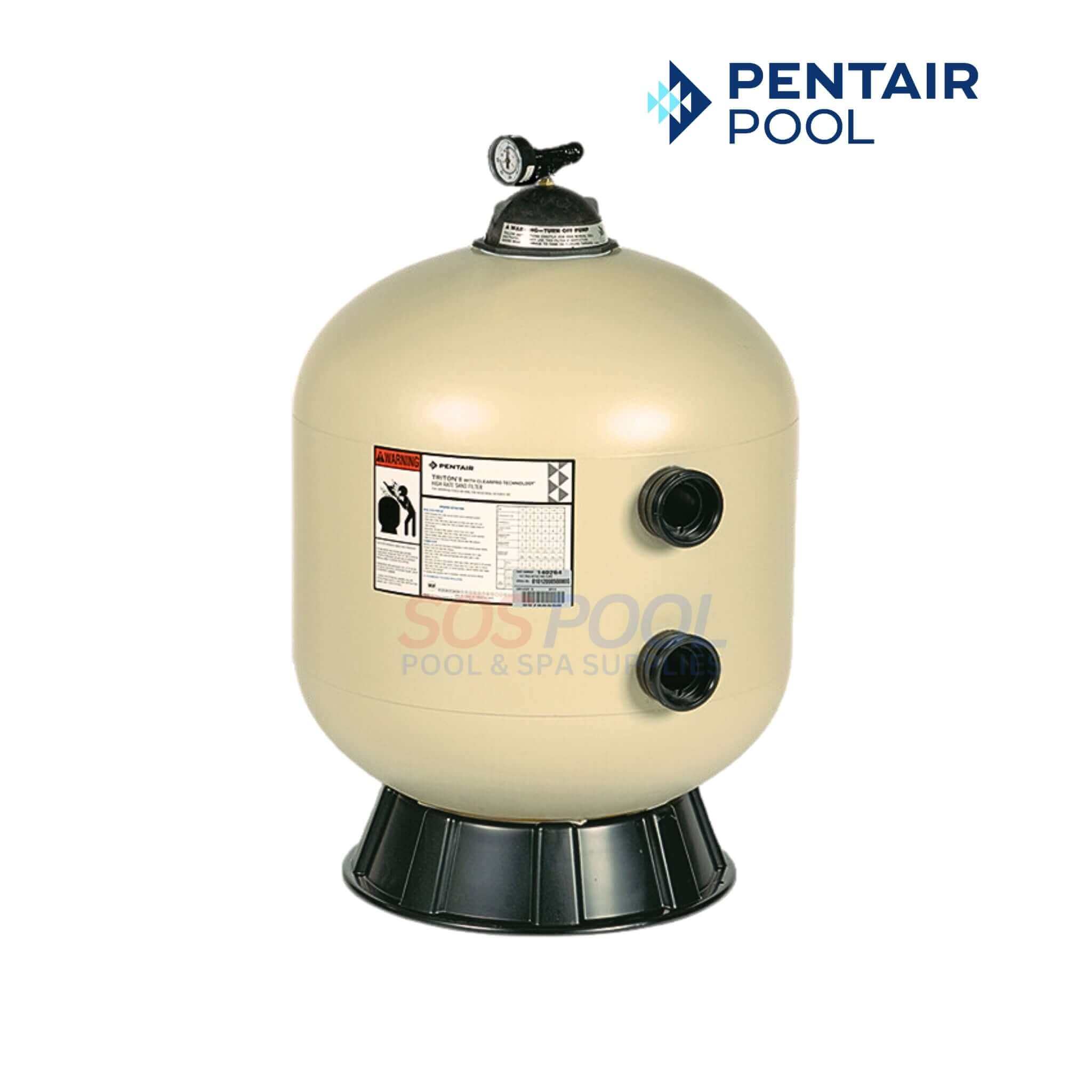

Pentair Triton II TR60 Side Mount Sand Filter | EC-140264

Pentair Triton II TR60 Side Mount Sand Filter | EC-140264

The Pentair Triton II TR60 EC-140264 Sand Filter is one of the industry’s most trusted fiberglass sand filters, engineered for durability and superior water clarity. With a 3.1 sq. ft. filtration area, a flow rate of 63 GPM, and a 325 lb. sand capacity, it is sized for medium-to-large residential pools. The one-piece, UV-resistant fiberglass tank with a baked-on finish ensures long-term reliability, resisting corrosion, pool chemicals, and harsh weather conditions.

Inside the TR60, Pentair’s unique internal design keeps the sand bed level for more efficient filtration and longer cycles between cleanings. The filter’s swing-away water diffuser provides even water distribution across the sand bed, while the 1½" side mount valve makes operation simple. A combination sand and water drain speeds up servicing and winterization, while the all-threaded internal components allow quick, tool-free maintenance. Proven performance and rugged construction make the Triton II TR60 a dependable choice for pool owners seeking lasting clarity.

Key Features of the Pentair Triton II TR60 EC-140264 Filter

• 3.1 Sq. Ft. Filtration Area with 63 GPM Flow: Ideal for medium-to-large residential pools, providing reliable water circulation and superior clarity.

• 325 Lb. Sand Capacity: Sized to handle demanding pool systems, ensuring long filtration cycles with reduced maintenance requirements.

• Durable Fiberglass Tank: One-piece UV-resistant fiberglass tank with a baked-on finish resists corrosion, pool chemicals, and outdoor exposure.

• Efficient Internal Design: Sand bed remains level for maximum debris capture and longer run times between backwashing cycles.

• Swing-Away Diffuser: Directs incoming water evenly across the sand bed, improving filtration efficiency and extending system performance.

• 1½" Side Mount Multi-Port Valve: Simplifies operation with settings for filter, backwash, rinse, waste, and recirculation.

• Threaded Internal Components: Easy to remove and service without tools, making routine maintenance fast and straightforward.

• Combination Water and Sand Drain: Allows quick draining and winterization, reducing service time and simplifying seasonal care.

Specifications

• Sand Required: 325 pounds (sold separately)
• Material: Fiberglass
• Flow Rate: Maximum flow rate of 63 gallons per minute (GPM)
• Weight: Approximately 44 pounds
• Filtration Area: 3.14 sq. ft.

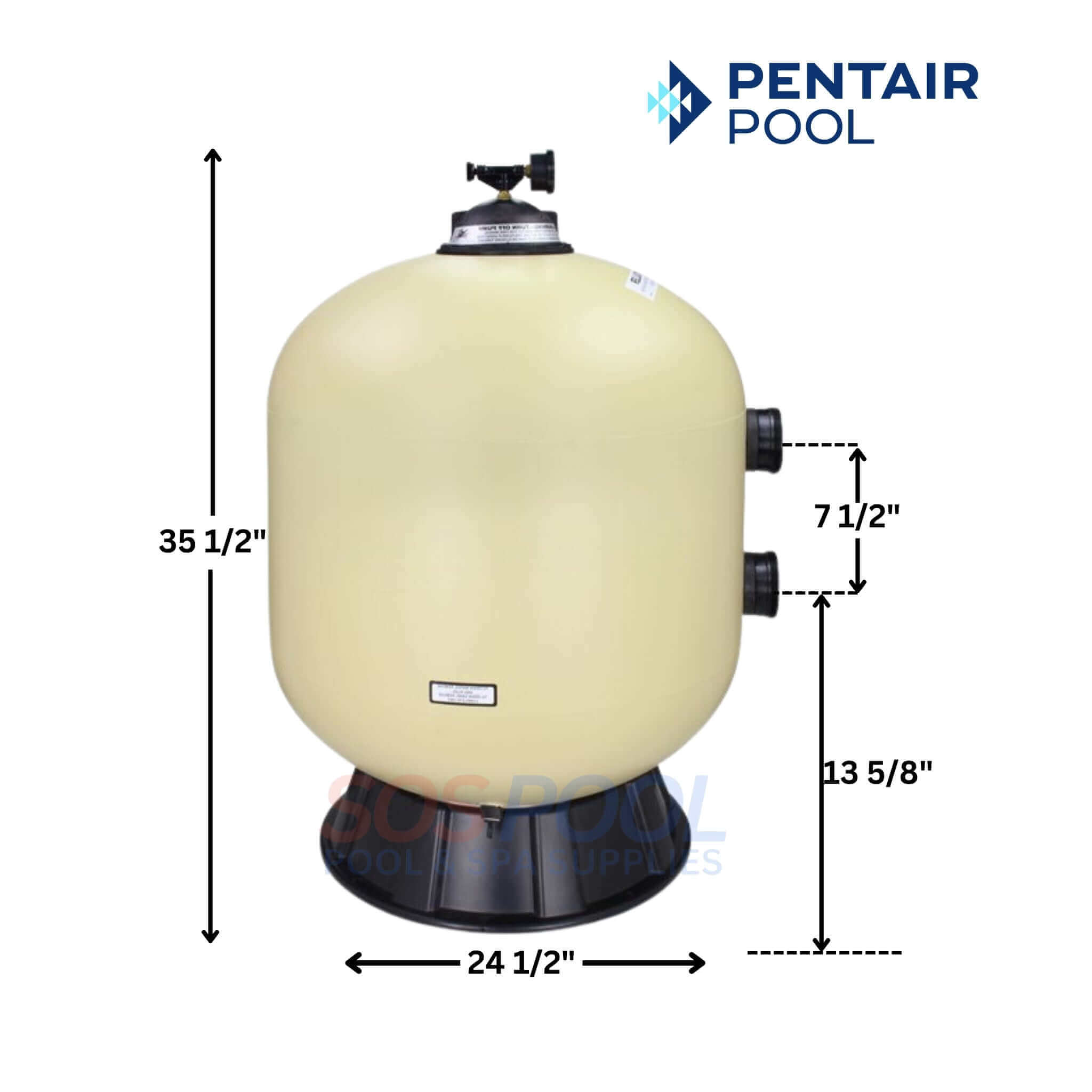

• Dimensions: 24.5" inches in diameter and 35.5" inches in height
• Vertical Clearance: 37.5"
• Maximum Psi: 50 psi

Includes

• (1) Pentair EC-140264 Triton Sand Filter

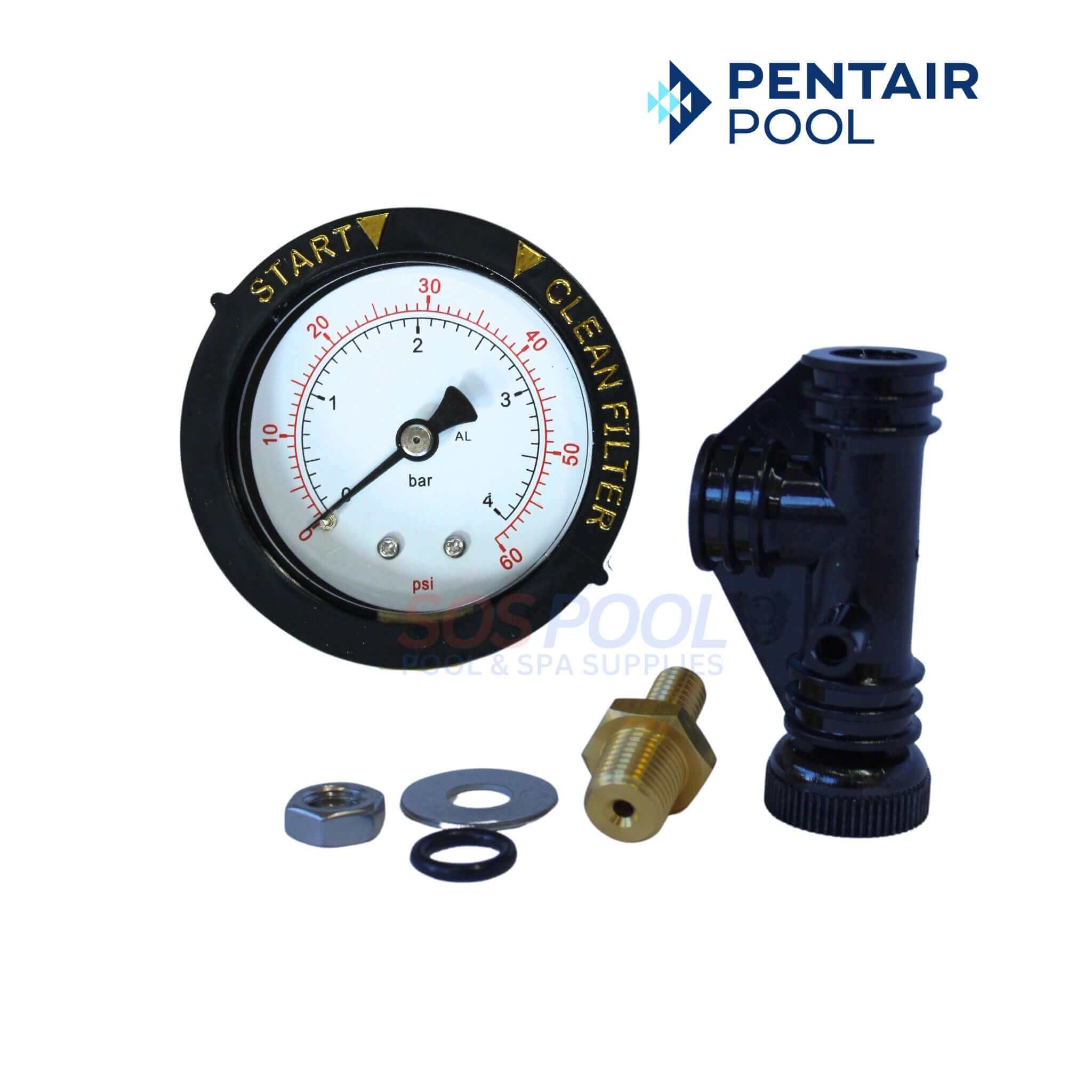

• (1) Pressure Gauge
• (1) Air relief
